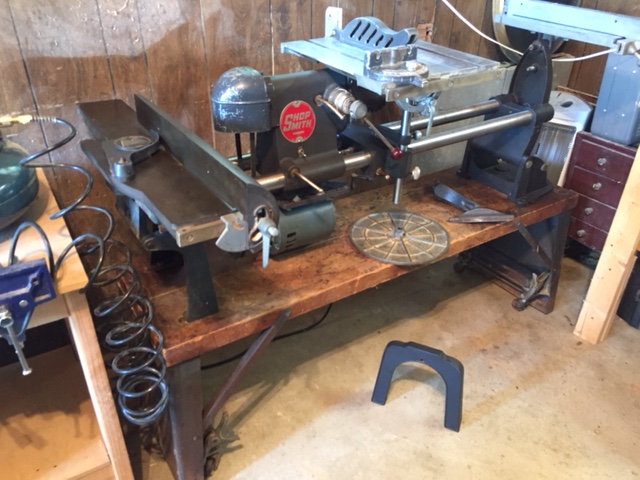

Ok, here are a few pics of my 10ER. It was gifted to me several years ago by a fella at church who was moving and knew I tinkered in my shop. She's has served me well every since! As far as I know everything is original.

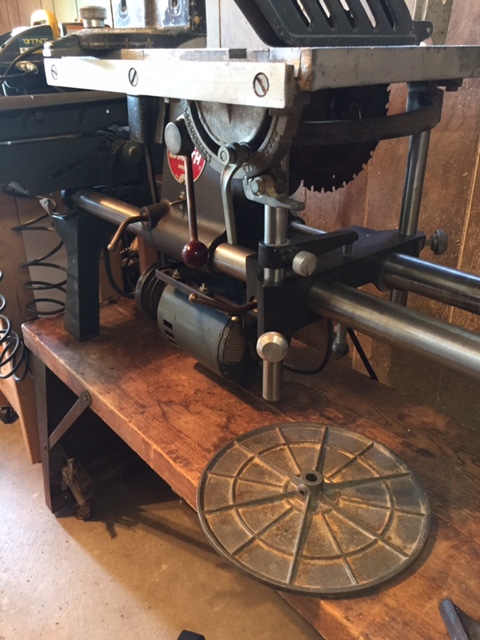

I ordered the blade guard along time ago (and set it in the pic for show) but I never use it. I need to get the mounting bracket straight for it to align with the blade better.
It has the jointer also. I've never removed the jointer nor have I ever taken the unit out of horizontal position. I'm wondering if the jointer will make installing the speed changer a bit more challenging.

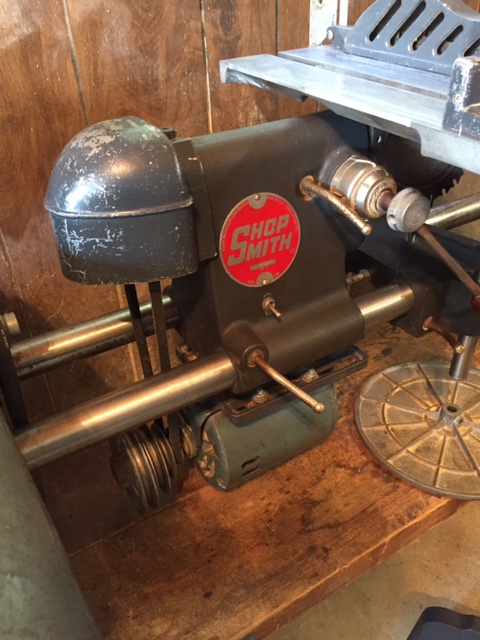

I think the next thing I will do is repaint the belt cover. Is that Krylon Industrial Blue/Grey that most folks use?
brian wrote:Ok, here are a few pics of my 10ER. It was gifted to me several years ago by a fella at church who was moving and knew I tinkered in my shop. She's has served me well every since! As far as I know everything is original.
I ordered the blade guard along time ago (and set it in the pic for show) but I never use it. I need to get the mounting bracket straight for it to align with the blade better.
It has the jointer also. I've never removed the jointer nor have I ever taken the unit out of horizontal position. I'm wondering if the jointer will make installing the speed changer a bit more challenging.
I think the next thing I will do is repaint the belt cover. Is that Krylon Industrial Blue/Grey that most folks use?
Nice. Thanks for the pictures.
I can't say I have used my upper blade guard either. I do have a Mark 5 lower blade guard that I use, but there are some issues.
Not sure about the paint, I am in the process of restoring one now, my third, I am leaning towards painting it two tone, hammered silver for the headstock and hammered pewter for the rest.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
brian wrote:Ok, here are a few pics of my 10ER. It was gifted to me several years ago by a fella at church who was moving and knew I tinkered in my shop. She's has served me well every since! As far as I know everything is original.
I ordered the blade guard along time ago (and set it in the pic for show) but I never use it. I need to get the mounting bracket straight for it to align with the blade better.
It has the jointer also. I've never removed the jointer nor have I ever taken the unit out of horizontal position. I'm wondering if the jointer will make installing the speed changer a bit more challenging.
I think the next thing I will do is repaint the belt cover. Is that Krylon Industrial Blue/Grey that most folks use?
10ER 1.JPG
10ER 2.jpg
10ER 3.jpg

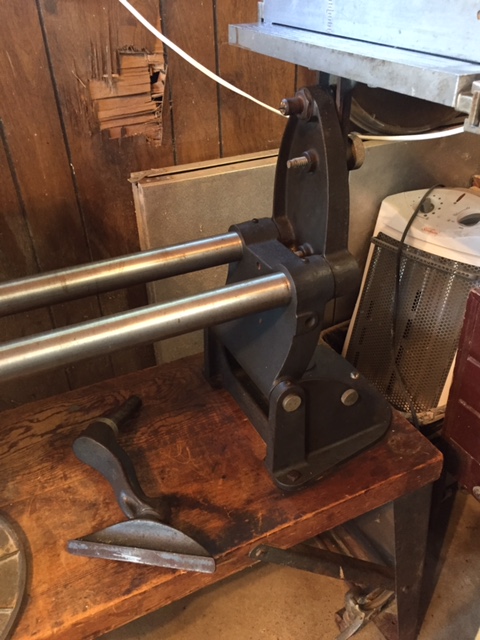

10ER 4.jpg
Yes, that is the closest to the original color. That is the one Skip Campbell recommends short of a custom mix.
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT

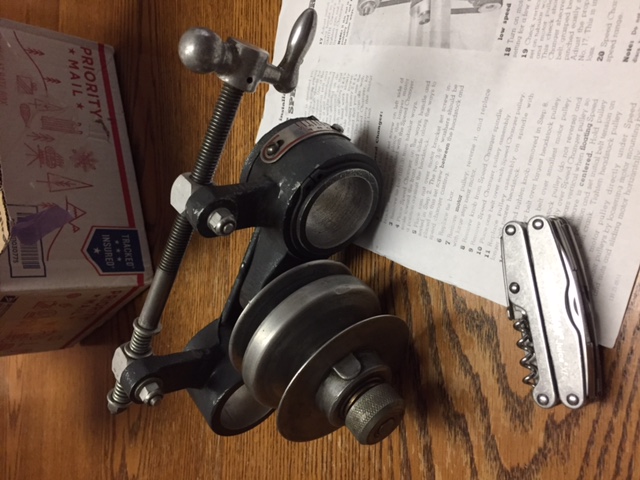

...that moment when the speed changer arrives.... but the belts haven't... nooooooOOOOooooo
Ha. It looks to be in great shape. The center of the pulley (sheath?) can slide left and right.. isn't that what I should check? adjuster knob turns cranks without issue as well. Guess I should stick it on the way bars later when it's not 100 degrees in the shop.
brian wrote:...that moment when the speed changer arrives.... but the belts haven't... nooooooOOOOooooo
Ha. It looks to be in great shape. The center of the pulley (sheath?) sheave (pronounced shiv) can slide left and right.. isn't that what I should check? adjuster knob turns cranks without issue as well. Guess I should stick it on the way bars later when it's not 100 degrees in the shop.
Looking good. Hope the belts get there soon.
Then make something nice for your wife,
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Ok.. So I got it on the way bars... Bars are waxed and headstock slides like butter. SC is a very tight slide. It does slide but not near like I would like. Are there any tips for smoothing that out? Do take it back off and use really high grit sandpaper or anything?
I still haven't hooked to headstock since I want to make that a bit better first.

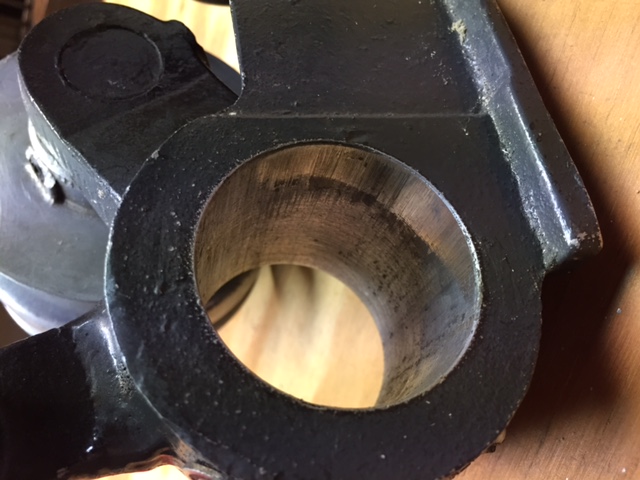

It is possible that the repair (weld) caused a slight misalignment. If it were mine I would colour the insides of the two bores with a marker pen, then slide it back and forth on the way tubes. Where the maker rubbed off would show where it is rubbing (too tight). Then work on just those areas with the sandpaper. "Rinse and repeat" till it slides smoothly.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
I would have expected some binding on the opposite end/side/bore also.
You 'finished' the repair!!!
╔═══╗

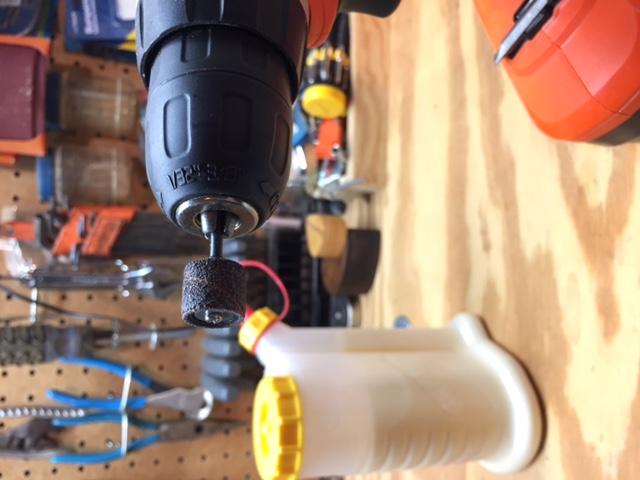

╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Thanks for the pictures.
Hope the belts get there soon.
