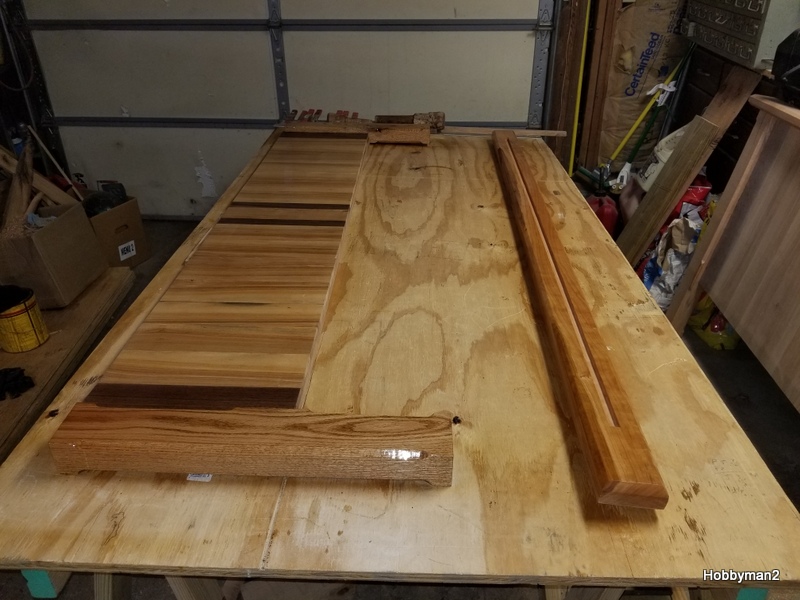

- 20171005_124018.jpg (175.89 KiB) Viewed 9514 times
bed build
Moderator: admin
Re: bed build
Playing round with the finish wasn't sure if I should finish with satin high gloss or semi gloss . looks like semi gloss wins .
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: bed build

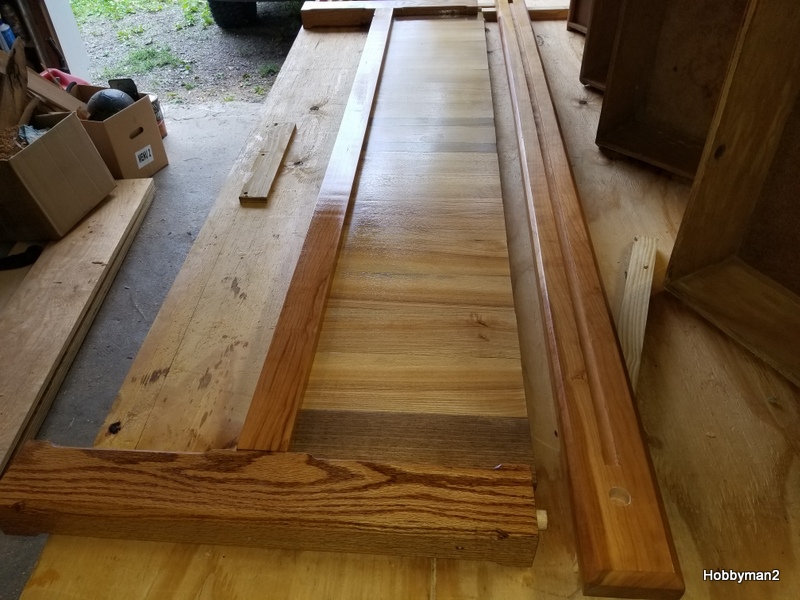

- 20171006_173702.jpg (191.75 KiB) Viewed 9477 times

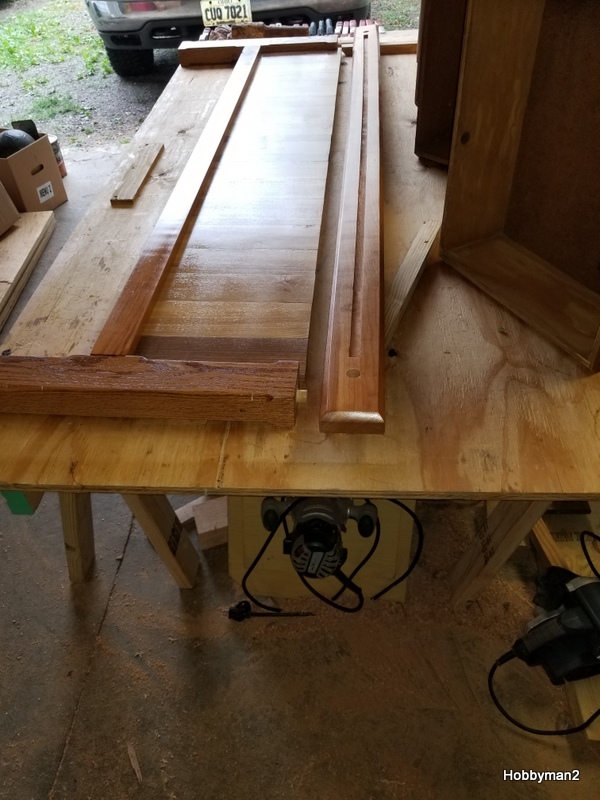

- 20171006_173814.jpg (185.89 KiB) Viewed 9477 times

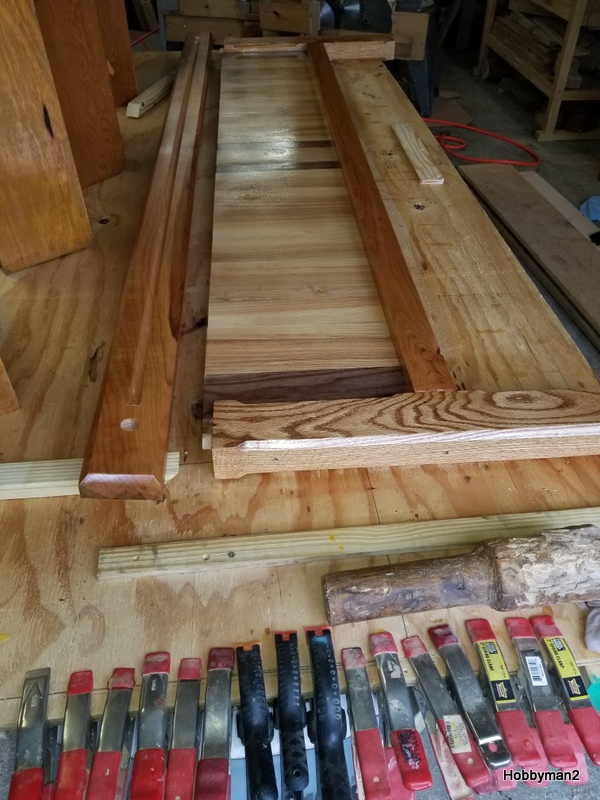

- 20171006_173901.jpg (206.05 KiB) Viewed 9477 times
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: bed build

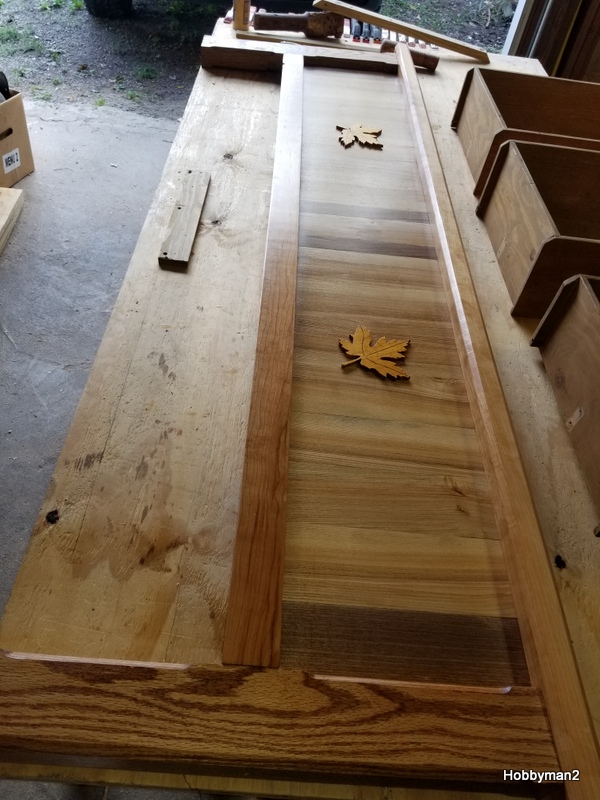

- 20171007_113607.jpg (201.39 KiB) Viewed 9444 times

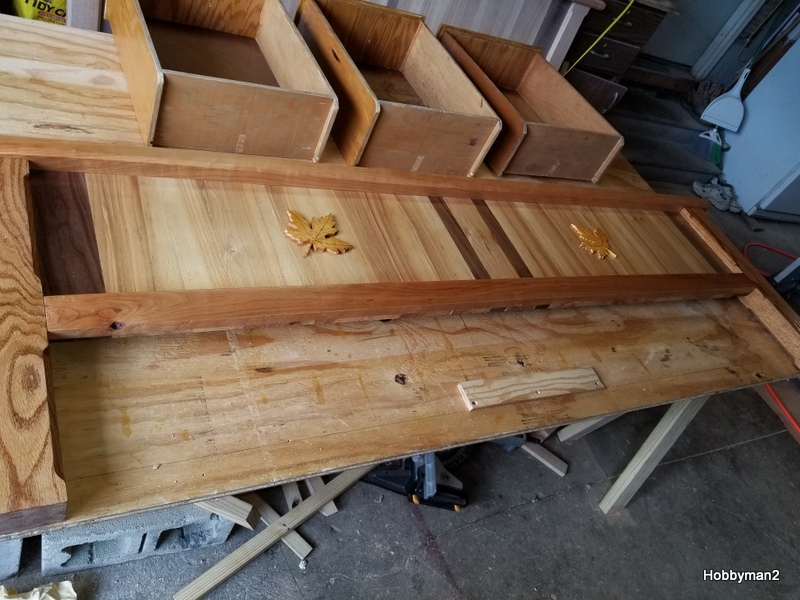

- 20171007_113620.jpg (208.69 KiB) Viewed 9444 times
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: bed build
Looking most excellent.
-
rjent
- Platinum Member
- Posts: 2121
- Joined: Fri Mar 14, 2014 3:00 pm
- Location: Hot Springs, New Mexico
Re: bed build
Isn't the center panel going to expand and contract a lot? Have you made provisions for that? I am just spit balling here, but just curious if you calculated for that....
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
Re: bed build
Unread postby rjent » Sat Oct 07, 2017 6:54 pm
Isn't the center panel going to expand and contract a lot? Have you made provisions for that? I am just spit balling here, but just curious if you calculated for that.
==========
I hope ,,the head board is the one that worry's me ,,its pretty big ,,the bottom is just trim,,, not a full rabbit .if any thing the trim may come loose in a few years ,,,the long rabbit in the top is only glued in a few places allowing for room to move,, the ends are pegged and glued to the top as you seen in the photo's . the moisture content of the wood was sealed with a polyurethane finish @ 6% .
Isn't the center panel going to expand and contract a lot? Have you made provisions for that? I am just spit balling here, but just curious if you calculated for that.
==========
I hope ,,the head board is the one that worry's me ,,its pretty big ,,the bottom is just trim,,, not a full rabbit .if any thing the trim may come loose in a few years ,,,the long rabbit in the top is only glued in a few places allowing for room to move,, the ends are pegged and glued to the top as you seen in the photo's . the moisture content of the wood was sealed with a polyurethane finish @ 6% .
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: bed build
I was wanting to carve out a hunter and a pair of dogs jumping up a pheasant on the foot board but she said no , she still debating on the leaves .
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
Re: bed build
I said I could do a pair of coon dogs treeing a raccoon ,,,,ahhh,,,,, she wouldn't go for it either,,,,
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
- General George S. Patton (1885-1945)
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: bed build
It is not the length of those boards that will move(shrink/expand), but the width. Each of those boards will move almost simultaneously(over a long time span). Grain orientation in each board will vary. Quater sawn will be the worst.(rings run from face to face)
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: bed build
You are 100% correct ,, they do that from humidity from my knowledge , when the board absorbs humidity it grows, when it dry's it shrinks, since 6% is about a low as it can go,,,, fingers crossed it will be good ,,,,,I got into a rush years ago making a raised panel cabinet door out of a mix of woods,, ,, I was 1 piece shot ,,so I put in a piece of wood at 8% moisture and the rest were around 6% ,even though the door panel was floating,, no glue,, the board split after a coupe years .
