Re: Mark V headstock repair
Posted: Wed Jul 11, 2018 8:37 am
by dusty
We must not loose sight of the fact that "production line changes" are not always implemented on every unit on the line. Many times changes get phased in simply to consume existing parts inventory.
Re: Mark V headstock repair
Posted: Wed Jul 11, 2018 2:17 pm
by RufusVendor
I bought both screws from Shopsmith (they were only $ .99) to see what I was looking at.

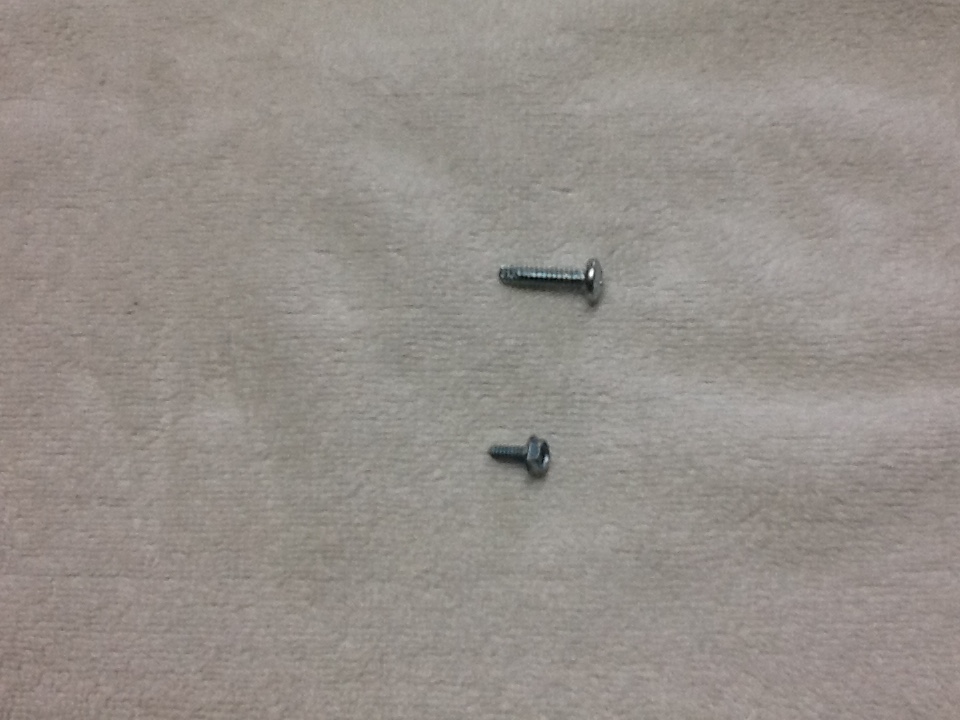

- screws.JPG (176.58 KiB) Viewed 3902 times
The bottom 3/8 inch screw is what I removed from eccentric bushing
holding the idler in the housing with the ears

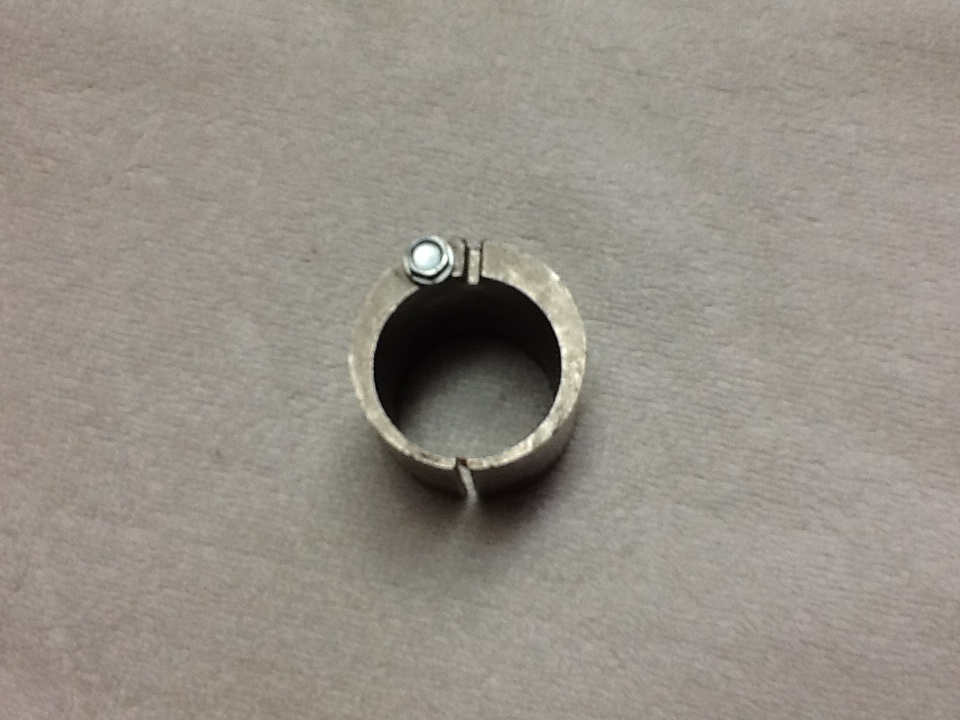

- eccentric bushing.JPG (177.84 KiB) Viewed 3902 times

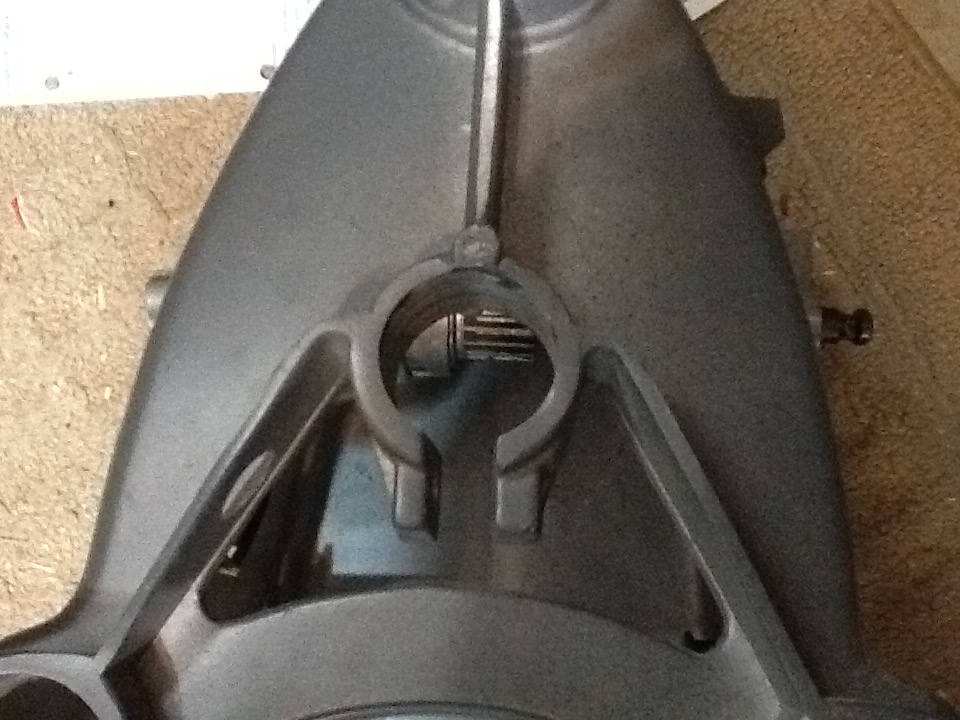

- Housing with ears.JPG (181.14 KiB) Viewed 3902 times

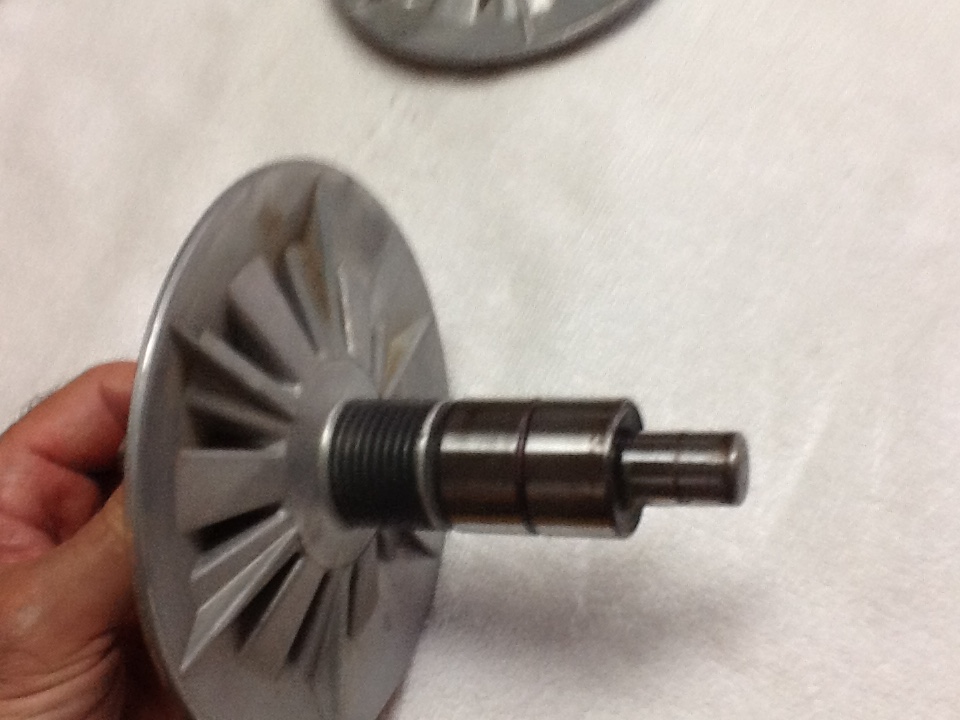

Here is the idler
- idler.JPG (173.3 KiB) Viewed 3902 times
(I didn't remove the key and the sheave.)
From the first picture from Everett, it looks like the top 3/4 inch screw served the same purpose in another configuration.
This clears up alot.
Thanks for all the help!
Re: Mark V headstock repair
Posted: Thu Jul 12, 2018 6:07 pm
by RufusVendor
Re: Mark V headstock repair
Post by RufusVendor ยป Wed Jul 11, 2018 2:17 pm
I bought both screws from Shopsmith (they were only $ .99) to see what I was looking at.
The bottom 3/8 inch screw is what I removed from eccentric bushing
holding the idler in the housing with the ears
eccentric bushing.JPG
eccentric bushing.JPG (177.84 KiB) Viewed 24 times
Housing with ears.JPG
Housing with ears.JPG (181.14 KiB) Viewed 24 times
Here is the idler
(I didn't remove the key and the sheave.)
From the first picture from Everett, it looks like the top 3/4 inch screw served the same purpose in another configuration.
This clears up alot.
Thanks for all the help!
Re: Mark V headstock repair
Posted: Thu Jul 12, 2018 6:17 pm
by RufusVendor
ARRRGGG. The pictures didn't download properly. I'll try again.
I bought both screws from Shopsmith (they were only $ .99) to see what I was looking at.
- screws.JPG (176.58 KiB) Viewed 3877 times
The bottom 3/8 inch screw is what I removed from eccentric bushing holding the idler in the housing with the ears
- eccentric bushing.JPG (177.84 KiB) Viewed 3877 times
- Housing with ears.JPG (181.14 KiB) Viewed 3877 times
Here is the idler
- idler.JPG (173.3 KiB) Viewed 3877 times
(I didn't remove the key and the sheave.)
From the first picture from Everett, it looks like the top 3/4 inch screw served the same purpose as the 3/8 inch screw in another configuration.
This clears up alot.
Thanks for all the help!
Re: Mark V headstock repair
Posted: Fri Jul 13, 2018 9:15 am
by JPG
IIUC the two screws serve two different purpose.
The hex head screw prevents the BEARING from exiting out the rear of the eccentric.
The pan head screw prevents the ECCENTRIC from exiting the headstock.
Belt pressure against the idler sheave pushes the stuff out. The screws provide a limit.
