Re: Inspirational workshop layout

Post by robinson46176 »

BuckeyeDennis wrote: But there’s nothing to stop me from putting french cleats on top of my pegboard walls.

My biggest problem is that I have a bunch of stuff in my workshop that really doesn’t need to be there. Job one is to get that stuff moved somewhere else, or get rid of it.

Both good observations. :)
That second one is my constant curse... :rolleyes: :rolleyes: :rolleyes: :rolleyes:
That and my shops are combinations of shops. My farm shop isn't just a tractor and implement shop, it's kind of "all things mechanical" sort of thing. It's auto, trucks, tractors, a small engine shop... Sections are a tire and battery shop, welding and blacksmithing, machine shop and tool groupings for electrical work, general construction work including concrete and masonry work, plumbing etc. etc.
My wood shop also has a section for upholstery and leather working (heavy on sewing equipment). I also keep 6 of my chainsaws and my roofing nail gun and framing nail gun in the wood shop, parked with my finish nailer, brad nailers and long staple nailer just because it is a much better environment to store them.
Lumber is every where in small batches...
The time has come to start thinning "stuff" out...


.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
john_001
Gold Member
Posts: 250
Joined: Wed Mar 16, 2011 8:28 pm
Location: Chester, NJ

Re: Inspirational workshop layout

Post by john_001 »

Pretty impressive. Now if he had a Shopsmith, he could get rid of the little table saw and the benchtop drill press, disk sander and lathe and have even more room - just sayin' ... ;)
User avatar
moggymatt
Platinum Member
Posts: 638
Joined: Mon Jul 12, 2010 6:36 pm
Location: Spokane, WA

Re: Inspirational workshop layout

Post by moggymatt »

So many good ideas in one video.
Paul B
Tenfingers
Gold Member
Posts: 21
Joined: Sun Jun 09, 2019 3:23 pm

Re: Inspirational workshop layout

Post by Tenfingers »

BuckeyeDennis wrote:If you're like me, and need to make better use of available workshop space, this video should inspire you. The guy has a well-equipped and useable power-tool workshop in a 8' x 6' outbuilding!

It's made possible by outstanding organization. I think the guy must have made his living as a lean-manufacturing consultant ... or maybe he's just an unusually-talented natural neat-freak.

It's also an exceptionally well-done video. Check it out:

[youtube]https://www.youtube.com/watch?v=gCtRWwvGHeY[/youtube]

Zero carbon jointer.... Fantastic
User avatar
SkullsquadronX
Gold Member
Posts: 143
Joined: Fri Apr 26, 2019 10:43 am
Location: Honesdale, Pennsylvania

Re: Inspirational workshop layout

Post by SkullsquadronX »

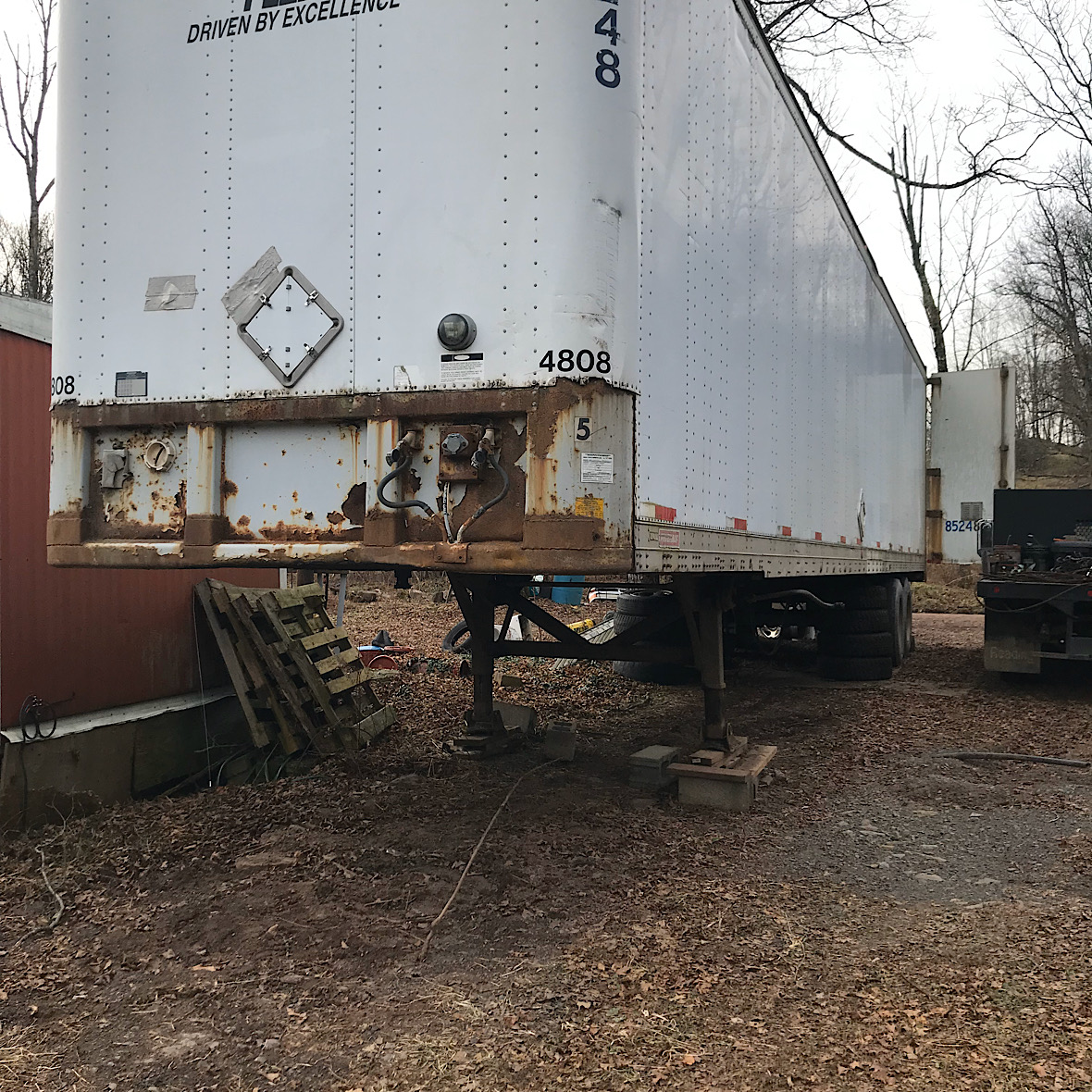

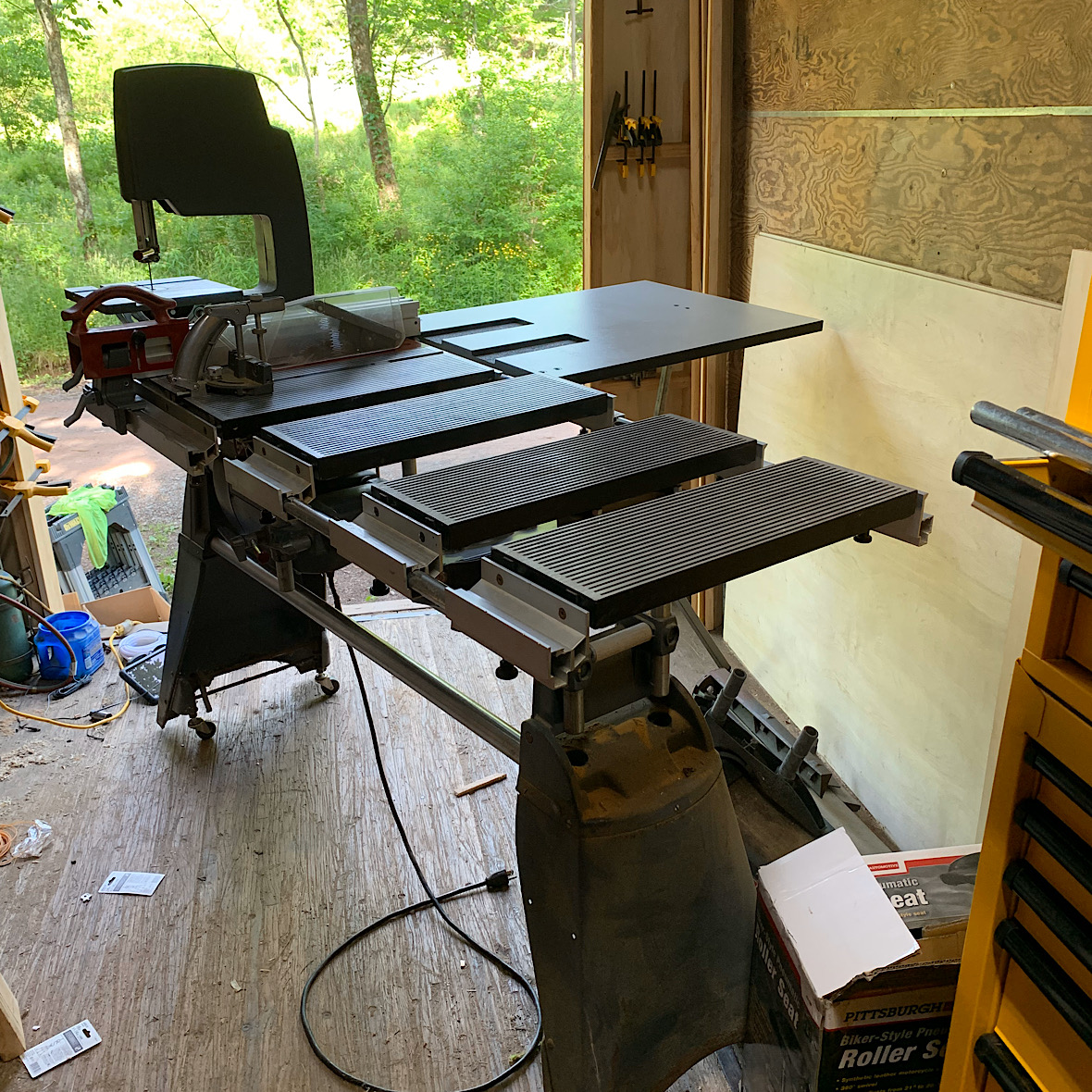

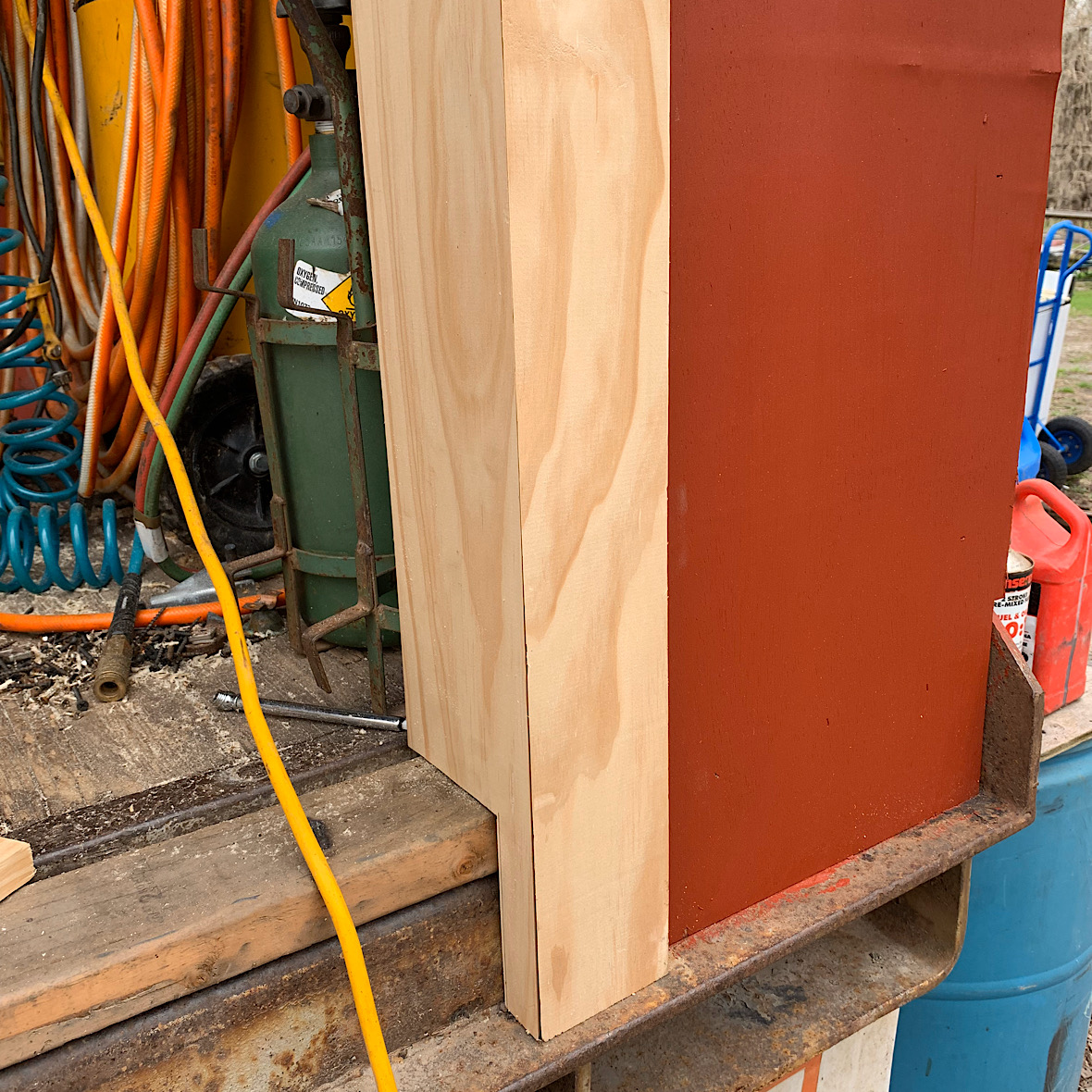

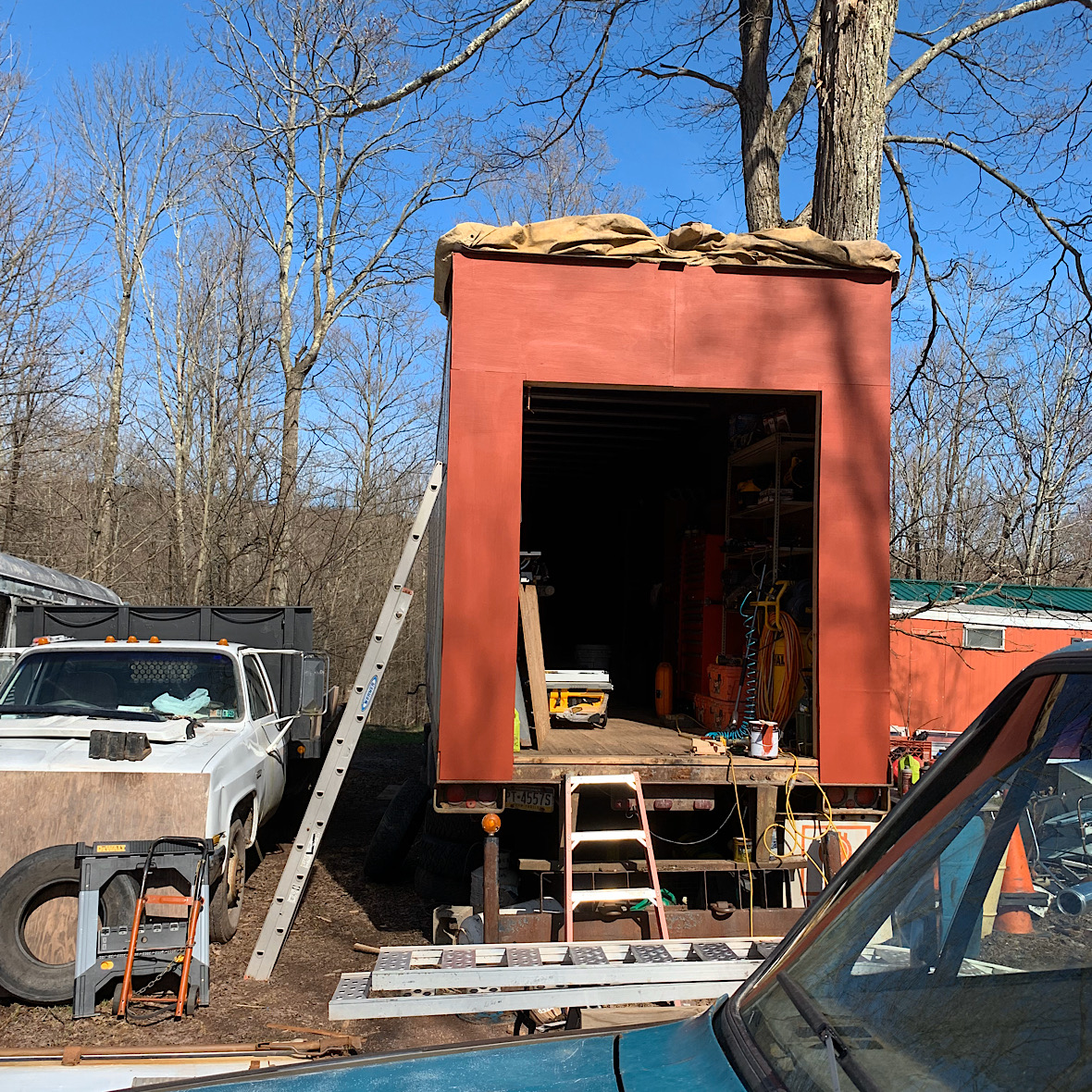

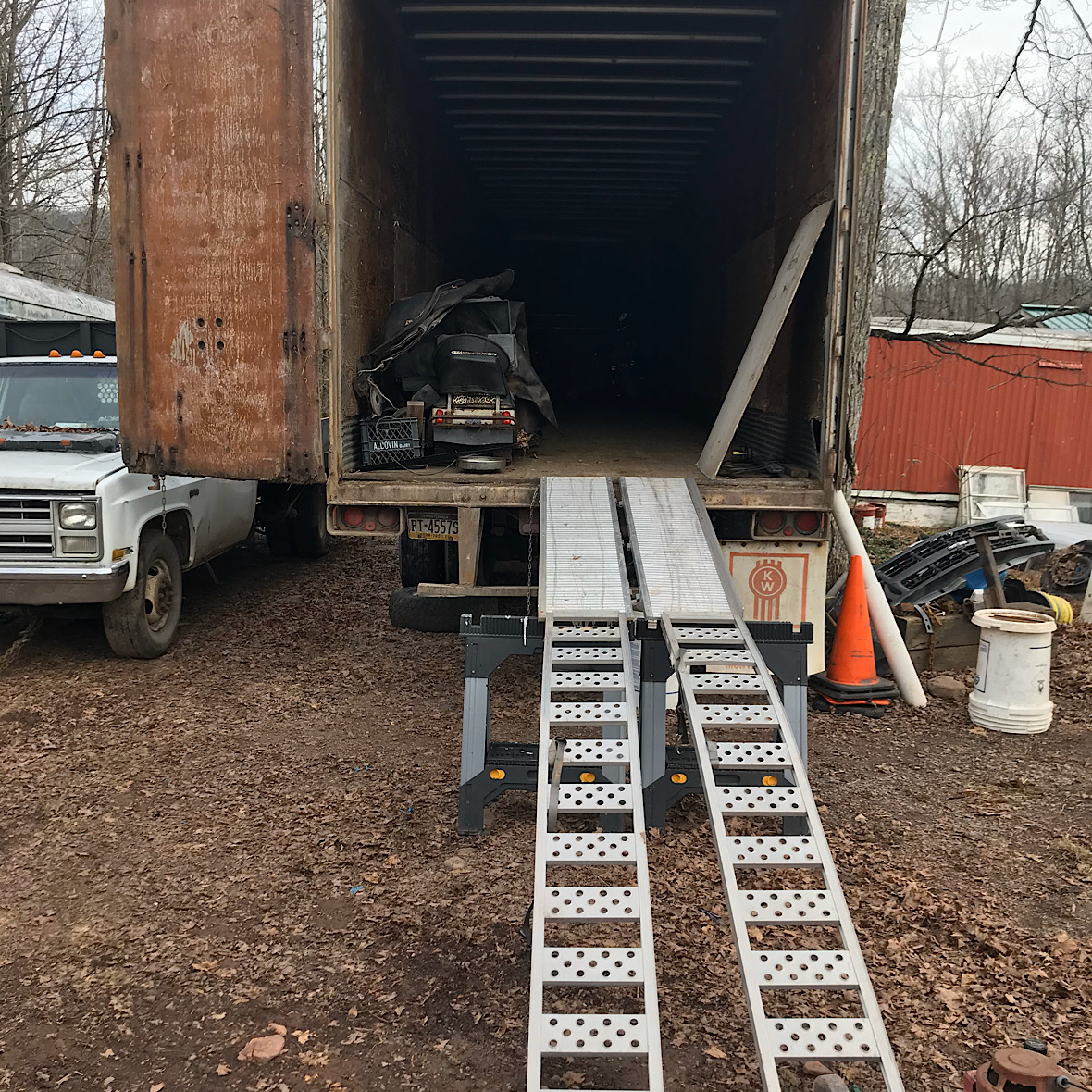

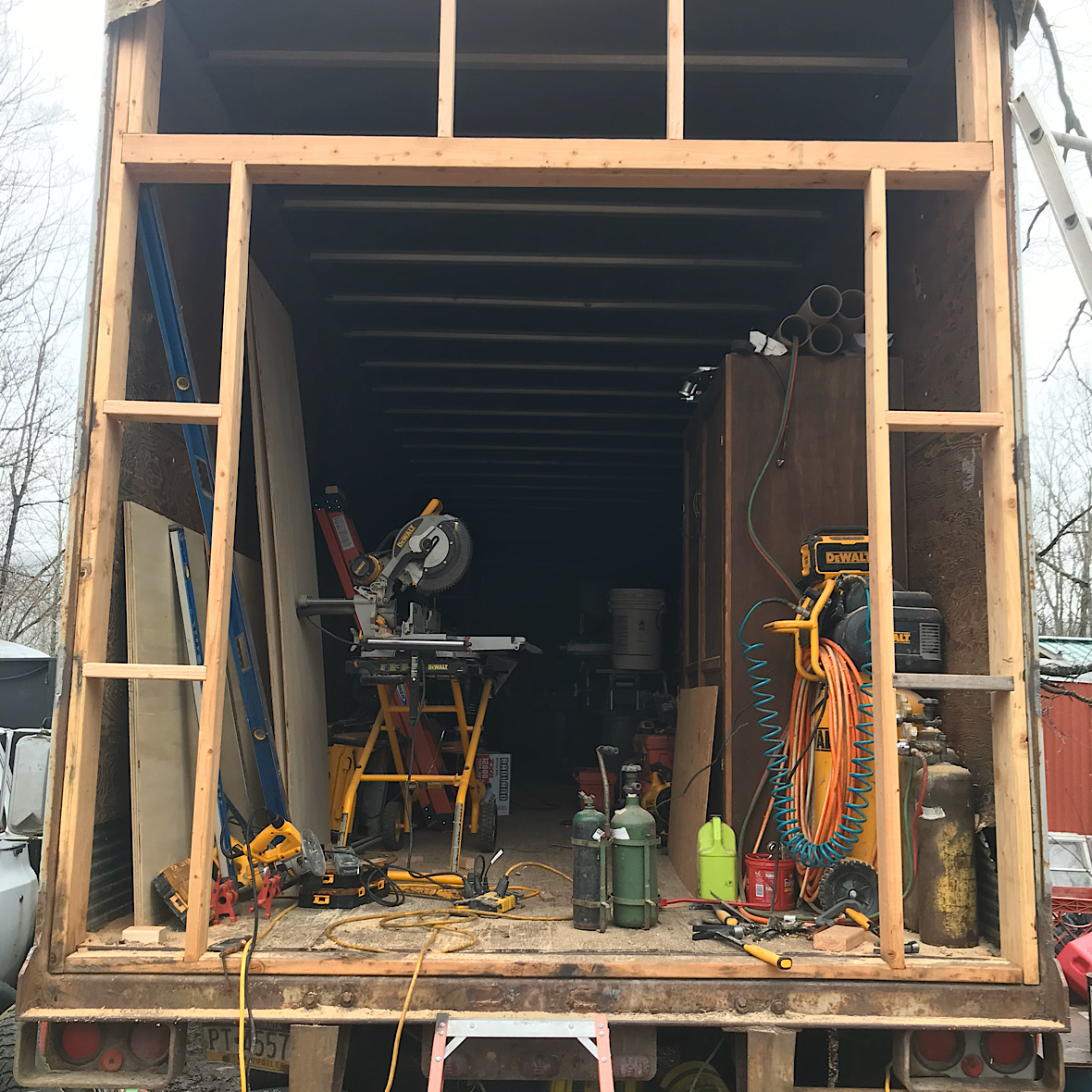

His video got me thinking about my temporary makeshift shop. A 8’x48’ van body trailer.
Attachments
RFGuy
Platinum Member
Posts: 2743
Joined: Mon Dec 31, 2018 8:05 am
Location: a suburb of PHX, AZ

Re: Inspirational workshop layout

Post by RFGuy »

If you like that one, you might also like this video. This guy makes skateboards and turned a 20 ft shipping container into a woodworking shop. Having a narrow, but long shop can present some unique challenges so hopefully you might find some inspiration as well from this setup:

[youtube]https://www.youtube.com/watch?v=zG8mMPZEeEQ[/youtube]
📶RF Guy

Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
User avatar
SkullsquadronX
Gold Member
Posts: 143
Joined: Fri Apr 26, 2019 10:43 am
Location: Honesdale, Pennsylvania

Re: Inspirational workshop layout

Post by SkullsquadronX »

That’s a good video also. Thanks RFGuy
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Inspirational workshop layout

Post by rpd »

fotso wrote:Me too! I have a drawer for screwdrivers and another for wrenches and still another for hammers, etc. Absolutely obsessive! My only problem is "Which drawer to look in".
Someone need to ask Santa for a Label Maker. ;) :)
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
adamto99
Bronze Member
Posts: 1
Joined: Thu Nov 14, 2019 12:22 pm

Re: Inspirational workshop layout

Post by adamto99 »

jsburger wrote:
JPG wrote:Perhaps hisaudacity temp mail origin surname is Studley. :rolleyes:

:D :D :D
Different strokes for different folks. :)
Last edited by adamto99 on Sun Nov 17, 2019 8:26 am, edited 1 time in total.
User avatar
jsburger
Platinum Member
Posts: 6424
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: Inspirational workshop layout

Post by jsburger »

adamto99 wrote:
jsburger wrote:
JPG wrote:Perhaps his surname is Studley. :rolleyes:

:D :D :D
Different strokes for different folks. :)
Do you know who Henry O. Studley was? :)

https://www.finewoodworking.com/2006/09 ... tool-chest
