DIY DVR motor upgrade / replacement

[CNC4FUN]

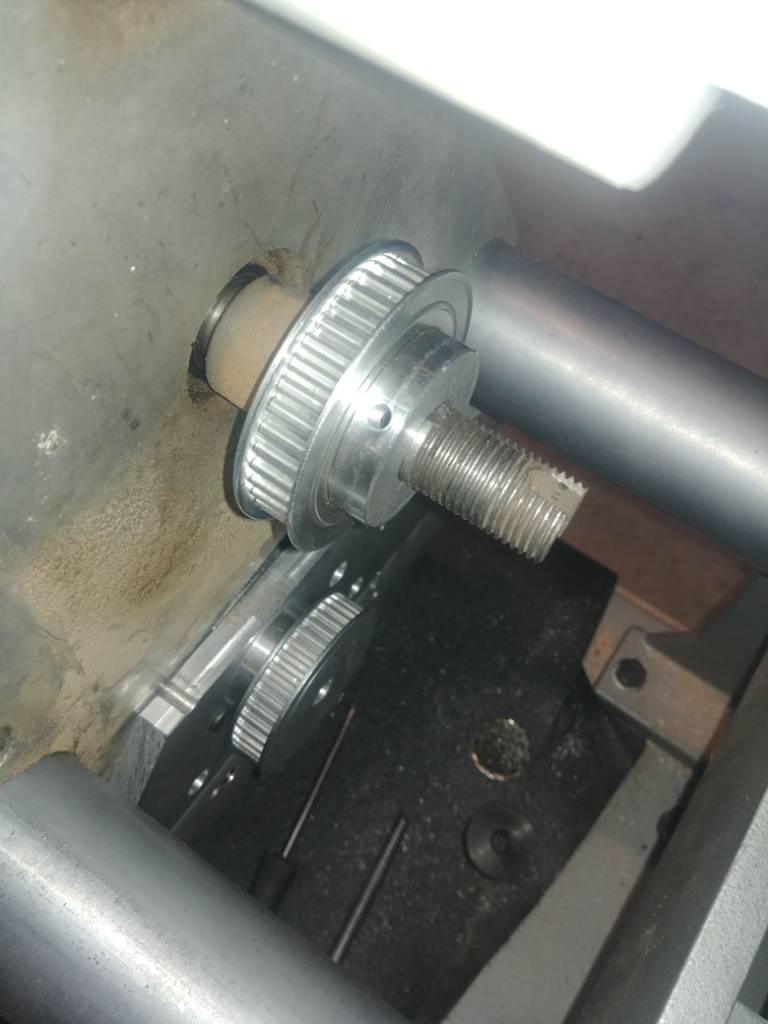

I am also thinking to switch to timing belt.

If anybody have an advice on selecting pulley and belt size I will appreciate it.


Sent from my LG-H872 using Tapatalk

[lahola1]

Your conversion looks real good so far. I don't know much about timing belts.
What speed range do you expect to get with the timing belt?
I'd sure hate to lose the 3 pulley/ belt system on mine.
It's just so easy move the belt on the pulleys (only takes about 45 seconds)
to keep the dc motor more in the 15%- 85% speed range where it works best.

[CNC4FUN]

DVR motor will run from 50 to 5500 RPM and I will not need to change belt position.
Speed is easely adjusted from control panel.
Pulleys can be identical. (1:1 ratio)


Sent from my LG-H872 using Tapatalk

[CNC4FUN]

Distance between shafts is approx 7.4"

Sent from my LG-H872 using Tapatalk

[thunderbirdbat]

Here is a calculator for belt length or pulley size. Hope it helps. https://www.blocklayer.com/pulley-belteng.aspx

[reible]

What is the plan for belt adjustments?

Ed

[CNC4FUN]

There will be only one belt position.
Speed is digitally controlled.

As it is now, motor sits all the way up against housing. It can slide only down, away from power takeoff pulley.

I am guessing that this will be enough to tension the belt. I will need to cut longer slot on the right hand side of mounting plate.

Sent from my LG-H872 using Tapatalk

[JPG]

Since timing(cogged/gilmer) belt is being used, tension is not critical.

[reible]

Since timing(cogged/gilmer) belt is being used, tension is not critical.

I have to disagree, while maybe not as for tension but a loose belt is very likely to strip teeth especially since there is no clutch involved. They very often employ a idler wheel that provides the tension but I don't see that happening here.

Ed

[JPG]

Since timing(cogged/gilmer) belt is being used, tension is not critical.

I have to disagree, while maybe not as for tension but a loose belt is very likely to strip teeth especially since there is no clutch involved. They very often employ a idler wheel that provides the tension but I don't see that happening here.

Ed

I chose the word critical. It IS quite NECESSARY, but not overly precise. Tight enough to not slip under load, but not so tight as to cause the cogs to bind in the pulleys.

Gilmer belt tension on a M5 is adjusted audibly. When the belt/pulley creates noise, the tension is backed off until quiet.

I do agree the lack of a clutch is risky(to the equipment).
