Re: Mark 5 bandsaw
Posted: Wed Feb 03, 2021 1:37 pm
by RFGuy
chapmanruss wrote: ↑Wed Feb 03, 2021 1:30 pm
I don't recall ever seeing
patent drawings for the Bandsaw.

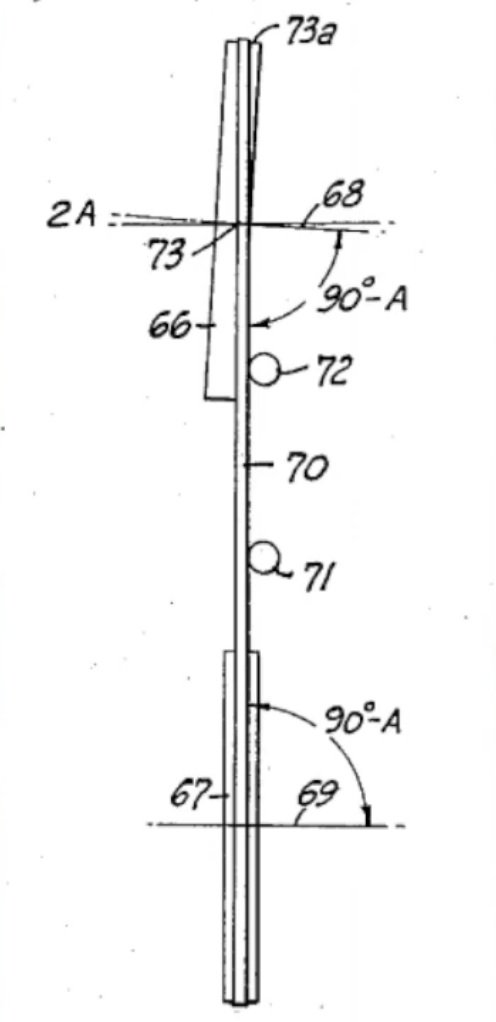

Scott also showed the bandsaw patent drawing in his YouTube video. Was it patent # US2903027A?
https://patents.google.com/patent/US290 ... US2903027A
- bandsawpatent.jpg (26.35 KiB) Viewed 481 times
Re: Mark 5 bandsaw
Posted: Wed Feb 03, 2021 2:45 pm
by chapmanruss
RFGuy,
Thanks for the links. I checked them out. Dennis you might find the information in Scott's video helpful.
Below is a link to the comment Everett made about the bevel added to the upper wheel. It is in the thread Bandsaw Blade Tracking Adjustments Etc. It is the last entry on page 17.
_
viewtopic.php?f=10&t=8542&start=160
_
JPG was the OP on that one.
One thing I have noticed when getting information from Shopsmith is it is not always correct. When I called CS in 2015 about the Main Frame assembly for the Bandsaw they told me it has always been the same. I found out that was not correct. I was trying to get information to replace the damaged Main Frame on my 1998 Bandsaw. The difference I found at that time was the pressed or slip in bushings.
