I use the upper shaft guard on my dedicated drill press. In addition to its intended safety feature, it reminds me not to store stuff on top of the headstock.
I glued some rare earth magnets where the bolts would go instead of permanently mounting it. I left the hubs on it for the purported heat sink value. Since the headstock is in a permanent upright position the magnets on the shaft guard make it easier to remove the hubs and lube the machine.
Shaft guard
Moderator: admin
Re: Shaft guard
- Attachments
-
- Shaft Gaurd
- DFAF5737-E0BF-4AB6-B77A-F79065AECC69.jpeg (356.78 KiB) Viewed 953 times
-
- AE426E41-3918-44B5-B155-AD5D52BBFC63.jpeg (212.53 KiB) Viewed 953 times
-

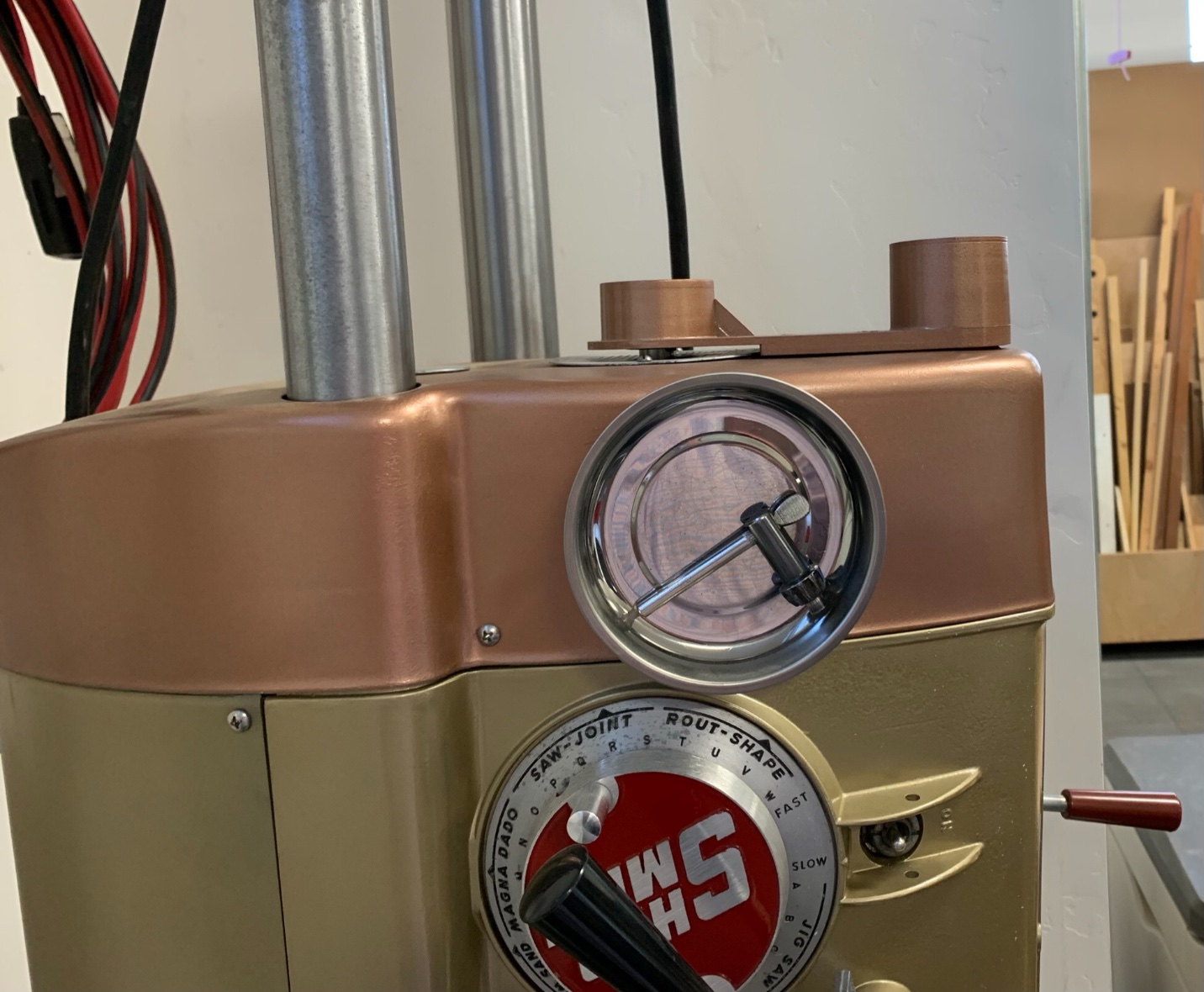

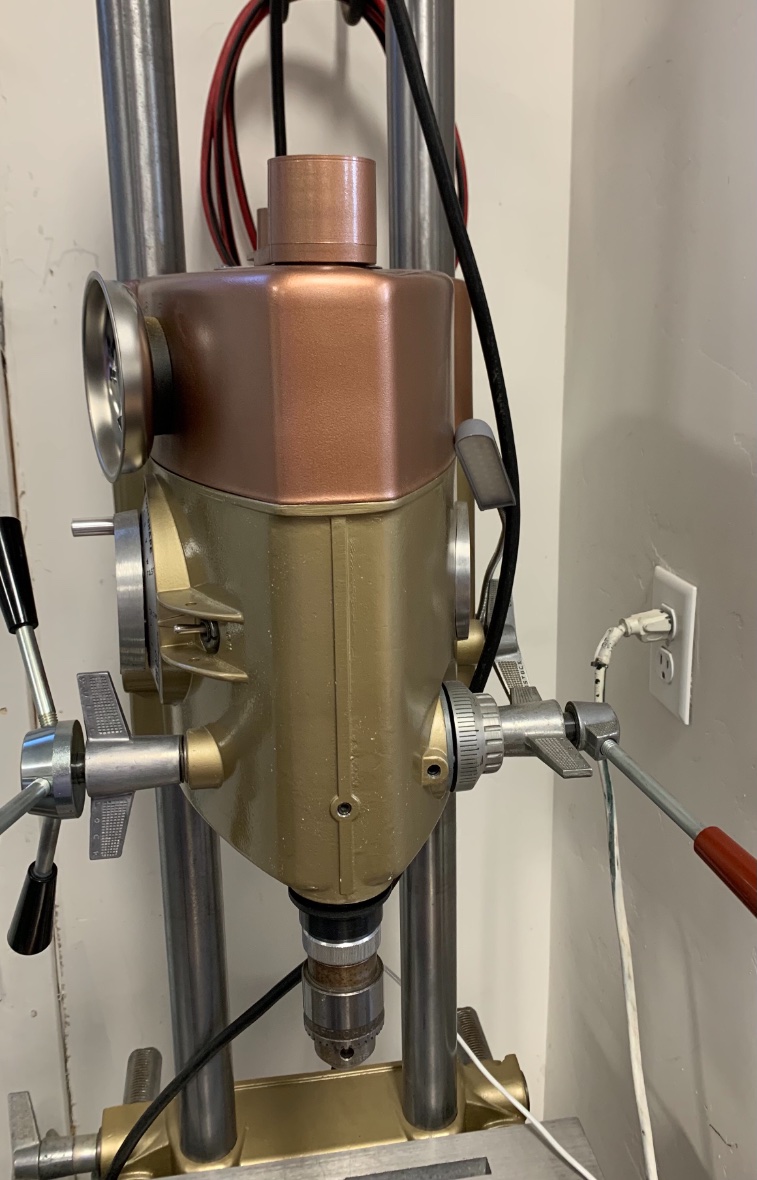

- Shaft guard with magnet retention
- 8CF27917-E01D-439A-A24E-95E38817CC29.jpeg (494.59 KiB) Viewed 953 times
-
- DE12A14C-BC15-4E31-B5B6-2C7D4E1B7865.jpeg (368.08 KiB) Viewed 953 times
Re: Shaft guard
Nice and I like the color matching! Mine didn't come with this hub guard and I have used a friend's Shopsmith once that had it. I didn't like it, but if it was easily removable like yours is then I might re-consider. I always grab a hold of the drive hub with my left hand and rock it back and forth any time I mount a saw arbor, drill chuck, lathe chuck, etc. to the spindle...to make sure that I have the set screw seating on the middle of the spindle flat. Not having easy access would annoy me, but with magnets it would be easy to remove and replace the guard.benmcn wrote: ↑Sat Sep 11, 2021 10:24 am I use the upper shaft guard on my dedicated drill press. In addition to its intended safety feature, it reminds me not to store stuff on top of the headstock.
I glued some rare earth magnets where the bolts would go instead of permanently mounting it. I left the hubs on it for the purported heat sink value. Since the headstock is in a permanent upright position the magnets on the shaft guard make it easier to remove the hubs and lube the machine.
Last edited by RFGuy on Sat Sep 11, 2021 10:57 am, edited 1 time in total.
RF Guy
Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
Re: Shaft guard
The magnets make it worth the effort. Otherwise I wouldn't want it on my drill press at all. I don't put stuff on top but I do mount sanding disks up there to turn the spindle. I did forget I had done that once but that's another story. I use a sanding disk on the back in horizontal mode on rare occasions also but if it popped on an off with magnets there wouldn't be an issue. Maybe try one before the price goes up.
Ed from Rhode Island
510 PowerPro Double Tilt:Greenie PowerPro Drill Press:500 Sanding Shorty w/Belt&Strip Sanders
Super Sawsmith 2000:Scroll Saw w/Stand:Joint-Matic:Power Station:Power Stand:Bandsaw:Joiner:Jigsaw
1961 Goldie:1960 Sawsmith RAS:10ER
510 PowerPro Double Tilt:Greenie PowerPro Drill Press:500 Sanding Shorty w/Belt&Strip Sanders
Super Sawsmith 2000:Scroll Saw w/Stand:Joint-Matic:Power Station:Power Stand:Bandsaw:Joiner:Jigsaw
1961 Goldie:1960 Sawsmith RAS:10ER
- chapmanruss
- Platinum Member
- Posts: 3780
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Shaft guard
John said,
I do like the magnet idea and may consider that for my upgraded Mark 7 that doesn't have it installed yet.

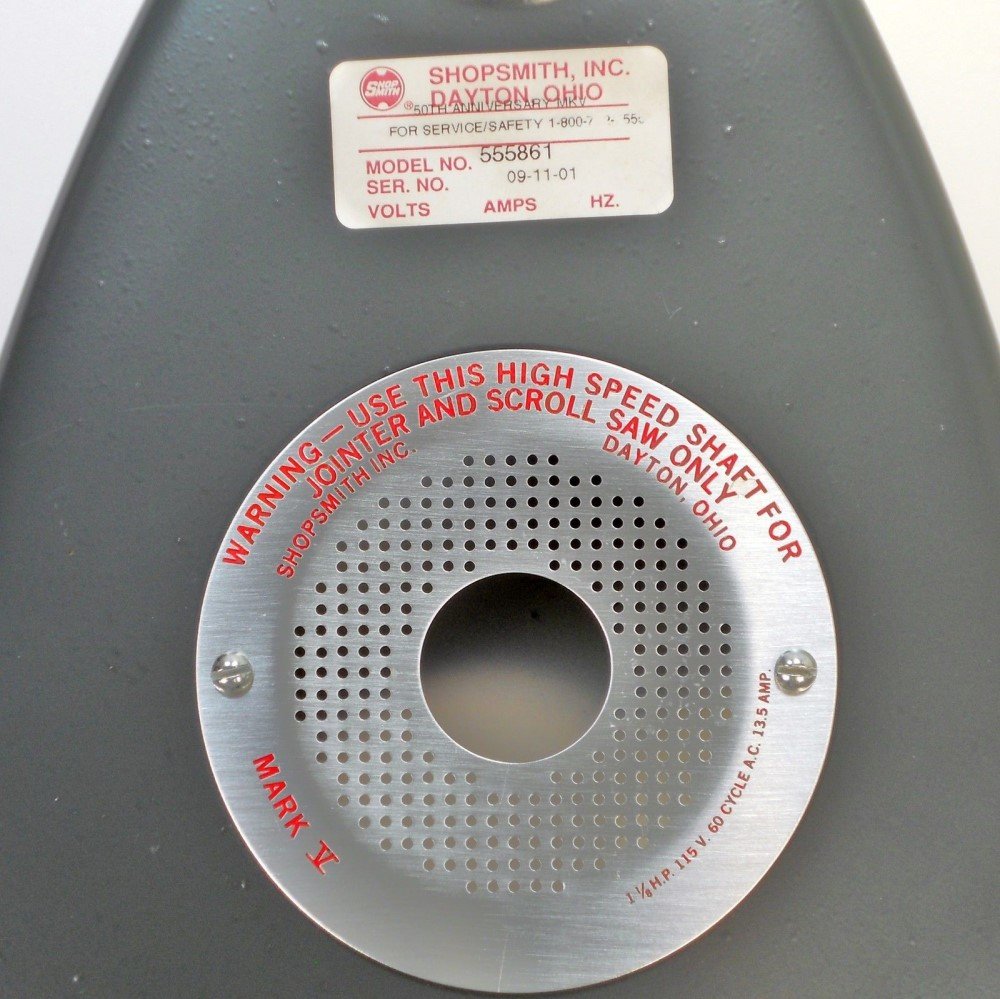

Another thought is the placement of the Date Code Sticker. Prior to it being moved to the side of the Belt Cover at the bottom of the Safety Label in 2002, Date Code stickers had been placed between the shafts that are now being protected by the Shaft Guard that is now to be placed over the sticker. That would be the case with my now 20 year old DIY Power Pro Headstock. In fact, the upper screw would go through the sticker. Something I do not desire.
