Post by JPG »

Ed in Tampa wrote:To highjack the thread a little more, I think people are starting to reevaluate this "bigger is better" mentality. They are starting to question why waste raw material and resources to build something bigger than we would normally use. I really hope this catches on, we need to rethink our houses, cars, planes, office space, and even tools. Do we really need a 25 horse power table saw to build bird houses or bandsaws with 25" wheels and 5 horse motors that have a 2 foot height capacity to saw pen blanks? Sure it is nice to say hey I bought this saw big so it can saw whatever I come up with but if we never use that capacity with some regularity we have really wasted material and resources on it.

My opinion unless you have a particular need that requires a large capacty than the Shopsmith bandsaw, the SS Bandsaw is probably the perfect size for most people. Sure there are times I would like another inch of capacity here or there but 99% time my bandsaw meets my needs and for those other 1% of the times there is usually a work around that solves the problem.

I think the biggest problem with the SS bandsaw is most users try to do everything with one or two blades. Theytry to cut too tight with a 1/2" blade or they get frustrated when they can't rip perfectly straight 5 foot pieces with 1/8" blade. There is a huge number of blades, with varying tooth patterns, teeth set, width, material type so the blade can be matched to the job.
No "highjacking" detected in this post! You ARE flapping about Band Saws not bugs or fish or whales.:)

DUSTY: At least your is 'squealling'. Putttn's is 'SCREAMING'!:D
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
beeg
Platinum Member
Posts: 4791
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

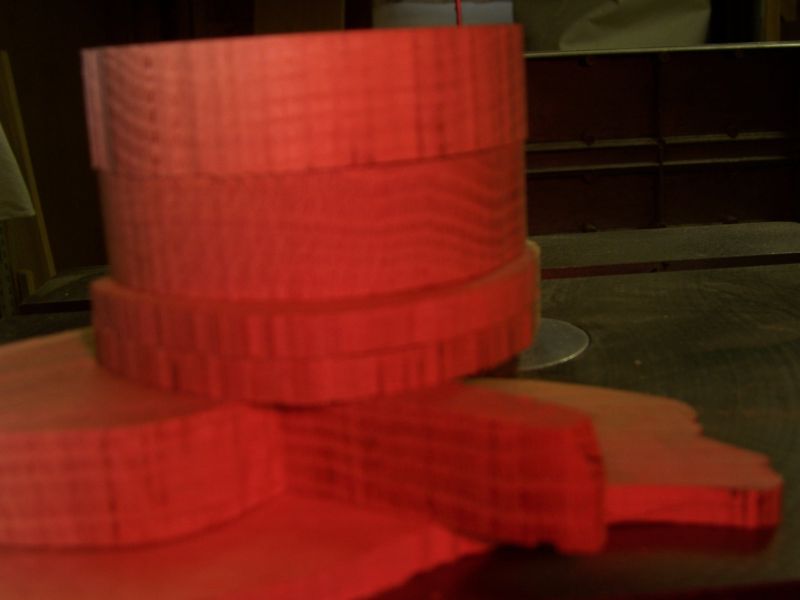

How does one get a good smooth cut with the bandsaw? I'm thinking that I just need more practice at it. I keep getting gouges along the cut. The blade is a 1/4 14TPI.

The reason in asking is,, I have an arm to cut out soon for a chair.




[ATTACH]4473[/ATTACH]
Attachments
bandsaw marks.jpg
bandsaw marks.jpg (32.81 KiB) Viewed 4223 times
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.

Bob
User avatar
JPG
Platinum Member
Posts: 35457
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

beeg wrote:How does one get a good smooth cut with the bandsaw? I'm thinking that I just need more practice at it. I keep getting gouges along the cut.
Please define 'gouges'. Size? Regularity? Type of blade?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

JPG40504 wrote:Please define 'gouges'. Size? Regularity? Type of blade?
A photo would be appreciated much more than a description.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
beeg
Platinum Member
Posts: 4791
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Post by beeg »

Pic added to post 12.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.

Bob
Lodgepole
Gold Member
Posts: 284
Joined: Tue Oct 17, 2006 7:21 pm
Location: Idaho

Post by Lodgepole »

I recently took a class from David Marks at the Woodcraft Store in Boise. Mr. Marks used to have a woodworking program on HGTV. The class was on resawing on an oversized bandsaw. It was a great class and I learned a lot tricks.

The bandsaw manual is great. But, there are times when hands on training is the best way. I would recommend this class to anyone who has the time and money.
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

beeg wrote:How does one get a good smooth cut with the bandsaw? I'm thinking that I just need more practice at it. I keep getting gouges along the cut. The blade is a 1/4 14TPI.

The reason in asking is,, I have an arm to cut out soon for a chair.


[ATTACH]4473[/ATTACH]

Bob,

If you cut a straight or near straight line with that same blade would you have the unwanted gouges?

It sorta looks to me that the 1/4" blade might be just a bit to wide for the arc that you are trying to cut.

Have you tried this same procedure with a narrower (1/8") blade.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

PS to previous post.

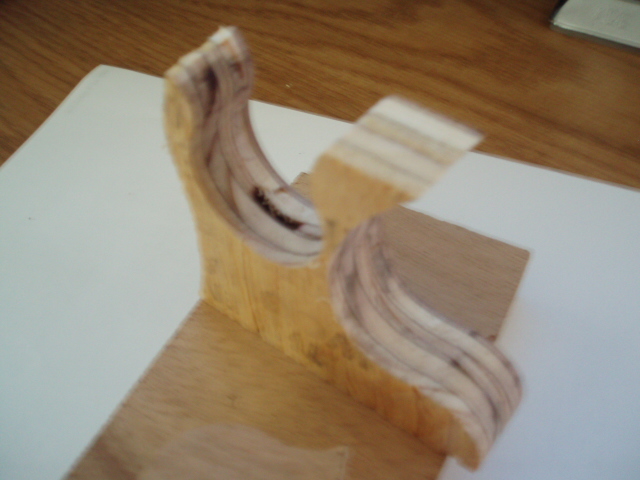

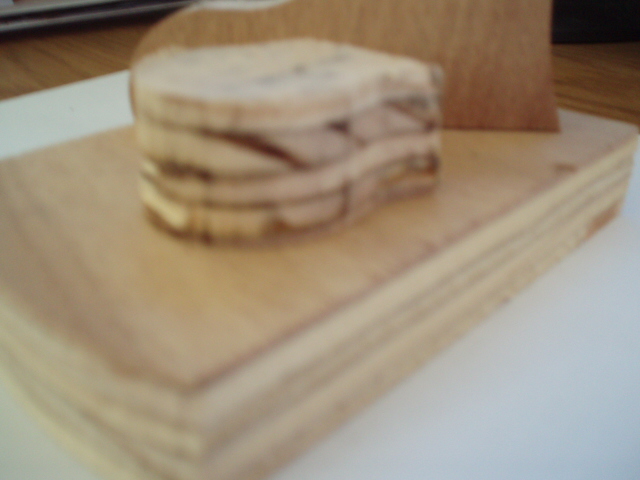

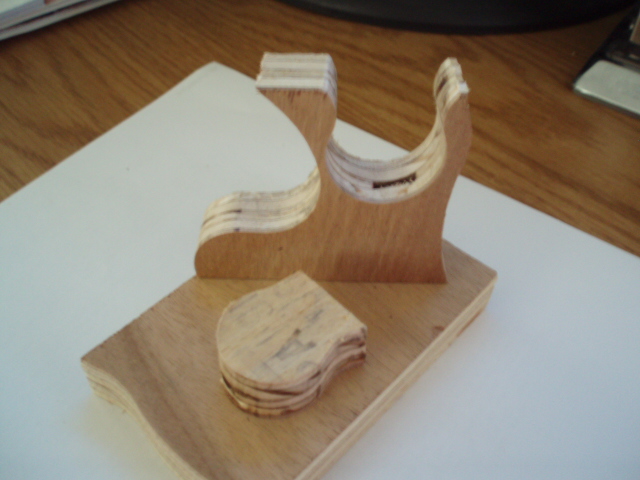

I attempted to create some sample cuts of what I thought might be happening to you. These pictures are not very good quality but if they were you would see that the only problems are some burning when trying to cut to tight a turn. There is no gouging. As a point of reference, the piece of plywood is 2 5/8" wide.

One point though. The back edges of this blade had been filed round to aid in tight cuts. I was cutting tight enough circle that the blade was twisting.

Sorry - this might not be your problem. Likely is NOT.

[ATTACH]4475[/ATTACH]

[ATTACH]4476[/ATTACH]

[ATTACH]4477[/ATTACH]
Attachments
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
JPG
Platinum Member
Posts: 35457
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

beeg wrote:How does one get a good smooth cut with the bandsaw? I'm thinking that I just need more practice at it. I keep getting gouges along the cut. The blade is a 1/4 14TPI.

The reason in asking is,, I have an arm to cut out soon for a chair.




[ATTACH]4473[/ATTACH]

Blade Bent(at one point)? Does 'gouging' occur only on one side of blade??? Is a tooth bent(excessive set)?

I am groping here!:confused:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
dicksterp
Gold Member
Posts: 165
Joined: Sun Jun 15, 2008 1:12 am
Location: Ft Wayne, IN

Post by dicksterp »

Have you tried another blade with coarser teeth (6TPI)? Also are your tension and blade guides set correctly?
Dick

SS equipment. '89 510 (upgrade to 520), beltsander, pro planer, SS dust collector, 2 bandsaws, jointer, strip sander (production unit #1), OPR, scroll saw, Power Station, Incra TSIII Ultra Fence System& Wonder Fence plus (2) 50 year old DeWalt RASs and Incra miter express with miter gauge
