Kevin,

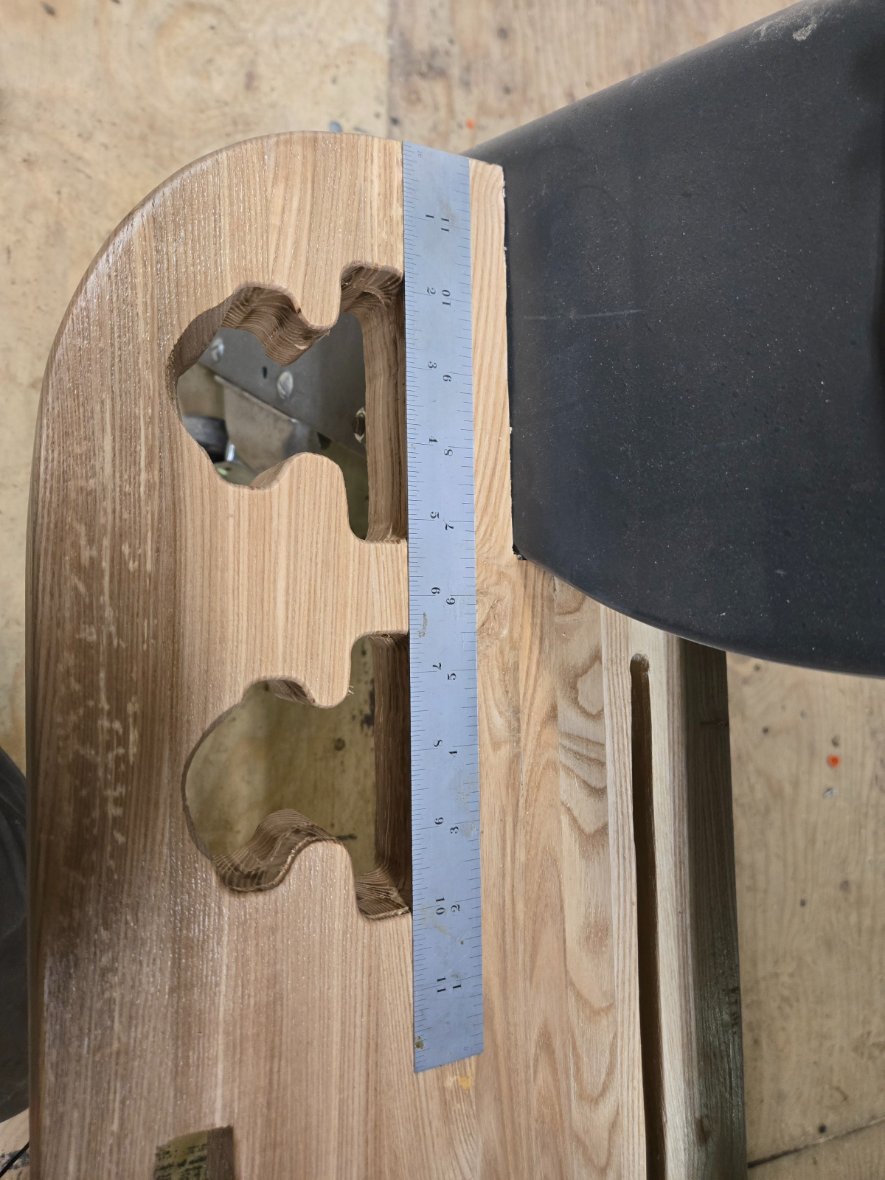

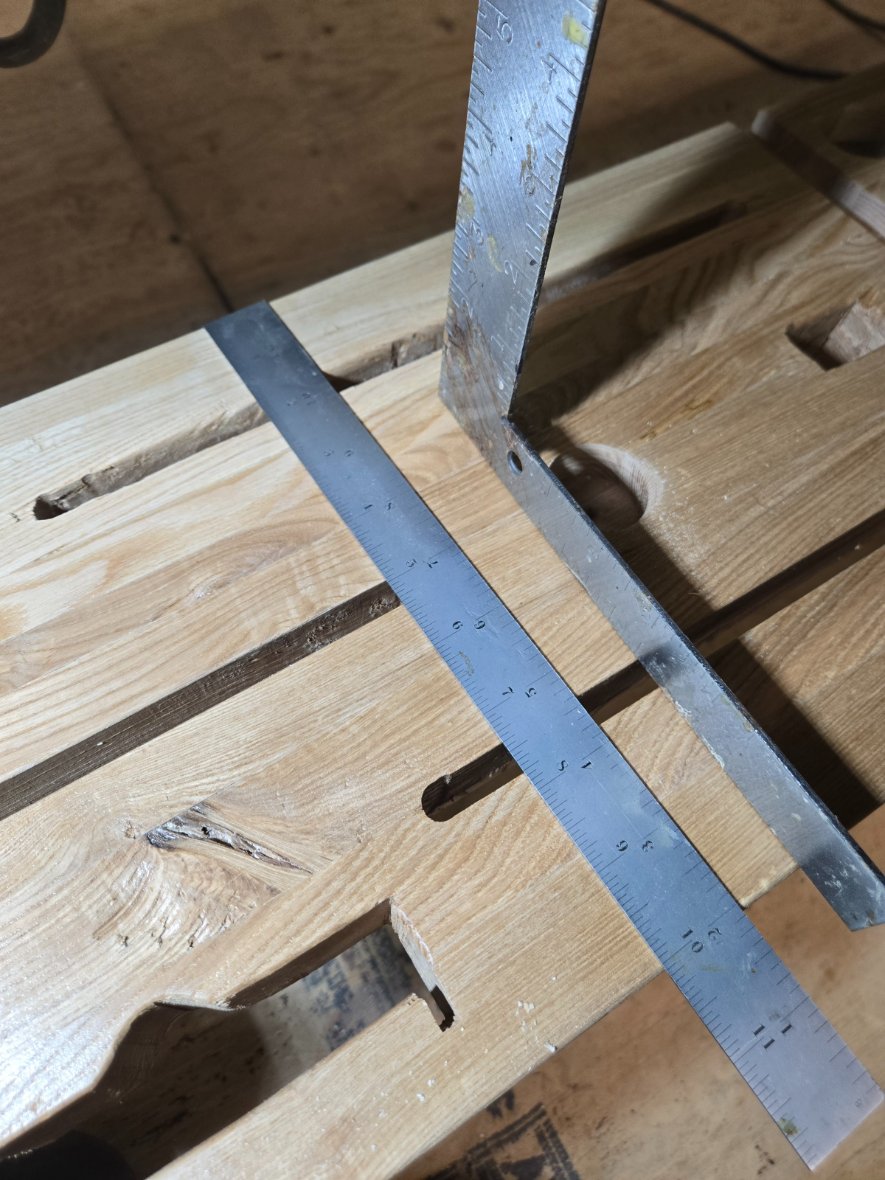

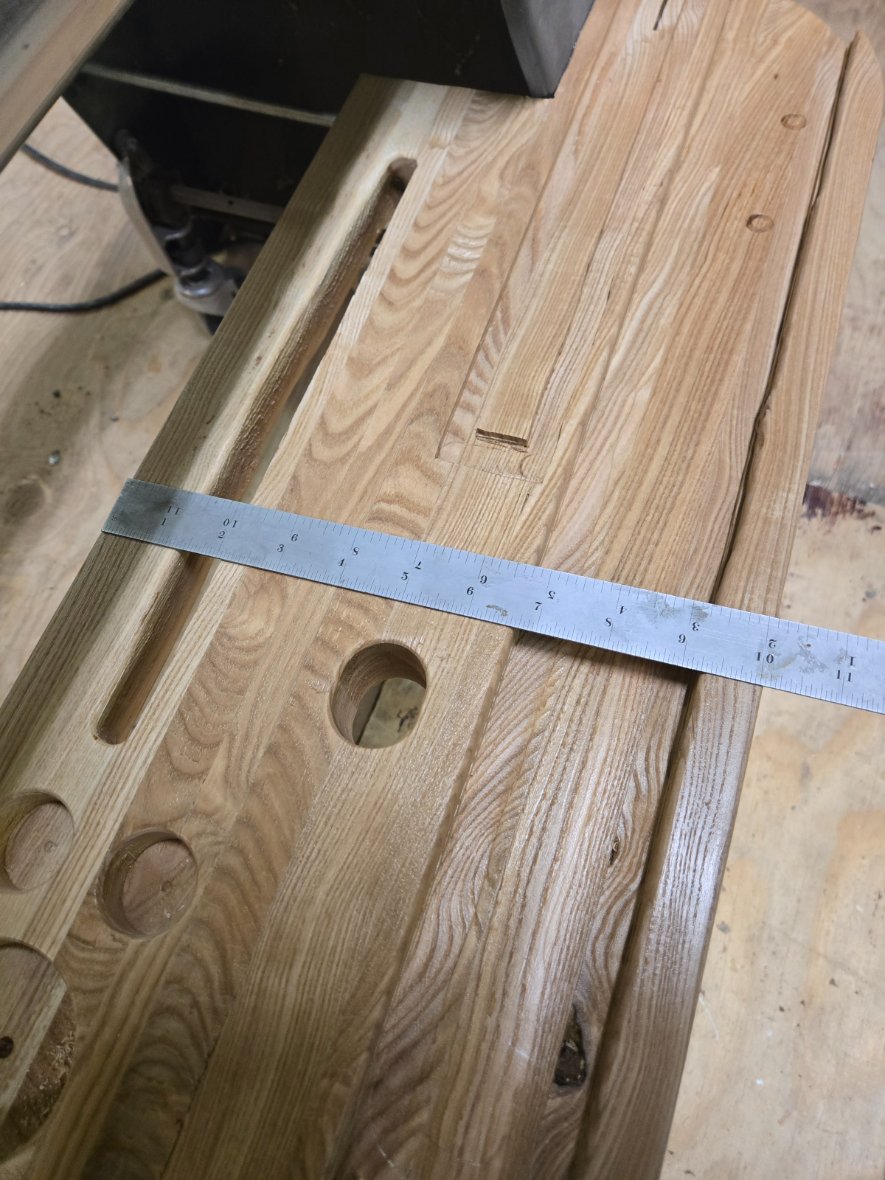

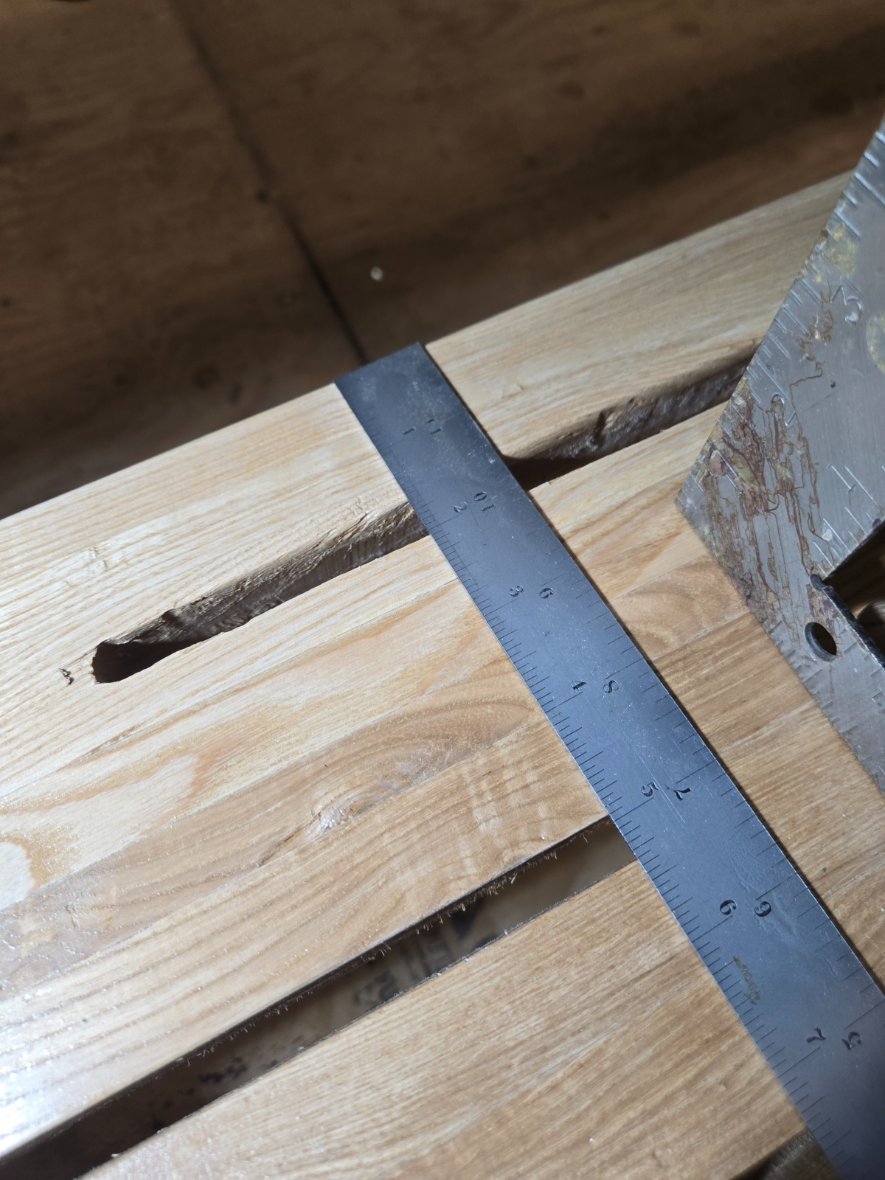

Sorry for the delayedresponse; I am working on a small (6x12) log hauling trailer, and I haven't been in the wood shop or looked at the forum for a couple of weeks. Here are pictures with a ruler for scale. One thing to note is that the back slots for sanding discs are angled towards the operator 10 degrees. I used the overhead routing mode with an extra long 5/16" straight bit to cut the slots. I fine tuned the fit with a rasp.
Very nice Accessory Shelf. Can you post a picture of it with the Accessories on it? It would be nice to see it in use.
In my previous posts I have said I don't use the shelf I made but that's my personal preference. Don't let me discourage anyone from using what works for them.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange

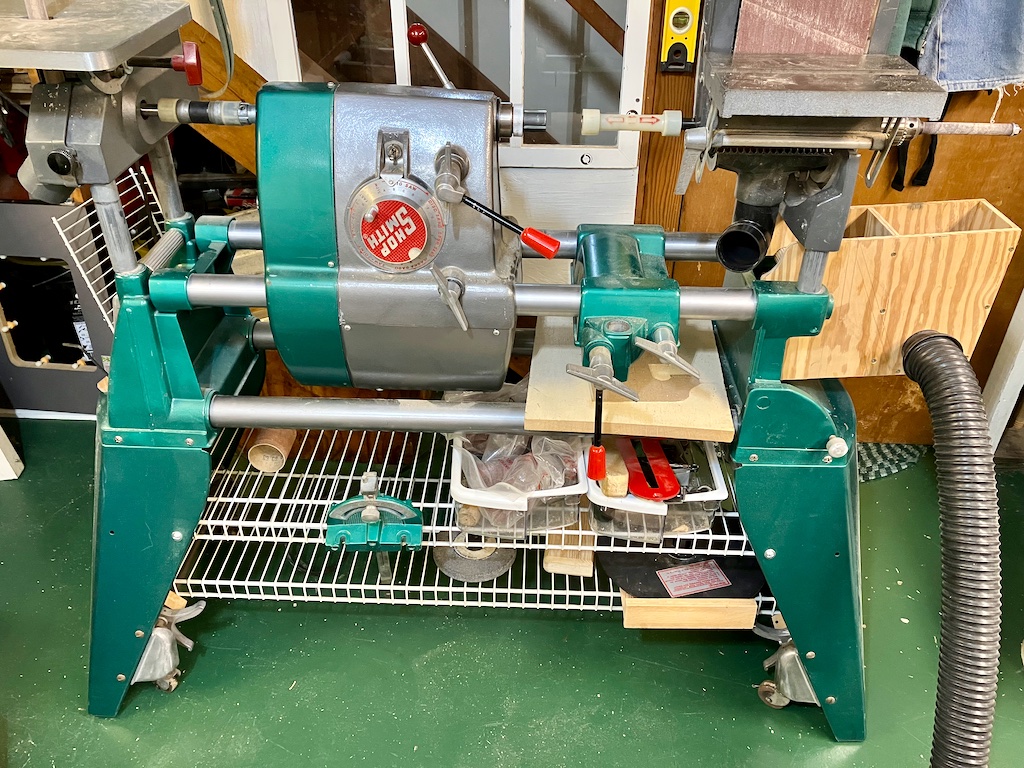

I like to get a peek in peoples shops to see what good ideas I can glee. Here is my 2x12 shelf and wire rack on the shorty. Also the down draft box on the shorty for the drum sander works great no need to go to drill press mode for dust collection.
The space below the Mark (between the four legs) has always been wasted space in my shop. I have just never done anything about it except to stack tool boxes and park vacuum cleaner or air compressor there.
