Forgot what they call it but it is designed with several interchangeable parts to cut all odds and ends of stuff. On thin wood it is easier then getting a saw out and does a half way good job on things like dowels and the like as well. If I remember right I think I got it from LeeValley.com?????
Ed
shydragon wrote:The saddle square is interesting. But, what is that other doo dad laying on your saw to the right?
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
reible wrote:...Now for the last of this set. No it is not going to help you solve the big mystery but it will keep you busy for a least a few second trying to figure out what that heck is going on...
[ATTACH]4731[/ATTACH]
Not to sure when I will be able to get back to this but the main parts still need some work and then I will have to make a few attachments to show you how it all goes together.
Ed
Hi Ed,
No guess on the project yet, but I AM guessing that the metal item that is shown in your attachment #4731 is going to be used to lock your jig into a specific location on the "T" track.
edit: Oakay, maybe somewhat of a guess now. Do I see a piece of "T" track attached to the wood that is screwed to the plastic??? Are you making a jig that will slide in a (normally horizontally placed) "T" track that has a vertical "T" track on it? Or am I seeing things?
Tim
Buying US made products will help keep YOUR job or retirement funds safer.
1st & 2nd guess - A set of movable stop blocks for use with a router. probably a table router. Or, Perhaps an insert into a router fence that will allow a zero clearance part of the fence.
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Sorry I didn't get to work on the project today. Not sure how much time I will get tomorrow but I wanted to make sure you get plenty of time to figure out what this is so I'll post a few more pictures.

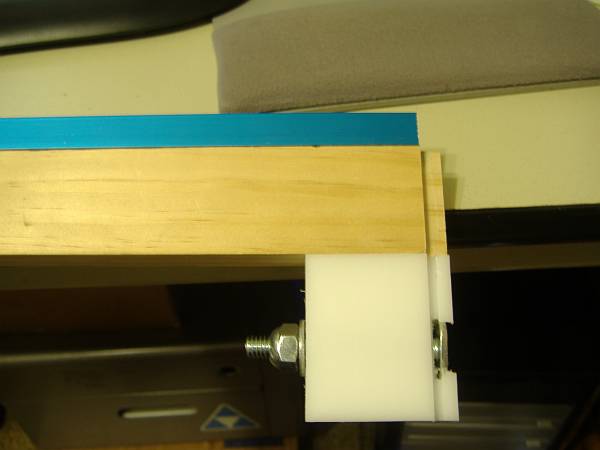

This first picture will make it a little easier to see how the parts are coming together. It should be clear that the plastic piece that fits in the t-slot can be locked in place using the hardware shown. You can also see that the t-track is mounted to the wood (actually it isn't yet but it will be) and the plastic is mounted to the wood.
[ATTACH]4733[/ATTACH]

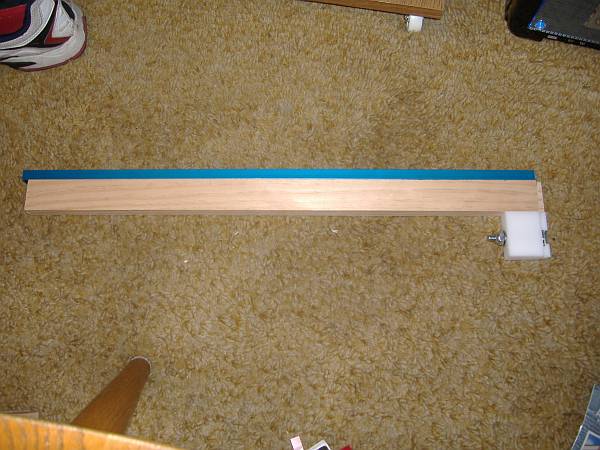

Keep in mind there are four of them and they all look alike. You might also see that the t-track is longer then the wood, this was due to the way the wood was cut to fit in the t-slot (made it shorter by that much). Sense I wasn't measuring in the normal since I just cut the 4 foot t-track section in half knowing that at some point it would need to be trimmed to match the woods length... we are not at that point yet. Here is a photo showing one of the four.
[ATTACH]4734[/ATTACH]
Ed
Attachments
close up of track_wood_plastic_hardware 20.jpg (33.81 KiB) Viewed 2706 times
one of four 21.jpg (66.43 KiB) Viewed 2702 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Sorry I didn't get to work on the project today. Not sure how much time I will get tomorrow but I wanted to make sure you get plenty of time to figure out what this is so I'll post a few more pictures.
This first picture will make it a little easier to see how the parts are coming together. It should be clear that the plastic piece that fits in the t-slot can be locked in place using the hardware shown. You can also see that the t-track is mounted to the wood (actually it isn't yet but it will be) and the plastic is mounted to the wood.
[ATTACH]4733[/ATTACH]
Keep in mind there are four of them and they all look alike. You might also see that the t-track is longer then the wood, this was due to the way the wood was cut to fit in the t-slot (made it shorter by that much). Sense I wasn't measuring in the normal since I just cut the 4 foot t-track section in half knowing that at some point it would need to be trimmed to match the woods length... we are not at that point yet. Here is a photo showing one of the four.
[ATTACH]4734[/ATTACH]
Ed
I do not know why or what it will be used for(picture frame clamp?), but you WILL attach the four identical pieces into an adjustable rectangular shape.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I have knot figured out WHY you wood do this, and maybe it is knot your intention, but you could assemble the finished pieces into a square that you can make larger or smaller for some reason or other. Maybe some kind of adjustable loom in the making?
edit: Sorry, I guess Red already made a similar guess.
Tim
Buying US made products will help keep YOUR job or retirement funds safer.
a1gutterman wrote:I have knot figured out WHY you wood do this, and maybe it is knot your intention, but you could assemble the finished pieces into a square that you can make larger or smaller for some reason or other. Maybe some kind of adjustable loom in the making?
edit: Sorry, I guess Red already made a similar guess.
GREAT minds run along the same path!:D
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I figured seeing the parts coming together would help.
I'm about to get sometime to go out and work on it some more so I hope to have some additional pictures tonight. Right now I have to try and fix a problem I have caused by me trying to get the parts stuck together before I was ready to do it the right way.
Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
reible wrote:I figured seeing the parts coming together would help.
I'm about to get sometime to go out and work on it some more so I hope to have some additional pictures tonight. Right now I have to try and fix a problem I have caused by me trying to get the parts stuck together before I was ready to do it the right way.
Ed
OKAY, I give up. What is it?
Incidently, I learned a lot with this thread, Ed. I just mounted my Incra on the Shopsmith router table to do some work that I sure hope comes out as good as yours.
"Making Sawdust Safely" Dusty
Sent from my Dell XPS using Firefox.
Forgot what they call it but it is designed with several interchangeable parts to cut all odds and ends of stuff. On thin wood it is easier then getting a saw out and does a half way good job on things like dowels and the like as well. If I remember right I think I got it from LeeValley.com?????
Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
