Post by JPG »

etc92guy wrote:Shelly and Chips, this is Harley(as a pup). Right now he's in St. Petersburg, FL chasing the birds on the beach, but will be back in WI this week and I'm sure he'd be more than willing to make a trip to help out. ]7689[/ATTACH]

Why not detour through the 'carolinas' on the way back, then Harley can make new friend.

Just do NOT try going West on I40 into Tn!:eek:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
mbcabinetmaker
Platinum Member
Posts: 1627
Joined: Thu Jul 20, 2006 6:18 am
Location: Greer SC

Post by mbcabinetmaker »

I guess I had better post on the project before this thread goes to the dogs!;)




[ATTACH]7719[/ATTACH]

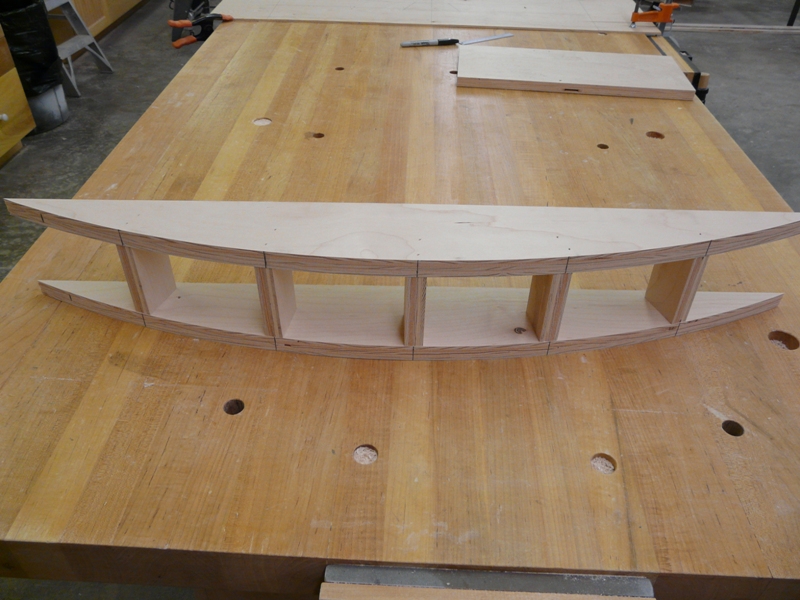

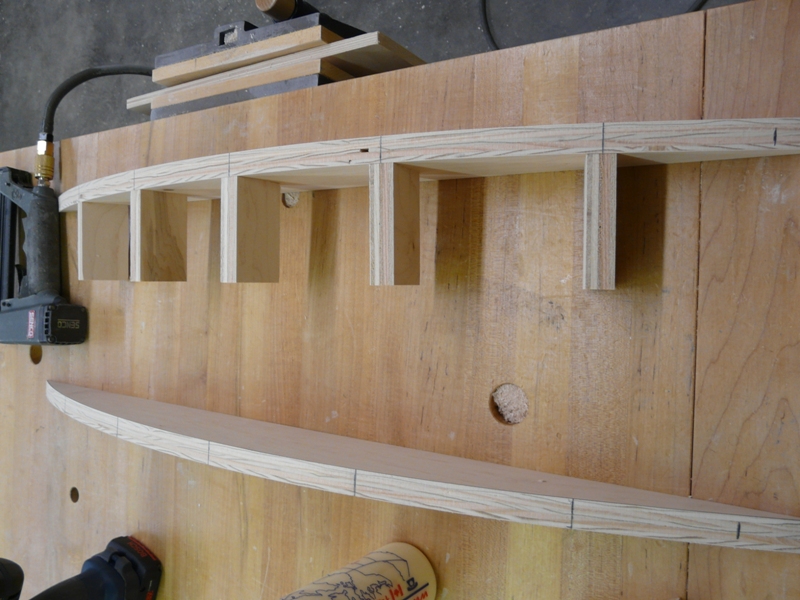

First step in building the jig is to lay out for the spacers. I want it to be 5 inches tall so I'll add 3.5 inch spacers.


[ATTACH]7720[/ATTACH]





[ATTACH]7721[/ATTACH]






[ATTACH]7722[/ATTACH]

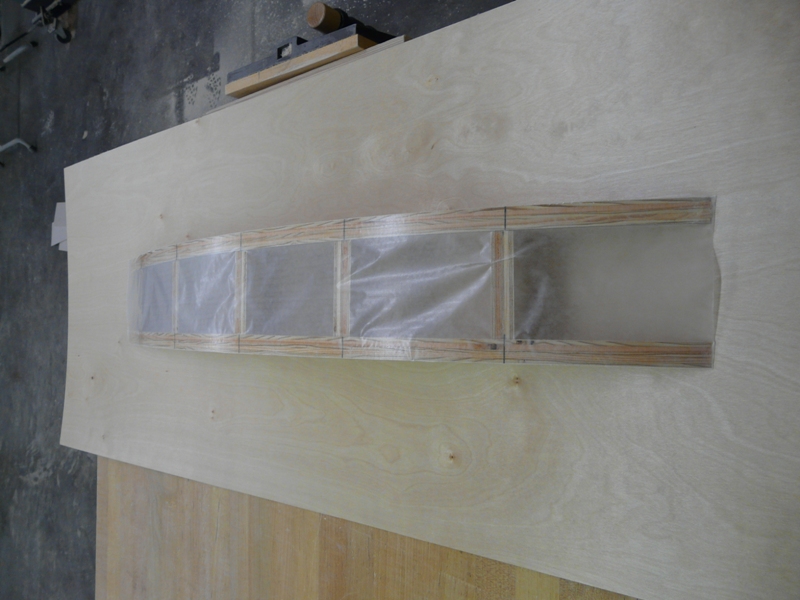

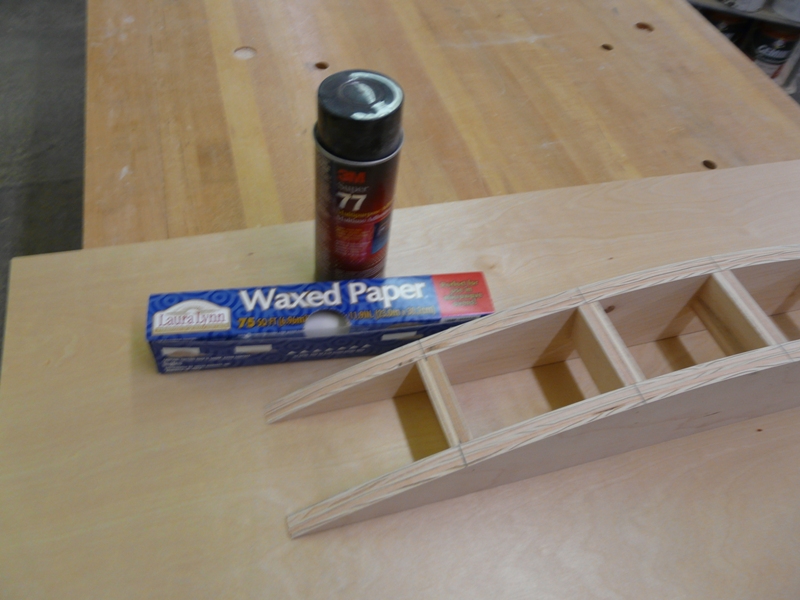

Next step is to cover the frame with wax paper to keep the glue squeeze out from sticking the jamb to the jig.



[ATTACH]7723[/ATTACH]


Our next step will be to resaw the strips for the radius jamb.
Attachments
****************
****************

Mark

2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
User avatar
shipwright
Platinum Member
Posts: 1165
Joined: Tue Dec 15, 2009 7:28 pm
Location: Vancouver Island, Canada
Contact:

Post by shipwright »

Mark

Nice shop.

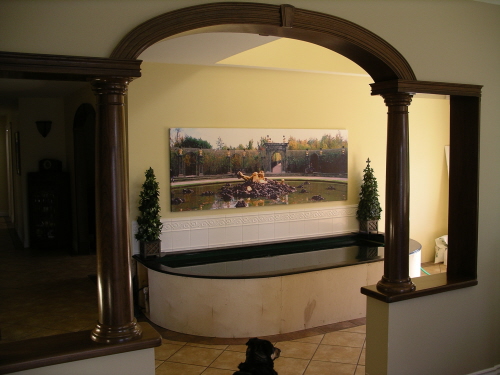

I will be watching this thread with fond memories. Or maybe mixed memories. When we renovated (read re-built) our current house in Canada I decided that some nice arches would be a good idea. They were, but by the time all five were done they were generally referred to around our place as "those god-forsaken arches". The routing alone took forever.
I laminated my elipses out of 1/8 birch pw and walnut veneered the outer layer. They were glued up in my vacuum bag. Are you clamping or vacuuming?

Keep up the great work and keep posting your photos.

[ATTACH]7728[/ATTACH]
P.S. My dog's name is Wilma
Paul M
Attachments
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
mbcabinetmaker
Platinum Member
Posts: 1627
Joined: Thu Jul 20, 2006 6:18 am
Location: Greer SC

Post by mbcabinetmaker »

[attach]7724[/attach]

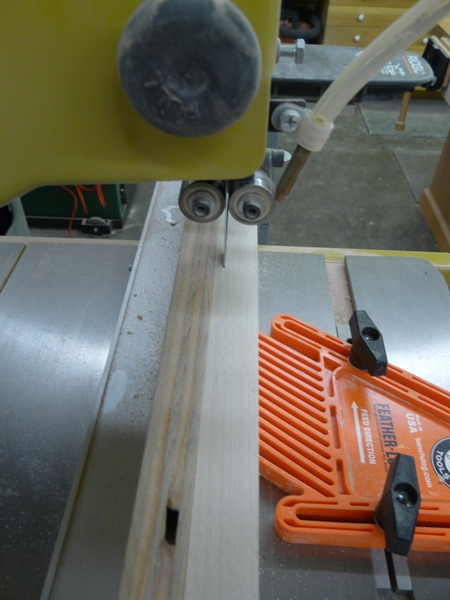

Resawing the 1/8 inch fletches for the jamb. I will run them through the thickness sander before assembly.




[attach]7725[/attach]

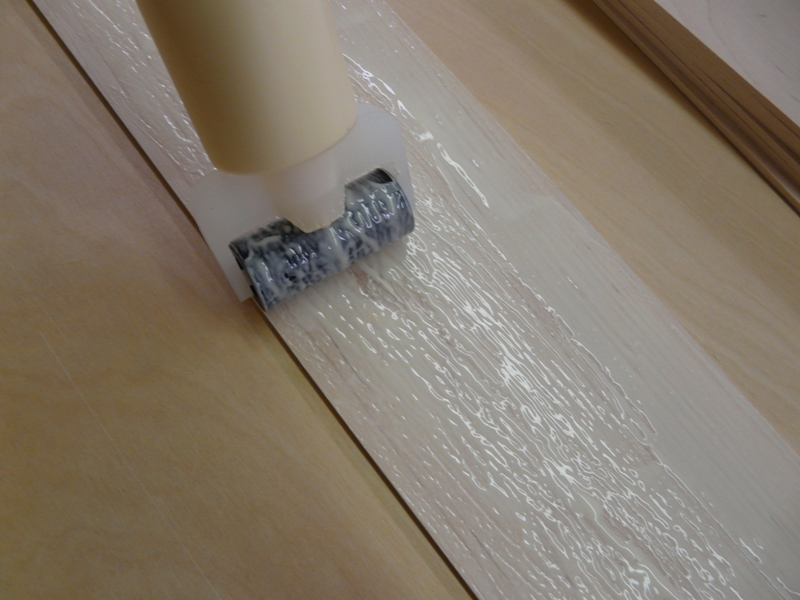

You have to work fast with this type of glue up. It is best to have everything set up and ready to go before starting the glue.






[attach]7726[/attach]

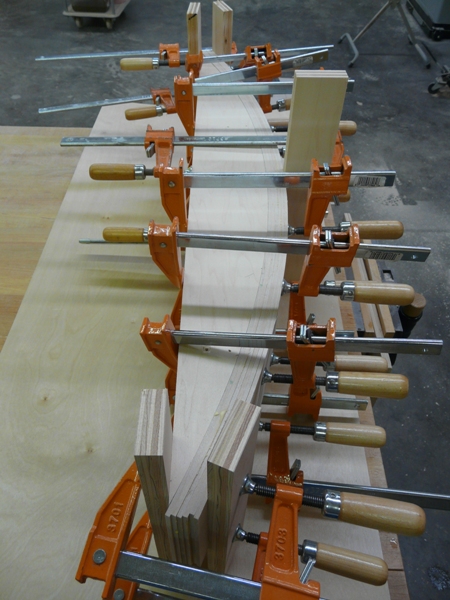

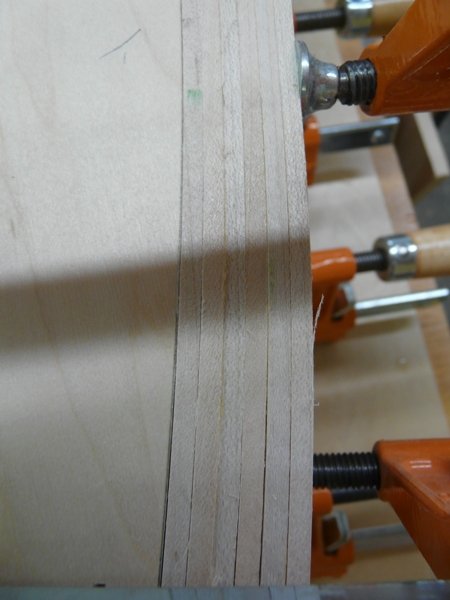

And have lots of clamps.






[attach]7727[/attach]

Hardley any squeeze out on top. It all ran to the bottom.:rolleyes: We'll let this set overnight.
Attachments
****************
****************

Mark

2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
mbcabinetmaker
Platinum Member
Posts: 1627
Joined: Thu Jul 20, 2006 6:18 am
Location: Greer SC

Post by mbcabinetmaker »

Nice work Paul. Say hi to Wilma for me. Wife is calling for dinner. (Its about time)
****************
****************

Mark

2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
judaspre1982
Platinum Member
Posts: 1237
Joined: Tue Jul 08, 2008 10:10 pm

Post by judaspre1982 »

==========================
Last edited by judaspre1982 on Sat May 13, 2017 1:48 pm, edited 1 time in total.
User avatar
shipwright
Platinum Member
Posts: 1165
Joined: Tue Dec 15, 2009 7:28 pm
Location: Vancouver Island, Canada
Contact:

Post by shipwright »

That answers my clamping question Mark. Fast response too. I only asked a few minutes ago. What kind of thickness sander?

Paul M
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
mbcabinetmaker
Platinum Member
Posts: 1627
Joined: Thu Jul 20, 2006 6:18 am
Location: Greer SC

Post by mbcabinetmaker »

[ATTACH]7729[/ATTACH]

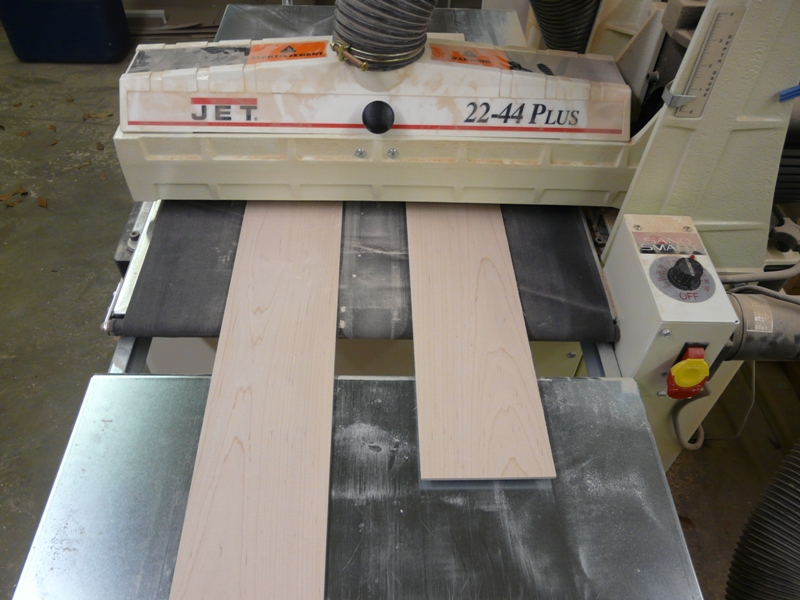

After some debate last fall over a new sander my decision was made in November when I had a job that required sanding several panels 40 inches wide. So far I am quite pleased with this sander. I have owned 2 drum sanders in the past but this has a feature that slows the sander when overloaded and saves a lot of paper.
Attachments
****************
****************

Mark

2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
User avatar
nuhobby
Platinum Member
Posts: 2359
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Post by nuhobby »

Great-looking shop and nice project underway!

P.S. I love the "porthole" that you've added to your Bandsaw Cover.
Chris
User avatar
shipwright
Platinum Member
Posts: 1165
Joined: Tue Dec 15, 2009 7:28 pm
Location: Vancouver Island, Canada
Contact:

Post by shipwright »

Is that an open sided model like Proformax. Mine is a Canwood (house brand name from House of Tools) and Identical to the general international 25" closed type. I'd like to discuss the tool with you but I'll PM you

Thanks for the pic.

Paul
