gilamonster wrote:I was thinking of something more like this...
various sizes and shapes, but with similar dimensions, so they work together. I saw this on WOOD Magazine's site...
I think the same basic process. For the rectangle or square cross sections, mill up sticks and cut to lengths based on 1 width, 2 widths, 3 widths, etc. For triangles they look like 1 width cut at 45º. The curved pieces could be laid out with a compass set to 1 width or 1/2 width.
The picture looks like the blocks are made of 2 x 2, and 1 by 3 and maybe wider for the large arcs.
Looks like a fun project. Remember to allow for saw kerf in your planning.
[quote="jimthej"]I think the same basic process. For the rectangle or square cross sections, mill up sticks and cut to lengths based on 1 width, 2 widths, 3 widths, etc. For triangles they look like 1 width cut at 45º]
Back in my kindergarten days, they were maple!;) And As I recall, 1-2-3 is the way they were(and 1/2 on the 'shallow' pieces).
Strange how we can remember bits and pieces you thought were long forgotten when the correct stimulus fits the memory! I now be thinking of my 2nd Christmas(25 mo. old at the time). I remember the tree a few of the gifts and some totally irrelevant things. But I digress.....
P.S. The arches were shallower than those pictured.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
gilamonster wrote:I was thinking of something more like this...
...various sizes and shapes, but with similar dimensions, so they work together. I saw this on WOOD Magazine's site...

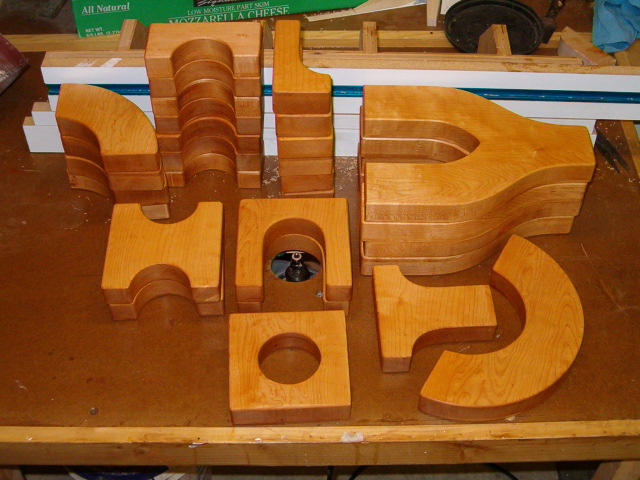

I've made some blocks, ordered by my school teacher Daughter-in-law. Maybe these are the kind you are looking for. These are made from maple. Finished size is 1 1/4" thick. The "Ys" are about 10" tall. Once a pattern was made from hardboard, tracing and copying is easy. - Used a bandsaw and sander. Then used a 1/8" roundover bit to soften all edges.
Two "Ls" back to back make a "T". Two small arches can be drawn back to back or together to mak a hole in the center, etc.
[ATTACH]11290[/ATTACH]
[ATTACH]11291[/ATTACH]
[ATTACH]11292[/ATTACH]
[ATTACH]11293[/ATTACH]
Attachments
Kids Using blocks.jpg (100.25 KiB) Viewed 1296 times
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
I still have my Dad's block set from when he was little...complete with the canvas bag that it came in. The set is polished maple blocks, all 1 1/2" thick with rectangles, squares, arches and triangles. It would be dated in the late 30's.
