Router Table

Post by wallpaperman »

if I do this right hears two manuals that I created to PDFs there are for the router table and attachments.[ATTACH]15539[/ATTACH]

[ATTACH]15540[/ATTACH]
Attachments
521962RouterTable.pdf
(611.34 KiB) Downloaded 2544 times
521963RouterFence.pdf
(829.41 KiB) Downloaded 1112 times
Top
User avatar
dusty
Platinum Member
Posts: 21481
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

wallpaperman wrote:if I do this right hears two manuals that I created to PDFs there are for the router table and attachments.[ATTACH]15539[/ATTACH]

[ATTACH]15540[/ATTACH]
Those images are a crying shame. I cannot believe that Shopsmith produced manuals (in this day and age) that are so bad. No, I have to believe it because I have originals that are just that. The lift assist manual is no better.

End of Useless Rant.

Thanks for the post. There will be users out there that need these.

ATTENTION SHOPSMITH: PLEASE BROWSE THROUGH THE ONLINE MANUALS THAT INCRA PROVIDES. THIS IS HOW IT SHOULD BE DONE.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
JPG
Platinum Member
Posts: 35430
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

dusty wrote:Those images are a crying shame. I cannot believe that Shopsmith produced manuals (in this day and age) that are so bad. No, I have to believe it because I have originals that are just that. The lift assist manual is no better.

End of Useless Rant.

Thanks for the post. There will be users out there that need these.

ATTENTION SHOPSMITH: PLEASE BROWSE THROUGH THE ONLINE MANUALS THAT INCRA PROVIDES. THIS IS HOW IT SHOULD BE DONE.

Let us not be too hasty condemning SS here.

I am more inclined to be suspicious of the scanner(both individual and machine).

When scanning b/w documents with pix, the scanner must be set to gray scale pix mode if it has one.

Samples:

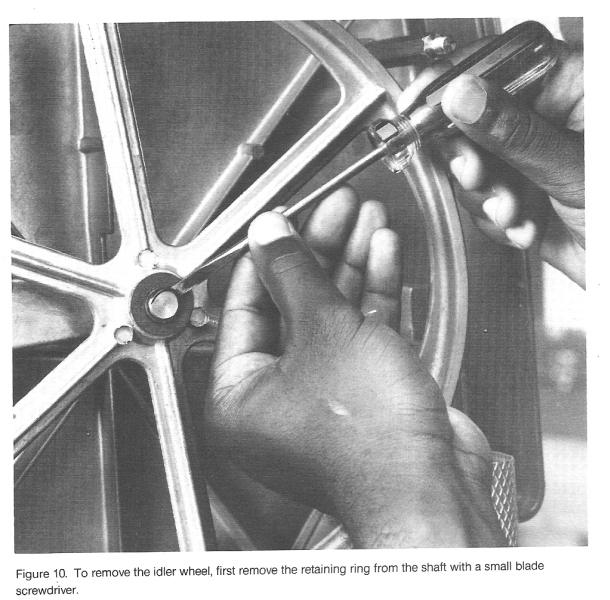

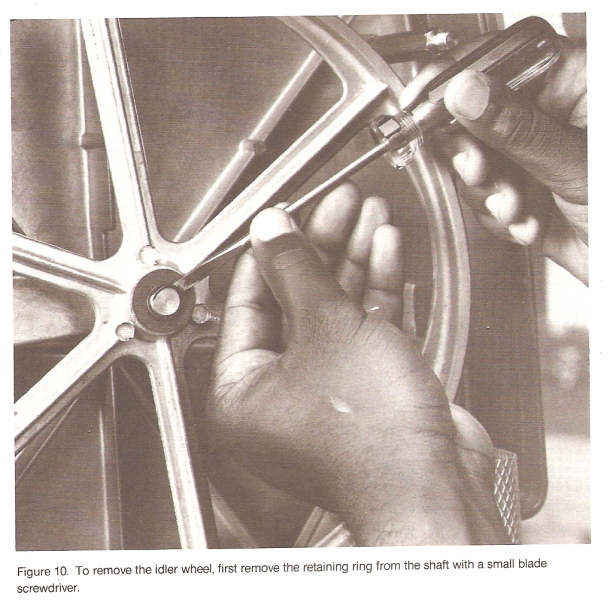

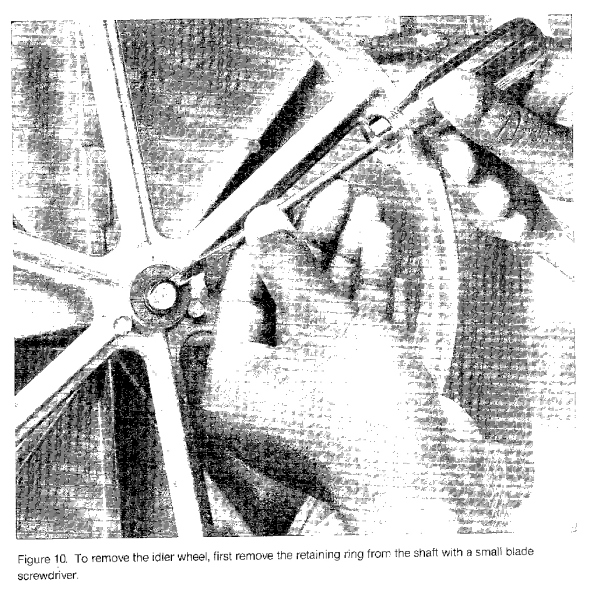

Color pix mode - - Grayscale pix mode - - BW pix mode

[ATTACH]15543[/ATTACH] - - [ATTACH]15544[/ATTACH] - - [ATTACH]15545[/ATTACH]

Holding yer tongue right does make a difference.;)
