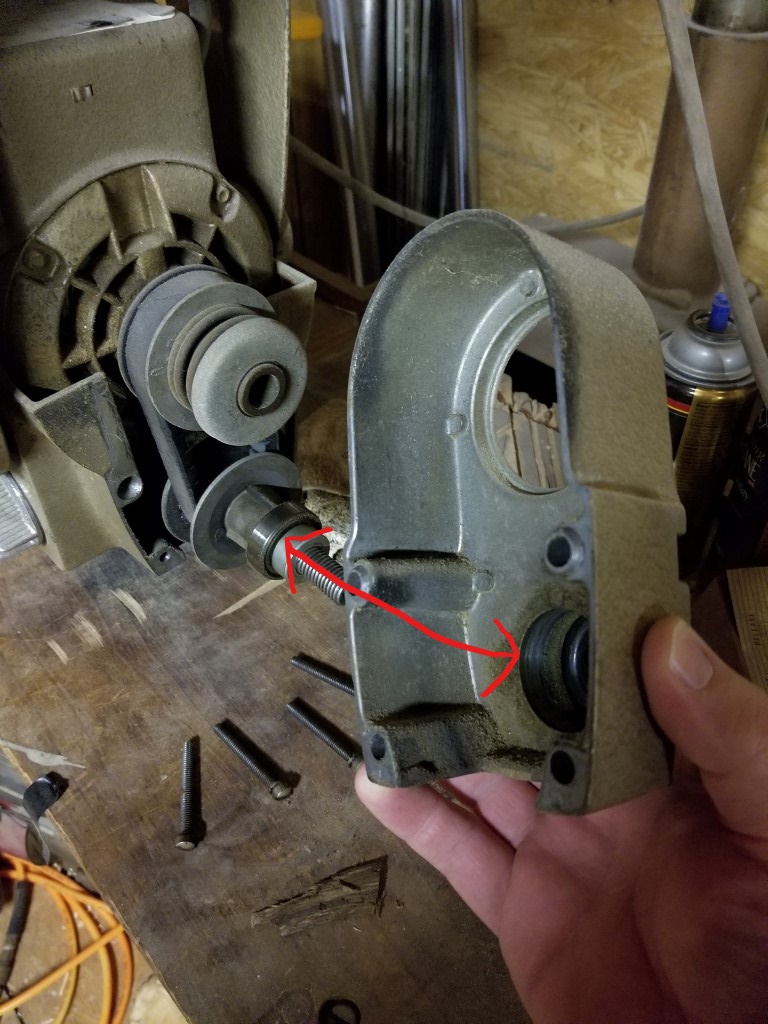

I don't recall having to remove that collar in order to remove the belt guard cover. I remember the cover was on very snugly though, but came off with some persuasion after those four screws were removed.
-
- Silver Member
- Posts: 8
- Joined: Sat Jun 04, 2016 10:25 am
Re: The Ultimate Sawsmith Radial Arm Saw Thread
Restoring my Grandpas 1961 Yuba....so reviving this thread (hopefully)
The belt cover is missing the four screws that hold it on. Any chance someone knows the approximate size so I can get replacements? Any help will be greatly appreciated
Also the last outstanding question in this thread does the belt cover come off without removing the sheath with the hard to access setscrew?
The belt cover is missing the four screws that hold it on. Any chance someone knows the approximate size so I can get replacements? Any help will be greatly appreciated
Also the last outstanding question in this thread does the belt cover come off without removing the sheath with the hard to access setscrew?
Re: The Ultimate Sawsmith Radial Arm Saw Thread
I'll try to remember to check mine out when I get home tonight and answer both questions.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
- everettdavis
- Platinum Member
- Posts: 2162
- Joined: Thu Jul 17, 2014 11:49 am
- Location: Lubbock, TX
Re: The Ultimate Sawsmith Radial Arm Saw Thread
I could not get the PDF files I tried to download from the front page.
Could you check into that when you have a free moment?
Everett
Could you check into that when you have a free moment?
Everett
Re: The Ultimate Sawsmith Radial Arm Saw Thread
Thanks for letting me know about that problem, Everett. The files were still there, but I guess the shortened DropBox links went away the last time DropBox made changes to their system. I updated the links with the full length link this time. Also added two new links - a Magna-Line Power Tools catalog from 1957 (even though this predates the Sawsmith RAS, I still thought it was interesting), and a zip file containing all of the documents in one download.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
-
- Silver Member
- Posts: 8
- Joined: Sat Jun 04, 2016 10:25 am
Re: The Ultimate Sawsmith Radial Arm Saw Thread
Thanks heathicus!
Really appreciate the help
Really appreciate the help
Re: The Ultimate Sawsmith Radial Arm Saw Thread

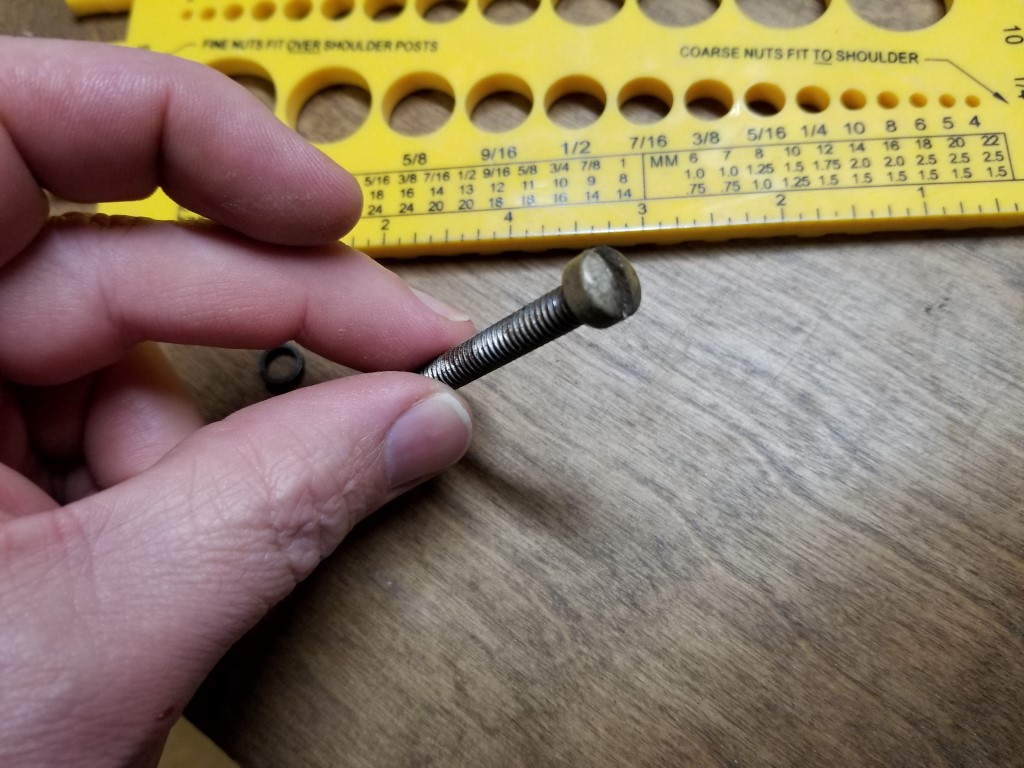

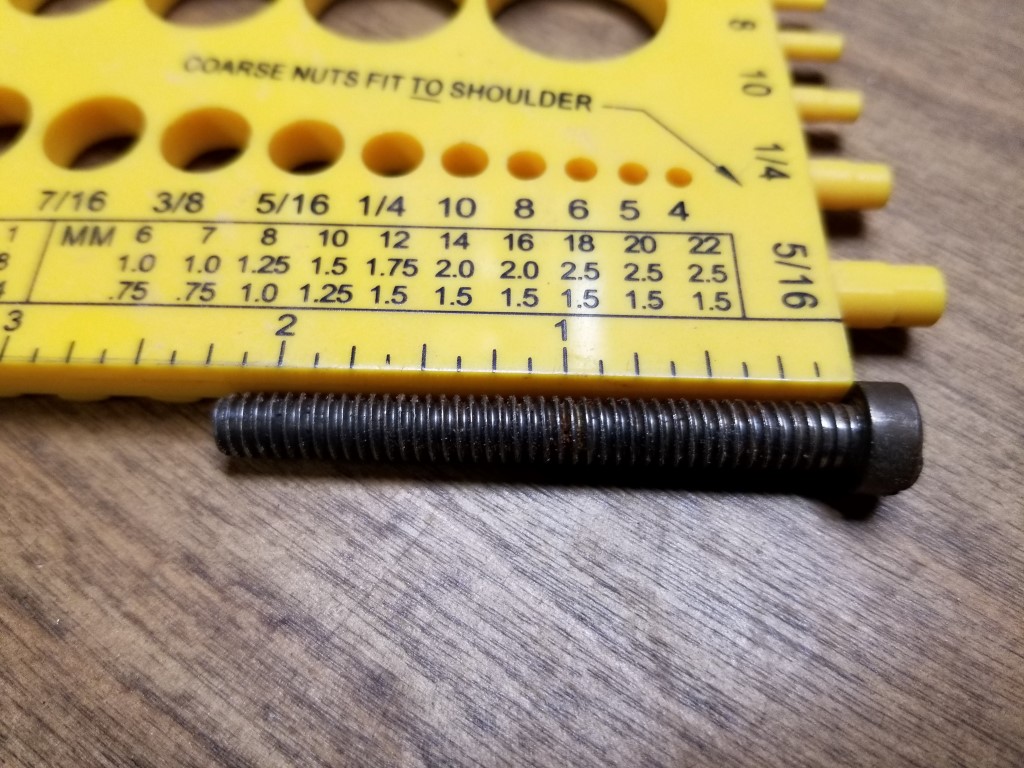

lioneldobie, the screws are 1/4-20 thread. Thread length is a little over 2-1/8" (2-3/16" maybe?). Overall length is 2-3/8" long. They also have a lock washer. The 4 screws are the only thing securing the cover, but it also holds the bearing on the end of the shaft. This may be gummed up and require a little persuasion to come off.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
-
- Silver Member
- Posts: 8
- Joined: Sat Jun 04, 2016 10:25 am
Re: The Ultimate Sawsmith Radial Arm Saw Thread
I owe you Heath!!!
Thanks so very much!
Thanks so very much!
-
- Silver Member
- Posts: 8
- Joined: Sat Jun 04, 2016 10:25 am
Re: The Ultimate Sawsmith Radial Arm Saw Thread

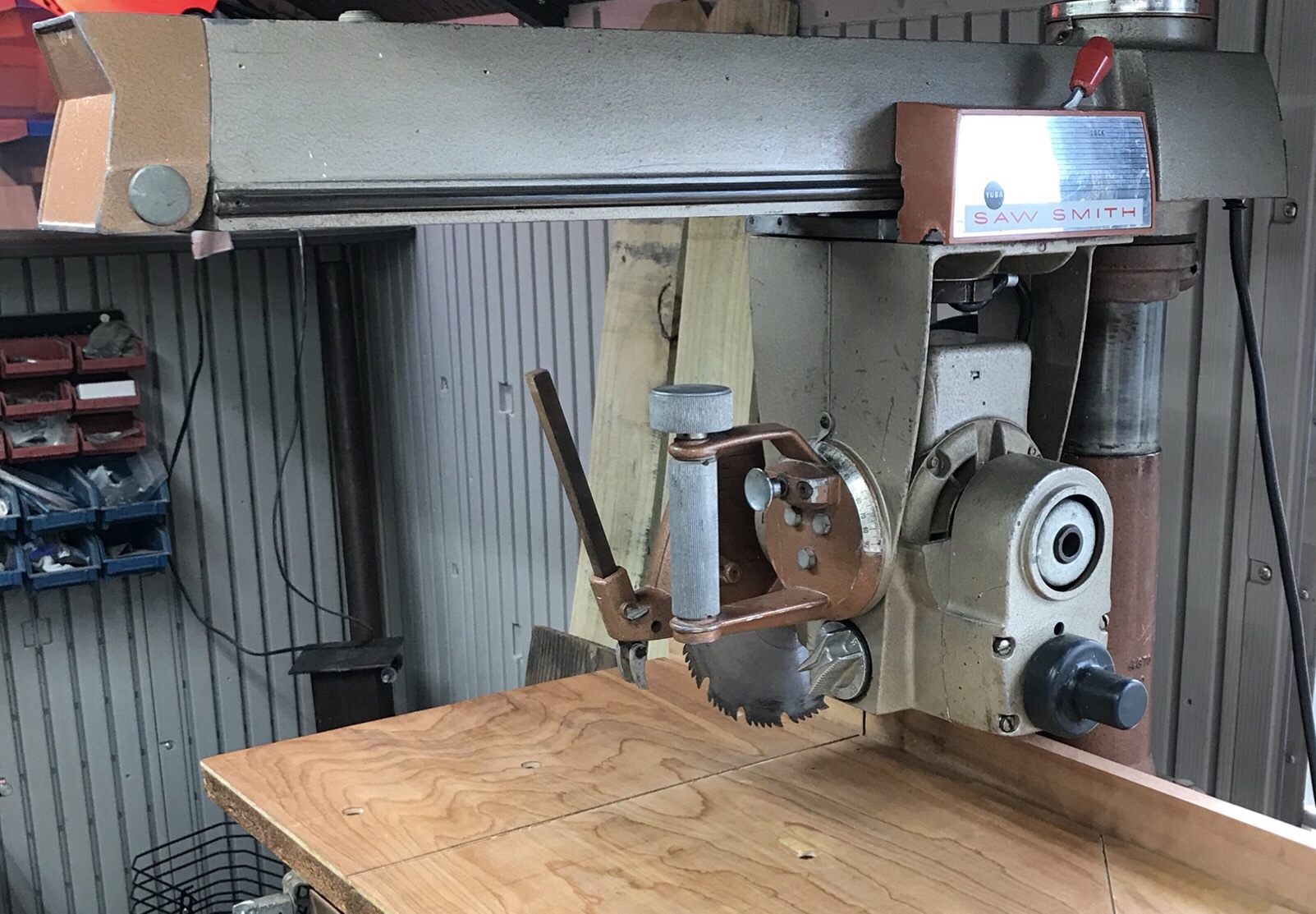

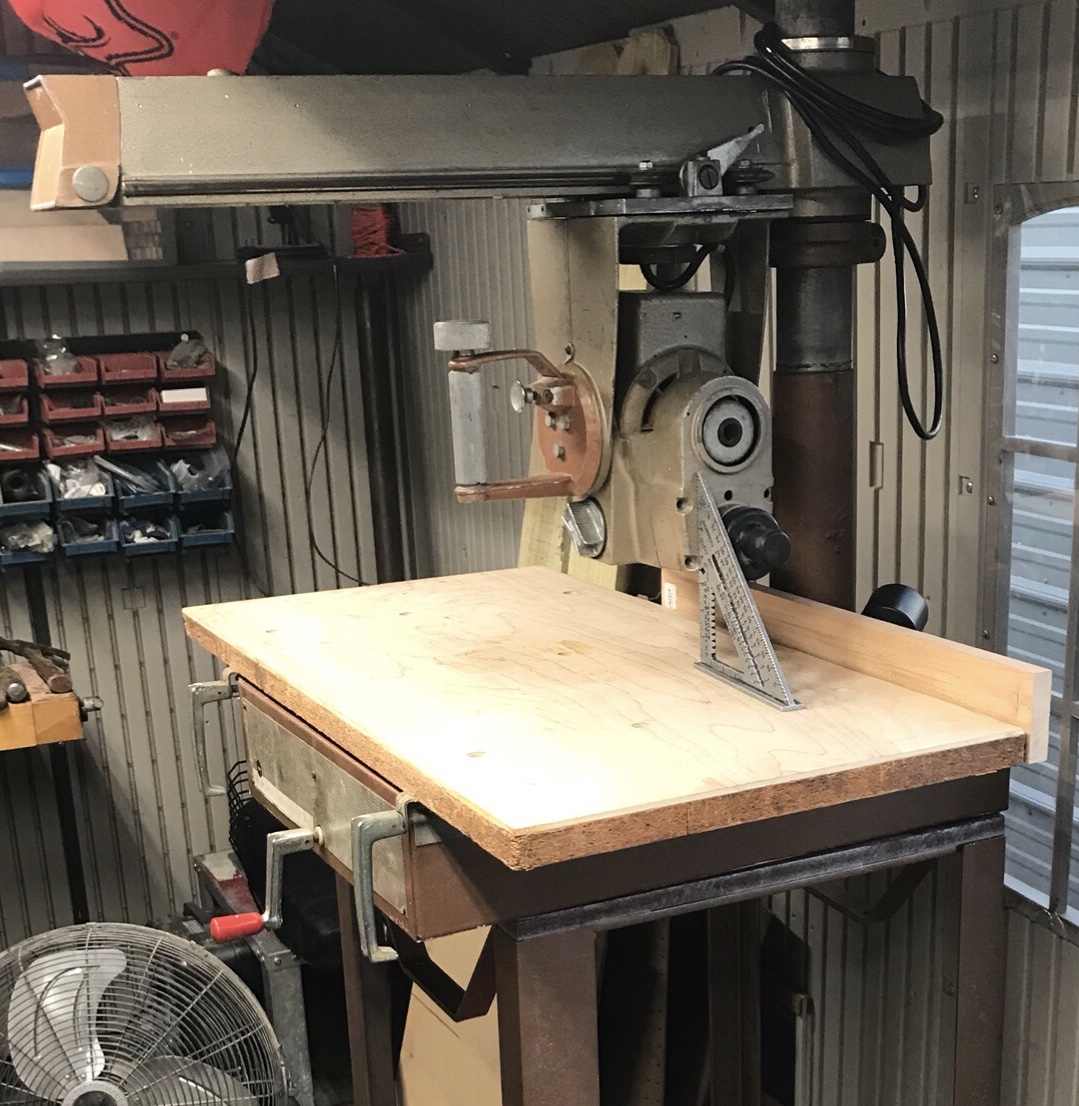

And complete!
My Grandpa taught me on a radial so I dedicate this restore to him
Thanks to everyone who helped...and this thread in generalMy Grandpa taught me on a radial so I dedicate this restore to him
