Post by heathicus »

JPG40504 wrote:That is a hair Mike! Notice it has a shadow! Blow it up bigger to see!
That's what it looks like to me too, but I don't know where it would have come from. I have a shaved head and my whiskers are trimmed, so it wouldn't have come from me. And I used a foam brush to apply the first couple coats of finish and a section of t-shirt to apply the 3rd coat. So it's not a bristle from a brush.
JPG40504 wrote:Hint: around the opposite corner:D
Opposite or adjacent? If adjacent, you might be on to something... :cool:

EDIT: I just realized, you could have correctly meant "opposite" corner depending on which corner you're talking about! The opposite corner of the whole lantern assembly (which is what I was thinking) would be out of view. Only one adjacent corner is visible. But the opposite corner of that side of the lantern IS in view, as are both adjacent corners on that side. Adjacent... Opposite... it's all relative.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Top
User avatar
mickyd
Platinum Member
Posts: 2999
Joined: Mon Feb 09, 2009 1:18 pm
Location: San Diego, CA
Contact:
Contact mickyd

Post by mickyd »

heathicus wrote:Hmmm... Not sure .....

But to find my other mistake, look at the rails.
All I could see after doing SERIOUS digital enhancement is what looks to be an unsanded top surface of the lower front rail.
.
.
[ATTACH]9694[/ATTACH]
Attachments
Mike
Sunny San Diego
Top
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

Nope. But getting warmer. In fact, the mistake is in that picture.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Top
judaspre1982
Platinum Member
Posts: 1237
Joined: Tue Jul 08, 2008 10:10 pm

Post by judaspre1982 »

==============================
Last edited by judaspre1982 on Sat May 13, 2017 1:01 pm, edited 1 time in total.
Top
User avatar
JPG
Platinum Member
Posts: 35430
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

judaspre1982 wrote:Is it that the rail on that side goes thru the stile as opposed to against it? The other side in the previous pic looks like the rails butt up against the stiles.----Dave
THAT is the thing around the opposite corner that I promised to not tell!(the second guess).
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

WINNER WINNER CHICKEN DINNER!!


Yep, that's it!

The joinery between the rails and stiles are half lap. So on one side of each lantern side you'd have the rail part of the joint exposed. On the other side you'd have the stile part of the joint exposed. A saw kerf is cut into those lower rails to receive the rabbeted edge of the base in the center.

I used a jig to hold each side as I ran it over the table saw blade to cut the kerf. This made sure the kerf was in the same position on each one so they would all line up when assembled. (Also kept the piece secure and my hands out of danger since there was very little to hold on to.) On that one side, somehow I put it in the jig upside down and cut the kerf on what was supposed to be the outside instead of the inside.

After "losing my religion" as Nick would say, and evaluating if I wanted to completely rebuild that side or not, I decided not and just went with it.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Top
judaspre1982
Platinum Member
Posts: 1237
Joined: Tue Jul 08, 2008 10:10 pm

Post by judaspre1982 »

============================
Last edited by judaspre1982 on Sat May 13, 2017 1:00 pm, edited 1 time in total.
Top
User avatar
JPG
Platinum Member
Posts: 35430
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

judaspre1982 wrote:I'll take a two piece with a side of coleslaw and mash-taters:D
I noticed this earlier but thought I would let the game go awhile.
Nice work Heath. You adapted to the conditions at hand to salvage the materials. That is a talent in itself. Way to stick with it.
Dave
"Around the opposite corner"(the corner diagonally opposite to the hair).

Quoted the wrong post, but it'll get er done!:o
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

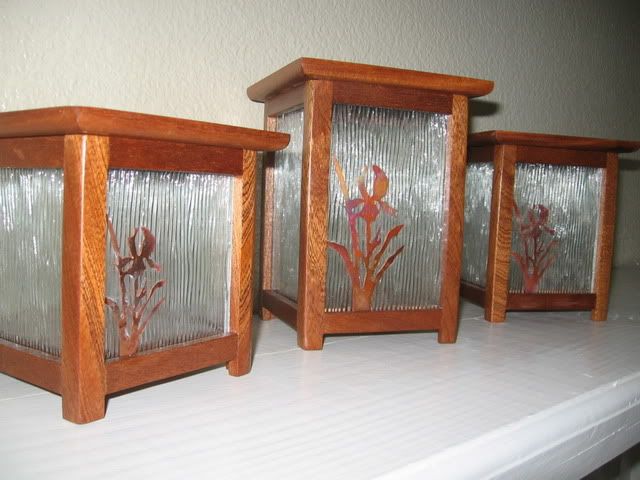

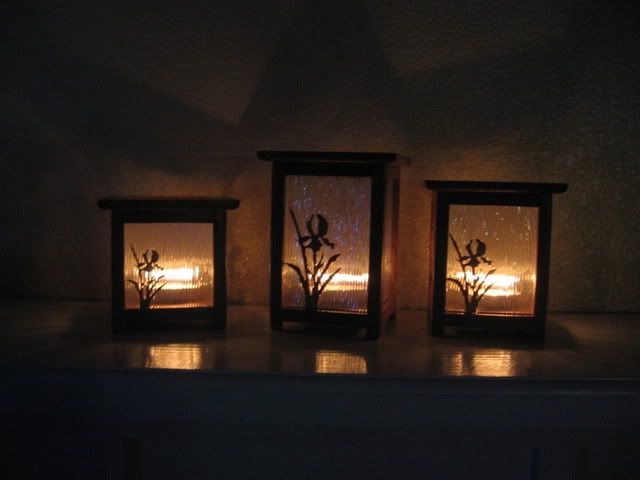

Lanterns are finally done!

Bad pictures, but here they are:



This was a fun project and it taught me a lot, but it took WAY too long. Hope mom likes with them.

And with that, my shop gets packed up for who knows how long while we move and then I get another shop.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Top
User avatar
Wanderir
Silver Member
Posts: 14
Joined: Mon May 10, 2010 11:40 pm
Location: San Francisco
Contact:
Contact Wanderir

Post by Wanderir »

Gorgeous! Nice work.
