Re: Refurbishing a MkV 510
Thanks Russ, got the pdf and all the pics downloaded and saved to their very own folder.
Larry Hargrove
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
SS 6” Belt Sander w/power stand 1970’s?
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
SS 6” Belt Sander w/power stand 1970’s?
Re: Refurbishing a MkV 510
Well, I’ve been cleaning up the blades I had, the standard SS steel blades look good, the carbide tipped ones have some chipped teeth and are also missing a few teeth. So, what are good sources for saw blades?
-
chapmanruss
- Platinum Member
- Posts: 4229
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Refurbishing a MkV 510
With that you can get a lot of answers and opinions. First having both the 1-1/4" arbor and the 5/8" Arbor for your Shopsmith will allow you to choose from many sources. I have used the Shopsmith Blades and am happy with their cuts. I have used other brands which I have been happy with too. The biggest thing is having clean sharp Saw Blades.So, what are good sources for saw blades?
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
-
chapmanruss
- Platinum Member
- Posts: 4229
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Refurbishing a MkV 510

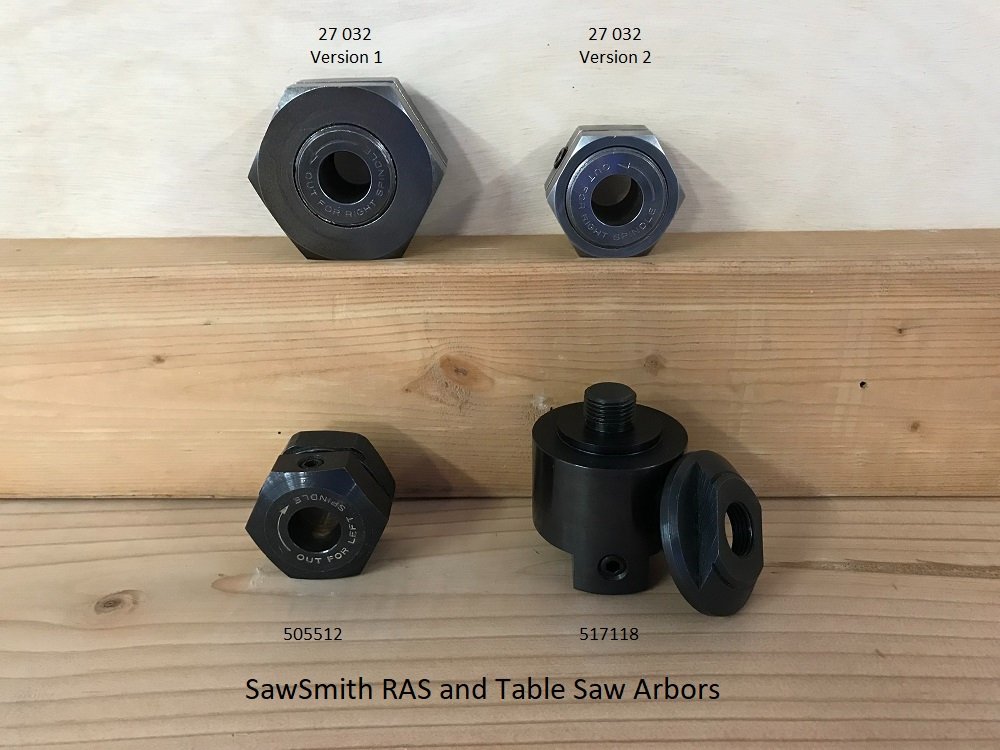

For Larry and any others who are saving the Arbors PDF and pictures for future reference, below is the SawSmith Radial Arm Saw and Table Saw Arbors.
_
.
The three hex shaped Arbors are from the Radial Arm Saw with 505512 being after the part number change in 1964 which is around the time the black protective coating was added to Arbors and other parts. The other Arbor is from the Table Saw and looks like 555608 which was originally made for the Table Saw before replacing 555118 prior to the Mark V 520 being introduced.
_
- SawSmith Arbors - labeled.jpg (110.01 KiB) Viewed 1559 times
The three hex shaped Arbors are from the Radial Arm Saw with 505512 being after the part number change in 1964 which is around the time the black protective coating was added to Arbors and other parts. The other Arbor is from the Table Saw and looks like 555608 which was originally made for the Table Saw before replacing 555118 prior to the Mark V 520 being introduced.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Refurbishing a MkV 510

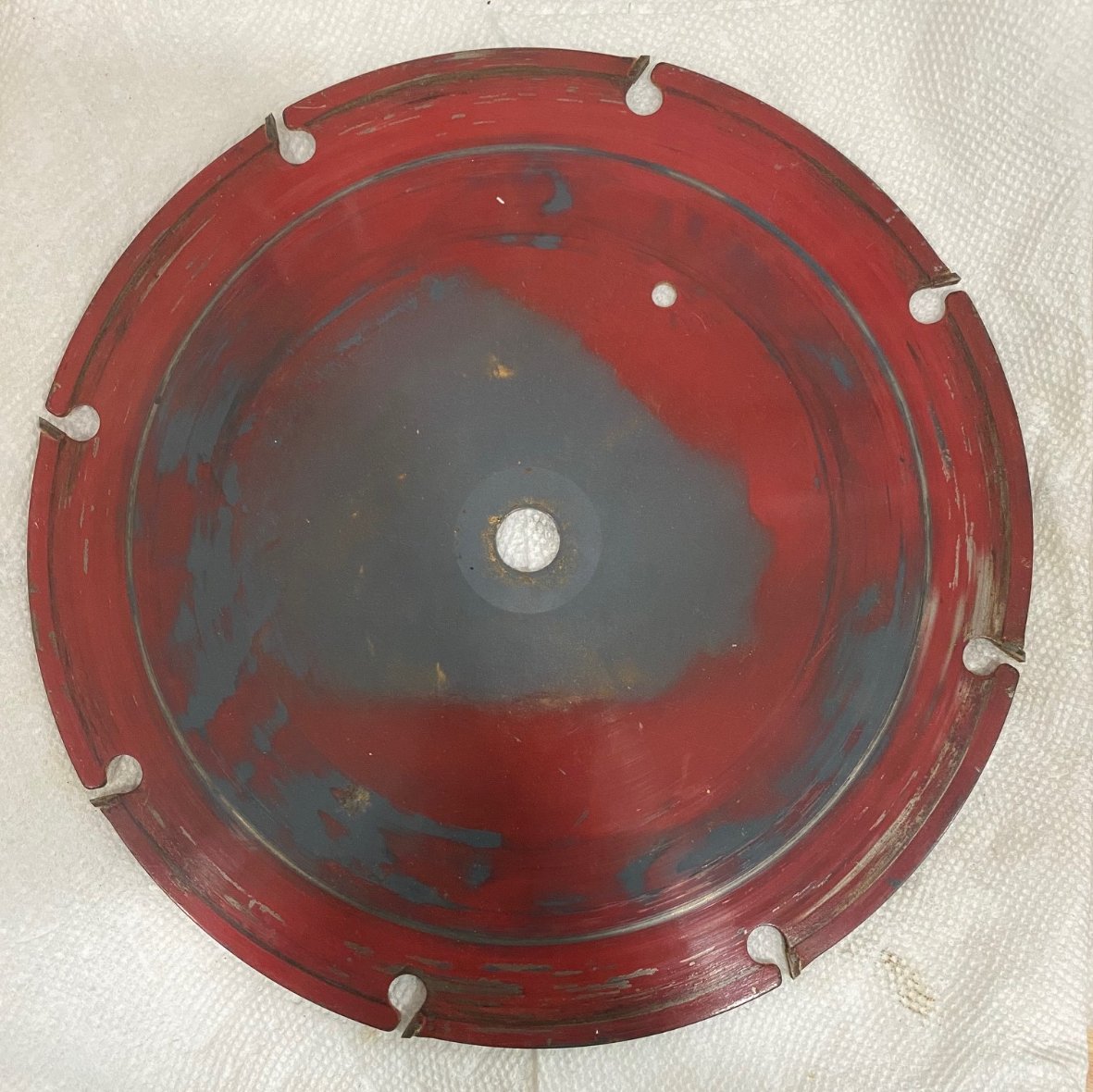

Another question, found this blade, not sure what it's for? Google didn't turn up much
- 8 tooth blade.jpg (222.8 KiB) Viewed 1460 times
Re: Refurbishing a MkV 510
Possibly for cutting Hardie Board, (cement siding)
https://www.homedepot.com/p/DIABLO-HARD ... /203162564
https://www.homedepot.com/p/DIABLO-HARD ... /203162564
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Re: Refurbishing a MkV 510
Thanks, Didnt see that one. This blade has to date from the late 80's and there are no labels or markings visible.
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Refurbishing a MkV 510
Sheet metal?????
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: Refurbishing a MkV 510
I have a similar blade but with 12 teeth. Mine is 10". It was marketed as an inexpensive carbide plywood blade at a time when carbide blades were significantly more expensive than steel. Definitely not five stars. I used it on particle board and similar, basically anything that was particularly hard on a regular blade. Most of the label is unreadable but I can see 'Enduro' or similar and just make out 'ply...' Circa early 80's. Googling Enduro I see a couple of hits for a circular saw version (7 to 7-1/4") with four teeth as a rip/crosscut blade.
- David
Re: Refurbishing a MkV 510
[/quote]I have a similar blade but with 12 teeth. Mine is 10". It was marketed as an inexpensive carbide plywood blade at a time when carbide blades were significantly more expensive than steel. Definitely not five stars. I used it on particle board and similar, basically anything that was particularly hard on a regular blade. Most of the label is unreadable but I can see 'Enduro' or similar and just make out 'ply...' Circa early 80's. Googling Enduro I see a couple of hits for a circular saw version (7 to 7-1/4") with four teeth as a rip/crosscut blade.
- David
[/quote]
Thanks, looks like I'll reserve it for rough cuts.
- David
[/quote]
Thanks, looks like I'll reserve it for rough cuts.
