Lots of advice needed

This is a forum for intermediate to advanced woodworkers. Show off your projects or share your ideas.

Moderator: admin

User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

Having done some more web research on epoxy for filling knots and cracks, I don't feel any more informed. I don't know why this is being so hard for me to wrap my head around. I've seen some suggestions to use clear casting resin as well as fiberglass resin. Anybody have any experience with that?
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
User avatar
nuhobby
Platinum Member
Posts: 2366
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Post by nuhobby »

It's probably better I didn't research mine :) . I find the 15-min-cure epoxy to be highly versatile and tough, and it's supposedly flexible enough to work well with wood's minor dimensional changes.

The Secretary I made 3-4 years ago was all reclaimed wood from a trash bin. I did sort through and use the tougher (Southern Yellow type, I think) pine on the writing surface, with the softer pine elsewhere. I had to fill some knots with epoxy, and it all is still solid as a rock. My nephew uses this desk all the time:

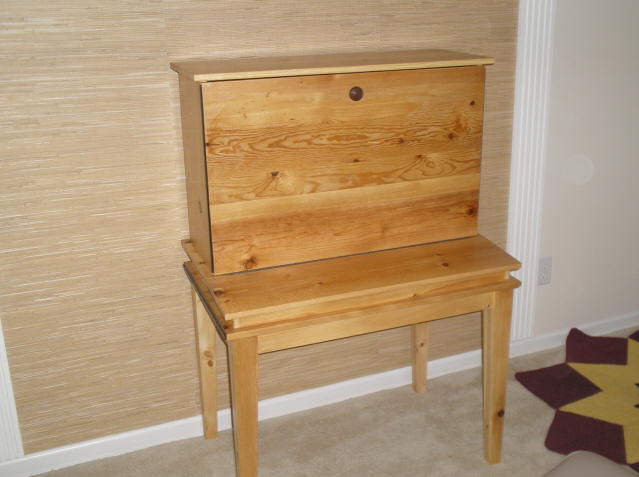

The overall unit:

[ATTACH]22566[/ATTACH]

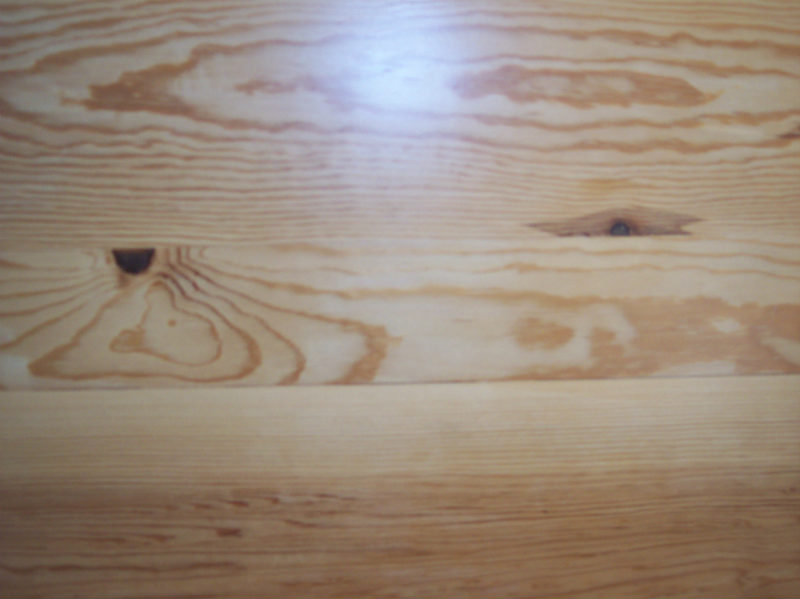

Closeup of a filled knot, from the outside:

[ATTACH]22567[/ATTACH]

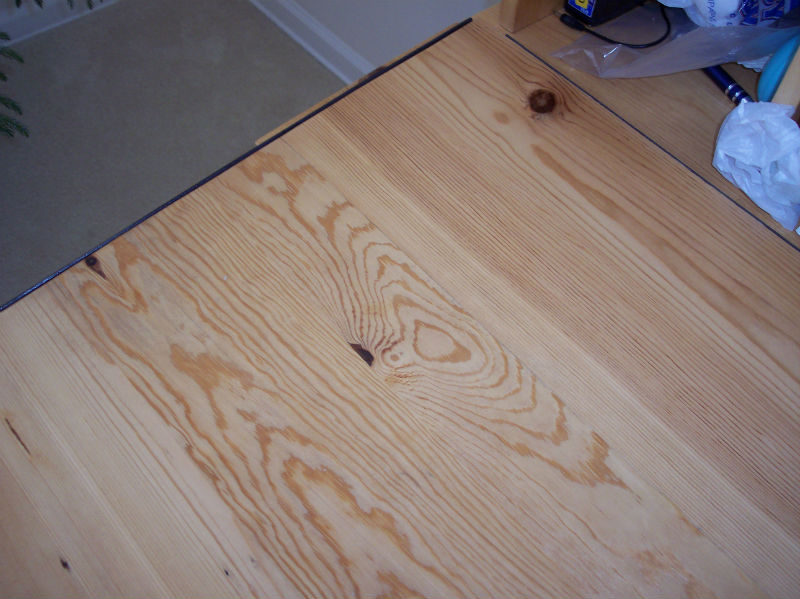

Inside (writing surface) view of the filled knot:

[ATTACH]22568[/ATTACH]
Attachments
Finished Desk Closed.jpg
Finished Desk Closed.jpg (40.48 KiB) Viewed 1304 times
Knot Outside.jpg
Knot Outside.jpg (58.56 KiB) Viewed 1298 times
Knot Inside.jpg
Knot Inside.jpg (90.63 KiB) Viewed 1303 times
Chris
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

One concern I had with the selection of epoxy at the hardware store I stopped at (a big, but local place) was they were all tiny little tubes, the cheapest of which was about $5. It just didn't look to be enough for what I need. I wonder if a more economical solution would be available at one of the bigger chains.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
User avatar
nuhobby
Platinum Member
Posts: 2366
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Post by nuhobby »

Yeah, these days I always buy the 9-oz. (2 parts @ 9oz = 18 oz. total) 15-Minute epoxy off e&bay. Brand BSI / Bob Smith Industries. That will do a great deal of work. If that's not enough, then you'd probably be looking at a "surface pour-on" type of coating job which I've not yet done myself.
Chris
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

Thanks, nuhobby. I placed an order for some of that epoxy.

I have also directed my wife to finally pick up a Kreg jig when she goes shopping later this week (the $40 Jr kit and a couple boxes of screws). My shop made jig was a failure, but only because my drill bits are just too short.

I didn't get anything done today beyond that failed jig experiment for a variety of reasons. Maybe next weekend. I'll have the Kreg jig and epoxy (hopefully) by then.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
saminmn
Gold Member
Posts: 366
Joined: Thu Mar 01, 2012 10:32 am
Location: Northfield, MN

shoebox storage

Post by saminmn »

Heath,

My wife buys lidded storage boxes, about the size of a shoebox, to store crayons and such for grand-kids, stuff from the dollar store. Maybe you could add slides under each side of desktop to hold something like them when not in use. Putting things away is a great habit (that I never developed) to develop in kids and part of that is having a place for everything.

Great project, good luck!
Sam in Northfield, MN
A day without beer......could have been better :p :D :p
Mark V 500 - S/N 100990, Mark V 510 - S/N missing, SS Band Saw, SS 6" Belt Sander, SS 4" Jointer, SS Scroll Saw, SS DC3300
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

saminmn wrote:Heath,

My wife buys lidded storage boxes, about the size of a shoebox to store crayons and such for grand-kids, stuff from the dollar store. Maybe you could add slides under each side of desktop to hold something like them when not in use. Putting things away is a great habit (that I never developed) to develop in kids and part of that is having a place for everything.

Great project, good luck!

Indeed!


How does one 'put things away' without a 'designated place' to do so?]my[/B] fault nor habits 'responsible for the disarray' - there is no designated place for 99% of it all!:rolleyes:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
saminmn
Gold Member
Posts: 366
Joined: Thu Mar 01, 2012 10:32 am
Location: Northfield, MN

Post by saminmn »

JPG40504 wrote:
Indeed!


How does one 'put things away' without a 'designated place' to do so?]my[/B] fault nor habits 'responsible for the disarray' - there is no designated place for 99% of it all!:rolleyes:
Me too, grew up in a small house, shared bedroom...not a chance I had a place for everything. Other than clothing, nothing had a place. That's my excuse and I sticking to it. :)

Never mind that I have had lots of room for many years, things still don't know where I want them to go:eek: :D :eek: :D
Sam in Northfield, MN
A day without beer......could have been better :p :D :p
Mark V 500 - S/N 100990, Mark V 510 - S/N missing, SS Band Saw, SS 6" Belt Sander, SS 4" Jointer, SS Scroll Saw, SS DC3300
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

Ed in Tampa wrote:As for a desk top have you looked at the glued up table top boards at the big box stores. When I was building my study I found a tabletop about 5 feet long and 30 inches wide it is made of cut offs that were nailed together and planed/sanded flat. The boards are 1x3 and none of them are longer than 6 inches long. I don't remember the cost but it was cheap cheap cheap. I stained and coated it and it has been in service since 1979.
I must admit that I first dismissed this suggestion thinking, "what's the fun in buying something I could make?" Well, after two full weekends of processing rough lumber (including a full day of just planing!), drilling over 500 holes (Beadlock loose tenons in the place of biscuits and pocket holes to supplement my small number of clamps), sanding, sanding, sanding, applying epoxy... I'm worn out! I now see the "value" in the above tip!

I had hoped to be able to apply the first coat of finish last night, add a new coat every night this week, and install this weekend. I didn't quite make it. Epoxy was still tacky when I went to bed last night. So I still have a lot more sanding to do to get the epoxy down flush and the excess removed.

But, I did get a couple new tools out of the job. A Kreg Jig Jr, and a handheld belt sander.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

So 24 hours later my 15 minute epoxy is still a little tacky in some places. Is that normal?

Also, what's the best way to remove the excess and smooth it down? On the small spots that felt hard and dry I tried a planer blade out of the hand plane and laid flat on the wood. But it pulled up chunks of wood under the epoxy. My random orbit sander with a half used 80 grit pad did nothing. The handheld belt sander with a 120 grit belt made short work of it, sanded it smooth, but left the epoxy looking very "cloudy" and dull. Is there a better way?
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
