Mike907 wrote:I think JPG is referring to the casters on the Shopsmith, and Onetrack is referring to the casters on the storage unit.
Yep! The casters on the storage rack swivel, so no way to 'reverse' them.
I asked to determine if they were 'reversed' to accommodate the storage cabinet.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
SS Casters are that way around for no particular reason. They were that way 'round when I bought the SS, and they seem pretty convenient that way, because I can drop the SS and connect the dust collector from the back, then go around a work from the front.
The cabinet does not interfere with the SS casters. It is compatible with the SS casters either way.
JPG wrote:
Mike907 wrote:I think JPG is referring to the casters on the Shopsmith, and Onetrack is referring to the casters on the storage unit.
Yep! The casters on the storage rack swivel, so no way to 'reverse' them.
I asked to determine if they were 'reversed' to accommodate the storage cabinet.
I haven't done any measurements, but I suspect that design would be easy to tweak for the lift assist and still have room for the tools you have in there. Maybe?
My quick solution is nowhere near as elegant. I had some scraps of 12" wire closet shelving, and a 6' 2x4.
I was afraid the wire shelf would interfere with the lift piston I added.
It is just as important to be lucky as good.
Attachments

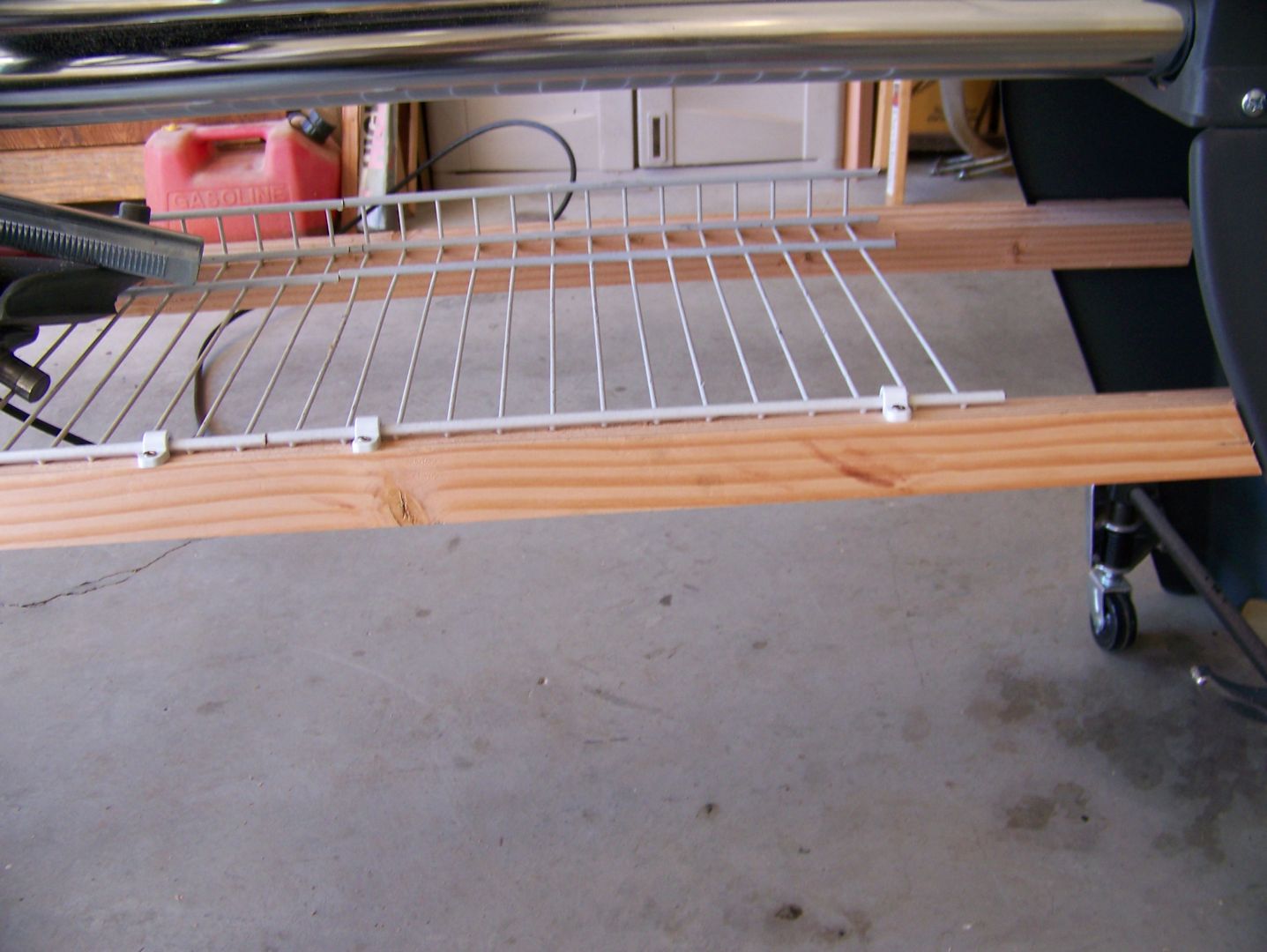

Under Rod Shelf.jpg (165.24 KiB) Viewed 20012 times

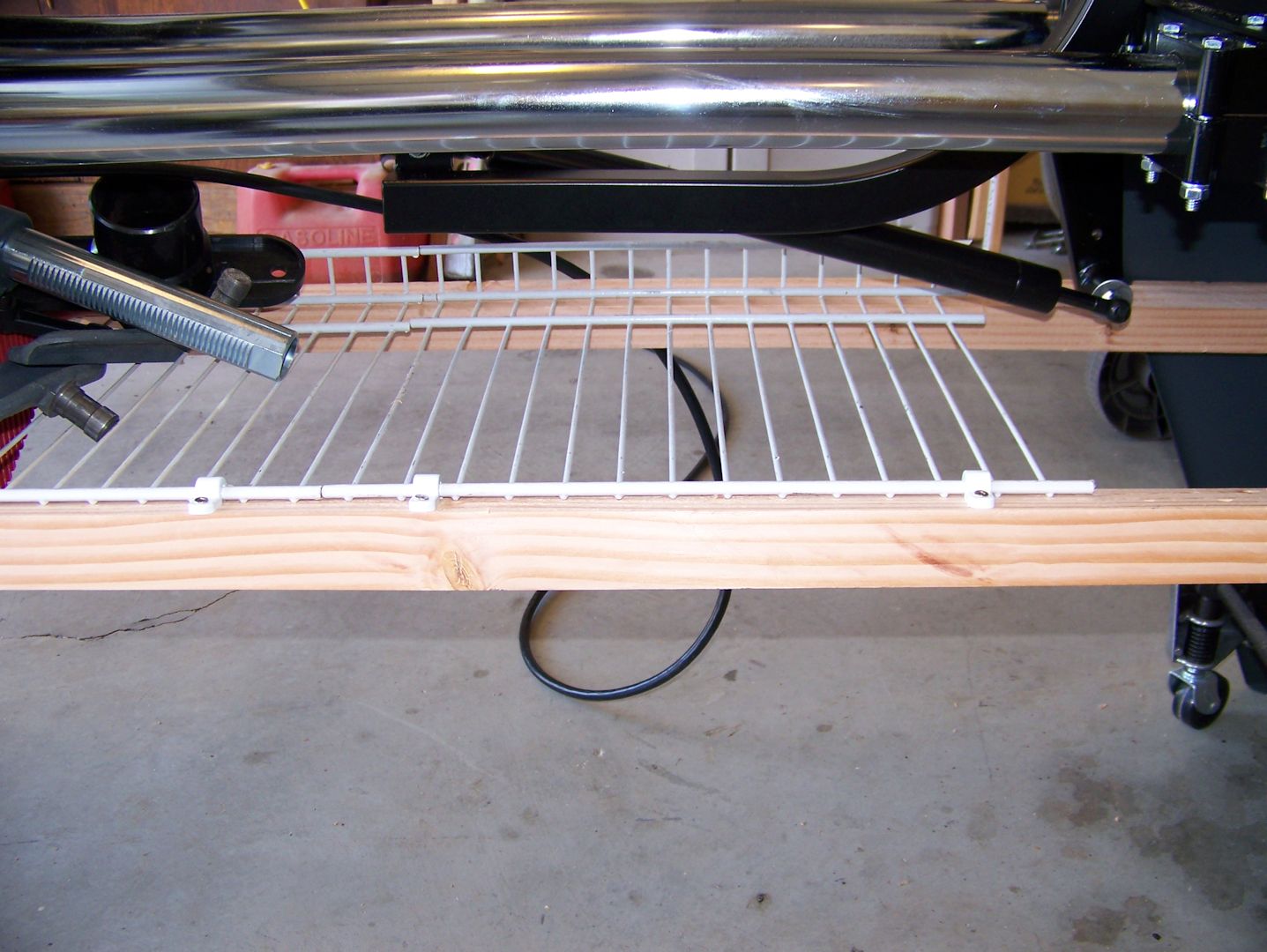

Shelf & Lift Piston.jpg (206.15 KiB) Viewed 20012 times
brown50 wrote:My quick solution is nowhere near as elegant. I had some scraps of 12" wire closet shelving, and a 6' 2x4.
I was afraid the wire shelf would interfere with the lift piston I added.
It is just as important to be lucky as good.
Now that it has been awhile does the wire shelving accumulate less dust than a solid shelf would?
Well done! That is something I could use. I'm tired of the shin banging accessory shelf, and like someone said it gets in the way of raising and lowering the castors anyway.
2015-08-22 16.12.27.jpg (65.34 KiB) Viewed 19553 times

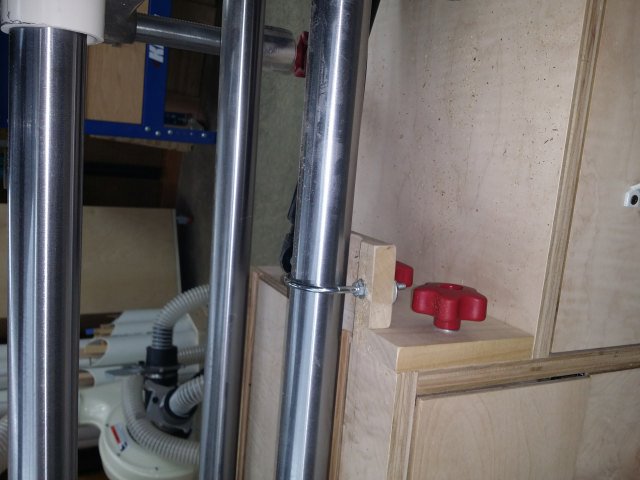

2015-08-22 16.12.33.jpg (47.09 KiB) Viewed 19553 times
2015-08-22 16.12.40.jpg (50.27 KiB) Viewed 19553 times
Sorry, I rotated these pics on my computer so they would appear correctly but when I attach them here they revert back to standing on end. Couldn't figure out how to correct it once attached to the message.
claimdude wrote:Here's my under SS storage cabinet.
Jack
2015-08-22 16.12.27.jpg
2015-08-22 16.12.33.jpg
2015-08-22 16.12.40.jpg
Sorry, I rotated these pics on my computer so they would appear correctly but when I attach them here they revert back to standing on end. Couldn't figure out how to correct it once attached to the message.
That is a good idea!
I like it! Nice design ....
Dick 1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
