richardrouse wrote:I hadn't seen just how flattened out that part of the cam had become. I wonder if that is due to distortion in the nylon cam i based it on.
I'll have to adjust the model.

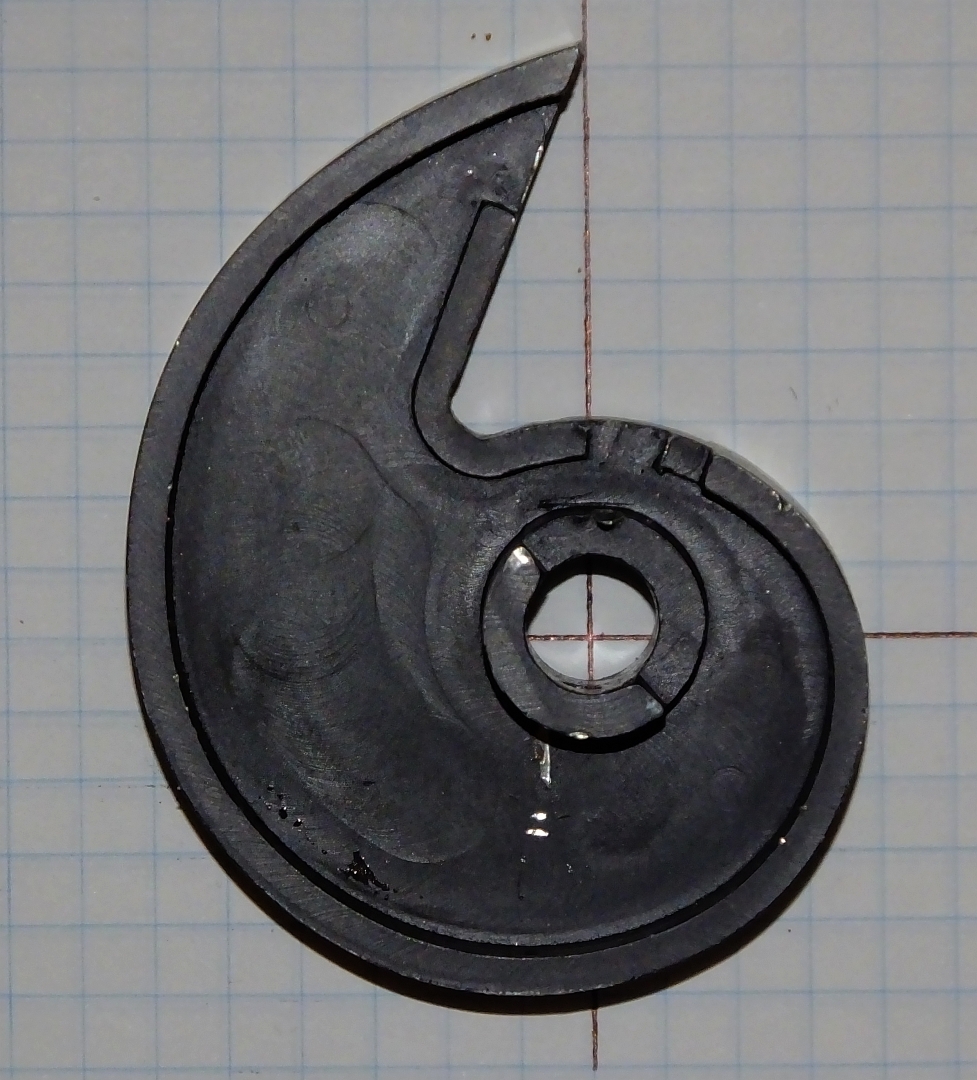

Can you, by chance, take a photo of the silver cam's profile head on with a scale in the background? so I can compare the profile I used to create the model and the CNC cam.
close - gotta run!
cnc cam.jpg (628.53 KiB) Viewed 1012 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
hobbies wrote:how does the speed control cam look when putting back in
Check the other thread.
╔═══╗
╟JPG ╢
╚═══╝
