PDF of shopsmith 555653 fence

[reible]

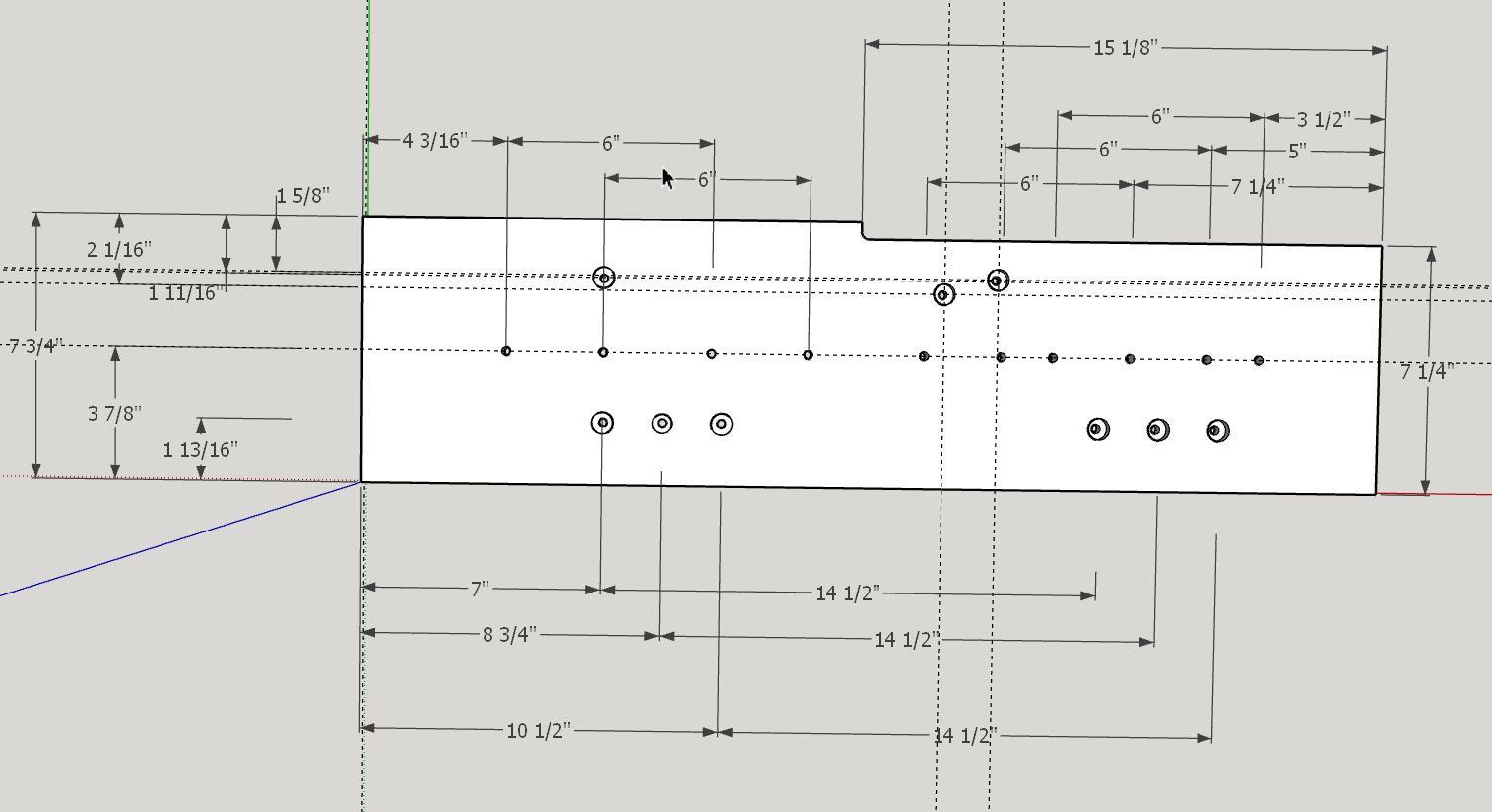

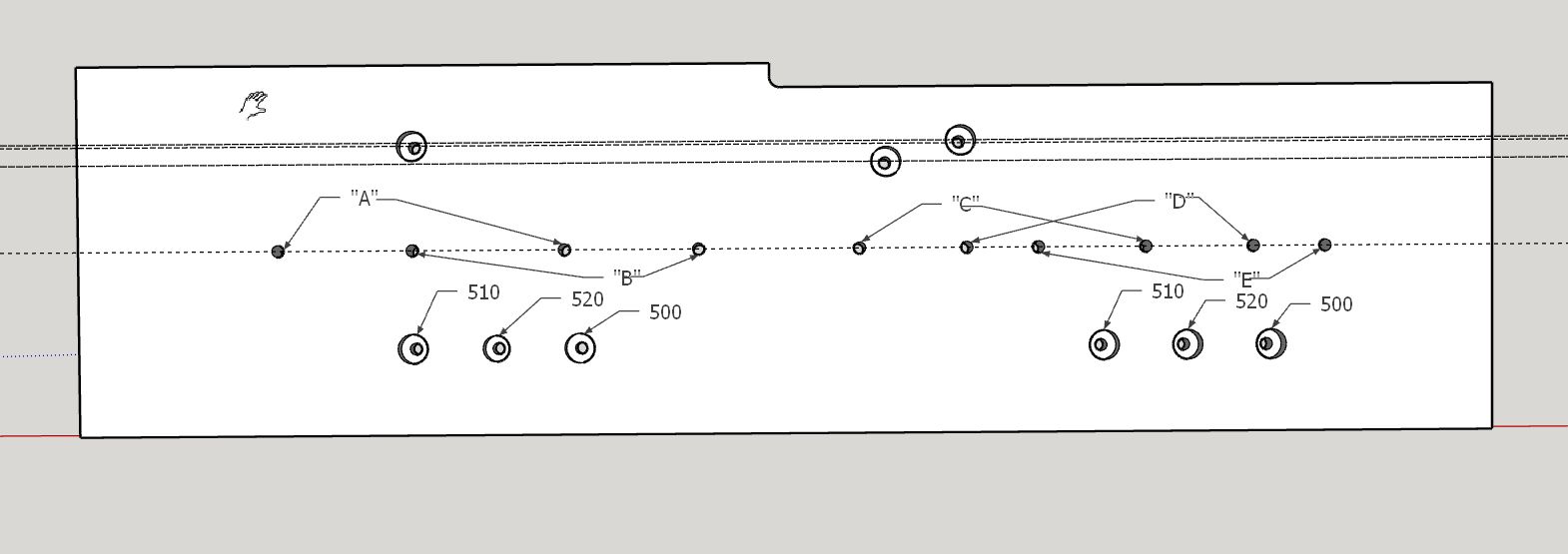

I did a quick and dirty drawing of mine. Some of the measurements are guesses as to what the intent is/was.

Offered as is without verification.

ScreenHunter 02a.jpg (81.75 KiB) Viewed 4183 times

ScreenHunter 04a.jpg (55.38 KiB) Viewed 4183 times

The one I have is nearly 13/16" thick.

Keep in mind the hole to hole dimensions of parts are more critical then the actual location, ie the feather boards need 6" CL to CL. The 500 and 510 fences have mounting holes 14 1/2" CL to CL. You don't get those right and it will not mount.

I don't have the shopsmith jointer so I can not speak to how that mounts, do reference the pdf for details.

Ed

[Mike907]

One other ? What is the length of the 520 rip fence EXTRUSION?

24 3/8"?

http://www.shopsmith.com/ownersite/cata ... nsions.htm

Mike

[JPG]

Thank You!

I am surprised it is shorter than a 510 fence extrusion.
