New ShopSmith Owner!
Moderator: admin
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: New ShopSmith Owner!
Appears to be one of them demo machines.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
chapmanruss
- Platinum Member
- Posts: 4234
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: New ShopSmith Owner!
With that Serial Number of ER-9121 and the second plate on the back side of the headstock it probably was a demo. With the ER before the serial number it would have been made in the Eastern plant and an early one made there. With the 65 to 70 years that has past since these were made it is interesting to see how few have moved from west to east or east to west. Most of the Serial Numbers I have seen, either in person, craigslist or eBay, starting with R are still in the western US and the ones with E or ER are in the Eastern US.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
-
rjent
- Platinum Member
- Posts: 2121
- Joined: Fri Mar 14, 2014 3:00 pm
- Location: Hot Springs, New Mexico
Re: New ShopSmith Owner!
Outstanding! Very nice. The jigsaw works very well!
JMHO
JMHO
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
Re: New ShopSmith Owner!
Color me green! I envy your skill.
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: New ShopSmith Owner!
I admire it!!!!!wrmnfzy wrote:Color me green! I envy your skill.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: New ShopSmith Owner!

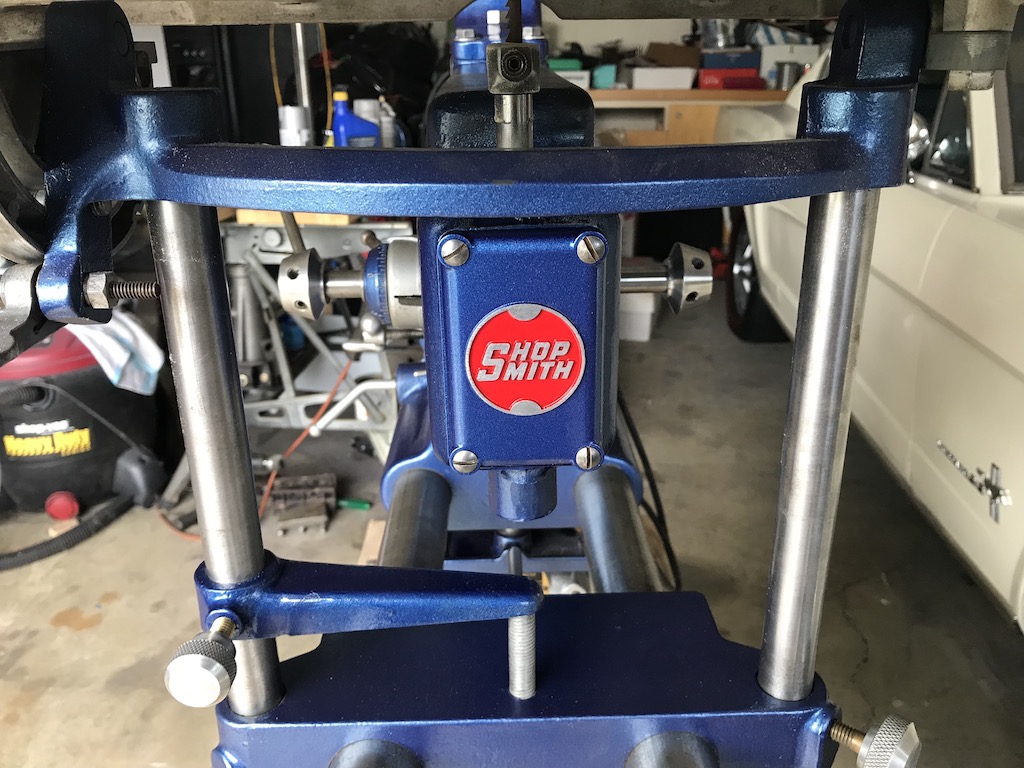

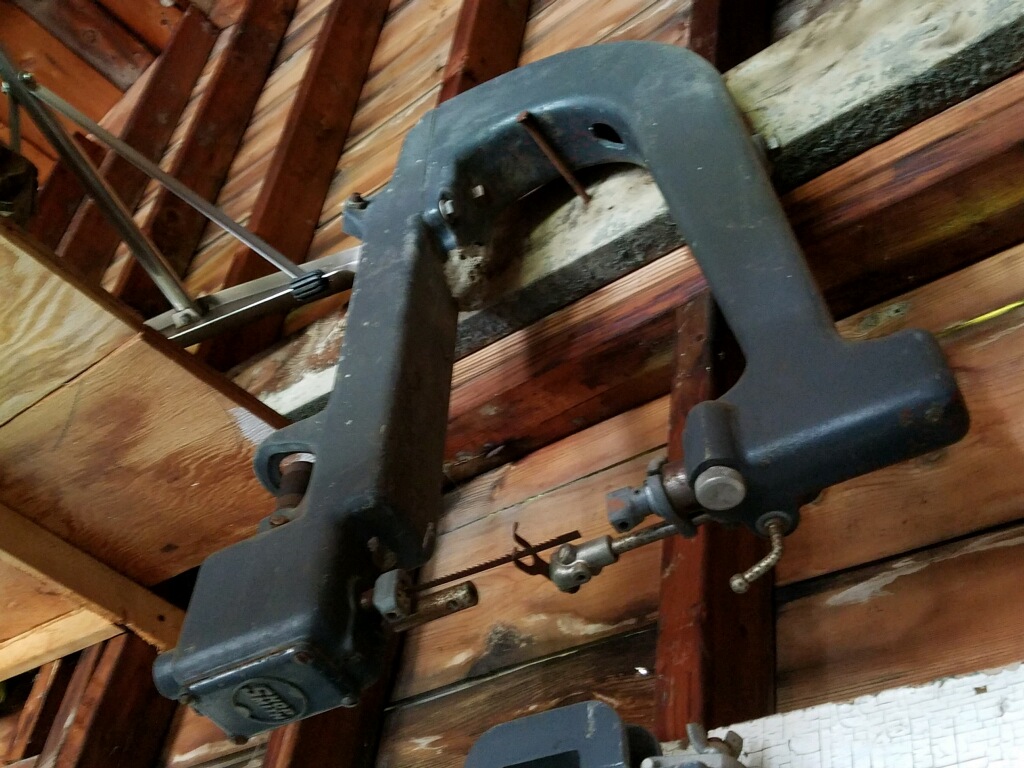

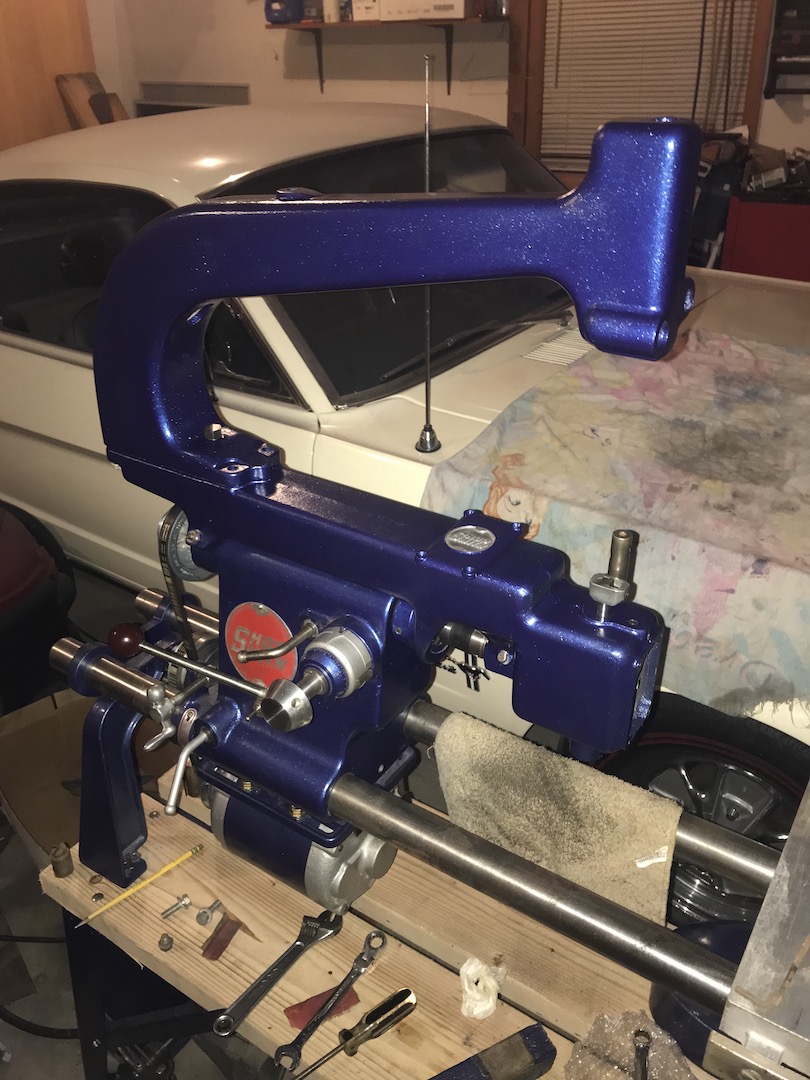

Adding another picture of the 10ER project. The A-34 Jigsaw has been completely taken apart, cleaned and partly reassembled. Surprisingly the moving parts are tight for it's age. Cleaned up the bushings and re-oiled the parts. Flexible Coupling seems to be good too. I'd like to know where I can get a spare one just in case. Looking forward to finishing the reassembly. I'll post another picture when it's all together. It's amazing how many critters and bug nests find their way into the housing!
Dave V.
Dave V.
- Attachments
-
- Before Painting
- IMG_2369.JPG (232.82 KiB) Viewed 22646 times
-
- After Painting
- IMG_2418 copy.JPG (234.25 KiB) Viewed 22646 times
-
chapmanruss
- Platinum Member
- Posts: 4234
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: New ShopSmith Owner!
It is hard to find the coupler but there is an alternative. We were just talking about it on another thread. It is the Lovejoy L050X5/8HUB RSB (2 needed) and the L050SOX (1 needed). 2 hubs and a "spider" needed to make a complete unit. It is 3/32" shorter than the original hub and smaller in diameter. Check their website for more information and location to purchase.
http://www.lovejoy-inc.com/products/jaw ... -type.aspx
When I have restored this version of the Jig Saw I have always found something inside the Lower Frame even as far as inside the gear box. The later version changed the Lower Frame so the gear box is closed up and it added the belt cover. The Upper Frame is the same and common to find bugs or stuff in there too. In case you need one below is a PDF of the early version Manual.
http://www.lovejoy-inc.com/products/jaw ... -type.aspx
When I have restored this version of the Jig Saw I have always found something inside the Lower Frame even as far as inside the gear box. The later version changed the Lower Frame so the gear box is closed up and it added the belt cover. The Upper Frame is the same and common to find bugs or stuff in there too. In case you need one below is a PDF of the early version Manual.
Jigsaw Model A-34_134-1X.pdf- Jig Saw Manual early version
- (1.67 MiB) Downloaded 2076 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: New ShopSmith Owner!

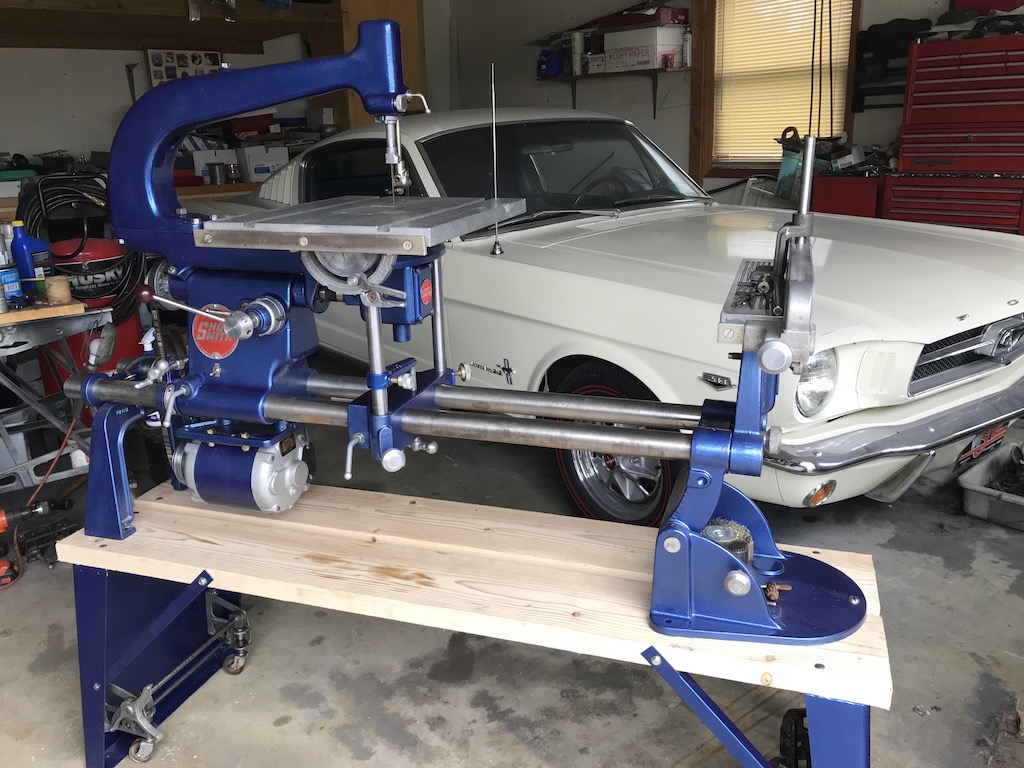

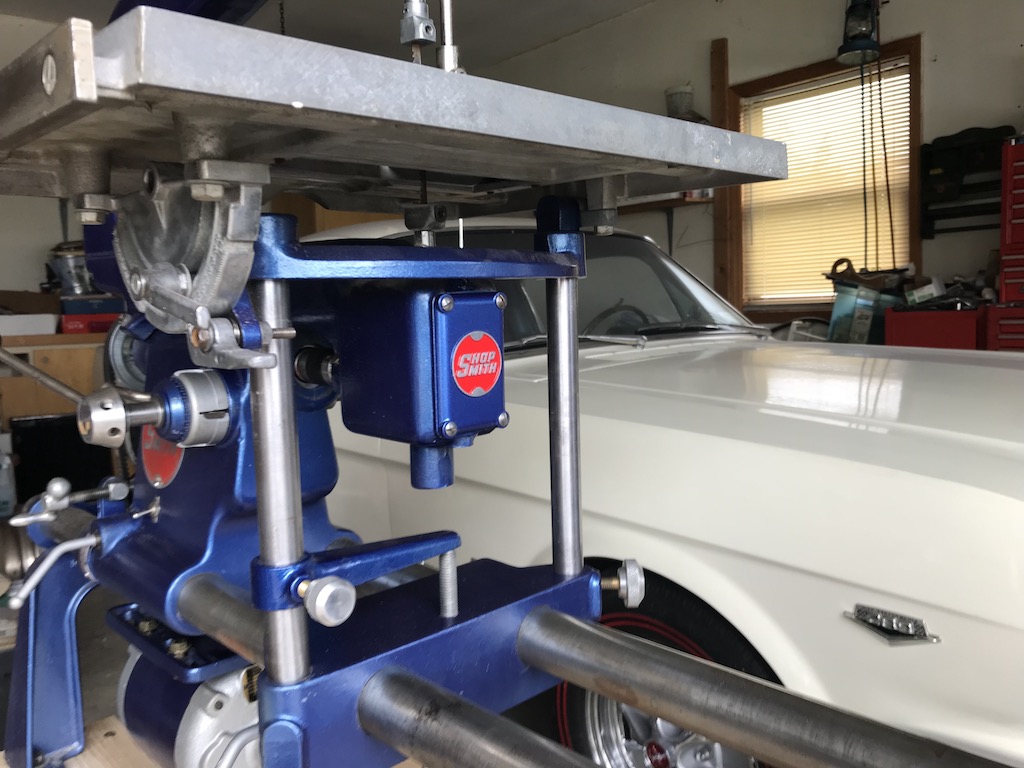

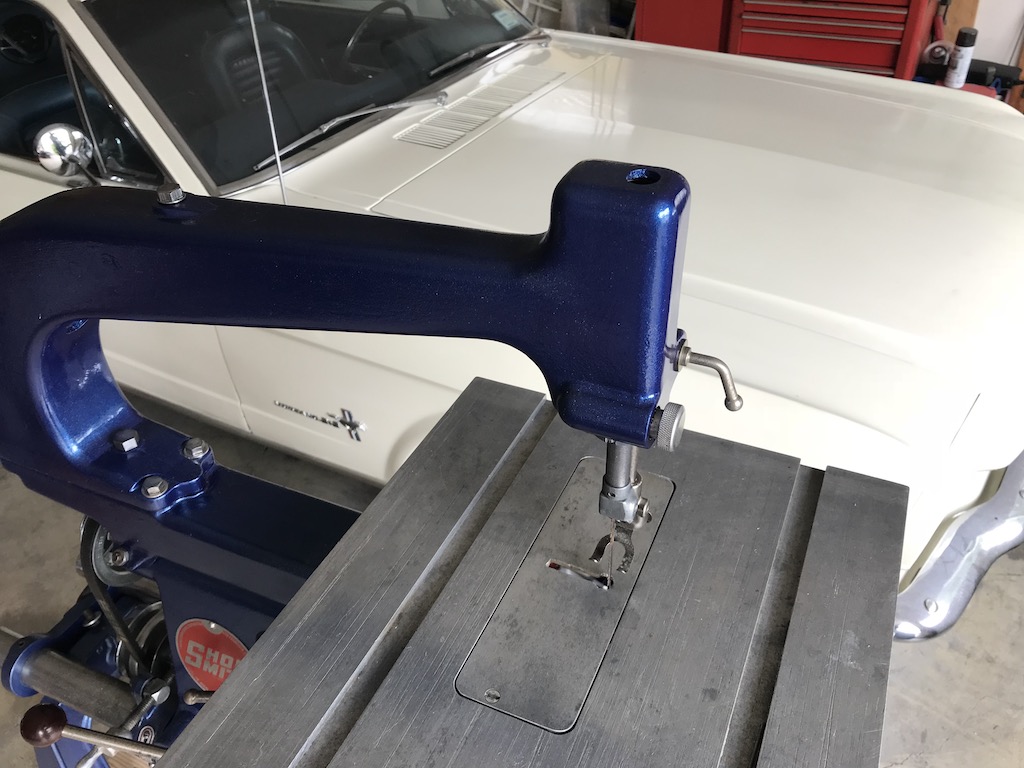

Thanks Russ! I appreciate the info that you and the other members have shared. Here are some pictures of the Jigsaw all done. The Jigsaw works very well! One puzzling question, How does the saber saw support (134-13) work, as I see a hole in the post and a adjusting jam nut. I don't see anything on what it does or how it's hooked up to anything even in the manual.
Dave V.
Dave V.
- Attachments
-
- IMG_2423.JPG (229.26 KiB) Viewed 22554 times
-
- IMG_2425.JPG (172.03 KiB) Viewed 22554 times
-
- Front cover painted red.
- IMG_2428.JPG (221.71 KiB) Viewed 22554 times
-
- Table
- IMG_2426.JPG (173.55 KiB) Viewed 22554 times
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: New ShopSmith Owner!

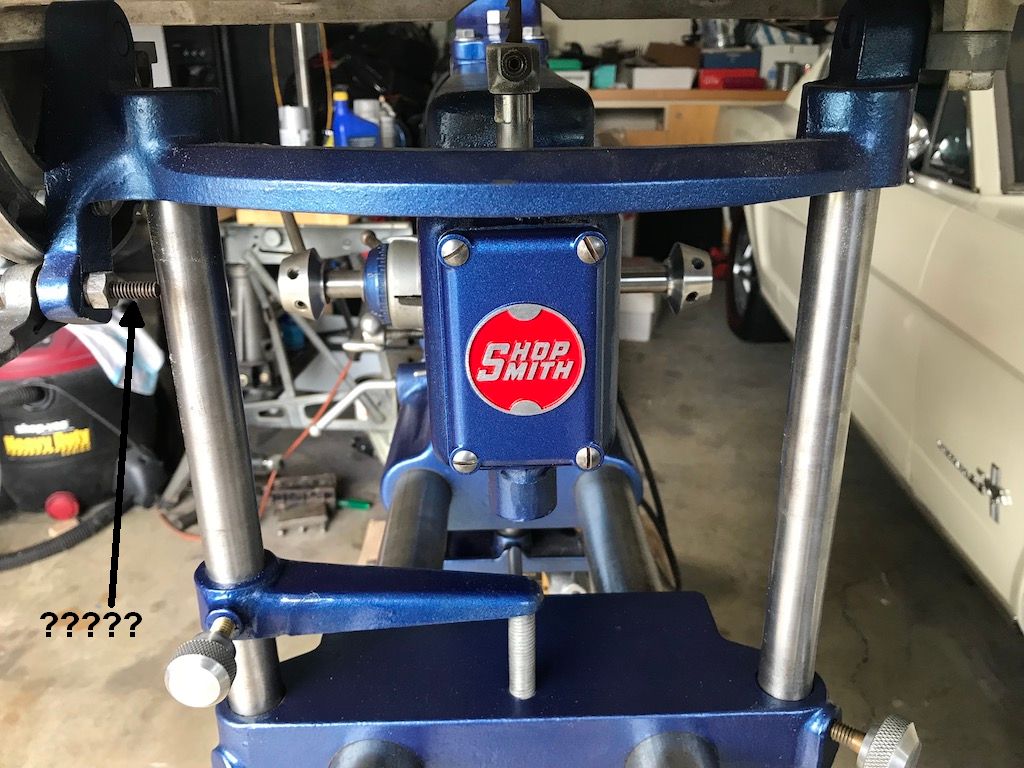

That is a gorgeous restore, But what is at the end of the arrow?
- temp.jpg (137.67 KiB) Viewed 22543 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: New ShopSmith Owner!
It looks like a non OEM bolt that replaced P/N P1316 that holds the table tilt indexing lever. It should be a 1/4-20 X 1 1/2" hex bolt.JPG wrote:That is a gorgeous restore, But what is at the end of the arrow?
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Eagle's Lair Woodshop
Hooper, UT
