Poly V belt replacement

[roneg]

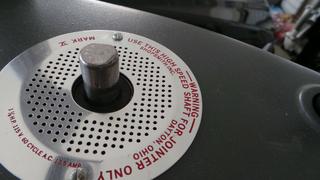

Everything went well on re-assembly. Machine runs wonderful! Here are the pix I promised. If anything looks amiss please let me know. I'm closing the chapter on this project.
Thank you JPG for hanging in there with me.

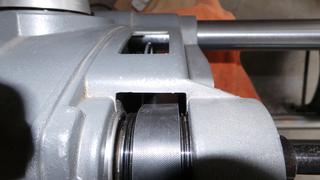

Hope my questions, and posted pix may help future shopsmithers that may have similar questions/issues. https://i.postimg.cc/3ryscGgQ/20190326-131254.jpg[/img]

[dusty]

Was there a suspected "bent motor housing" somewhere associated with this Mark V or am I loosing it?

[roneg]

Was there a suspected "bent motor housing" somewhere associated with this Mark V or am I loosing it?

No Dusty your not loosing it. That was My other machine..A 56 Greenie.
I replaced some worn items on it. It is the one with the close belt/ way tube clearance. It however still has that close clearance, but apparently not too close as I smell no burning rubber!

Ron

[dusty]

Thanks! That makes me feel better.

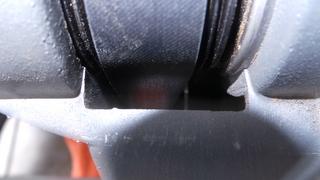

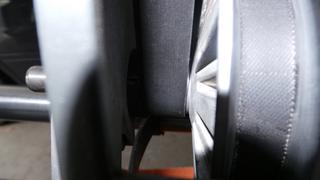

Sure do wish I could touch and feel or see good end shots that detail the proximity of the belt to the tubes along with the position of the eccentric.

The geometry of a Mark V just does not allow for what you have there.

I have rechecked all of my related sketches against the two 510s that I have and there is plenty of clearance.

[roneg]

I'll be taking the 510 down to the shop tomorrow and retrieving the 500. I can take some of those touchy, feely pix then!

Ron

[dusty]

I'll be taking the 510 down to the shop tomorrow and retrieving the 500. I can take some of those touchy, feely pix then!

Ron

That would be great. Thank you.

[JPG]

I have not kept the discussion between the two machines separated either.

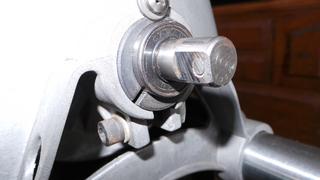

The bearing still looks too far sticking out of the eccentric.

The Greenie, IIRC. the eccentric adjusting slot was at/toward 3 O'Clock. That will position the idler shaft and pulley closer to the waytubes on the operator side.

[roneg]

Yea I don't know. I have not seen, nor heard a specific measurement, or recommended placement to date. Nor have O seen any real good pix of this. My control sheave pulley and idler line up. The belt seems to be pretty darn true. It is positioned as far in the head-stock as it seem to want to go. I hit it a number of time with the dead-blow hammer. As much as should have set it home!

[JPG]

Yea I don't know. I have not seen, nor heard a specific measurement, or recommended placement to date. Nor have O seen any real good pix of this. My control sheave pulley and idler line up. The belt seems to be pretty darn true. It is positioned as far in the head-stock as it seem to want to go. I hit it a number of time with the dead-blow hammer. As much as should have set it home!

The bearing should have a groove in he middle that goes all the way around the bearing.

The eccentric should have a set screw(cone point)that aligns with the groove.

The back end of the eccentric should be flush with the headstock casting. The screw and washer should position that.

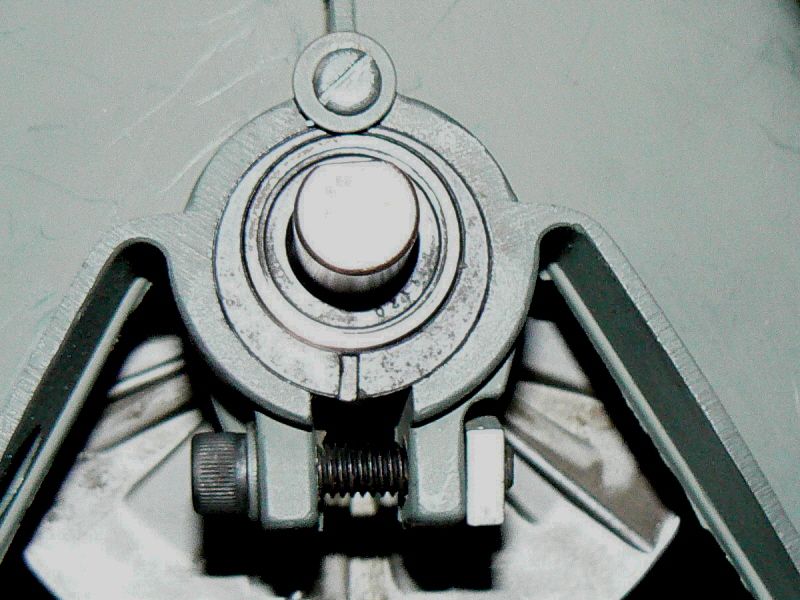

I will add a pix here that shows how it should look.


A hammer is not relevant to installing this.*********

[roneg]

JPG. Unless I'm mistaken your describing a style of eccentric blushing my machine does not posess. The bushing in fact is flush and screw and washer is in place. My previous post was related to the bearing position in the outer case only. The pix you provide I have seen. It does show the bushing screw, and washer well.

However the birds eye view could be deceiving as to how far the bearing protrudes out of the head-stock. One problem here is the many different ways these were manufactured in the years past.

The hammer is only relevant when you can't convince the shaft to put itself in.
