JPG wrote: Tue Dec 08, 2020 9:01 pm I have to check this, but IIRC the tool rest arm bore is 3/4". The tail stock adapter begins life as 3/4" round bar stock and the 5/8 chuck end and the tailstock #2 mt are machined from it. A 3/4 " shoulder remains.

Yes, that appears to be the case from Ed's last picture. However, is that shoulder long enough for the arm set screw to engage it? Apparently it is since he did it.

I will have to check tomorrow.

If you let the the tail stock adapter drop far enough, the set screw will secure it. The 5/8 portion will be slightly shorter proud of the arm, but there is enough to secure the faceplate.

It is a bit of a balancing act but it works. The trick is to get the arm set screw to catch the shaft and the face place set screw to get enough grip on the flat.

The idea is in one of the older the PTWFE, they don't use the face plate but simply clamp to the arm. When I have time I will try and find it and give you a page reference and edition.....

Ed

This is the book, might be in other editions too?

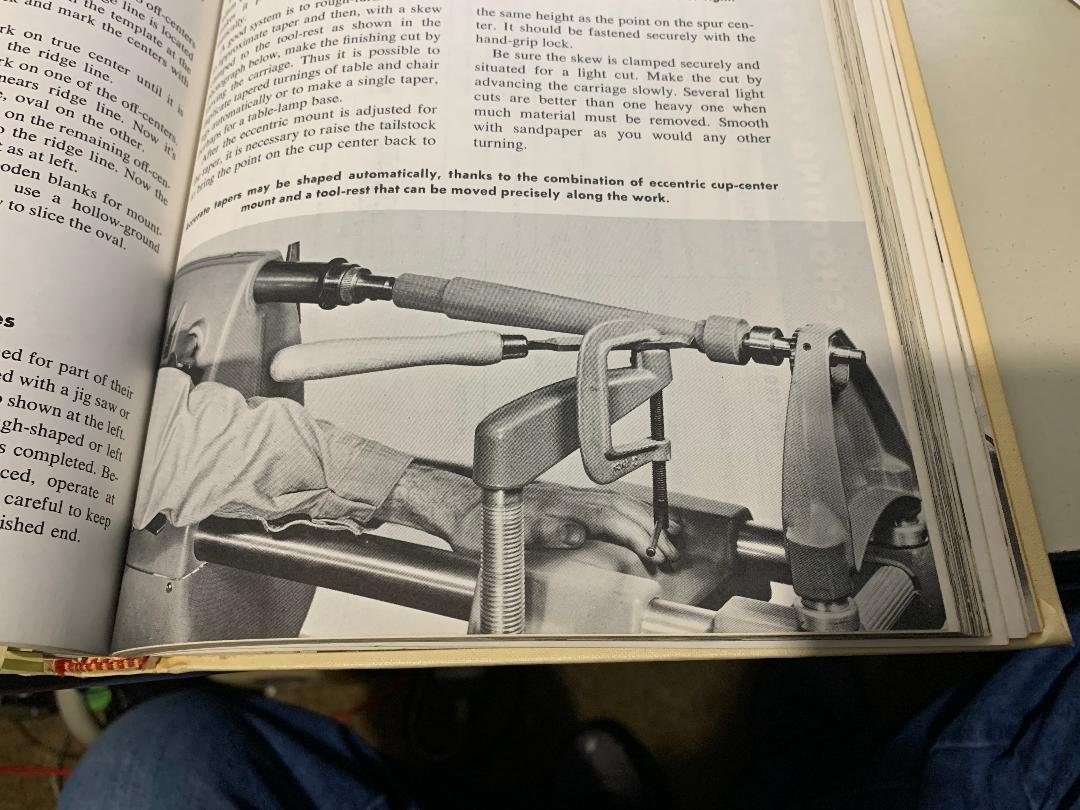

Page 201:
Ed

[Note: Based on feedback, this post was very confusing, so with JPG"s wise suggestion, I edited the original wording of this post.]

Ah - Now I understand. Was easy to take 3/4 threaded rod and grind one end down to 5/8. Made an adapter to connect a face plate to the tool rest arm SIMILAR to Reible using a tailstock chuck adapter for the same purpose. i.e. the low $$$ approach! Easy peasy. Thanks all.
hal

hfmann wrote: Wed Dec 09, 2020 3:32 pm Ah - Now I understand. Was easy to take 3/4 threaded rod and grind one end down to 5/8. Easy peasy. Thanks all.

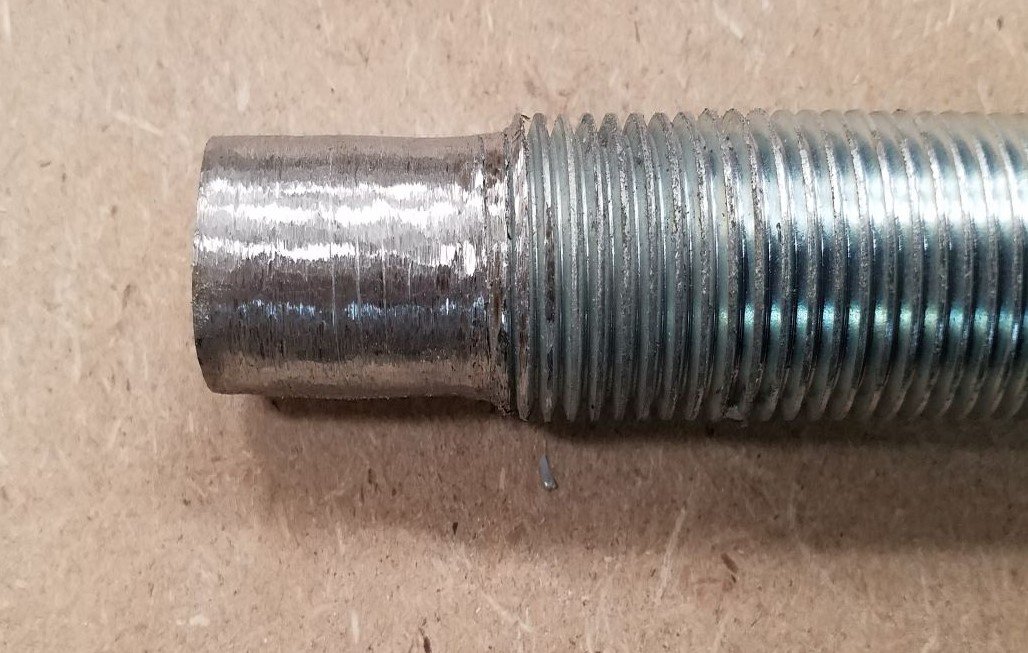

3_4 thread to 5_8.jpg

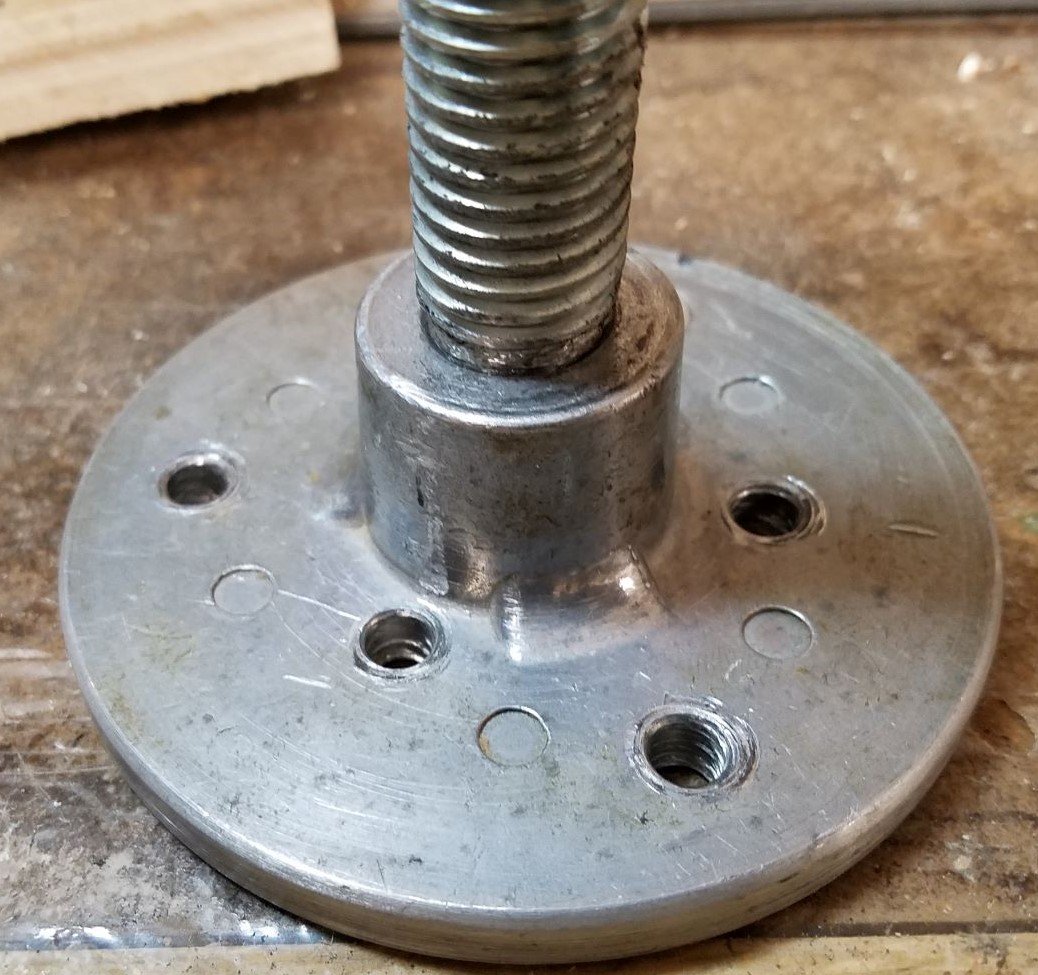

fit to faceplate.jpg

hal

WTH??

It's how I made my own tailstock adapter to work for Ed Reible's way to mount a gouge to the tool rest arm. Does that make sense now?

hal

hfmann wrote: Wed Dec 09, 2020 8:32 pm It's how I made my own tailstock adapter to work for Ed Reible's way to mount a gouge to the tool rest arm. Does that make sense now?

hal

Tail stock adapter??? No it does not make any sense.

jsburger wrote: Wed Dec 09, 2020 8:42 pm

hfmann wrote: Wed Dec 09, 2020 8:32 pm It's how I made my own tailstock adapter to work for Ed Reible's way to mount a gouge to the tool rest arm. Does that make sense now?

hal

Tail stock adapter??? No it does not make any sense.

Change the wording - Made an adapter to connect a face plate to the tool rest arm SIMILAR to Reible using a tailstock chuck adapter for the same purpose. i.e. the low $$$ approach!

JPG wrote: Wed Dec 09, 2020 10:11 pm

jsburger wrote: Wed Dec 09, 2020 8:42 pm

hfmann wrote: Wed Dec 09, 2020 8:32 pm It's how I made my own tailstock adapter to work for Ed Reible's way to mount a gouge to the tool rest arm. Does that make sense now?

hal

Tail stock adapter??? No it does not make any sense.

Change the wording - Made an adapter to connect a face plate to the tool rest arm SIMILAR to Reible using a tailstock chuck adapter for the same purpose. i.e. the low $$$ approach!

Thank you. I will do that. Appreciate it.

hal
