Re: Share your Magna memorabilia!

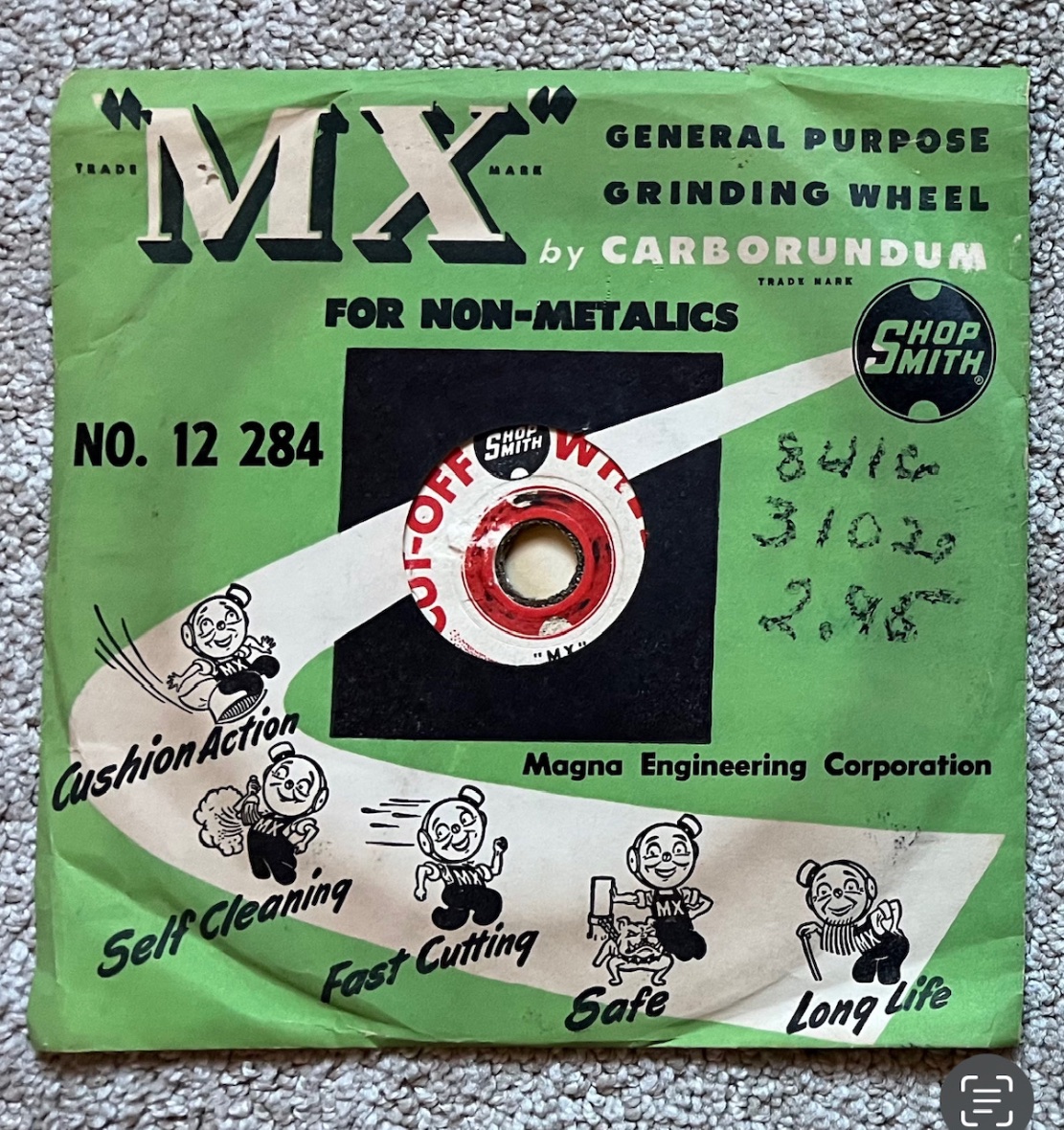

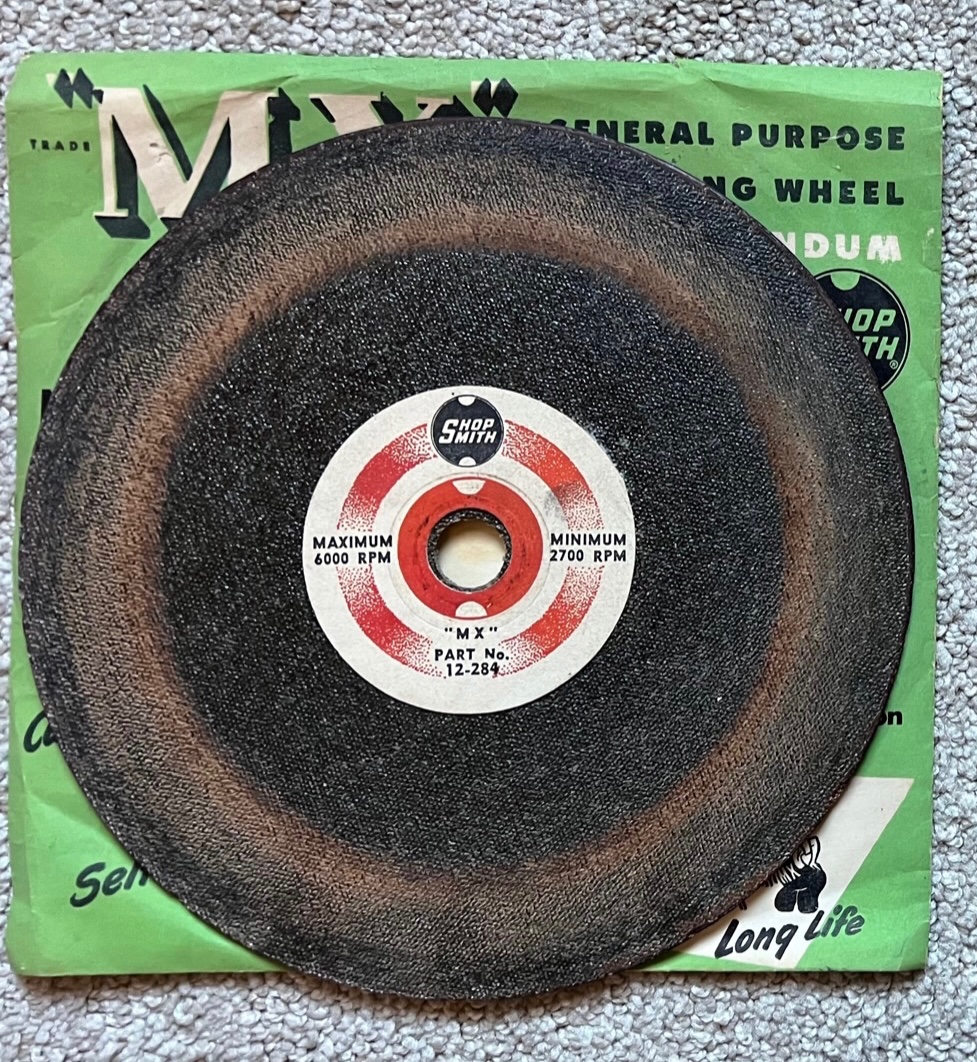

Cut-Off Wheel, or Grinding Wheel?
I did feature this in another thread, but wanted to include it here too. There have been a couple of the early, red-sleeved [part number] 175-1 cut-off wheels shared in this thread, but this appears to be some “new” packaging after Magna switched to the “12-xxx” part number scheme. Strangely, this item’s 12-284 part number is a bit of a mystery - is doesn’t appear in any of the known customer or vendor accessory price lists…

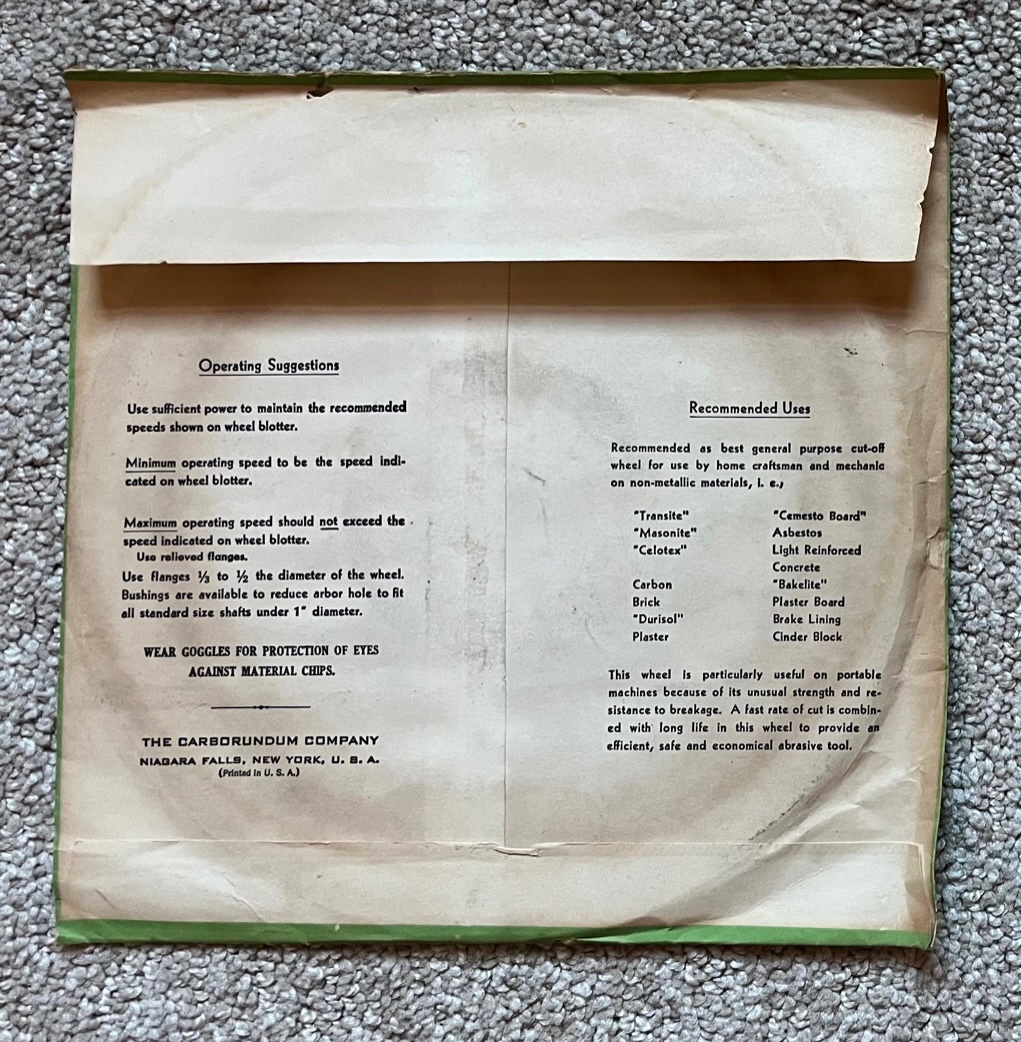

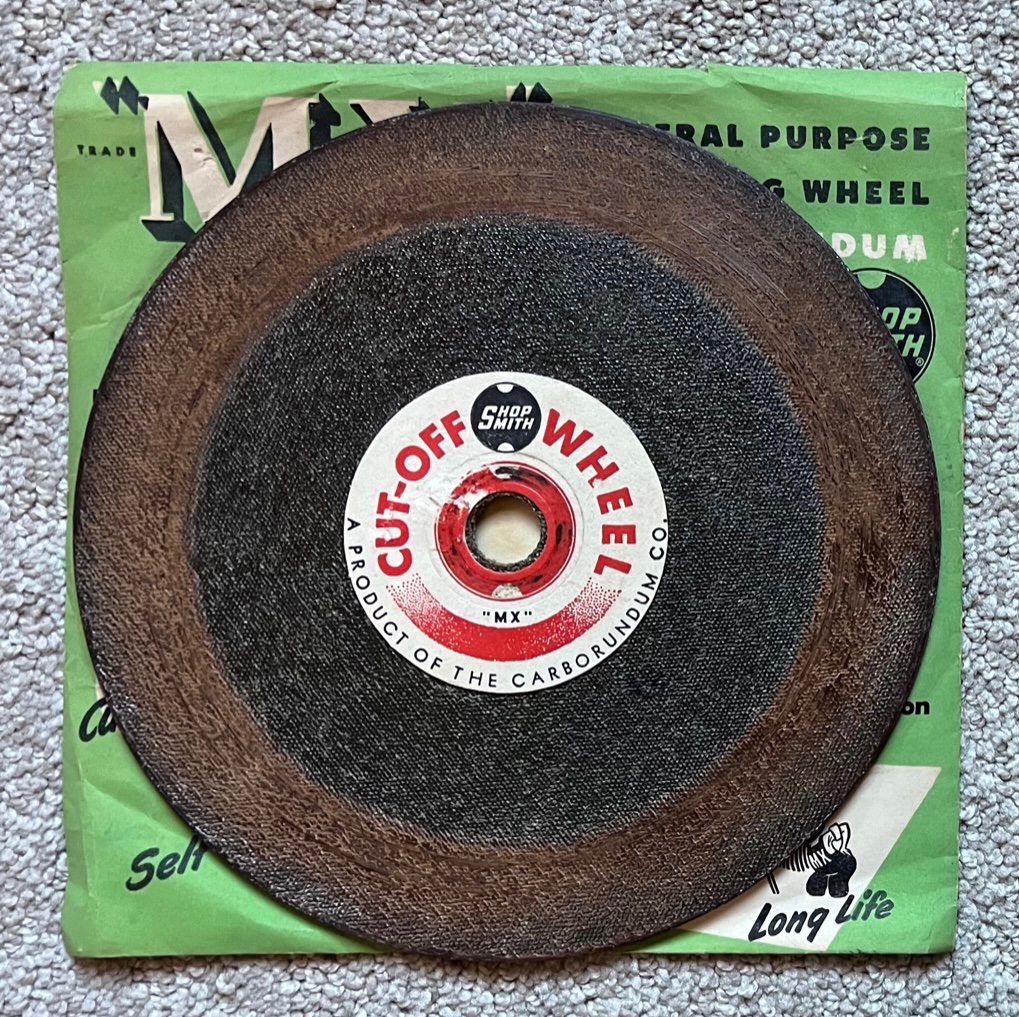

Also, is it a cut-off wheel or grinding wheel?? I suppose it depends on whether you believe the inside or the outside of the packaging!
.
I did feature this in another thread, but wanted to include it here too. There have been a couple of the early, red-sleeved [part number] 175-1 cut-off wheels shared in this thread, but this appears to be some “new” packaging after Magna switched to the “12-xxx” part number scheme. Strangely, this item’s 12-284 part number is a bit of a mystery - is doesn’t appear in any of the known customer or vendor accessory price lists…
Also, is it a cut-off wheel or grinding wheel?? I suppose it depends on whether you believe the inside or the outside of the packaging!
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Re: Share your Magna memorabilia!
Hi John,
I use Dupli-color ceramic engine paint. That color is called Cast Coat Iron (DE1651) and is sold at automotive stores in a spray can. I learned many years ago rebuilding engines, that this is some of the most durable paint out there. I’ve used it on quite a few different items.
- JPG
- Platinum Member
- Posts: 34682
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Share your Magna memorabilia!

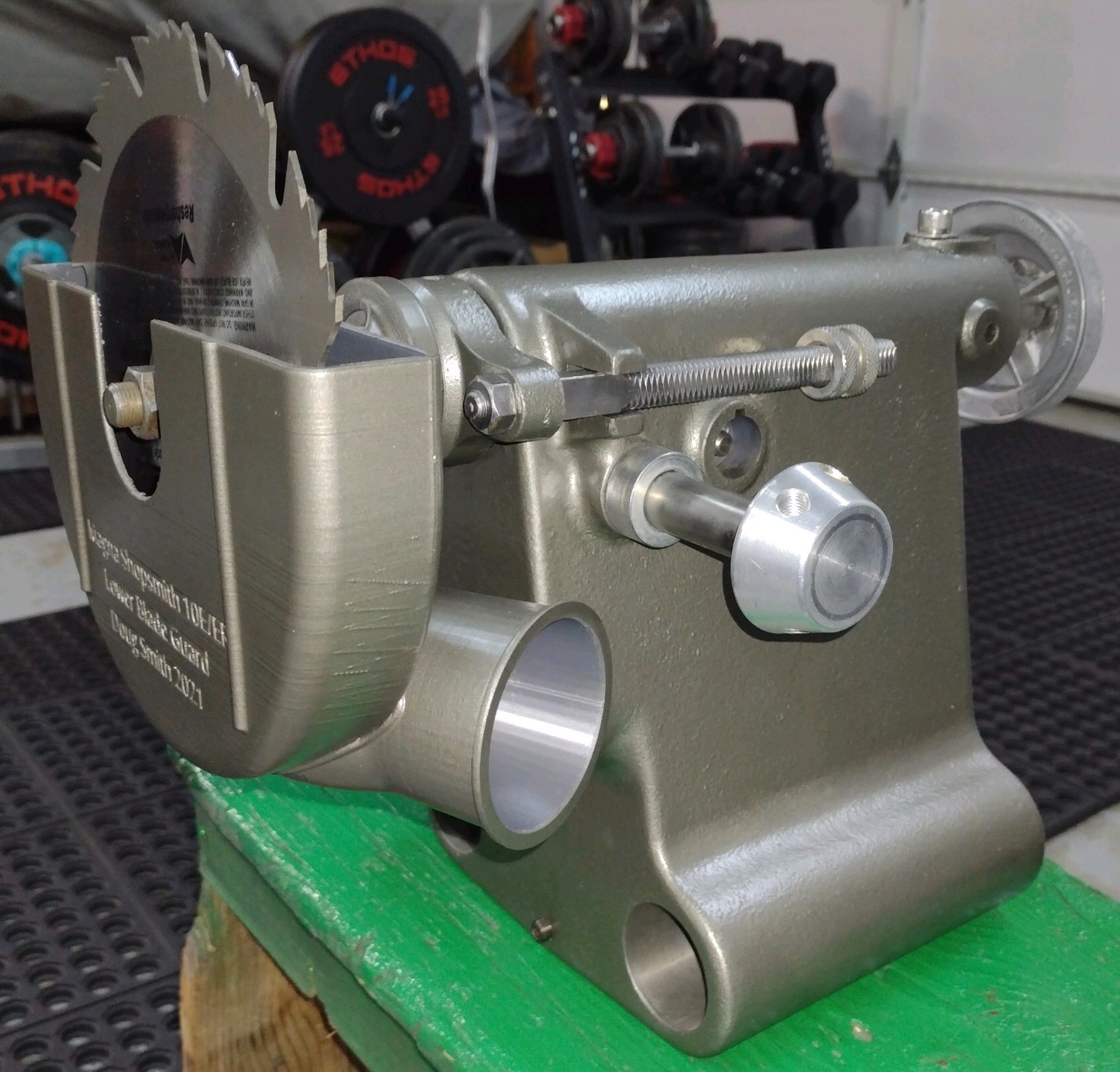

NICE collection!!!
And a lower guard to boot.
Interesting quill advance hub embellishment.
And a lower guard to boot.
Interesting quill advance hub embellishment.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
- chapmanruss
- Platinum Member
- Posts: 3529
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Share your Magna memorabilia!

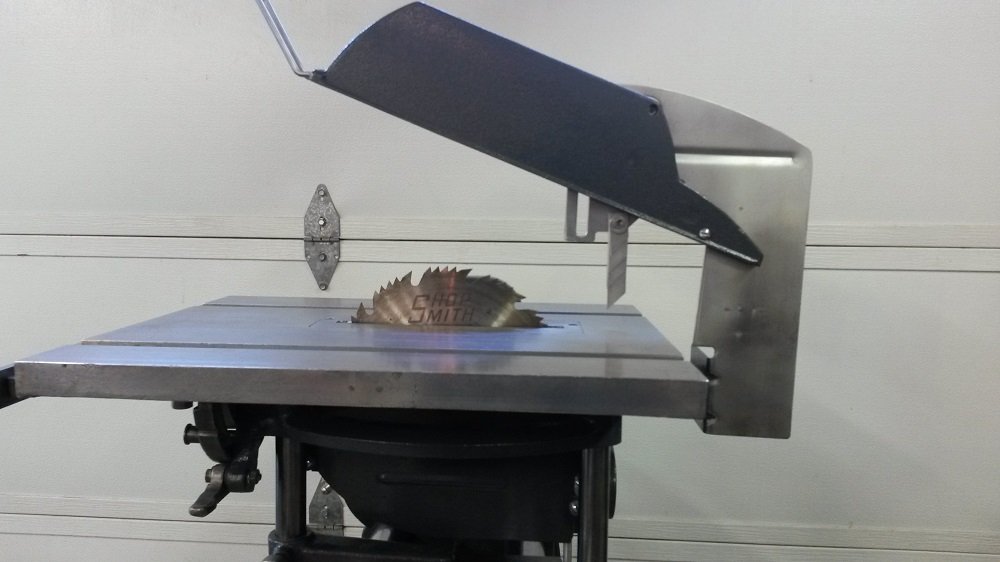

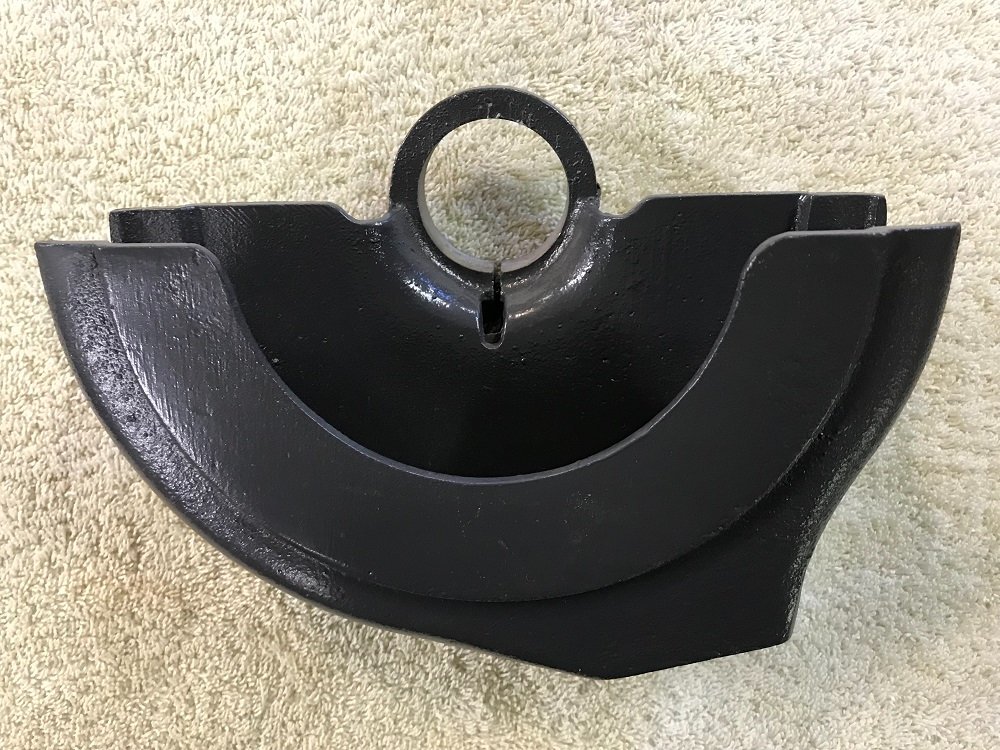

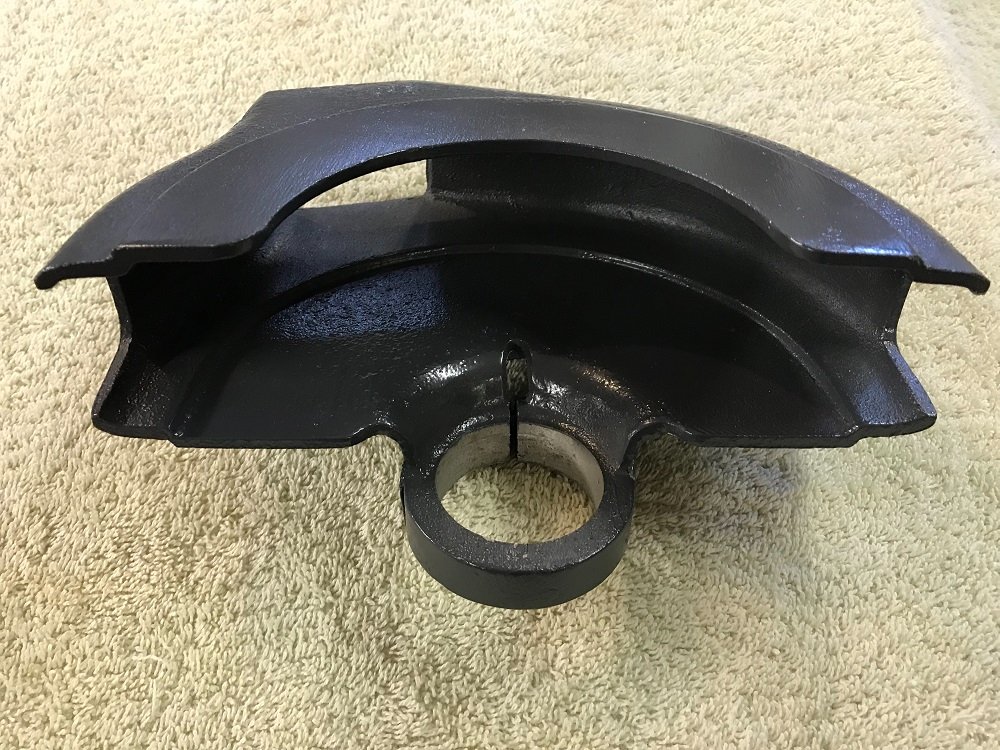

I agree with JPG. Nice lower Saw Blade Guard. Much better than the OEM Lower Saw Blade Guard (shown below) which doesn't allow for Dust Collection.
_
_
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Share your Magna memorabilia!

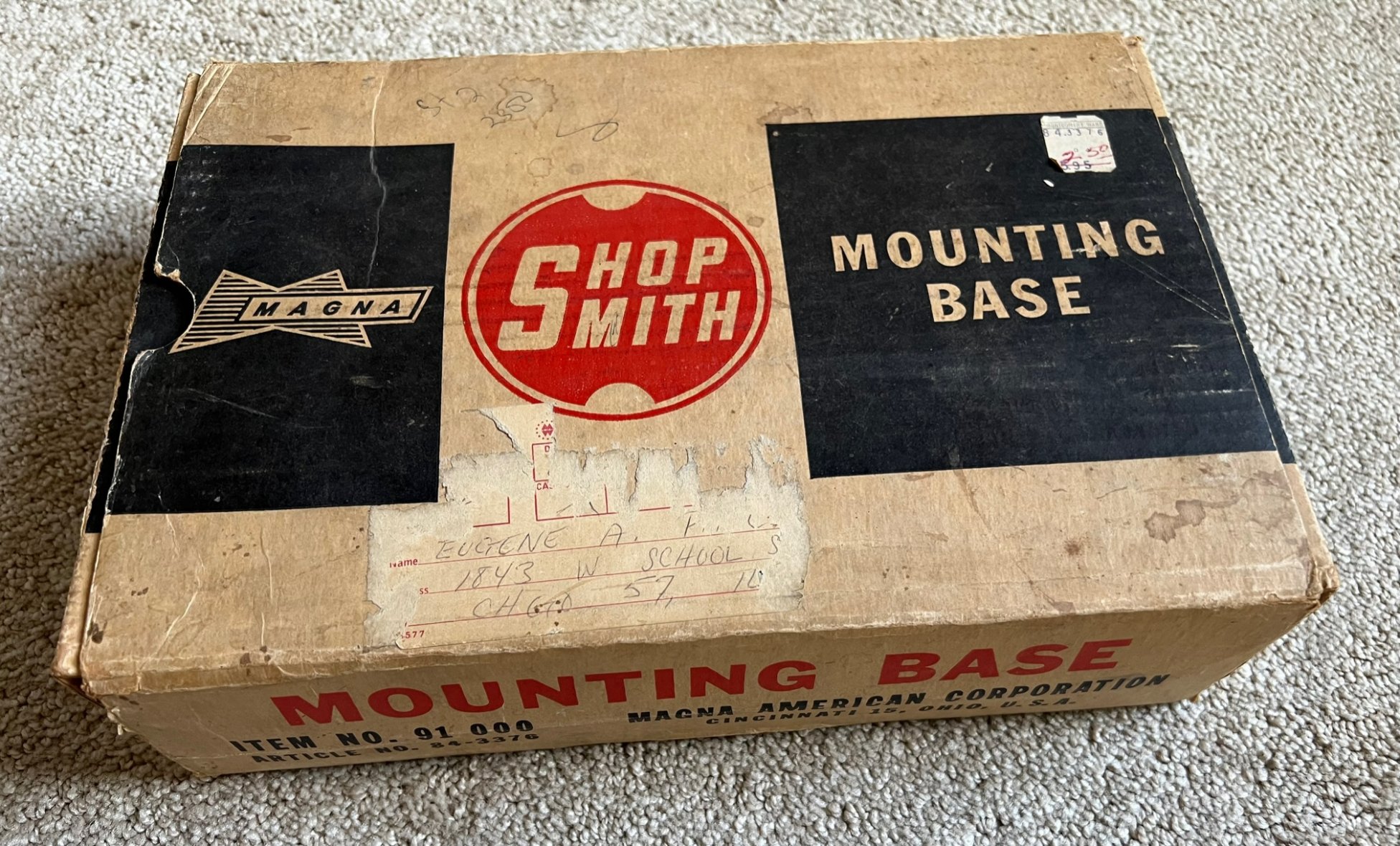

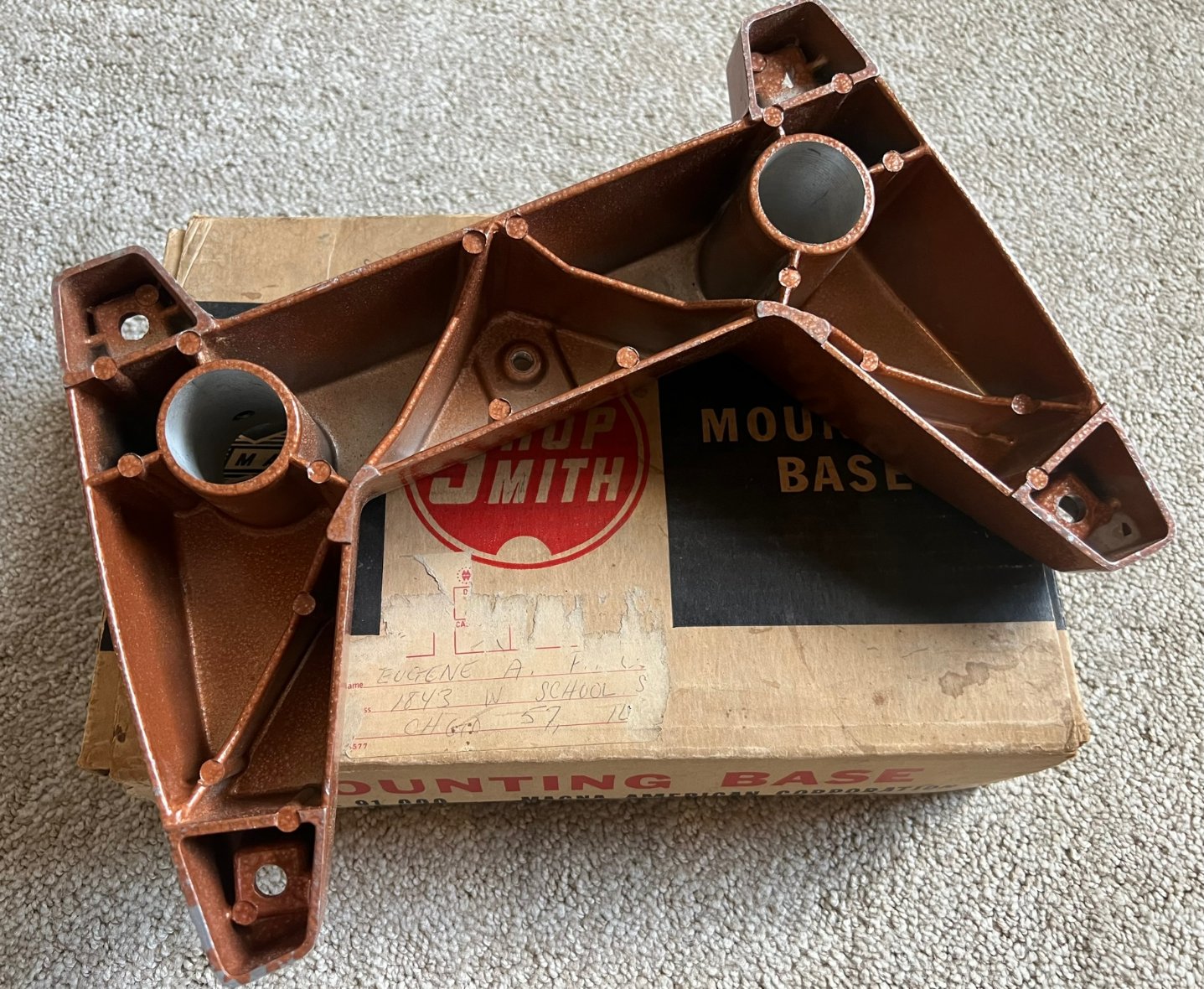

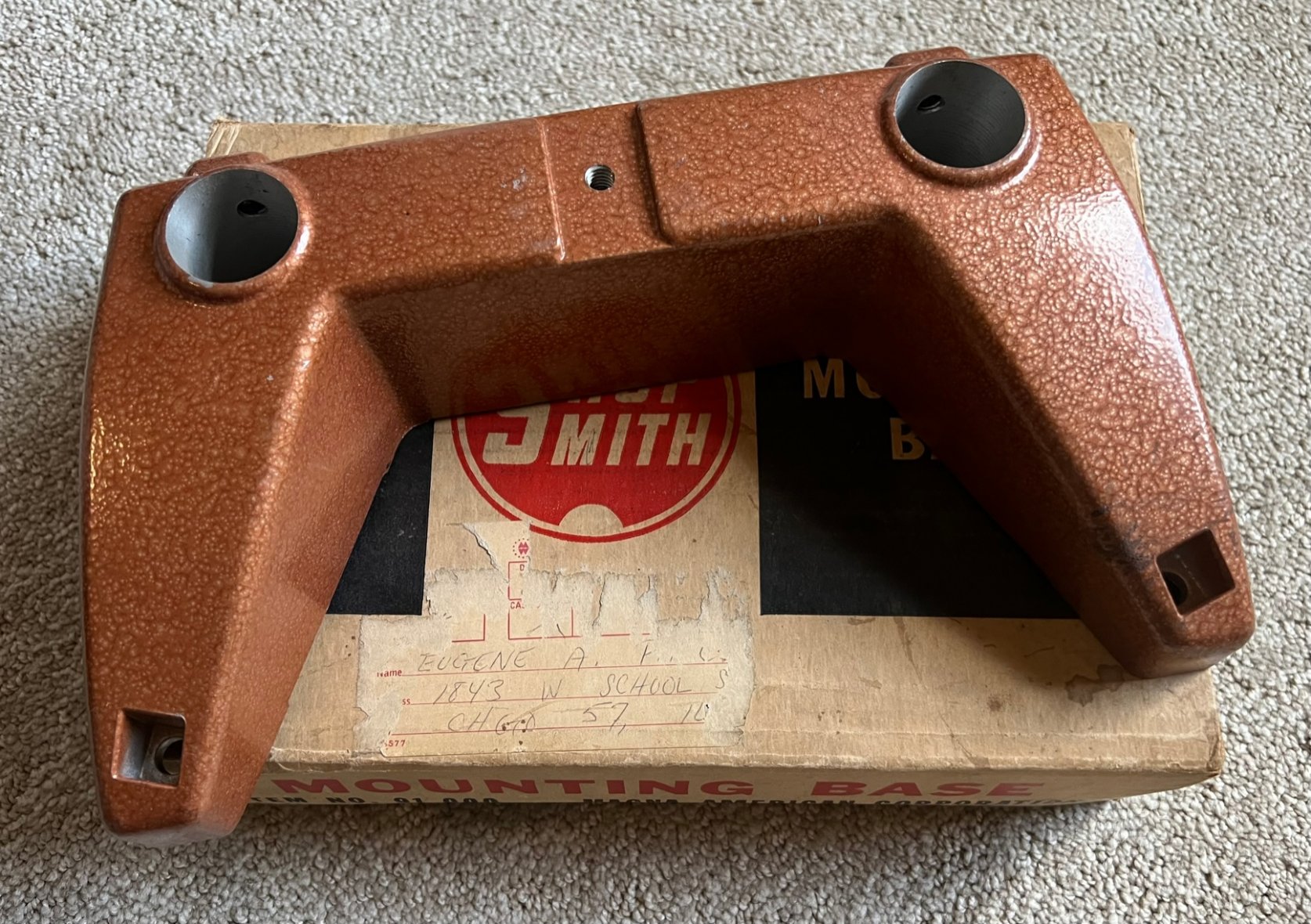

Mounting Base - Goldie Version
Here's an example of a Mounting Base (part number 91 000) that of course is used to hold an SPT when not mounted on your Shopsmith. This was lightly used, but still has really nice copper coloring from the Goldie color scheme.

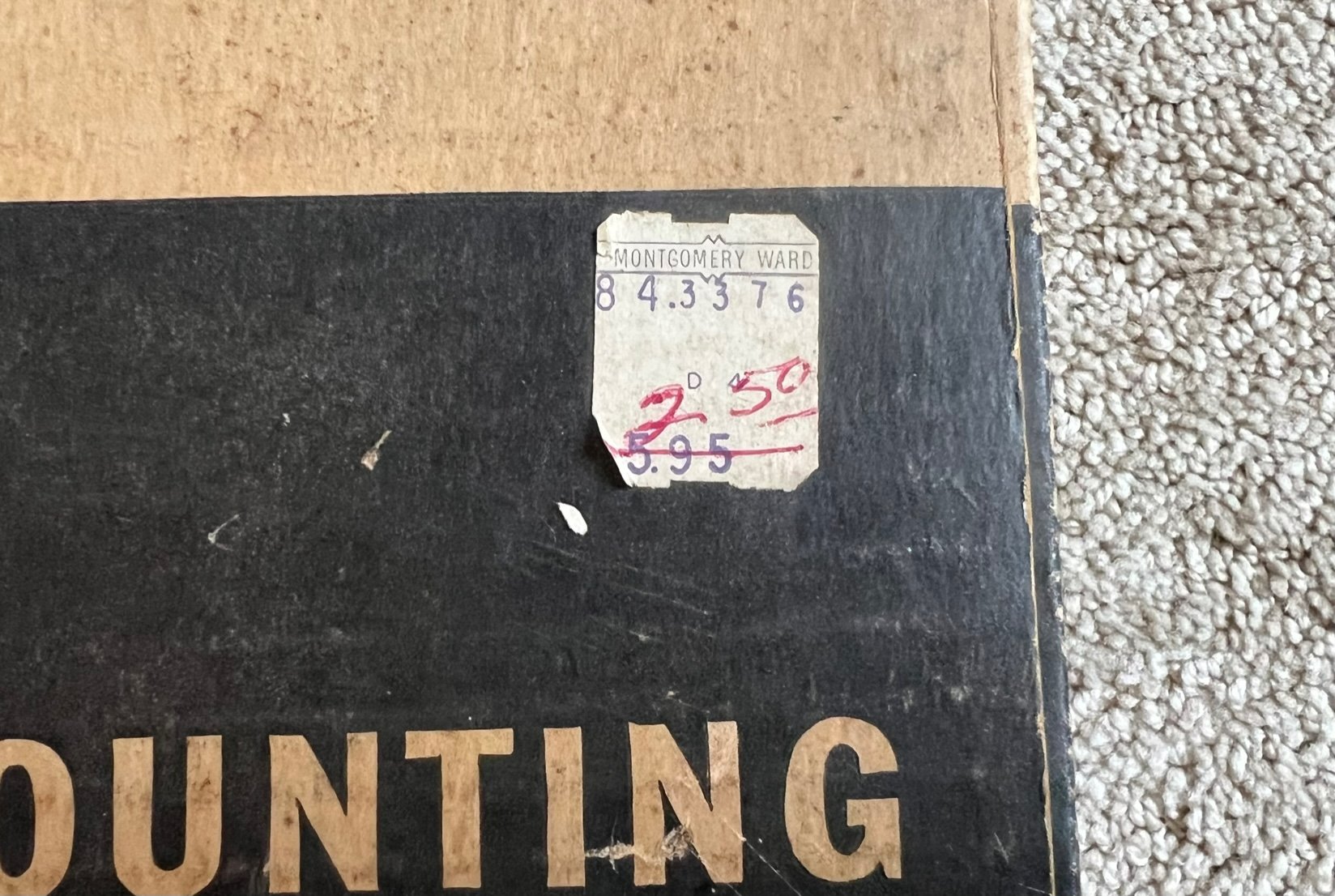

I find the Montgomery Ward price tag on the box to be noteworthy, as it indicates Magna American was still supplying Mark 5s to that retailer in that early 1960s timeframe (I don't have any MW Powr-Kraft catalogs from that time to see just how long they continued to stock the Shopsmith products), although I'm not sure if the 50% discount is indicative of a clearance sale at the end of their mutual business run!
I also couldn't find reference to this part in any of my Magna American accessories price lists, so I can't confirm the MW price tag as having the typical list price.
. Based on the shape of the Shopsmith logo on the top of the box, this is before the release of the Mark VII, which altered the traditional Shopsmith brand logo.
. Great hammered copper color!
.
Here's an example of a Mounting Base (part number 91 000) that of course is used to hold an SPT when not mounted on your Shopsmith. This was lightly used, but still has really nice copper coloring from the Goldie color scheme.
I find the Montgomery Ward price tag on the box to be noteworthy, as it indicates Magna American was still supplying Mark 5s to that retailer in that early 1960s timeframe (I don't have any MW Powr-Kraft catalogs from that time to see just how long they continued to stock the Shopsmith products), although I'm not sure if the 50% discount is indicative of a clearance sale at the end of their mutual business run!
I also couldn't find reference to this part in any of my Magna American accessories price lists, so I can't confirm the MW price tag as having the typical list price.
. Based on the shape of the Shopsmith logo on the top of the box, this is before the release of the Mark VII, which altered the traditional Shopsmith brand logo.
. Great hammered copper color!
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
- chapmanruss
- Platinum Member
- Posts: 3529
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Share your Magna memorabilia!
I'm guessing the person you bought it from wasn't selling it for $2.50.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: Share your Magna memorabilia!

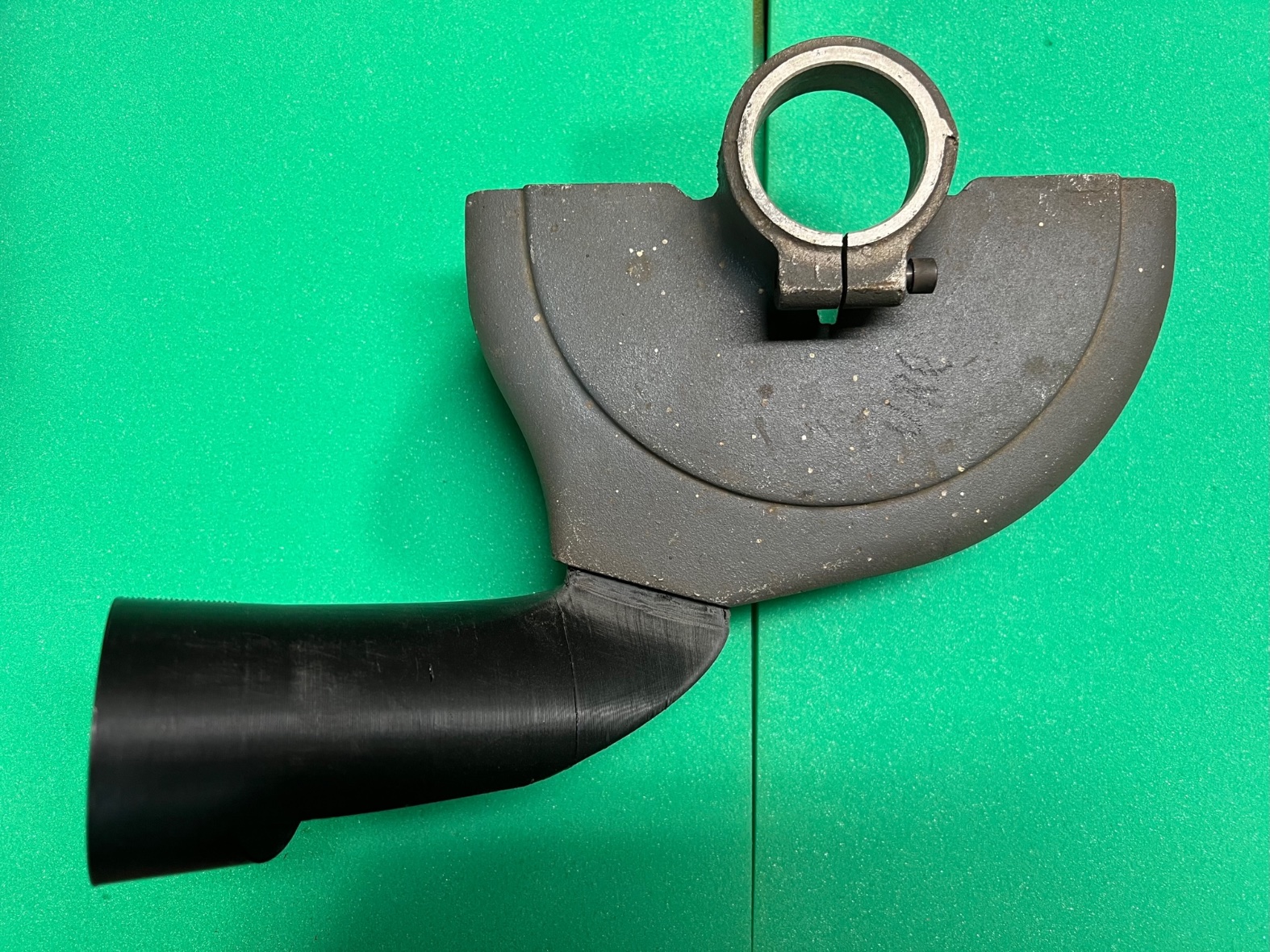

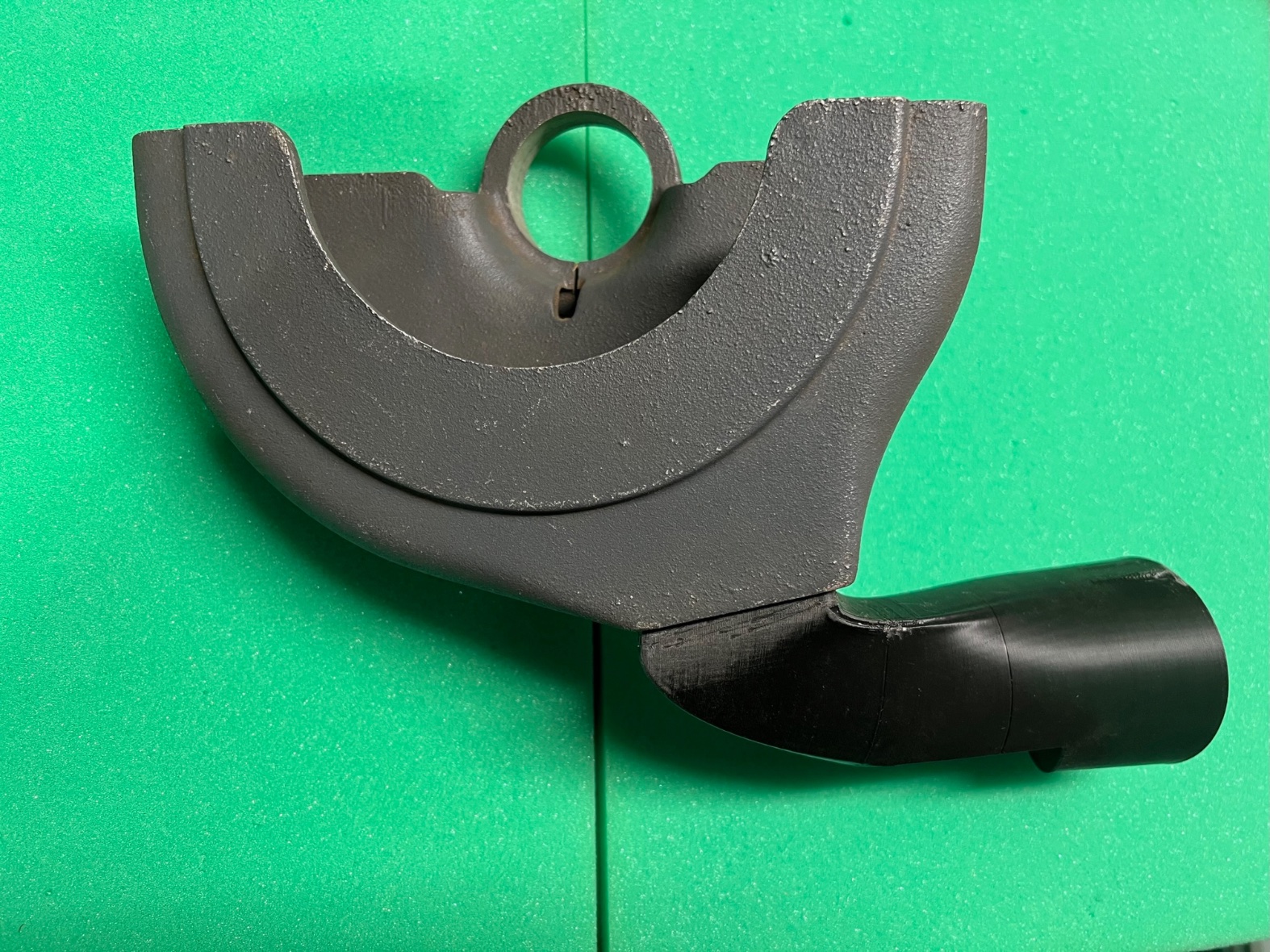

…unless you add a 3D-printed vacuum hose adapter!chapmanruss wrote: ↑Wed Feb 08, 2023 12:04 pm Much better than the OEM Lower Saw Blade Guard (shown below) which doesn't allow for Dust Collection.
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Re: Share your Magna memorabilia!
I wish… Let’s say it’s appreciated a bit since the presumed Montgomery Ward clearance sale!chapmanruss wrote: ↑Fri Feb 10, 2023 1:03 pm I'm guessing the person you bought it from wasn't selling it for $2.50.
I’ll have to do some inventory sometime to see which super-rare item for which I’ve overpaid has effectively appreciated the most.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N 51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
- chapmanruss
- Platinum Member
- Posts: 3529
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Share your Magna memorabilia!
John,

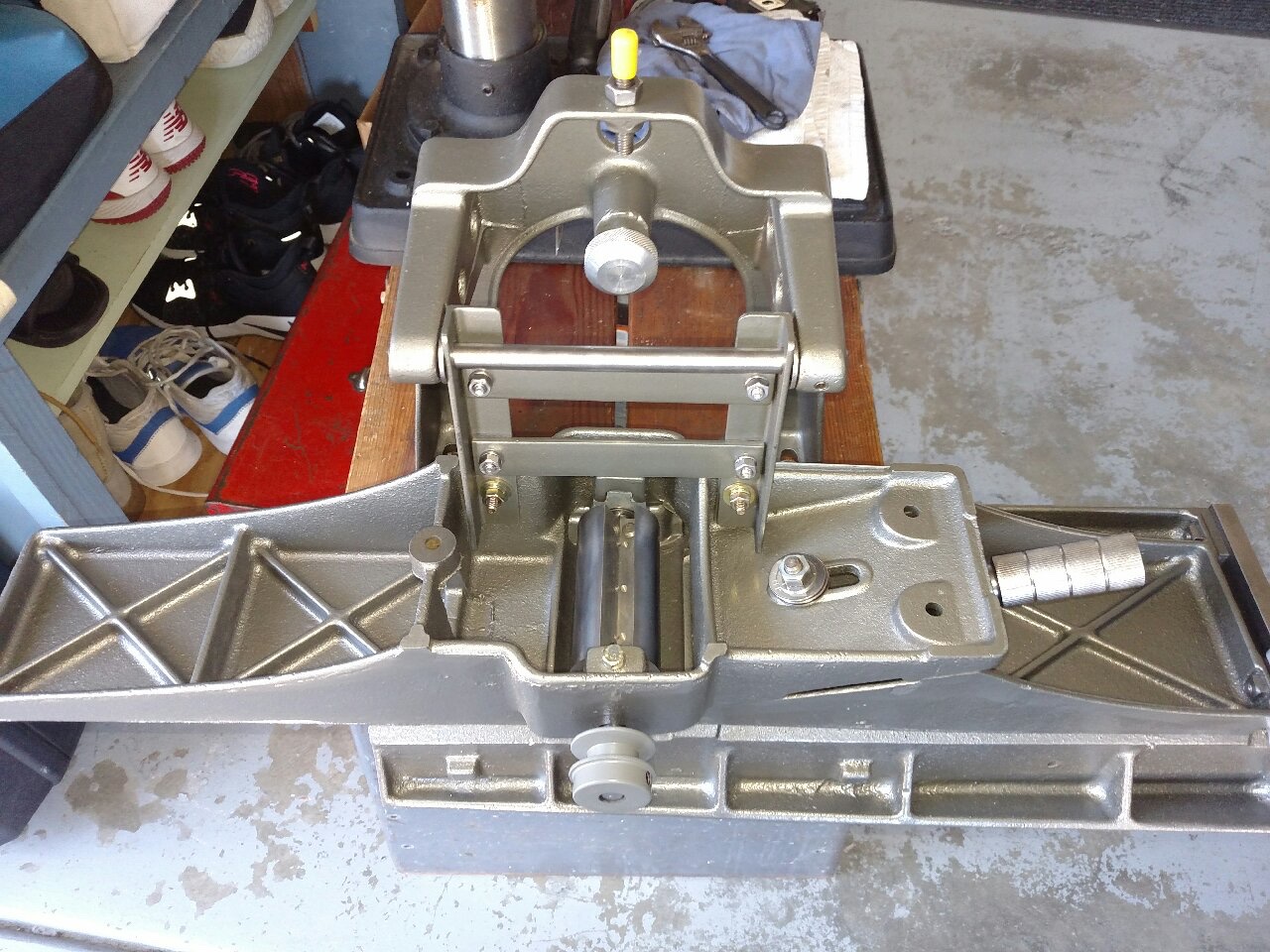

Rather than using a 3D-printed vacuum hose adapter like you show above I use the Mark V Saw Blade Guard set shown below for actual operations. It gives a dust collection port and is more versatile than the Model 10 Lower Blade Guard. With the spacer Shopsmith made available it can handle Dado Blades and Molder Heads too.
_ .
Yes, the blade is on backwards but that way you can read the name.
Rather than using a 3D-printed vacuum hose adapter like you show above I use the Mark V Saw Blade Guard set shown below for actual operations. It gives a dust collection port and is more versatile than the Model 10 Lower Blade Guard. With the spacer Shopsmith made available it can handle Dado Blades and Molder Heads too.
_ .
Yes, the blade is on backwards but that way you can read the name.
