Mystery project and tips along the way

This is a forum for intermediate to advanced woodworkers. Show off your projects or share your ideas.

Moderator: admin

User avatar
W3DRM
Gold Member
Posts: 82
Joined: Thu Jul 20, 2006 4:34 pm
Location: Minden, NV
Contact:

Post by W3DRM »

Ed,

I'm guessing you are making an adjustable version of the router guides you put together in post #25. The adjustable jig thus allows you to make square and/or rectangular guides of any size. JPG had the right idea in his earlier post where he said "but you WILL attach the four identical pieces into an adjustable rectangular shape".

I now understand the importance of understanding the bushing dimensions and how those measurements work (one needs to understand the offset measurements involved). It would also explain why you say the t-tracks need to be positioned flush to the wood framing thus keeping the surface the router slides on level.
Don - W3DRM - Minden, Nevada --- SS 510 (new 2005), Bandsaw, Jointer, Conical & Standard sanding disks, & DC3300
Carson Valley Weather - http://www.carsonvalleyweather.com
User avatar
JPG
Platinum Member
Posts: 35434
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

\

Post by JPG »

drmcroberts wrote:Ed,

I'm guessing you are making an adjustable version of the router guides you put together in post #25. The adjustable jig thus allows you to make square and/or rectangular guides of any size. JPG had the right idea in his earlier post where he said "but you WILL attach the four identical pieces into an adjustable rectangular shape".

I now understand the importance of understanding the bushing dimensions and how those measurements work (one needs to understand the offset measurements involved). It would also explain why you say the t-tracks need to be positioned flush to the wood framing thus keeping the surface the router slides on level.
I am guessing Don is right - makes sense and explains the 'extra' lesson. The inclusion of scales on the four pieces would be NICE!(especially if offset to account for the cutter/guide bushing offset). But that would require/assume the same bushing/bit always the same.!
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

OK what you have all been waiting for... not. Boy aren't you glad you don't here that much anymore??

This post is a short detail as I know Dusty or someone will be seeing both the jig and table it is sitting on and might wonder about what it is.

This is a cool idea I got some years ago over at the routerforum and I'll pass it on to you. First if you don't have one of these workmates I be checking the garage sales etc and pick on up. They are great for all sorts of project.

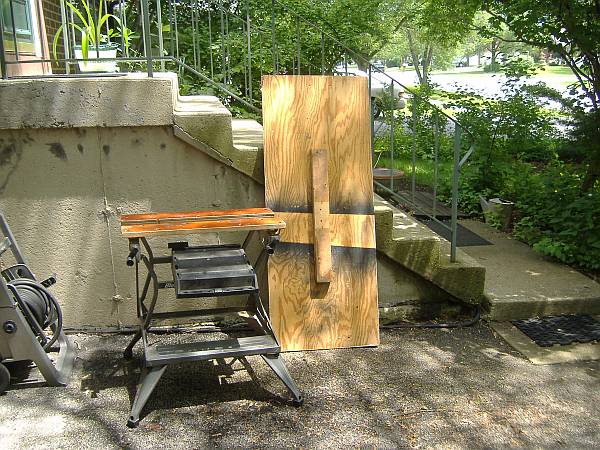

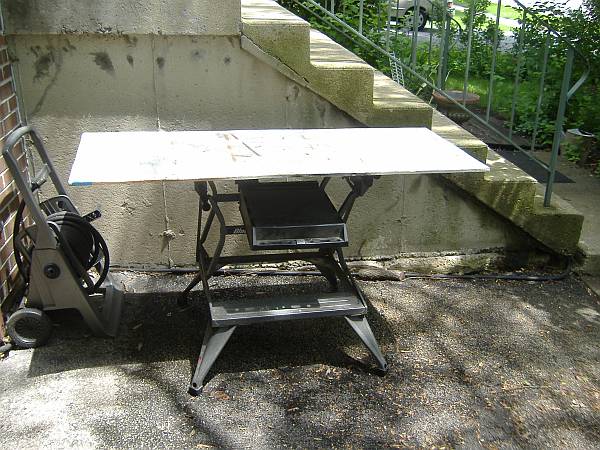

One thing you will find is the top has limited space, hole, and a large slot of the clamp top is open. By taking a scrap piece of plywood (in my case it is about 2' wide and 4 ' long). Attach a 2x4 as show then open the workmates vice and clamp it in there you have it. Nothing fancy but very useful.
[ATTACH]4764[/ATTACH][ATTACH]4765[/ATTACH]

Ed
Attachments
41 workmate.jpg
41 workmate.jpg (99.03 KiB) Viewed 3434 times
42 larger table.jpg
42 larger table.jpg (87.63 KiB) Viewed 3432 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

It seems that some of the readers have figured out the first part of this project. So now I'll post some pictures of it assembled and a few more to give you some other ideas of how to use it. Then I need to get started on the second phase... the part where it gets really interesting.

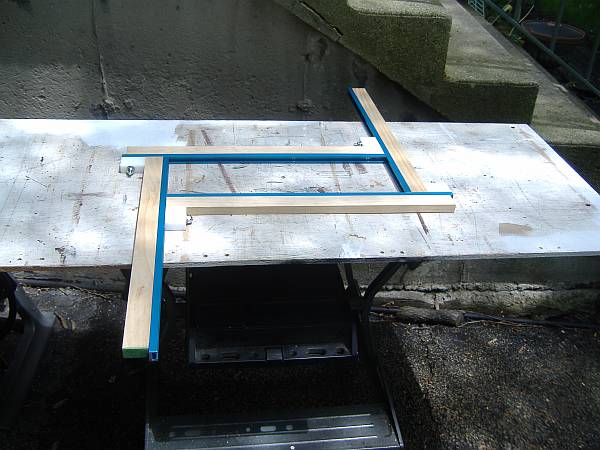

TADA! [ATTACH]4766[/ATTACH]

I'm glad it all fit together, other wise I could have a lot of egg on my face.

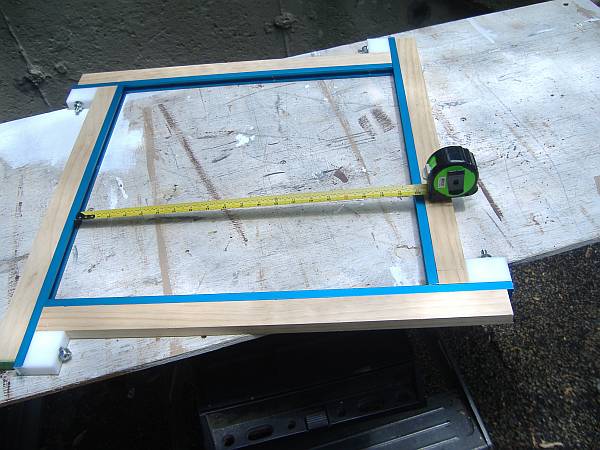

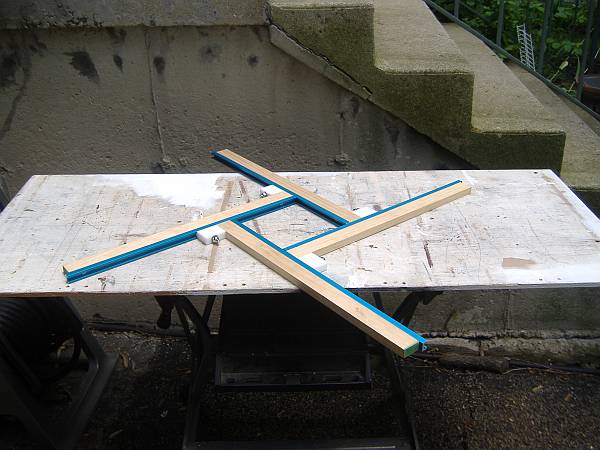

[ATTACH]4767[/ATTACH][ATTACH]4768[/ATTACH]

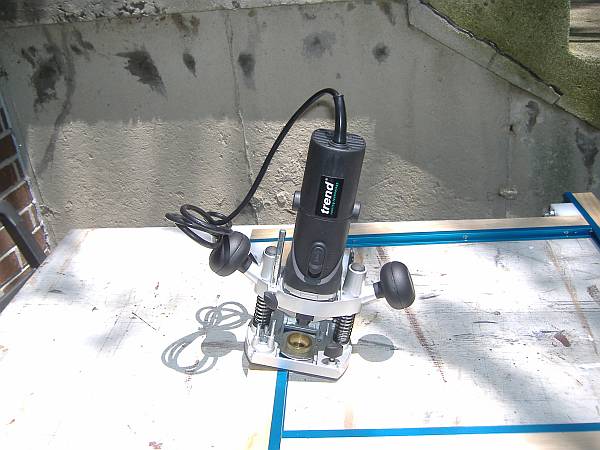

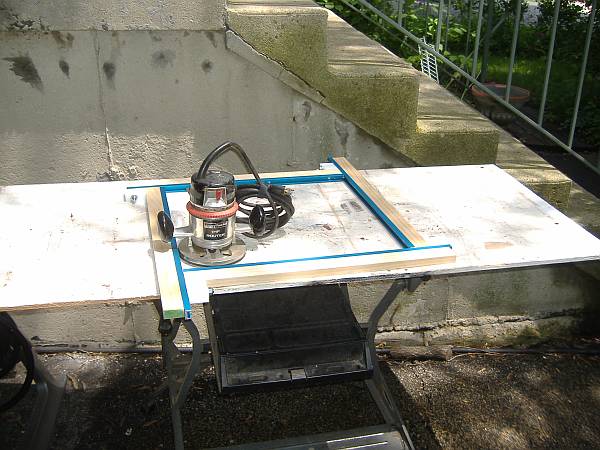

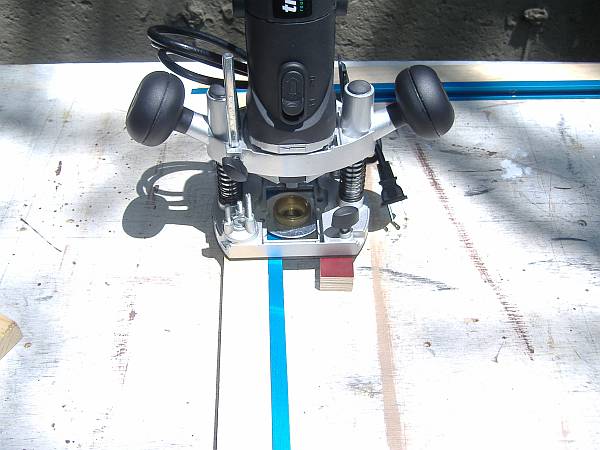

Depending on what router you use and how large the opening you could even use the router sub base as shown here (ie not bushing). The jig is primarily designed for plunge routers but depending on what you want to do you might be able to work something out with a fixed base. Right now I don't want to go there.

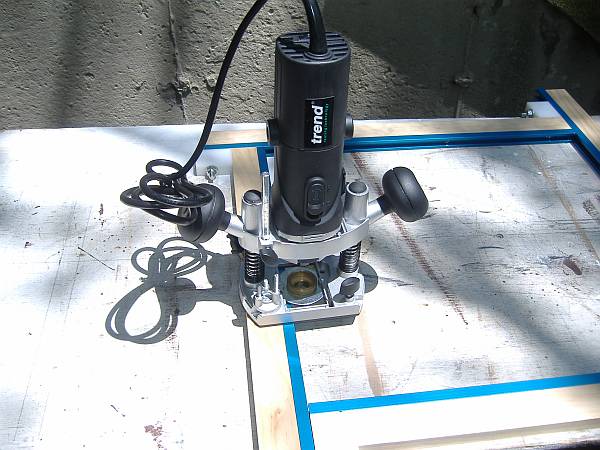

[ATTACH]4769[/ATTACH]

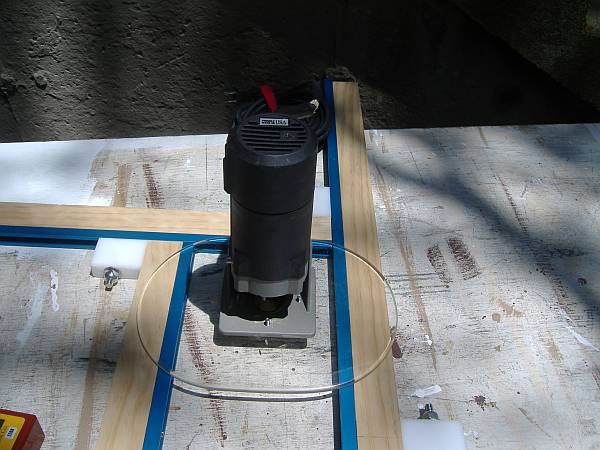

It is also possible to use router like things like a rotozip... especially if you have the plunge attachment.

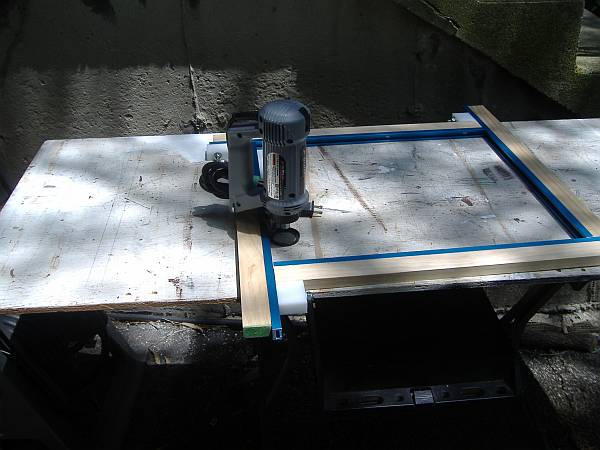

[ATTACH]4770[/ATTACH]

I've got some other stuff to do but later I post some more information so keep on checking back here.

Ed
Attachments
43 good thing it all fit.jpg
43 good thing it all fit.jpg (63.68 KiB) Viewed 3332 times
44 moving on along.jpg
44 moving on along.jpg (63.67 KiB) Viewed 3331 times
45 yet another.jpg
45 yet another.jpg (63.4 KiB) Viewed 3330 times
46 look ma no bushing.jpg
46 look ma no bushing.jpg (72.53 KiB) Viewed 3329 times
47 what is a rotozip doing here.jpg
47 what is a rotozip doing here.jpg (54.86 KiB) Viewed 3326 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

Hi,

As you can see I have indeed built a jig that can make either a squares or rectangles and in this very basic mode it will be useful. I'm going to add a few more examples and then at some point I will reveal to added bonus of this design. Please keep checking back I think you will find it interesting.

Ed
drmcroberts wrote:Ed,

I'm guessing you are making an adjustable version of the router guides you put together in post #25. The adjustable jig thus allows you to make square and/or rectangular guides of any size. JPG had the right idea in his earlier post where he said "but you WILL attach the four identical pieces into an adjustable rectangular shape".

I now understand the importance of understanding the bushing dimensions and how those measurements work (one needs to understand the offset measurements involved). It would also explain why you say the t-tracks need to be positioned flush to the wood framing thus keeping the surface the router slides on level.
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

Hi,

I had thought about adding a scale and might at some point. The hard part is the router will be sliding over it a lot and I don't know how well it would stand up to that.

I have a chart I will post later that makes the cutter/guide bushing a bit better for most people.

Ed
JPG40504 wrote:I am guessing Don is right - makes sense and explains the 'extra' lesson. The inclusion of scales on the four pieces would be NICE!(especially if offset to account for the cutter/guide bushing offset). But that would require/assume the same bushing/bit always the same.!
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

It looks like the rest of my afternoon is going to get washed out so I will post the pictures I have now and then wait to see if I can get a few more later in the day.

There are a few things I'd like to point out in case someone decides to build some thing like. If you don't use a router much or new to this whole thing one part might make you feel uneasy. Most of the router is off the guide and can feel like it might tip. Once you get the hang of it you might feel more comfortable but you sure don't want to wreck your project or day.

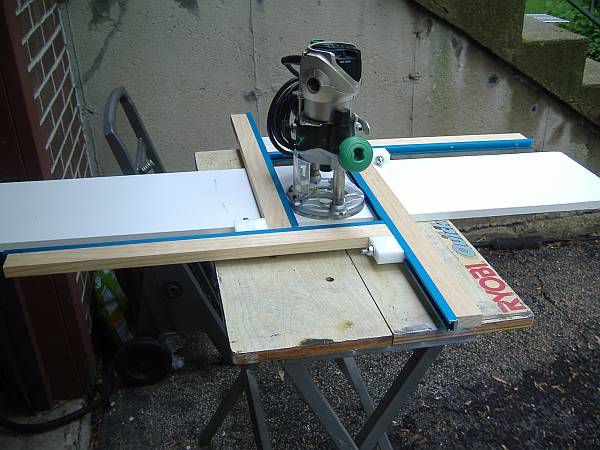

[ATTACH]4771[/ATTACH] [ATTACH]4772[/ATTACH]

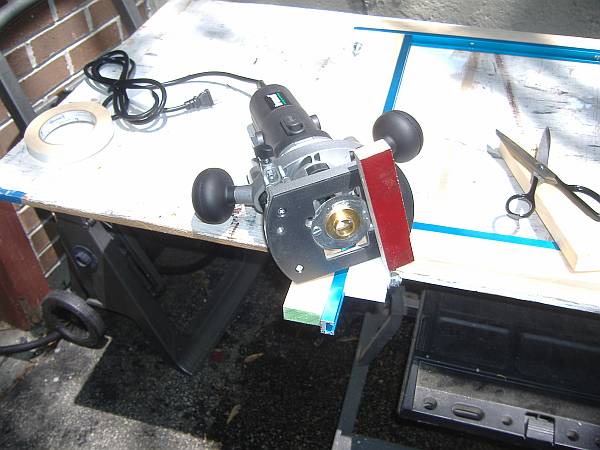

As a way of making it feel more stable we can fall back to the double stick tape and a piece of scrap stock.
[ATTACH]4773[/ATTACH]

By sticking the "foot" on it is just like you are use to. Please note that the piece I stuck on is larger then it should be and was used only to show you what it would look like. In actual use stay near the size of the sub base and keep in mind when you come to a corner you need to rotate the router keeping the foot towards the middle.
[ATTACH]4774[/ATTACH]

Of course this is only one of several ways to deal with this.

Ed
Attachments
48 might feel tippy.jpg
48 might feel tippy.jpg (64.53 KiB) Viewed 3323 times
49 that would wreck you day.jpg
49 that would wreck you day.jpg (62.14 KiB) Viewed 3324 times
50 not that tape again.jpg
50 not that tape again.jpg (58.48 KiB) Viewed 3323 times
51 all stable again.jpg
51 all stable again.jpg (54.11 KiB) Viewed 3323 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

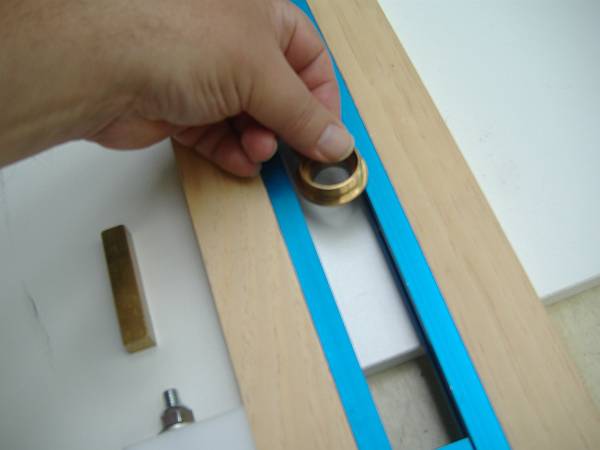

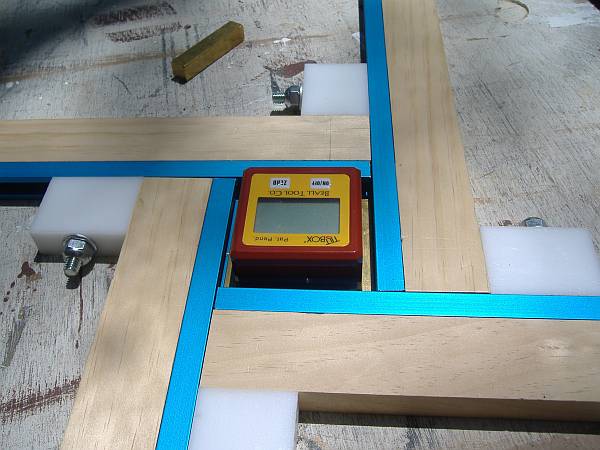

Thinking back to the tilt box cut out I showed before this is how it might look with the new template and the correct size brass bar so the cut out will come out the right size.
[ATTACH]4775[/ATTACH]

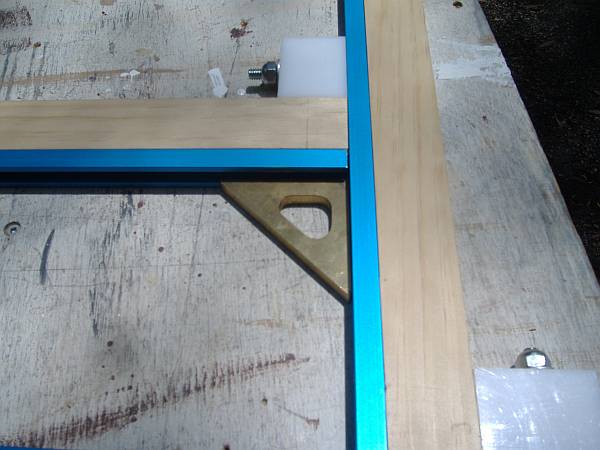

You will also need to use a square or similar to make sure the corners turn out correct. You could use a small brass one like pictured or even some blocks of wood that you know are square.
[ATTACH]4776[/ATTACH]

Remember that this was a cut out and very small, just over 2"x2" so the router base can span the cut. If you get to making larger cutout you will have to deal with this issue. One option is to make a larger sub base as shown here:
[ATTACH]4777[/ATTACH]

Ed
Attachments
52 so yesterday.jpg
52 so yesterday.jpg (58.13 KiB) Viewed 3320 times
53 need some square.jpg
53 need some square.jpg (51.99 KiB) Viewed 3320 times
54 wide base to span.jpg
54 wide base to span.jpg (63.41 KiB) Viewed 3319 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
W3DRM
Gold Member
Posts: 82
Joined: Thu Jul 20, 2006 4:34 pm
Location: Minden, NV
Contact:

Post by W3DRM »

The Veritas Saddle Square is available from Lee Valley for $14.50. The larger version is priced at $16.50

Small - http://www.leevalley.com/wood/page.aspx?c=2&p=44836&cat=1,42936,50298

Large - http://www.leevalley.com/wood/page.aspx?c=2&p=48041&cat=1,42936,50298

They also have one for marking dovetails - http://www.leevalley.com/wood/page.aspx?c=2&p=49424&cat=1,42936,50298

And, another for marking miters - http://www.leevalley.com/wood/page.aspx?c=2&p=50262&cat=1,43293

They all look like nice tools to have around the shop.
Don - W3DRM - Minden, Nevada --- SS 510 (new 2005), Bandsaw, Jointer, Conical & Standard sanding disks, & DC3300
Carson Valley Weather - http://www.carsonvalleyweather.com
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Post by reible »

Last of the new information for a while. I just wanted people to have this other option running in their heads while they are thinking about this jig.

So you have a shelf unit you want to put together. You have the uprights and need to make some cuts for the shelf to fit in. Your options might be using your shopsmith and cutting them with a dado (you pick which version) or maybe you want to use a router. Since you have this new jig to play with maybe this is what you pick to use.

Again the router can be placed in the jig and the cut made in the fashion shown here:
[ATTACH]4778[/ATTACH]

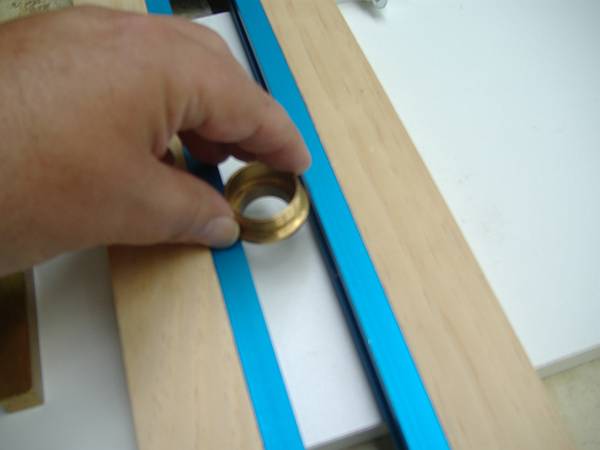

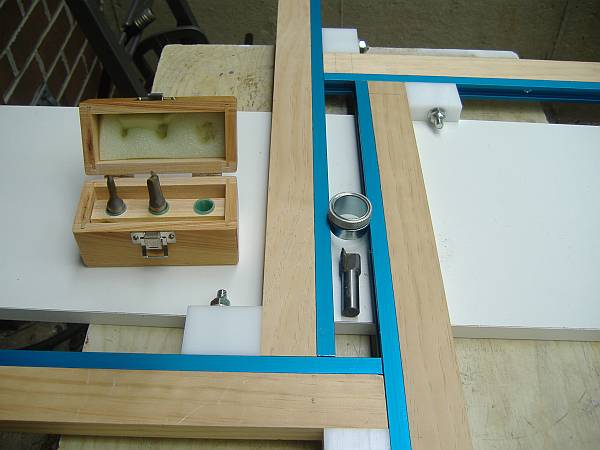

Another option is to use a guide bushing, in this case it is a 1-1/4" which happens to be the largest one for the PC style bushings. I also have shown the set of undersized bits that work with the undersized plywood.
[ATTACH]4779[/ATTACH]

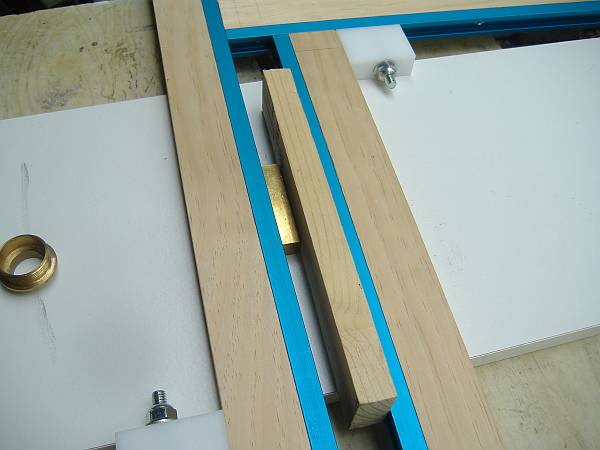

Now we are going to do a "what if" for all of you who are attempting in some additional mental exercise. Say we took an end of the shelf material added say a 1/2" space provided by the brass bar and we plan to use a 1" bushing and a 1/2" bit. (the shelf material is around 3/4").
[ATTACH]4780[/ATTACH]

With this layout we would make a pass with the bushing on one side of the jig then return on the other side.
[ATTACH]4781[/ATTACH][ATTACH]4782[/ATTACH]

So "what if" I/you did that?

Ed
Attachments
55 upright ready to make cuts for shelves.jpg
55 upright ready to make cuts for shelves.jpg (68.46 KiB) Viewed 3315 times
56 under size router bits.jpg
56 under size router bits.jpg (49.68 KiB) Viewed 3311 times
57 what if.jpg
57 what if.jpg (44.29 KiB) Viewed 3310 times
58 down one way.jpg
58 down one way.jpg (33.27 KiB) Viewed 3311 times
59 back the other way.jpg
59 back the other way.jpg (35.53 KiB) Viewed 3311 times
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Post Reply
