There is no outside way to oil this Emerson motor. I like to think grease is just very heavy oil. I would believe when heated when operating, the grease will somewhat ooze into the bushing/shaft space and provide some cooling effect for the bushing. Just my opinion.JPG40504 wrote:Now I be bamboozled.
Methinks a bushing(oiltight bronze) needs oil. That is why oil holes are usually included.
I see the end cap casting in Danscot's pix has a shape the resembles an oil hole tunnel. The pix does not show the 'outside' of the casting so I do not know if one is there. I would almost 'bet' that there is!
Using heavy grease with a bushing bearing just is counter to my experience.
?????
Correct Greast to Lubricate Electric Motor Rear Bearing?
Moderator: admin
Bill Mayo bill.mayo@verizon.net
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)

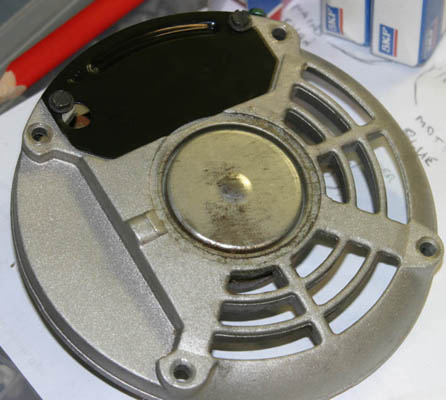

Your wish is my command:JPG40504 wrote: I see the end cap casting in Danscot's pix has a shape the resembles an oil hole tunnel. The pix does not show the 'outside' of the casting so I do not know if one is there. I would almost 'bet' that there is!
?????
[ATTACH]18020[/ATTACH]
No oil hole
Although I must admit that I thought it might be too - until I turned it over (don't laugh, it had been sitting that way up for about a week & my memory is not what it was!).
During that week I had scratched my head & trawled the web looking for info - I found something about feeding oil into bushings through oil holes...
It's now well past midnight here so tomorrow I'll check what the grease spec is & post that if it's of interest.
- Attachments
-
- end plate.jpg (53.25 KiB) Viewed 828 times
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
danscot wrote:Your wish is my command:
[ATTACH]18020[/ATTACH]
No oil hole
Although I must admit that I thought it might be too - until I turned it over (don't laugh, it had been sitting that way up for about a week & my memory is not what it was!).
During that week I had scratched my head & trawled the web looking for info - I found something about feeding oil into bushings through oil holes...
It's now well past midnight here so tomorrow I'll check what the grease spec is & post that if it's of interest.
It is!
Hmmmmm That looks just like the end cap(the 'no oil hole' part) on an Emerson planer motor that the tag states has ball bearings.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
OK, this takes us back to the original thread title - although I'm not sure if this is the "correct grease" but it seems to be working for me:
It's a UK product by Castrol: "LM Grease (High Melting Point)"
Unfortunately it doesn't carry any spec code, just a description which may be useful in finding an equivalent:
"A multi-purpose high melting point lithium based grease suitable for most automotive applications, including chassis & wheel bearing lubrication"
I used it because it's been kicking about my garage for years & I had nothing else handy!
It's a UK product by Castrol: "LM Grease (High Melting Point)"
Unfortunately it doesn't carry any spec code, just a description which may be useful in finding an equivalent:
"A multi-purpose high melting point lithium based grease suitable for most automotive applications, including chassis & wheel bearing lubrication"
I used it because it's been kicking about my garage for years & I had nothing else handy!
