Wood Shavings Delemma

fredsheldon · Post by **fredsheldon** » Fri Mar 08, 2013 11:00 am

Ok, I'm not going to bite guys

terrydowning · Post by **terrydowning** » Fri Mar 08, 2013 11:09 am

Clever Idea Fred.

Now we need to see action shots and see how it performs!!!

dusty · Post by **dusty** » Fri Mar 08, 2013 12:04 pm

fredsheldon wrote:Ok, I'm not going to bite guys

OK, suit yourself. If you are curious about what other solutions there might be, just keep an eye on the forum for pictures. Scrutinize them all not just the ones in threads about turning.

fredsheldon · Post by **fredsheldon** » Fri Mar 08, 2013 12:53 pm

Dusty, everytime I post a picture I try to be your eyes and see what you are going to spot that nobody else would pay any attention to. When you noticed that I had my table locking screws in the wrong place on my new 10ER I knew then you must shift + every photo posted here and try to learn all about a person by what he has stored around his shop.

And if you have any suggestions about my chip collecting issue I would be eager to hear them.

dusty · Post by **dusty** » Fri Mar 08, 2013 12:56 pm

fredsheldon wrote:Dusty, everytime I post a picture I try to be your eyes and see what you are going to spot that nobody else would pay any attention to. When you noticed that I had my table locking screws in the wrong place on my new 10ER I knew then you must shift + every photo posted here and try to learn all about a person by what he has stored around his shop. And if you have any suggestions about my chip collecting issue I would be eager to hear them.

You must have me confused with someone else.

I know absolutely nothing about the 10ER except that Shopsmith did not manufacture it.

fredsheldon · Post by **fredsheldon** » Sat Mar 09, 2013 2:56 pm

Does it work?

[ATTACH]20556[/ATTACH]

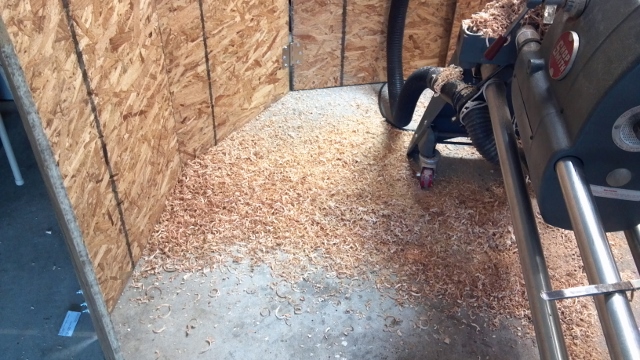

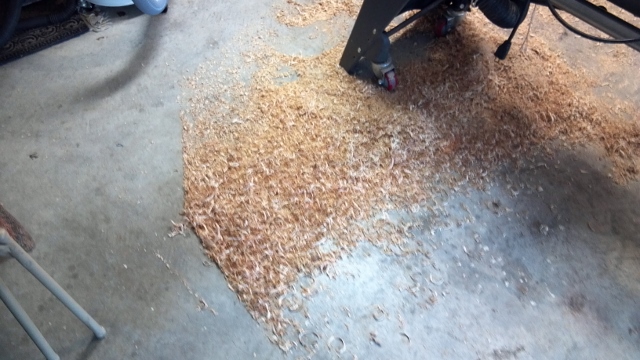

After containment wall removed, you can see the shavings were contained, ready for cleanup.
[ATTACH]20557[/ATTACH]

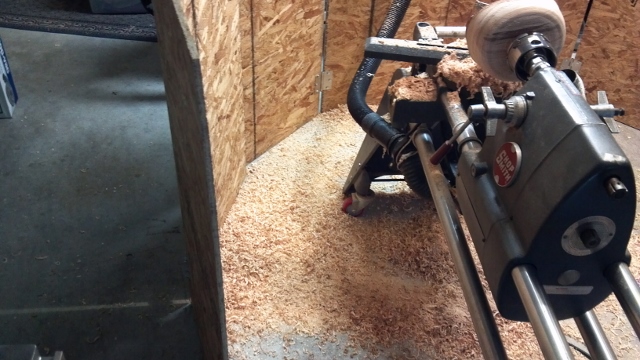

Contained all shaving/chips on the inside of the folding wall.
[ATTACH]20553[/ATTACH]

[ATTACH]20554[/ATTACH]

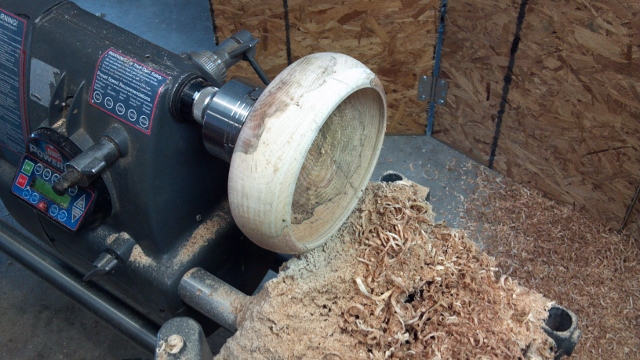

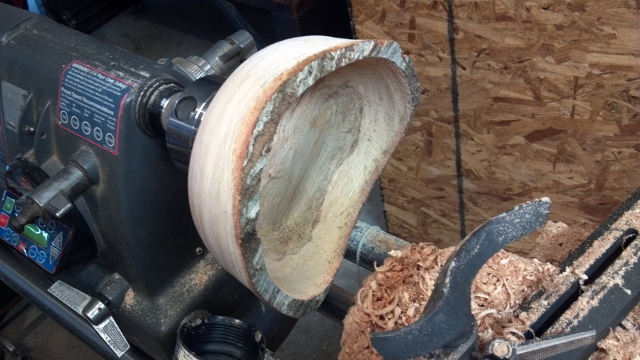

My first attempt at a Natural Edge bowl. Will bag it for now and thin up the walls in a few months. Getting faster at this, total setup, turning and cleanup time this morning was less than 2 hours.

dusty · Post by **dusty** » Sat Mar 09, 2013 3:36 pm

Does it work? I don't know. How much further away would those chips have been without the wall.

However, the bowl looks as though the turning task is going well.

Good job!

fredsheldon · Post by **fredsheldon** » Sat Mar 09, 2013 5:50 pm

dusty wrote:Does it work? I don't know. How much further away wold those chips have been without the wall.

I think post # 1 answers that question quite well

It has performed as I had hoped and reduced my cleanup time quite a bit. And I now have 5 gallons of shavings that I can use as bag stuffings with my bowls.

fredsheldon · Post by **fredsheldon** » Tue Oct 01, 2013 8:24 pm

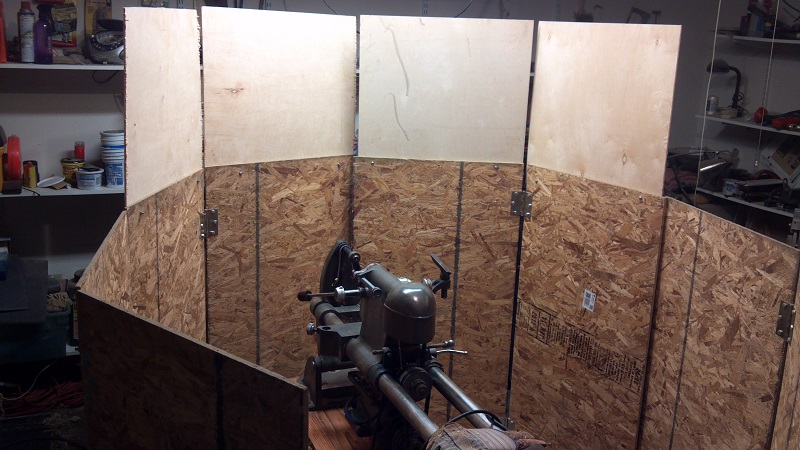

I have found that when turning the outside of a fresh block chips fly over my original containment walls. I added some 1/4 inch panels to raise the height of 4 of the walls near the business end of the lathe.
[ATTACH]22903[/ATTACH]
I will give this new setup a test tomorrow evening to see if it does a better job of containing the small chips that fly off the fresh block when I'm rounding it out.

[ATTACH]22904[/ATTACH]

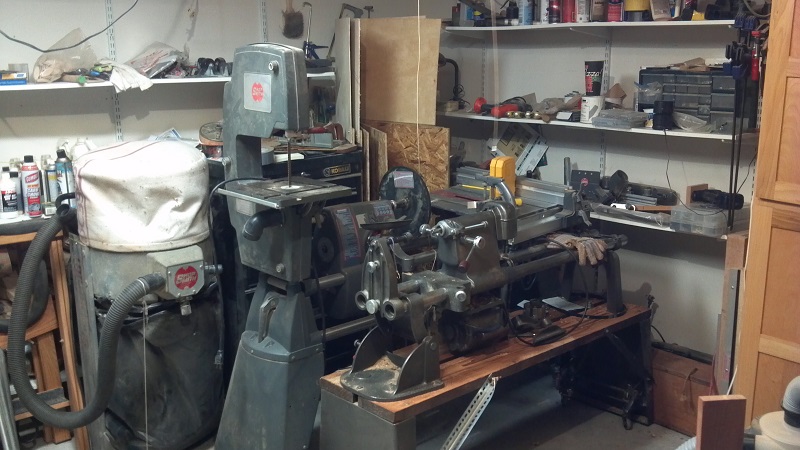

Once I'm finished they still fold up and tuck away in the corner of my half of the garage along with my 520 and 10ER. My other 10ER and 500 shorty OPR are to the right in the other half of my half of the garage.

algale · Post by **algale** » Tue Oct 01, 2013 8:32 pm

fredsheldon wrote:I have found that when turning the outside of a fresh block chips fly over my original containment walls. I added some 1/4 inch panels to raise the height of 4 of the walls near the business end of the lathe.
[ATTACH]22903[/ATTACH]
I will give this new setup a test tomorrow evening to see if it does a better job of containing the small chips that fly off the fresh block when I'm rounding it out.

[ATTACH]22904[/ATTACH]
Once I'm finished they still fold up and tuck away in the corner of my half of the garage along with my 520 and 10ER. My other 10ER and 500 shorty OPR are to the right in the other half of my half of the garage.

Mr. Sheldon, tear down that wall!
