I ran the Mark VII up this morning in table saw, jointer, and bandsaw modes with no problems except belt tension which was easily fixed. It turns out that the belt tension cam should be tightened counterclockwise (slot on the right as you face it) to best centre the button bearing on the cam.
So far so good.

Backing up a bit to the cupped washer. I wonder how well the quill LOCK functions?

Funny you should mention that! ……
I was running the Mk VII lathe this afternoon and at first the quill kept backing off and releasing the spur. I added a washer borrowed from my 510 and it worked fine. I suspect flipping the cup washer would make it lock without the washer (the 510 does) but I should be looking for that washer anyway.
Drill press and lathe operations both indicated the need for a quill bearing replacement. A 2 1/2” Forstner bit will show you runoff if you have it! I also noticed that the spindle I was turning chattered at the headstock end so I think it is conclusive.

All that said, I have a functioning (80%) Mark VII for so far $100 +$50 for paint.

Describe the washer you 'borrowed' from the 510. Not the wave washer?

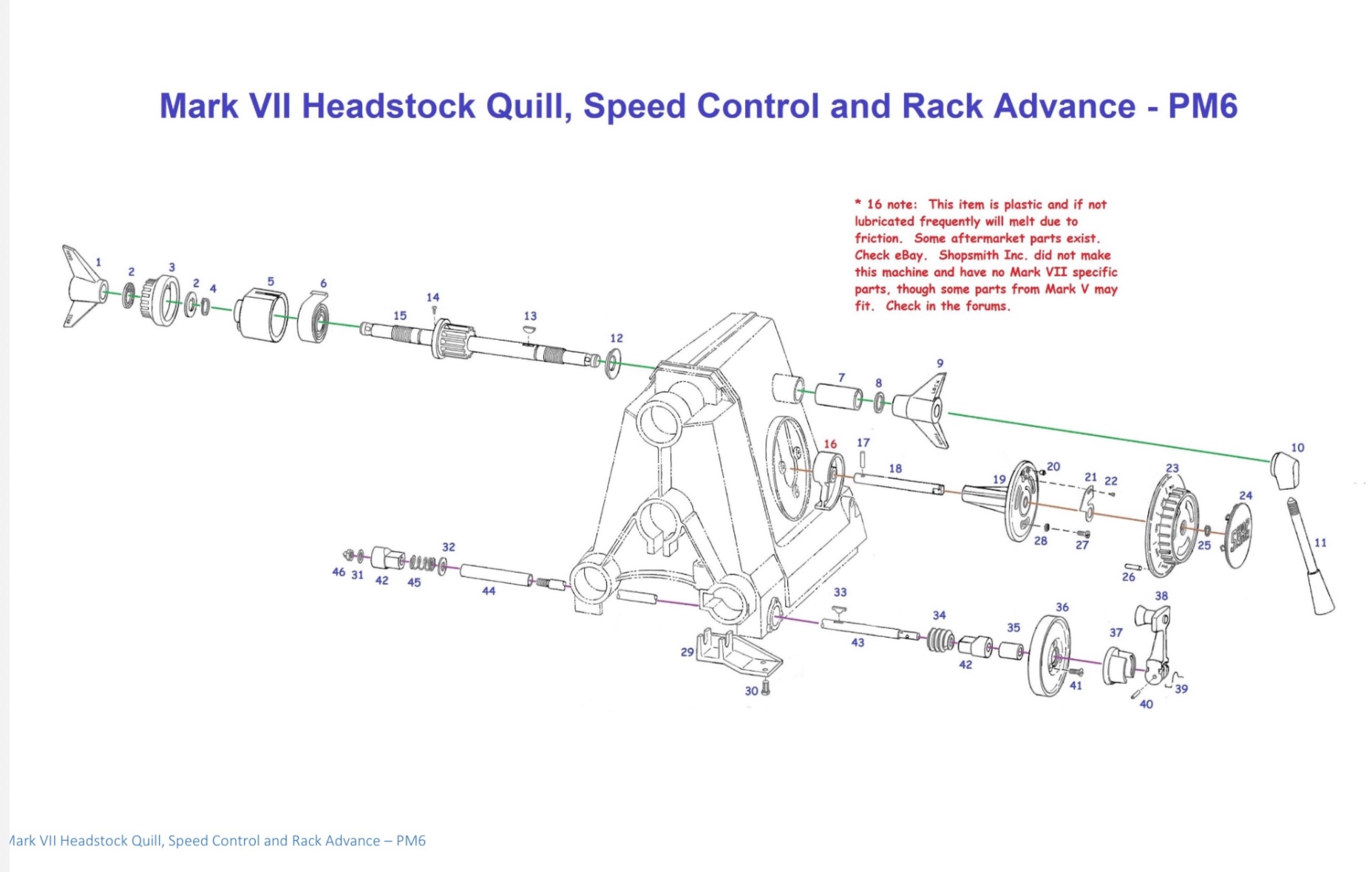

#8 in the diagram. Mark VII diagram but the same washer, I’m sure.

Gotta tell ya about the SS demo guy when I was purchasing my Goldie. In his demonstration he removed the wave washer(#8) and said it is the first thing he discards.

I later surmised the reason for his 'thinking' after using it myself

The washer provides a gradual increasing locking force as the washer compresses. Good feature for setting up. PITA for a demonstrator who likes instant locking.(quicker)



Now about that damn exploded view. I maintain it is wrong.

Consider my earlier pix. Note that IF the washer was installed as show in the exploded view (on the other side of the headstock 'rib' ), the sleeve would have to pass through(not sure it will!) and then press the washer against the side of the quill gear which does not provide any clamping force. Also the sleeve is too short. When locked the outboard end of the sleeve is coplaner with the headstock casting and the wave washer.

On my 510 the sleeve (#7) sticks out of the headstock about an eighth and the big wing nut clamps tight on it with or without the washer. On the VII the sleeve is just flush with the headstock and the wingie thingie binds on the headstock first. With the washer it bears on the sleeve and locks.
It’s not a wave washer. It’s flat.
I will revert to your way anyway.

So you also have an incorrect washer on the 510. I have NEVER encountered a FLAT washer at #8 on the Goldie, 510 nor MVII. Maybe that is a SS Inc stupid substitution.

By wavy you mean the thin curved washers that would rock back and forth on a surface, right?
I’ll go and check both the 510 and the Greenie. You have me interested now.
Pix to come.

Sometimes called a spring washer. I tend to make up my own descriptions.
