rpd wrote:Beautiful.
Is that an early table height adjuster in the last photo?
It is a late table riser I think (1951-1952). I have the digital manual but can't find it right now. I will let you know.
I got it on eBay and I don't think I have ever seen another one.
They be quite rare!!! I have only seen them twice. I assume one of them was yours when it was on e-bay! I be curious how effective it is compared to the crank.(Or how it works for that matter).
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I can cut vinyl stencil. Depending on the size of the detail, sometimes the center of "o's" and "a's" don't stick very well though due to the low tack adhesive on the vinyl.
It would also take two stencils. One for the red, one for the white although the white could basically just be a circle done first so that would be easy.
I have heard that Shopsmith isn't too favorable of people reproducing their logo though?
Edit, as I see there is a black ring around the outside also.
Last edited by ddub on Wed Oct 28, 2015 12:05 am, edited 1 time in total.
Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
John, can you put some "bondo" or epoxy of some kind to "smooth out" the rough cast? Painted over, it could probably be done so you wouldn't even see it after ddub's decal (vinyl) is placed. I think it would just dissappear ....
JMHO.
BTW, I think I like my crank table adjuster better ....
Dick 1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
rpd wrote:Beautiful.
Is that an early table height adjuster in the last photo?
It is a late table riser I think (1951-1952). I have the digital manual but can't find it right now. I will let you know.
I got it on eBay and I don't think I have ever seen another one.
They be quite rare!!! I have only seen them twice. I assume one of them was yours when it was on e-bay! I be curious how effective it is compared to the crank.(Or how it works for that matter).
Yes, mine is the one that was on eBay. As far as working, I don't really know. I have not used this one and I don't use the crank one either because the only working 10ER in the shop at this time is the dedicated drill press.
However, if I had to guess I would think that this one would work better since it pushes straight up on the table yoke. With the crank the arm has a tendency to cock the table tubes in the carriage.

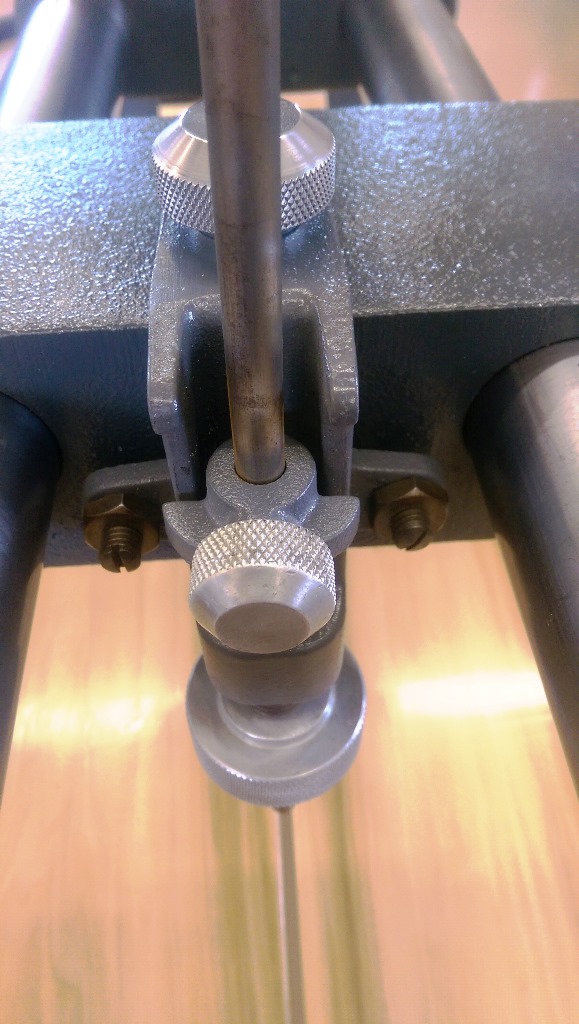

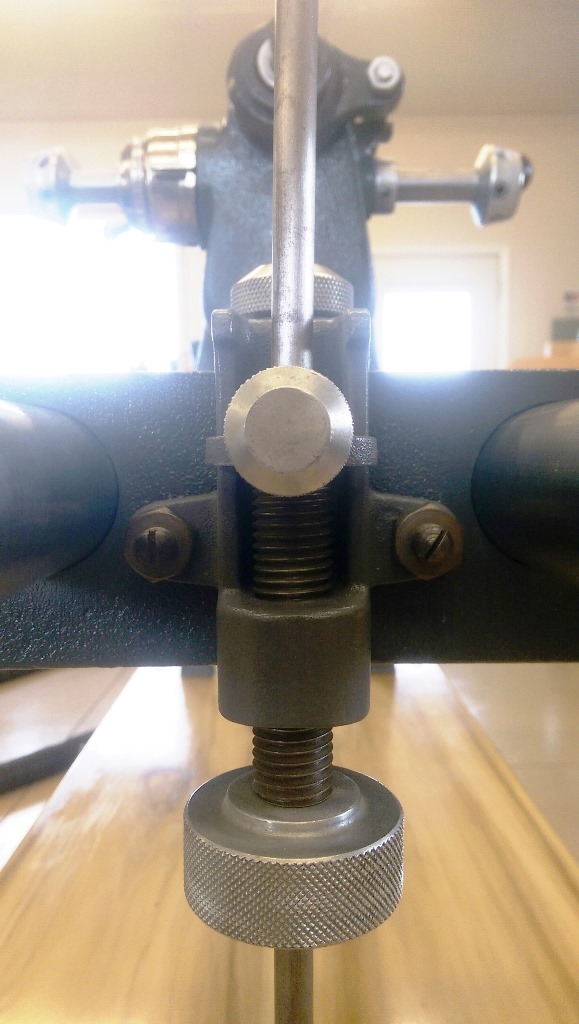

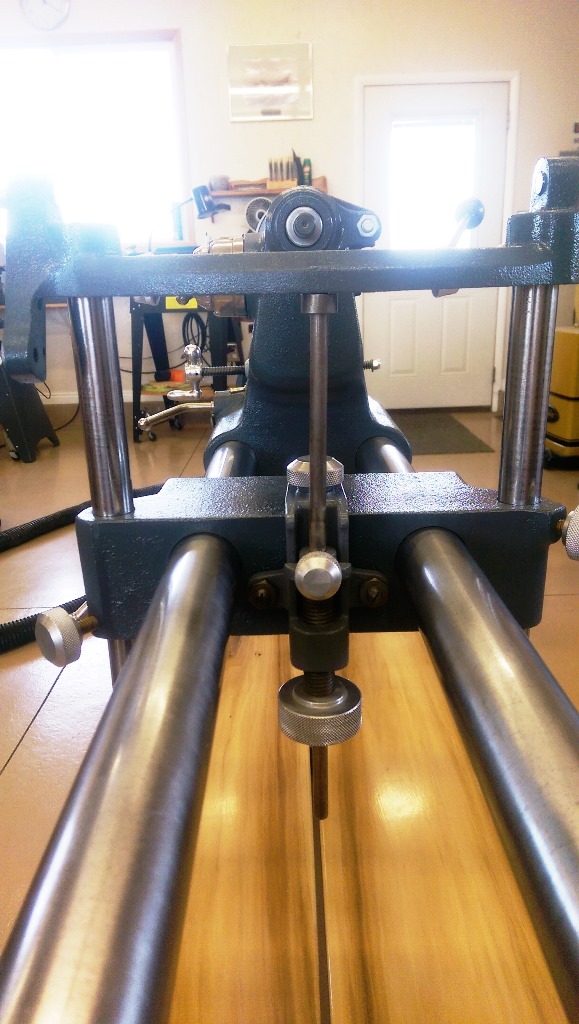

You can see how it works from the pictures. The large knob at the bottom is attached to the large threaded piece. It has a through hole for the small rod. The small knob is threaded into the "D" shaped piece and secures the "D" piece to the small rod. The "D" piece sits on top of the large threaded piece and when the large knob is turned it raises or lowers the small rod and thus the table.
It has about the same range of adjustment without moving the small rod as the crank does without moving the arm.
Attachments
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
rpd wrote:Beautiful.
Is that an early table height adjuster in the last photo?
It is a late table riser I think (1951-1952). I have the digital manual but can't find it right now. I will let you know.
I got it on eBay and I don't think I have ever seen another one.

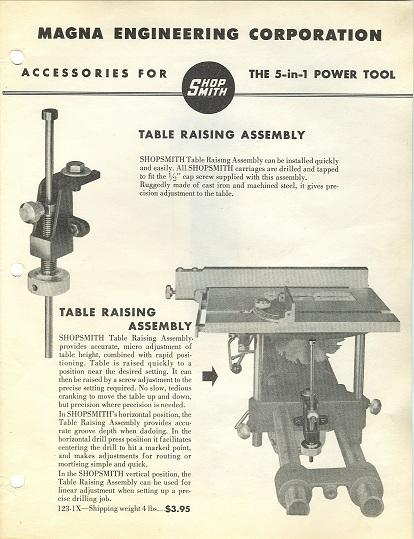

Ron, I believe you are right. It is an early model rather than a late model. I found the manual and the file is titled 10E Table Raiser. There is no date on the manual but by the fence in the picture it is installed on a 10E. So the table raiser is an early one not a late one.
I just thought that since they are so rare that it came out at the end of the 10ER and not many were sold.
Also notice the one in the manual is not exactly the same as the one I have. Somewhere along the line a change was made as to how the small rod was held in place.
Attachments
SS10E Table Raiser Assembly.jpg (42.42 KiB) Viewed 2238 times
Last edited by jsburger on Wed Oct 28, 2015 4:01 pm, edited 1 time in total.
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I knew you were going to ask. When I left the shop after checking the pitch I thought I should have measured the diameter. Anyhow, 3/4-10 is the UNC standard so I am not going out to the shop to check.
