SketchUp 101

mbcabinetmaker · Post by **mbcabinetmaker** » Wed Aug 12, 2009 7:49 pm

Tom that is Great! I just hope it is not our next lesson.

tnerb · Post by **tnerb** » Wed Aug 12, 2009 11:37 pm

mbcabinetmaker wrote:Tom that is Great! I just hope it is not our next lesson.

Would be one heck of a lesson!

Brent

mbcabinetmaker · Post by **mbcabinetmaker** » Thu Aug 13, 2009 7:50 am

It would be like going from Grammar School straight to college.

tom_k/mo · Post by **tom_k/mo** » Thu Aug 13, 2009 9:15 pm

Thought I'd share a little more with the baby bottle project. Got a request to engrave a baby bottle the other day for a gift.

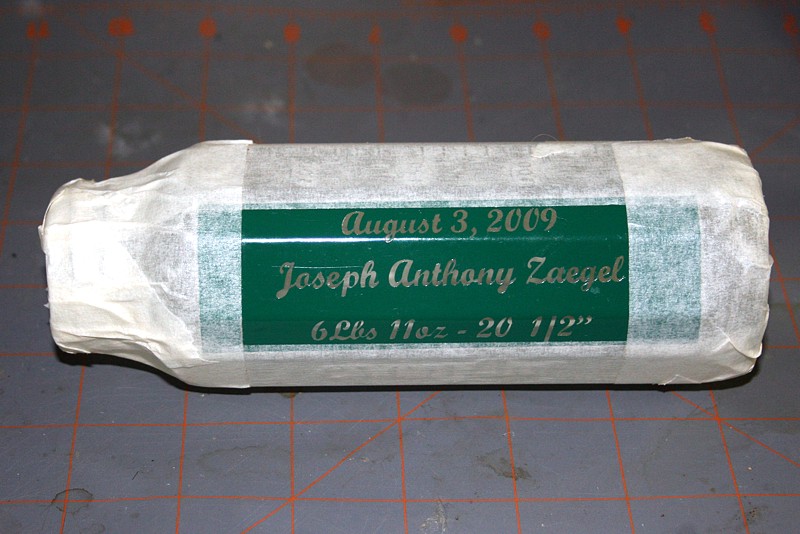

The first picture is the bottle with the mask applied and all the surrounding areas masked off. This mask is made from 3mil sign vinyl (green)cut on a computer driven vinyl sign cutter. It is then hand weeded (picking out the non-wanted pieces) and transferred to the bottle using transfer tape.

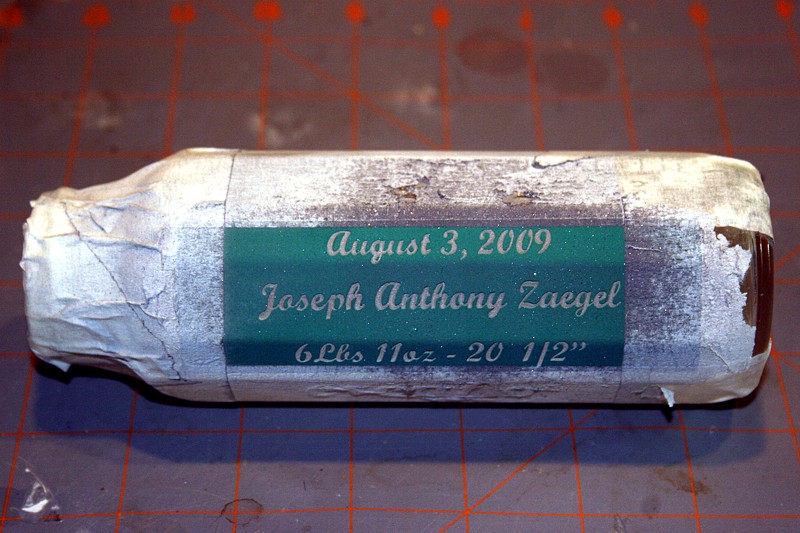

The second picture is after removing it from the sandcarving cabinet. There's still a bit of Aluminum Oxide clinging to the masking tape.

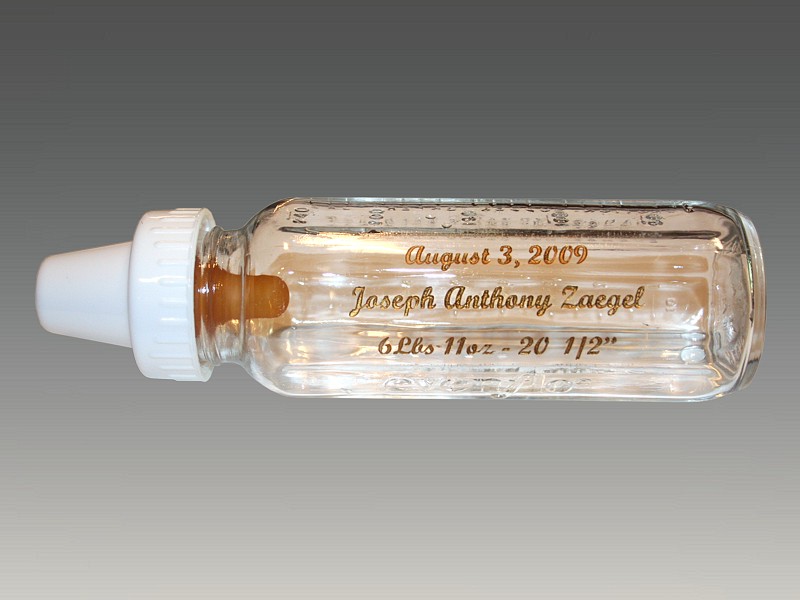

The last picture is after removing the mask, cleaning the glass and filling the etching with gold. I still need to put a blue ribbon/bow around the neck and fill the bottle with blue Jelly Bellys.

This is what I was drawind the display stand for.

charlese · Post by **charlese** » Thu Aug 13, 2009 9:26 pm

A super nice gift, Tom! Just think how Joe's future wife would prize this. That is if his Mom will let go of it!

Couldn't help but notice that Joe was the same size as our Son.

beeg · Post by **beeg** » Fri Aug 14, 2009 12:44 am

VERY NICE looking engraving. It will be prized for a very long time, as Chuck said.

mickyd · Post by **mickyd** » Fri Aug 14, 2009 1:05 pm

FIRST CLASS, Tom!! Great depth, great color. The recipient will keep that for a lifetime I'm sure. It's amazing to think that this bottle will be around for possibly centuries. Great idea.

baddlad · Post by **baddlad** » Sun Aug 16, 2009 12:43 pm

ok I am way behind I just got the step stool completed

dusty · Post by **dusty** » Sun Aug 16, 2009 1:44 pm

baddlad wrote:ok I am way behind I just got the step stool completed

I consider you to be several steps ahead!

mbcabinetmaker · Post by **mbcabinetmaker** » Sat Sep 12, 2009 10:40 am

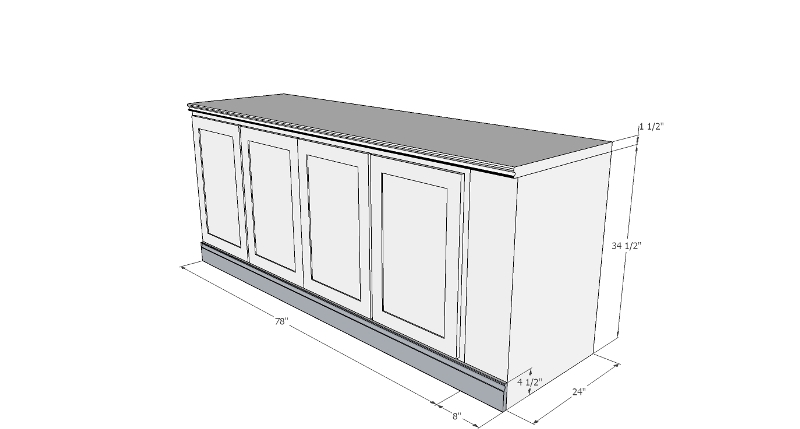

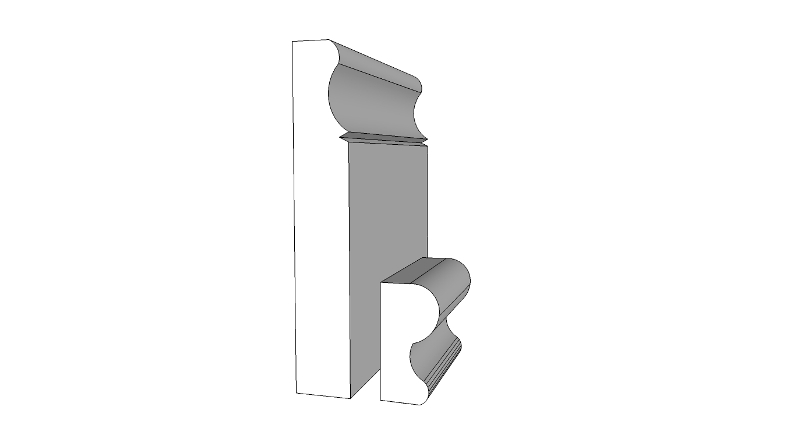

I haven't done any drawing in a few weeks but a potential customer ask for help in designing an entertainment center. I have to pat myself on the back for actually drawing an filing the moldings in My Components. I am waiting on sizes for the TV before drawing the upper section.

[ATTACH]5914[/ATTACH]

[ATTACH]5915[/ATTACH]

I can see that the ability to provide a 3D drawing is going to help me land more work. Who knows I might go crazy and create (Or get someone to do it for me) a web sight.
