Today in my shop (mounting a kreg bench klamp)

reible · Post by **reible** » Sat Oct 27, 2012 9:51 pm

Hi,

I have had one of these bench klamps sitting around for a while now. Better if I get it mounted and get some use out of it right? So that was one of many projects of the day.

I didn't buy it here but this will get you orientated of which I speak.

http://www.amazon.com/Kreg-KKS-KBKSYS-B ... pd_cp_hi_0

A little background before we get to this project. I'm in the process of setting up a "kreg" table top. Nothing fancy, far from it. I have the K4 jig and several of the older jigs and a selections of clamps. Now I want a surface that I can work on with a few features. One such feature is having the clamp to use. I also want to have a place for the K4, I will not be keeping it there but just for when I set up to do some pocket holes. I also wanted a 90 degree corner to make it easy to square projects. I also want some free areas to work at/on. I plan to add some kreg bench dogs and a series of 3/4" holes for them.

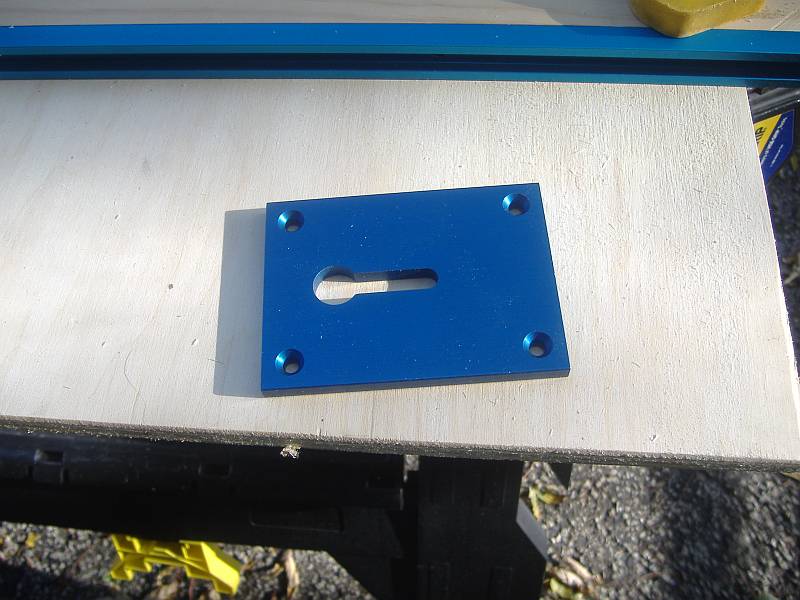

For today's project I need to mount this plate flush with the surface of this piece of plywood.

[ATTACH]18914[/ATTACH]

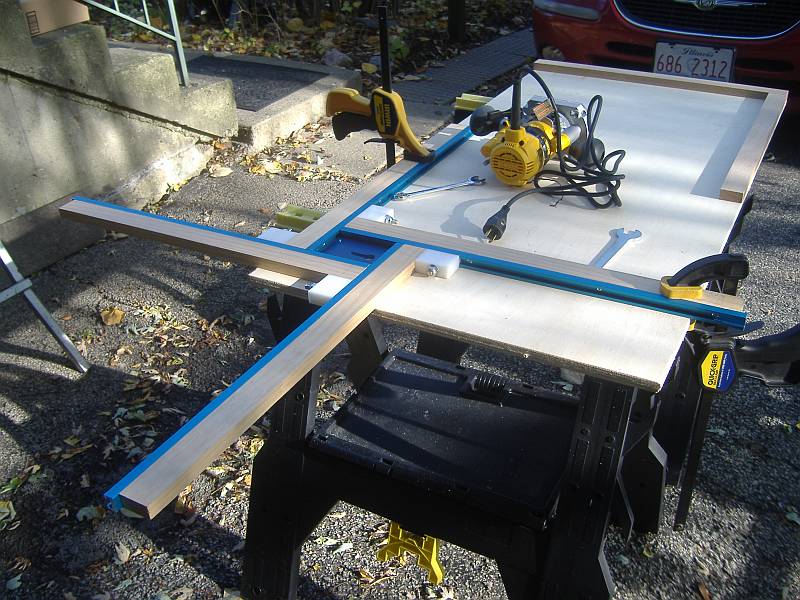

To do this I'm using a jig that I built and shared here some years back. Here is on overview of it attached to the plywood after it was sized plate.

[ATTACH]18915[/ATTACH]

This is a little closer view.

[ATTACH]18916[/ATTACH]

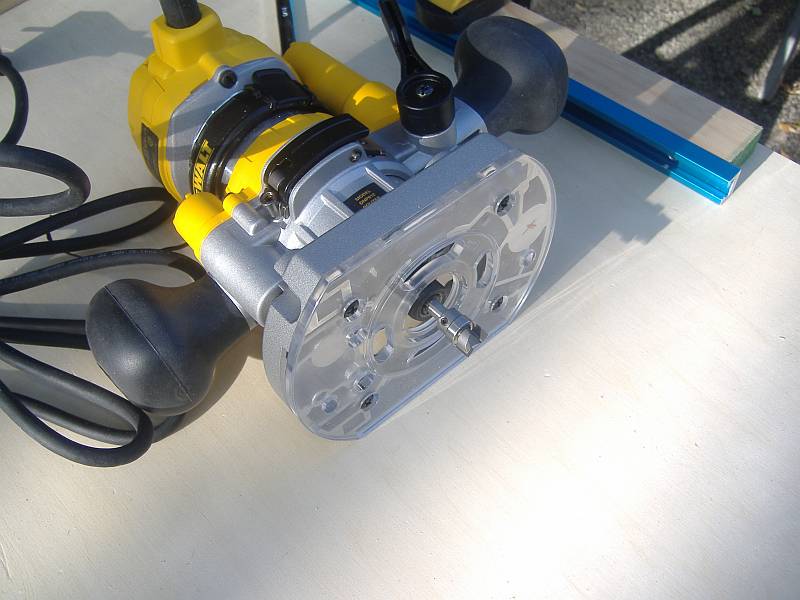

I used this router with a top bearing to do the pocket.

[ATTACH]18917[/ATTACH]

More coming up in the next post.

Ed

reible · Post by **reible** » Sat Oct 27, 2012 10:05 pm

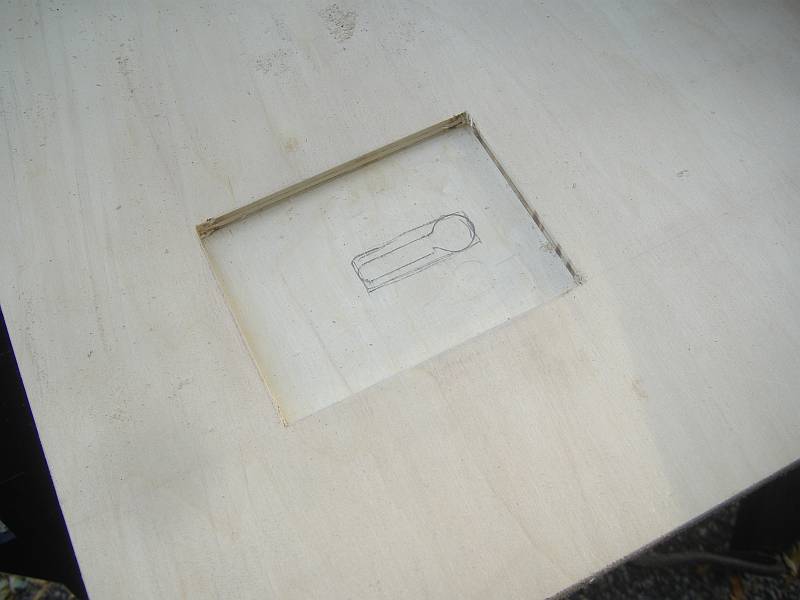

After routing out the wood you are left with rounded corners to chisel out, followed by a test fit. The fit was fine. Now you need to route a relief as sketched in this photo.

[ATTACH]18918[/ATTACH]

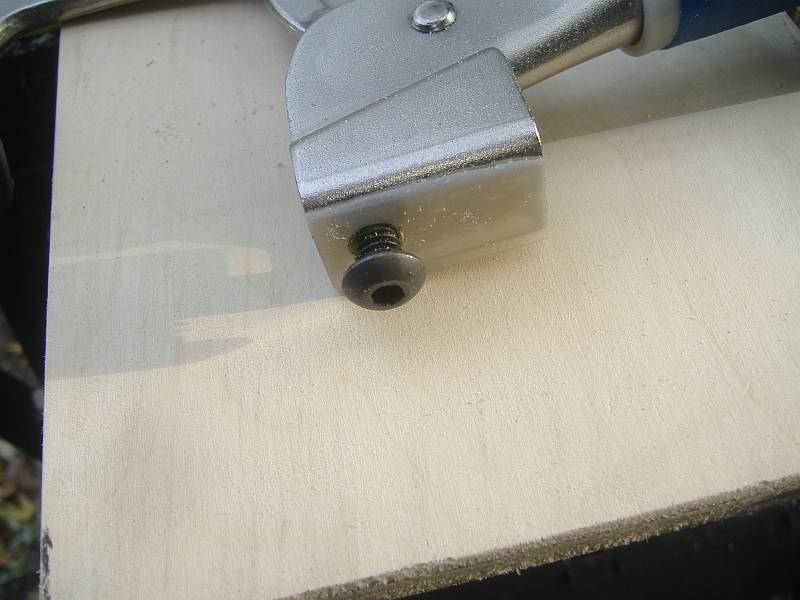

The relief is for this screw, that is what attaches the clamp to the plate.

[ATTACH]18919[/ATTACH]

I just free handed (routed) it out as it is not critical.

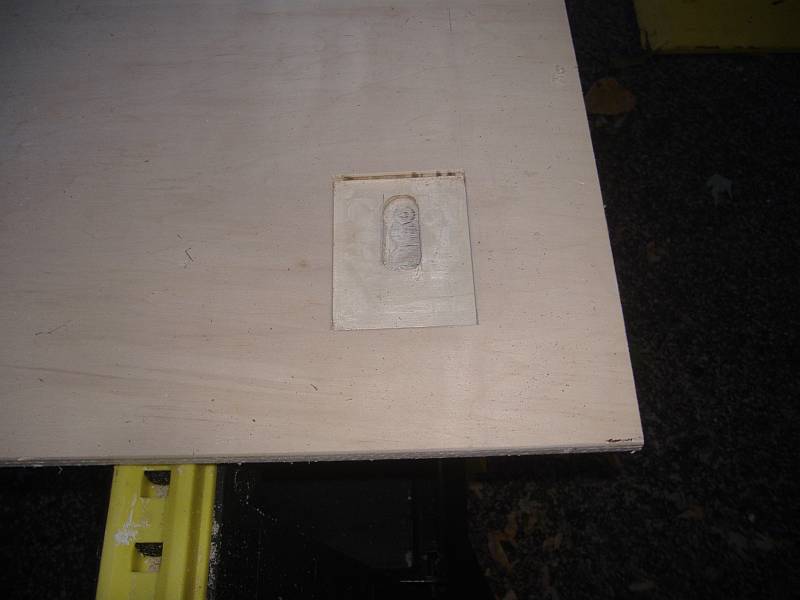

[ATTACH]18920[/ATTACH]

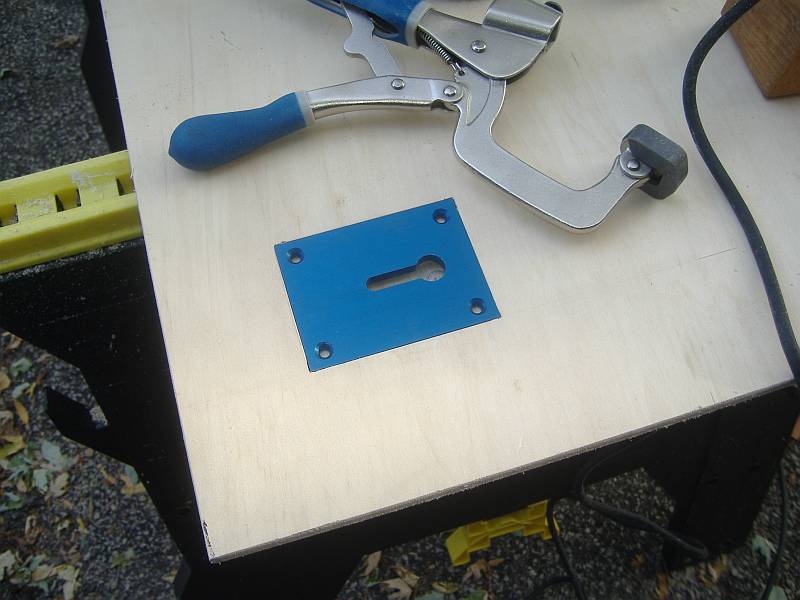

The plate is now ready to be attached. That will happen another day.

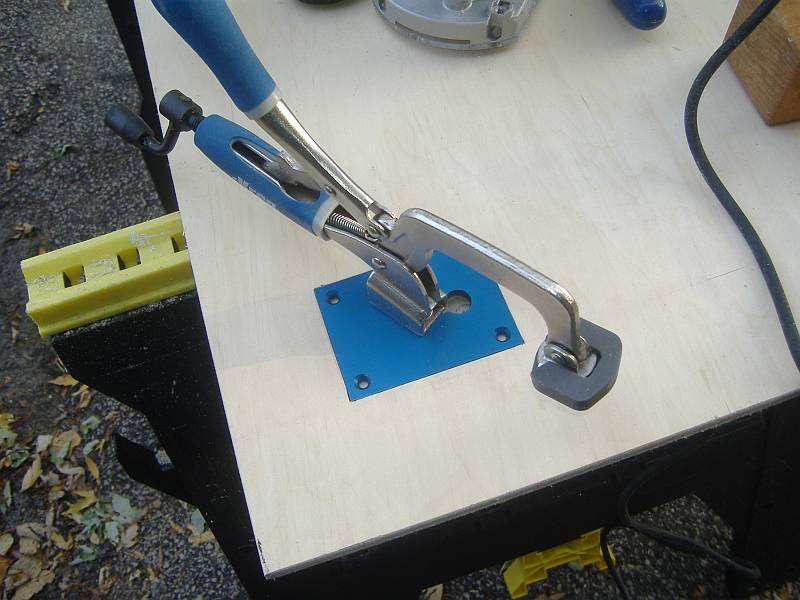

[ATTACH]18921[/ATTACH]

I did check the relief and everything is fine.

[ATTACH]18922[/ATTACH]

Still not sure if that is the best place for the clamp?? Kreg sells the plates for about $12 so I can always move or simple add a second plate if need be.

Ed

maggeorge · Post by **maggeorge** » Thu Nov 01, 2012 11:56 am

Keep them coming. I am interested to know of its outcome.

THOMRIDER · Post by **THOMRIDER** » Thu Nov 01, 2012 10:52 pm

I am interested in some more pics of your jig. Or what components you used to make it.

reible · Post by **reible** » Thu Nov 01, 2012 11:36 pm

THOMRIDER wrote:I am interested in some more pics of your jig. Or what components you used to make it.

Lots of information on the jig can be found here:

https://forum.shopsmith.com/viewtopic.php?t=3681

Ed
