Mark VII Main shaft reassembly

JPG · Post by **JPG** » Mon Jan 07, 2013 4:40 pm

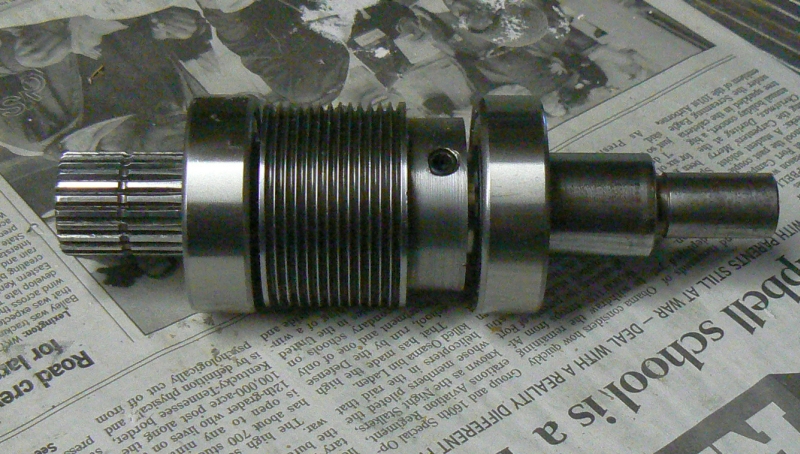

Not much to show here. The poly-v pulley is centered between the retaining ring grooves and tight(very) to the shaft at its original location. The retaining rings are installed in the grooves, and the bearings are pulled onto the shaft up to the rings.

[ATTACH]19840[/ATTACH]

[ATTACH]19841[/ATTACH]

This thread is linked to from https://forum.shopsmith.com/viewtopic.php?t=11984

cllib · Post by **cllib** » Mon Jan 07, 2013 5:30 pm

What kind of bearing are you using? where did you get it?

JPG · Post by **JPG** » Mon Jan 07, 2013 5:38 pm

cllib wrote:What kind of bearing are you using? where did you get it?

http://www.vxb.com/page/bearings/PROD/Kit487

cllib · Post by **cllib** » Mon Jan 07, 2013 6:11 pm

JPG40504 wrote:http://www.vxb.com/page/bearings/PROD/Kit487

Kit487 looks like sealed bearing. The picture you showed looks like shield.

JPG · Post by **JPG** » Mon Jan 07, 2013 6:18 pm

cllib wrote:Kit487 looks like sealed bearing. The picture you showed looks like shield.

U R correct. I grabbed that link with out looking closely.

I now think sealed bearings are preferred to minimize dust infiltration.

I used what I already had.

Regardless vxb was the 'source'.

cllib · Post by **cllib** » Mon Jan 07, 2013 6:58 pm

JPG40504 wrote:U R correct. I grabbed that link with out looking closely.

I now think sealed bearings are preferred to minimize dust infiltration.

I used what I already had.

Regardless vxb was the 'source'.

Is there any consensus of using sealed or shield bearings in this community?

I saw you use two sealed bearings in the motor assembly. Is the sealed better than shield for Shopsmith application?

Your presentation looks very good.

JPG · Post by **JPG** » Mon Jan 07, 2013 8:12 pm

cllib wrote:Is there any consensus of using sealed or shield bearings in this community?

I saw you use two sealed bearings in the motor assembly. Is the sealed better than shield for Shopsmith application?

Your presentation looks very good.

Dust is an enemy of bearings. It is more crucial in the motor which is pumping air past them. All the original bearings are shielded.

So tis a matter of 'preference'.

My current 'preference' is sealed!
