Mark VII Rip Fence Breakdown

Posted: Fri Apr 26, 2013 11:52 am
by JPG

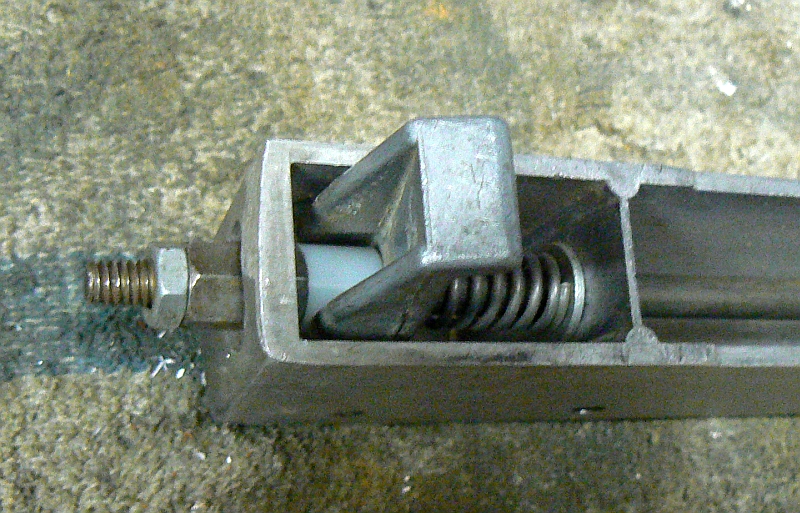

The Mark VII rip fence is a hybrid between the Mark 5 and a 510. A single lever clamp handle operates a rod that actuates both the front and rear clamps that are spring loaded to the open position.

The elongated nut and jam nut are similar to a 510. The Mark 5 had a barrel nut behind the clamp. This adds an adjustment that the Mark 5 did not have.
rear clamp.jpg
rear clamp.jpg (426.61 KiB) Viewed 2073 times
The spring opens the clamp when released. IMHO, a washer is missing between the spring and the clamp. The manual says not.

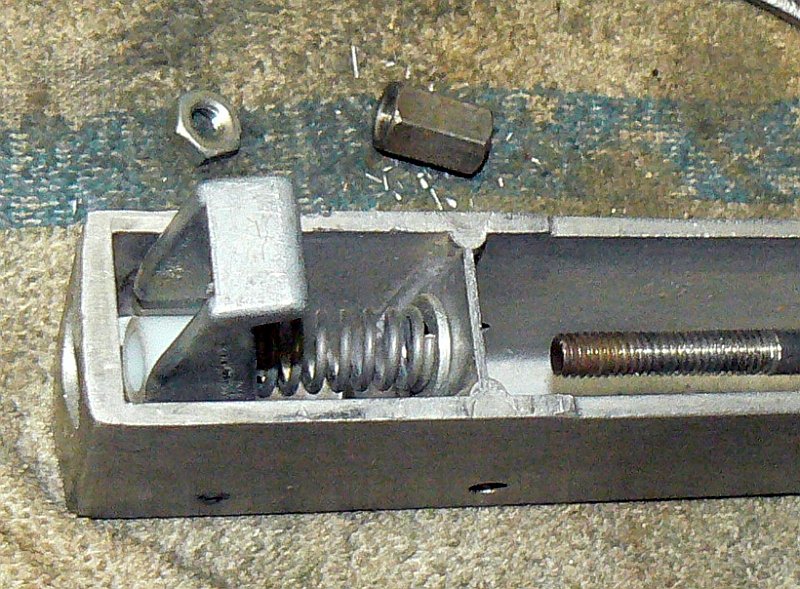

rear clamp loose.jpg
rear clamp loose.jpg (484.84 KiB) Viewed 2083 times

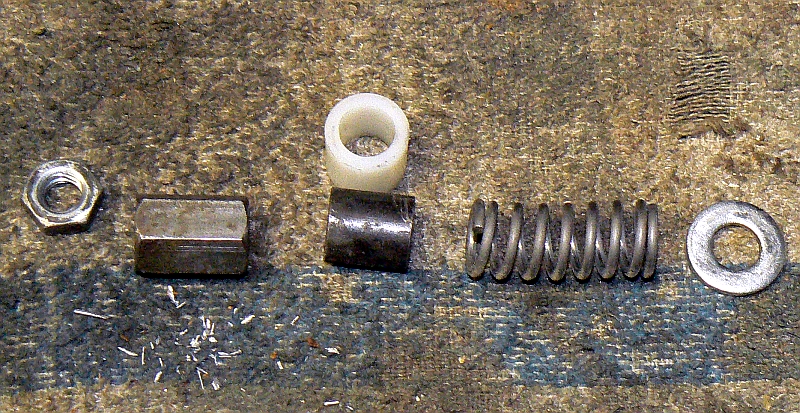

Once the nuts are removed, the control rod is free to slide towards the front. Make sure the spring 'behaves'.
rear clamp hdwre.jpg
rear clamp hdwre.jpg (412.91 KiB) Viewed 2076 times

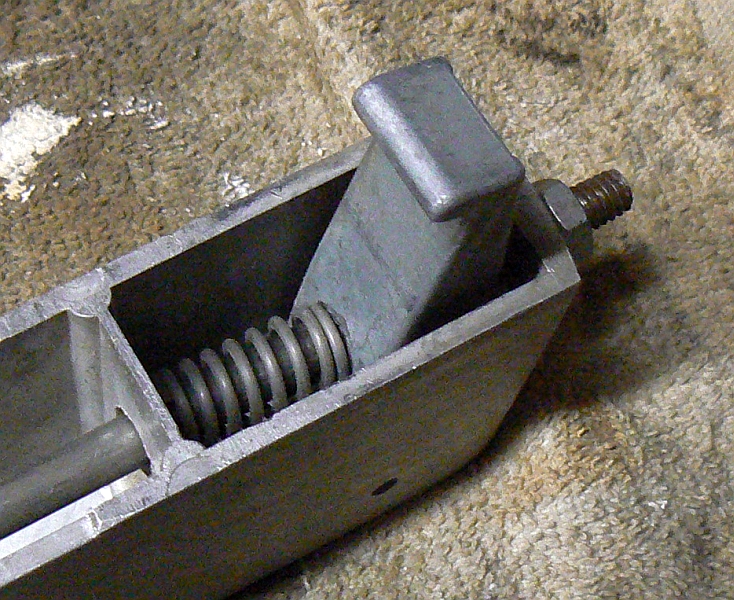

When I removed the spacer nylon another steel one 'appeared'. I assume a po lost it in thar!:D
rear clamp 2.jpg
rear clamp 2.jpg (462.14 KiB) Viewed 2078 times

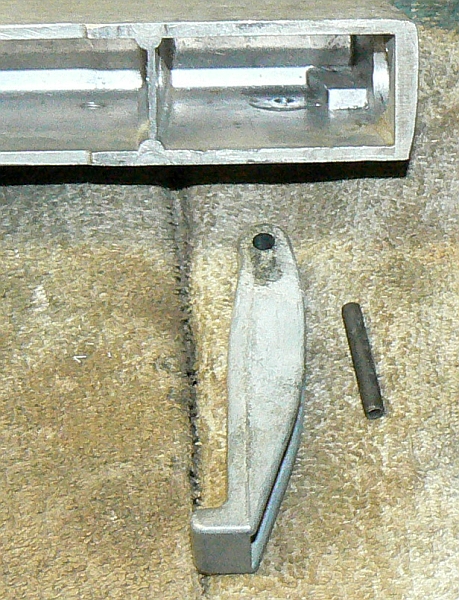

The clamp pivots on and is retained by a tension pin like the Mark 5.
rear clamp out.jpg
rear clamp out.jpg (307.26 KiB) Viewed 2075 times
This thread is linked to from https://forum.shopsmith.com/viewtopic.php?t=11373

Posted: Fri Apr 26, 2013 12:18 pm
by JPG

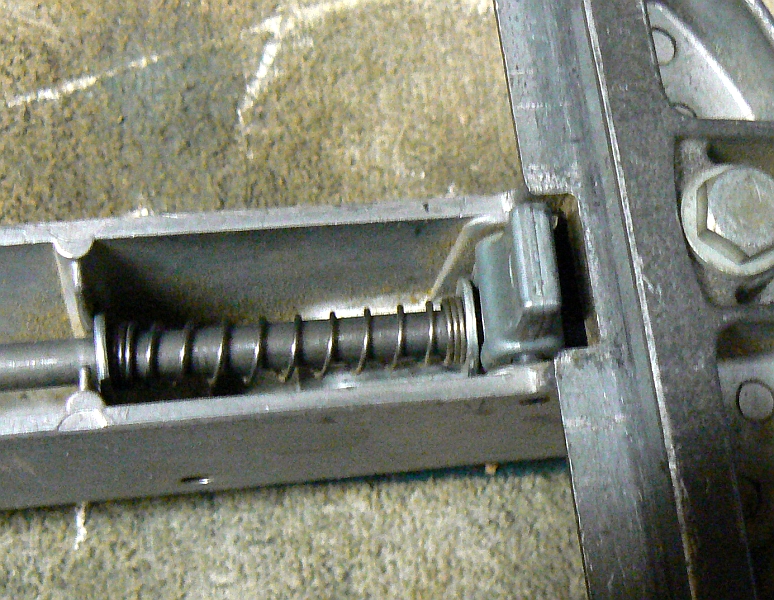

Moving on to the front clamp.

This is identical to a Mark 5.
front clamp 1.jpg
front clamp 1.jpg (468.14 KiB) Viewed 2072 times

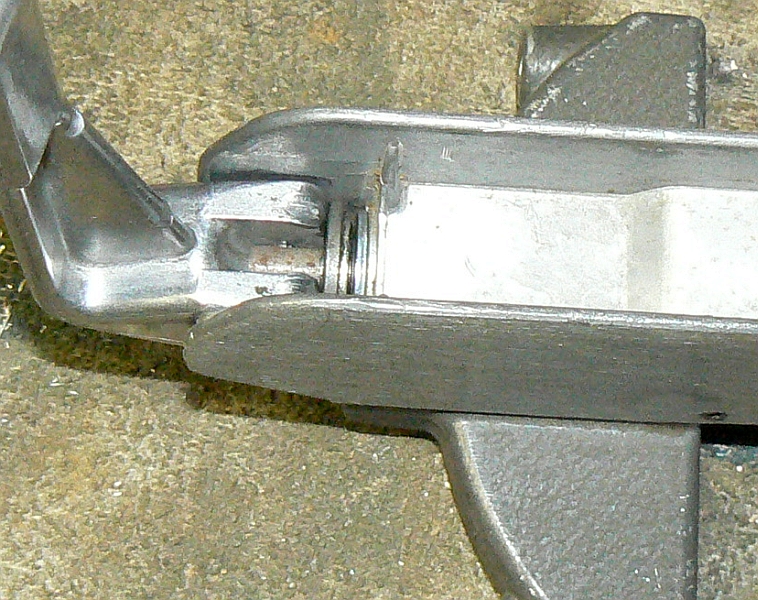

This however is not. I think I found a second washer for the rear clamp spring.
front clamp 2.jpg
front clamp 2.jpg (446.09 KiB) Viewed 2066 times

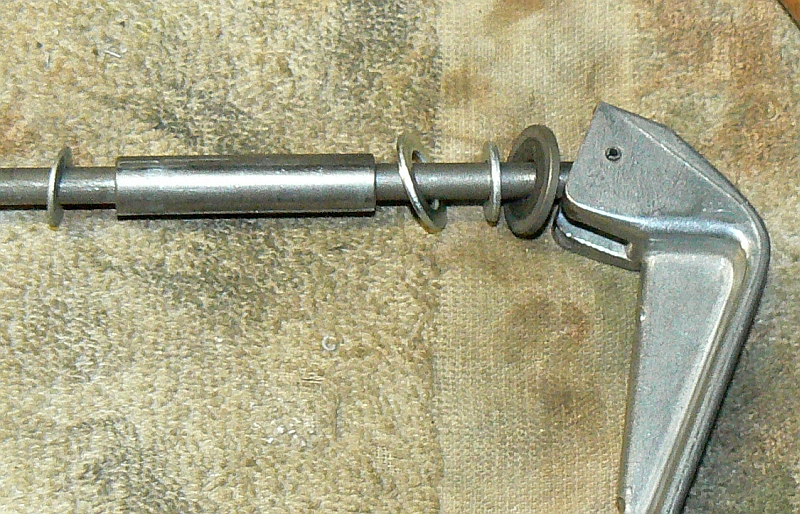

I believe there should be only two washers here. Also notice there is a washer between the spacer and the front clamp. The spacer and that washer are hidden from view when assembled.
front clamp hdwre.jpg
front clamp hdwre.jpg (447.59 KiB) Viewed 2065 times

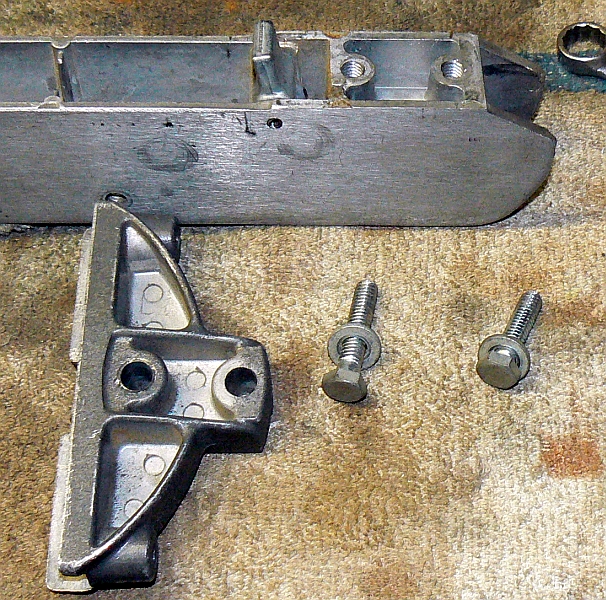

I next removed the front casting. The rear screw is longer than the front screw. It is Mark 5 'sized' but has a second biasing screw hole and is identical to the band saw fence casting(original single clamp version). More about biasing screws below! :mad:
front casting off.jpg
front casting off.jpg (428.32 KiB) Viewed 2064 times

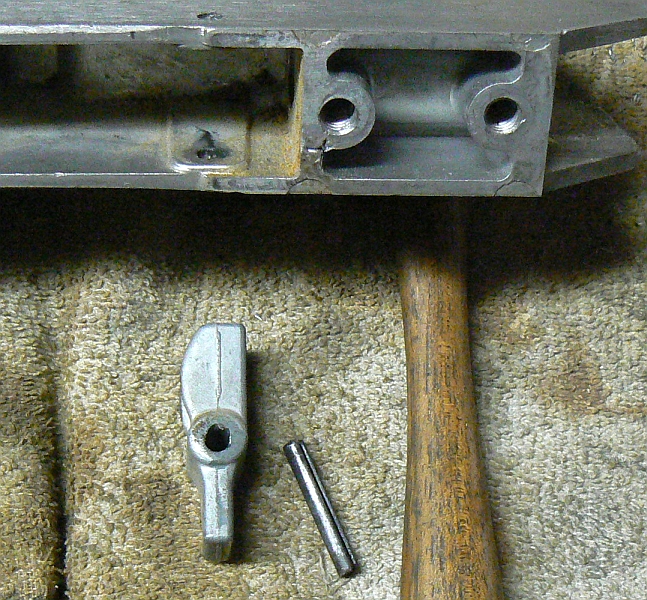

The front clamp also pivots and is retained by a tension pin.
front clamp out.jpg
front clamp out.jpg (432.92 KiB) Viewed 2067 times

Posted: Fri Apr 26, 2013 12:45 pm
by JPG
Wrapping up.

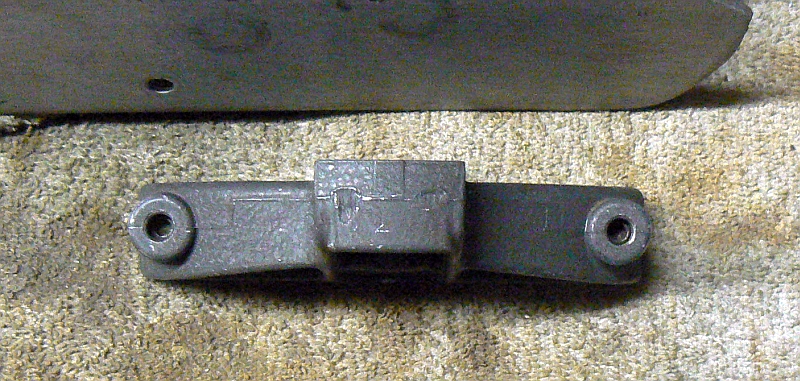

As noted above the front clamp casting has two bias screw tapped holes.
front casting bias screws.jpg
front casting bias screws.jpg (353.3 KiB) Viewed 2059 times

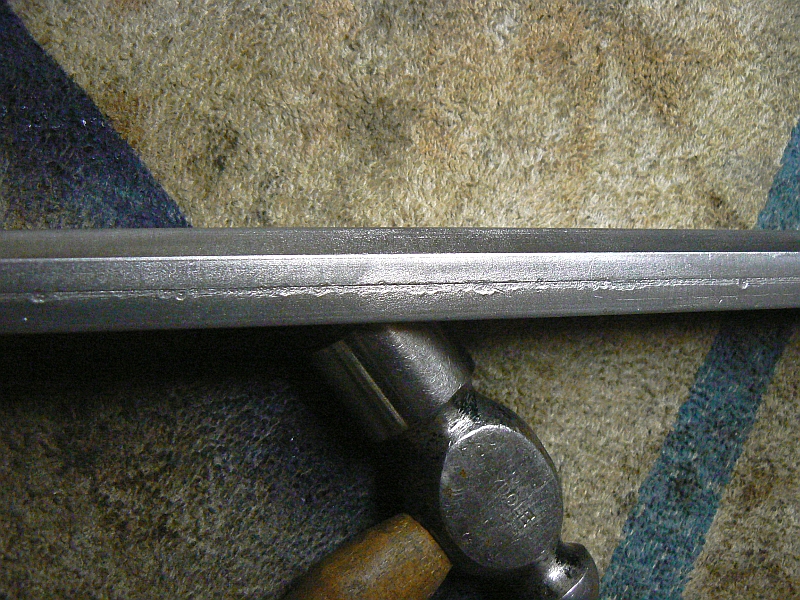

An illustration of why I get resonant regarding the improper use of these screws(to align the fence to the blade/miter gauge slot etc.) Obviously a po used the right screw as a 'permanent' alignment setting. This is a pix of the main table front rail. Fortunately that surface is not affecting 'normal' clamping/alignment.
rail damage.jpg
rail damage.jpg (514.88 KiB) Viewed 2063 times
A brief departure to notice fence design changes(and a return to a original design detail).

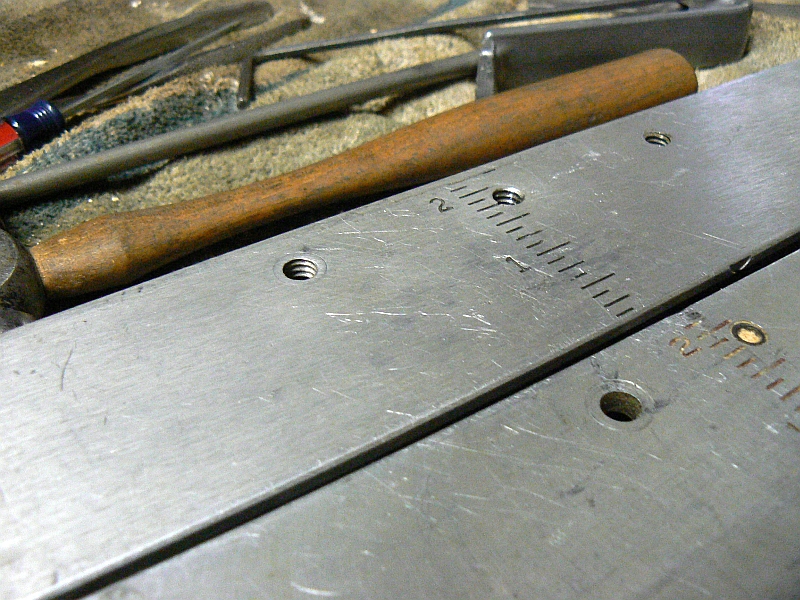

The Mark VII fence has tapped holes(5/16-18) for jig attaching. The Mark 5 fence(lower in pix) are 1/4" through holes(slightly over sized). Notice the locations differ.
fences 1.jpg
fences 1.jpg (467.41 KiB) Viewed 2065 times

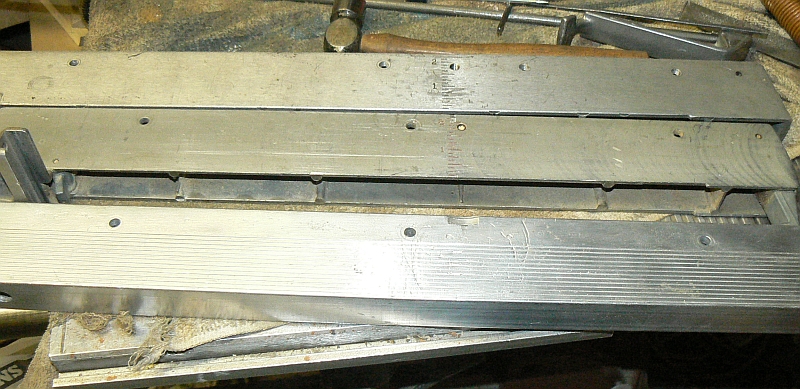

Adding a 510 fence in the bottom of the pix shows the original jig mounting holes are returned to their location relative to the arbor and are again through holes(not tapped).
fences 2.jpg
fences 2.jpg (318.88 KiB) Viewed 2061 times

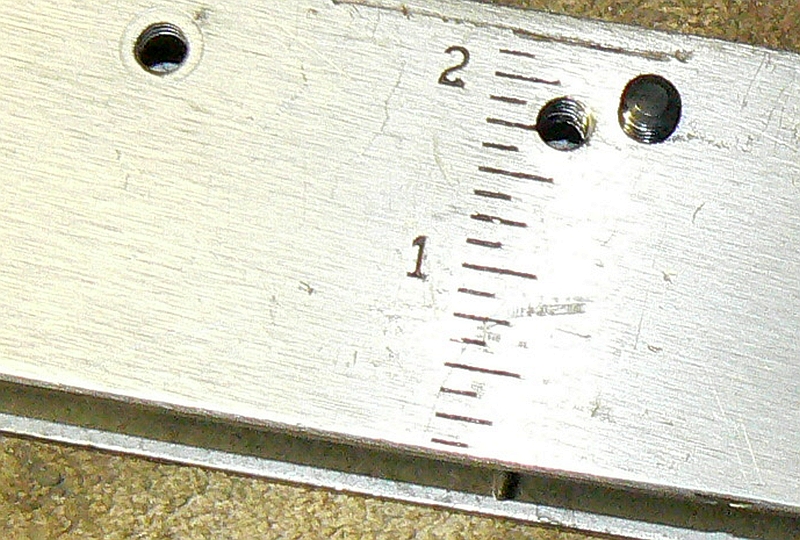

Finally there is the set screw for the mortising hold down post etc. Actually I took it out before the last two pix.;)
set screw.jpg
set screw.jpg (399.82 KiB) Viewed 2061 times
