Radio Controlled Sailboat Box Project

Post by fredsheldon »

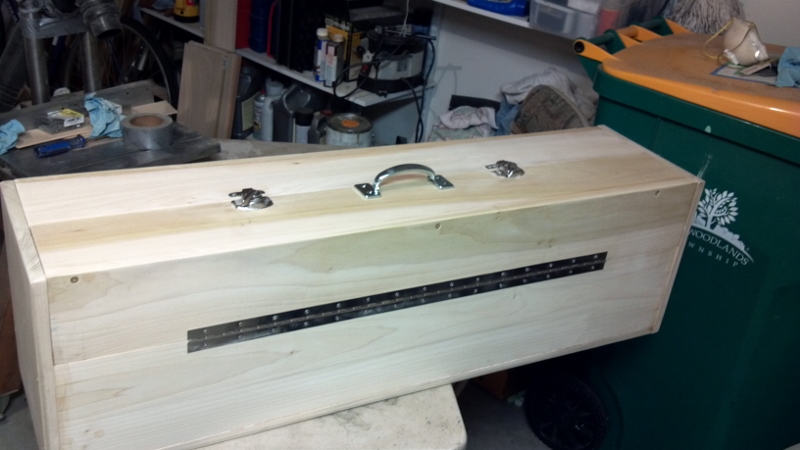

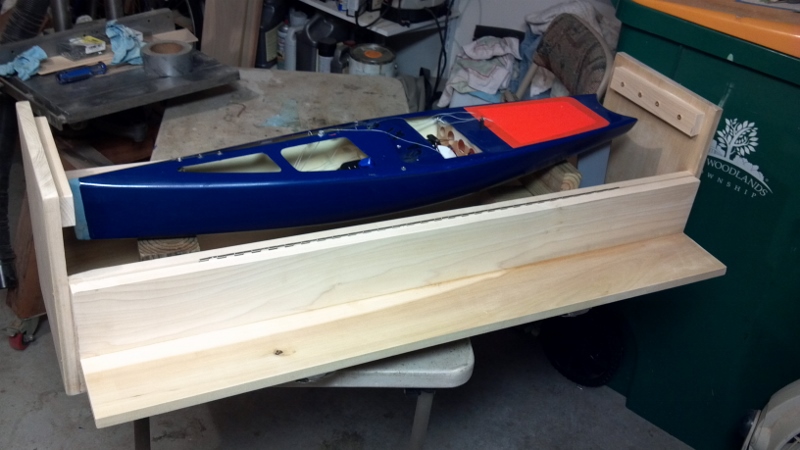

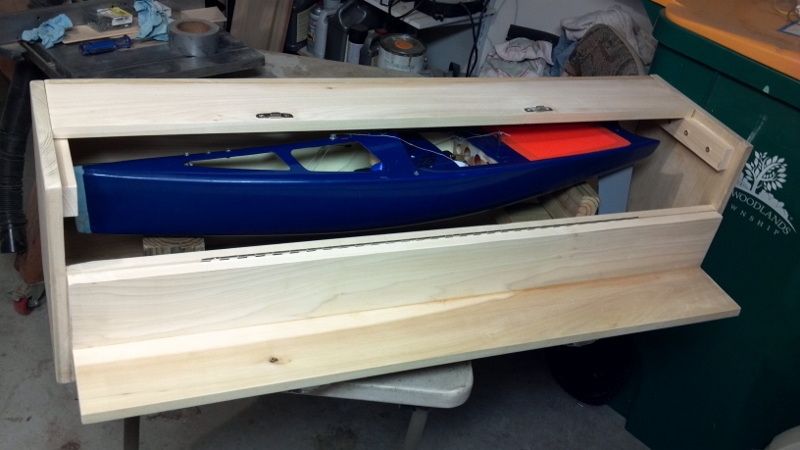

Here is my latest project, a box to carry and protect my Radio Controlled Sailboat when I travel to races.

[ATTACH]21489[/ATTACH]

[ATTACH]21490[/ATTACH]

[ATTACH]21491[/ATTACH]

[ATTACH]21492[/ATTACH]

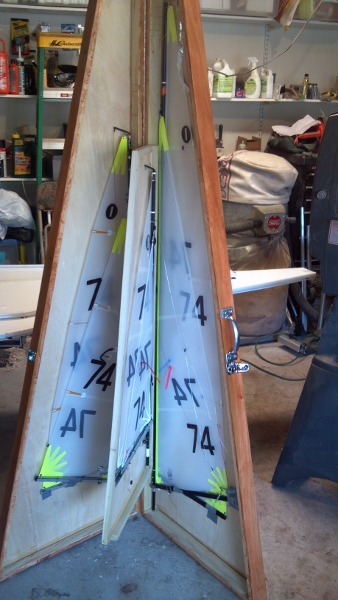

Here is the case built to hold the 3 different sizes of sail rigs for different wind conditions.
Attachments
2013-05-21_19-27-58_751 (800x450).jpg
2013-05-21_19-27-58_751 (800x450).jpg (178.25 KiB) Viewed 5448 times
2013-05-21_19-28-23_725 (800x450).jpg
2013-05-21_19-28-23_725 (800x450).jpg (173.97 KiB) Viewed 5400 times
2013-05-21_19-28-59_94 (800x450).jpg
2013-05-21_19-28-59_94 (800x450).jpg (168.73 KiB) Viewed 5416 times
2013-04-06_17-25-07_891 (338x600).jpg
2013-04-06_17-25-07_891 (338x600).jpg (156.54 KiB) Viewed 5376 times
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
texomawood
Gold Member
Posts: 91
Joined: Mon Apr 08, 2013 9:16 am
Location: Texoma, Tx

Post by texomawood »

Excellent job!! Where did you get your boat plans / kit?:)
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

I was wondering what that big folding triangle thing was when I was at your shop, but just didn't have time to ask about it! Great job!
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Post by JPG »

What does a radio controlled box do anyway?:confused:















:D:D:D:D:D
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
fredsheldon
Platinum Member
Posts: 1175
Joined: Tue Jan 17, 2012 1:31 pm
Location: The Woodlands, Texas

Post by fredsheldon »

texomawood wrote:Excellent job!! Where did you get your boat plans / kit?:)
The boat pictured is a International One Meter design called the Trinity. There are many different models and classes of RC boats worldwide. The sport is very popular and skippers travel all over the world to compete in ragattas. The IOM class just had it's National Ragatta in San Francisco, a 4 day event limited to just 68 boats. The World Finals will be held in Israel this year. I have a new boat called the Fraktal on order from Great Britain which has a 1 year waiting list. There are many different classes and price ranges with kits as low as $200, including a radio and receiver, all the way up to over $3,500 for the IOM class. I thought racing my full size 25' O'day was a blast but racing these little boats is much more intense and rewarding. That's why it's important that you build boxes for the rigs/sails and hulls to protect your investments when shipping them to the racing venues. I also race a Victoria class boat which is smaller and can be had for between $200 and $400 outfitted with racing sails. Google both IOM's and Victoria's RC sailboats to check out this exciting sport/hobby. Many of my SS projects in the past year have been to build boat stands, sail boxes and boat boxes in support of my hobby. Now you know why I can't retire yet even though I'm 70 years old, I have an expensive hobby :)
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
frank81
Gold Member
Posts: 458
Joined: Tue Feb 19, 2013 11:28 am
Location: Marshfield, Missouri

Post by frank81 »

Out of curiosity, what type of materials are the hulls made out of?
User avatar
fredsheldon
Platinum Member
Posts: 1175
Joined: Tue Jan 17, 2012 1:31 pm
Location: The Woodlands, Texas

Post by fredsheldon »

frank81 wrote:Out of curiosity, what type of materials are the hulls made out of?
The custom hand made IOM's are Fiberglass, and very breakable, and the smaller kits are the same material as PVC pipes, very hard and almost unbreakable.
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
frank81
Gold Member
Posts: 458
Joined: Tue Feb 19, 2013 11:28 am
Location: Marshfield, Missouri

Post by frank81 »

fredsheldon wrote:The custom hand made IOM's are Fiberglass, and very breakable, and the smaller kits are the same material as PVC pipes, very hard and almost unbreakable.
This is really intersting to me, I work in boats (started off in yachts) and my pipe dream is custom and small batch composites molding and casting of vehicle parts (boats, motorcycles, cars, etc,).

I'm probably a year off from the capability(CNC routing), but if you ever want to try a custom design I'd be game for making that my test project. I have a commercial account with a composites distributor so I can get virtually any material, and would be able to produce fiberglass, carbon fiber, or any typed of poured resin including additives and pigments.
texomawood
Gold Member
Posts: 91
Joined: Mon Apr 08, 2013 9:16 am
Location: Texoma, Tx

Post by texomawood »

Do you know if there is a "racing group" up in the North Dallas area? Thanks for the previous info. Where did they hold comp. out in SF?
User avatar
fredsheldon
Platinum Member
Posts: 1175
Joined: Tue Jan 17, 2012 1:31 pm
Location: The Woodlands, Texas

Post by fredsheldon »

texomawood wrote:Do you know if there is a "racing group" up in the North Dallas area? Thanks for the previous info. Where did they hold comp. out in SF?
Yes, a large IOM group sail out of the Corinthian Sailing Club on White Rock Lake. Check out the link to their Yahoo Group below.

Google IOM Nationals in San Fran. They sailed off of the Oracle Pier.

Fred

http://groups.yahoo.com/group/tryc/
