Plan for headstock cradle

reluctant43 · Post by **reluctant43** » Fri Oct 25, 2013 9:32 pm

I KNOW I have seen a plan for a wooden cradle for the Shopsmith headstock but I cannot find it anywhere. Somebody please point me to it? I have a PowerPro on the way and want a secure storage cradle for my old unit.

joshh · Post by **joshh** » Sat Oct 26, 2013 1:05 pm

I'm sure someone will post it soon. In the meantime, have you thought about getting another base to make your extra headstock into a power station / mini ?

charlese · Post by **charlese** » Sat Oct 26, 2013 8:59 pm

I don't know of a plan, however as I remember there is one in use during one of the later "Sawdust Sessions". It is a simple box with the ends scooped out at the same curve as the motor pan of the headstock. To make one you can bremove your motor pan and use it as a template.

Since your motor is fastened to the pan, you'll probably not want to do this. It would be awkward and heavy.

A solid box with modified V shaped ends would do the job very well.

reluctant43 · Post by **reluctant43** » Mon Oct 28, 2013 11:54 am

joshh wrote:I'm sure someone will post it soon. In the meantime, have you thought about getting another base to make your extra headstock into a power station / mini ?

Yes I did and that may be what ultimately happens if I EVER get some more room....

reluctant43 · Post by **reluctant43** » Mon Oct 28, 2013 11:57 am

charlese wrote:I don't know of a plan, however as I remember there is one in use during one of the later "Sawdust Sessions". It is a simple box with the ends scooped out at the same curve as the motor pan of the headstock. To make one you can bremove your motor pan and use it as a template.

Since your motor is fastened to the pan, you'll probably not want to do this. It would be awkward and heavy.

A solid box with modified V shaped ends would do the job very well.

this is what I will do. I called SS customer service and there is no plan for the cradle, but they sent me a picture of one they use. Guess I remembered seeing it when viewing a Sawdust Session or something...thanks for coming back to me...

Lodgepole · Post by **Lodgepole** » Mon Oct 28, 2013 3:58 pm

Would you please post the photo? I have an additional headstock I would like to safely store.

lightnin · Post by **lightnin** » Mon Oct 28, 2013 4:41 pm

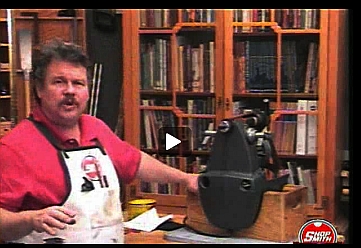

This may be what you seen.

JPG · Post by **JPG** » Tue Oct 29, 2013 11:49 am

lightnin wrote:This may be what you seen.

A different view.

[ATTACH]23110[/ATTACH]

triumph_tech · Post by **triumph_tech** » Sun Nov 03, 2013 6:24 pm

That would be a great project if my headstock wasn't apart, I could one right now too.

robinson46176 · Post by **robinson46176** » Sun Nov 03, 2013 8:51 pm

joshh wrote:I'm sure someone will post it soon. In the meantime, have you thought about getting another base to make your extra headstock into a power station / mini ?

You must be careful thinking this...

Several years ago an internet friend (in Ohio) from an antique tractor group that knew I loved my ShopSmith decided to treat himself to a brand new complete headstock when his stopped. He kindly offered to give me his old one if I came after it. My wife and I made arrangements to go get it and in the process contacted another Ohio friend about a visit too. We all met at a restaurant in the friends town and then we all had a very nice visit while loading the headstock (and some other items he gave me). All in all a great day.
How is that dangerous? Because as I got to thinking of ways to use that extra headstock a monster was born...

25 additional Shopsmiths later, acquired from all around east of the Mississippi (OK, One from the east edge of Missouri

) I have my own used parts warehouse.

.
