Dohhh.. I should know this...
Moderator: admin
-
shipwright
- Platinum Member
- Posts: 1165
- Joined: Tue Dec 15, 2009 7:28 pm
- Location: Vancouver Island, Canada
- Contact:
Dohhh.. I should know this...

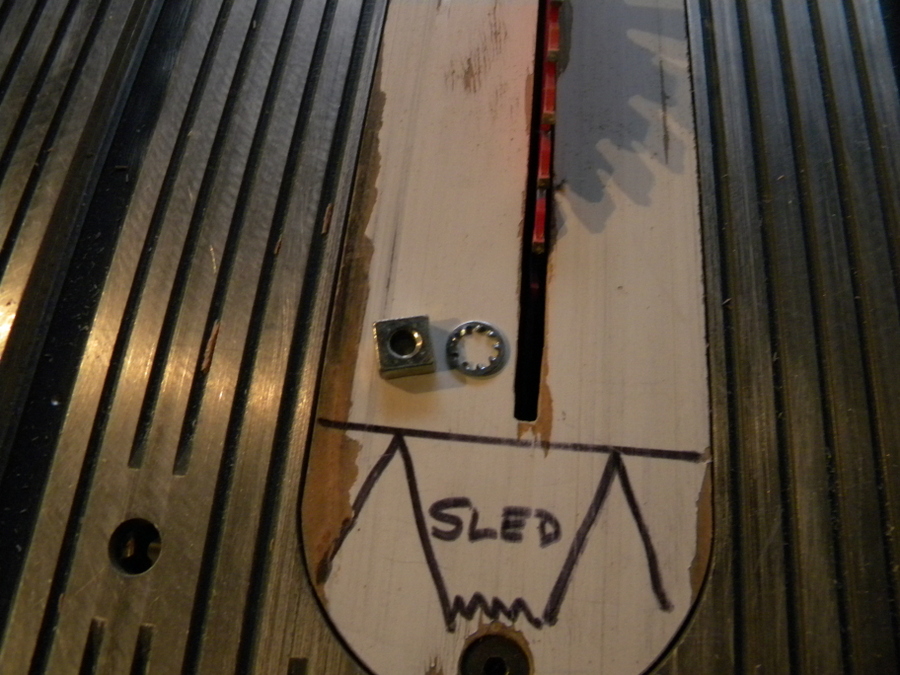

I found these on the floor yesterday when I put my 510 away. I know I've seen them before, picked them up before, and replaced them before but I can't for the life of me remember where they go. help ??? The photo isn't showing in "preview" so I don't know if it will be visible but it shows a small square nut and a star washer. Somebody has to know this one.
Thanks
Edit: Is there a thread about how to upload photos now???
Thanks
Edit: Is there a thread about how to upload photos now???
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
Re: Dohhh.. I should know this...
Paul,
The only thing I can quickly think of, is the square nut and washer used to secure the legs to the base and/or head rest.
It's late, so who knows how poorly my brains is functioning.
Be well,
Ben
The only thing I can quickly think of, is the square nut and washer used to secure the legs to the base and/or head rest.
It's late, so who knows how poorly my brains is functioning.
Be well,
Ben
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Dohhh.. I should know this...
My first thought as well.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
edflorence
- Platinum Member
- Posts: 689
- Joined: Thu Jul 20, 2006 8:14 pm
- Location: Idaho Panhandle
Re: Dohhh.. I should know this...
caster assembly to legs?
-
shipwright
- Platinum Member
- Posts: 1165
- Joined: Tue Dec 15, 2009 7:28 pm
- Location: Vancouver Island, Canada
- Contact:
Re: Dohhh.. I should know this...
Thanks guys. I knew I could count on the forum. I recognized the location as soon as I read it but it would have taken me a awhile to find it myself.
It was in fact a leg to casting bolt at the rest end. It would have been obvious if the bolt had fallen out, but of course it hadn't.
It's worth noting however that a quick lap around the machine checking all of these leg to casting and leg to caster bolts turned up about half that took a quarter turn to tighten. Might be worth checking yours......
Thanks again
It was in fact a leg to casting bolt at the rest end. It would have been obvious if the bolt had fallen out, but of course it hadn't.
It's worth noting however that a quick lap around the machine checking all of these leg to casting and leg to caster bolts turned up about half that took a quarter turn to tighten. Might be worth checking yours......
Thanks again
