Magna Jointer

Post by greasemonkey2275 »

Does anyone know where I can find a serial number index to find out what year my Magna Jointer is S/N 67527)? The color matches my Greenie so I think it is from the same era but I'd like to know what year it is especially since I already know the year of my Greenie (1958) and my Magna Bandsaw (1956).
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Magna Jointer

Post by JPG »

greasemonkey2275 wrote:Does anyone know where I can find a serial number index to find out what year my Magna Jointer is S/N 67527)? The color matches my Greenie so I think it is from the same era but I'd like to know what year it is especially since I already know the year of my Greenie (1958) and my Magna Bandsaw (1956).

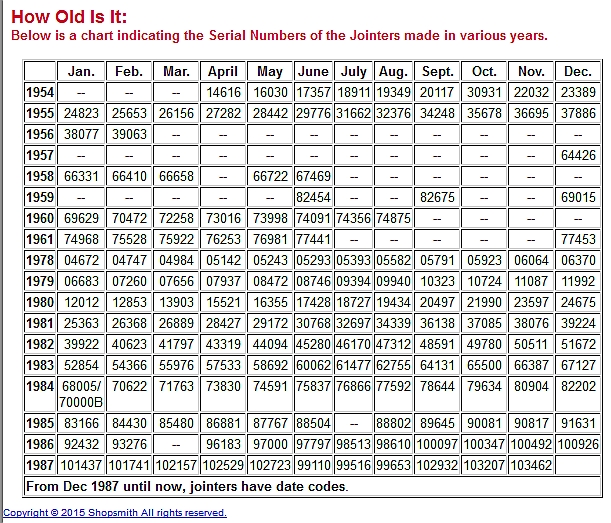

Notice the copyright date! ;)

1958(or 59?)
Attachments
jointer SN.jpg
jointer SN.jpg (288.5 KiB) Viewed 3284 times
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
greasemonkey2275
Gold Member
Posts: 175
Joined: Thu Apr 30, 2015 2:21 pm

Re: Magna Jointer

Post by greasemonkey2275 »

Thank you again JPG! :)
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
Top
User avatar
dusty
Platinum Member
Posts: 21530
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Magna Jointer

Post by dusty »

Many of these "date of manufacture" questions can be answered by simply referring to the charts made available on the forum.

http://www.shopsmith.com/ownersite/faq/ ... m#product2

Click on the link above and then on the SPT name. Scroll down and you have the date chart.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
greasemonkey2275
Gold Member
Posts: 175
Joined: Thu Apr 30, 2015 2:21 pm

Re: Magna Jointer

Post by greasemonkey2275 »

Thanks Dusty!
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
Top
User avatar
greasemonkey2275
Gold Member
Posts: 175
Joined: Thu Apr 30, 2015 2:21 pm

Re: Magna Jointer

Post by greasemonkey2275 »

Great news! I just finished putting the jointer back together and it works great! I do have a couple of questions though...first, does anyone have a parts manual for Magna Jointer? I have a spring left over and for the life of me I cannot seem to remember where it goes. The spring is about as big around as a dime and just about as tall and has a pretty heft spring tension. As for the second question, why is the lower shaft on my headstock getting hot, or warmer than I think it should be, when coupled to the jointer? The jointer has new bearings and everything moves freely and the headstock is freshly rebuilt. I checked the alignment of the headstock shaft and the jointer shaft and they were off just a little but but even after leveling them I still noticed some heat (warm to the touch) from the headstock side. Since I am new to all of this I want to know if this is normal or if I need to look into something. I just had a thought while typing this...could the gilmer belt be too tight and thus be the culprit of the "heat" I am noticing? Here are some before and after pics as well...Enjoy.

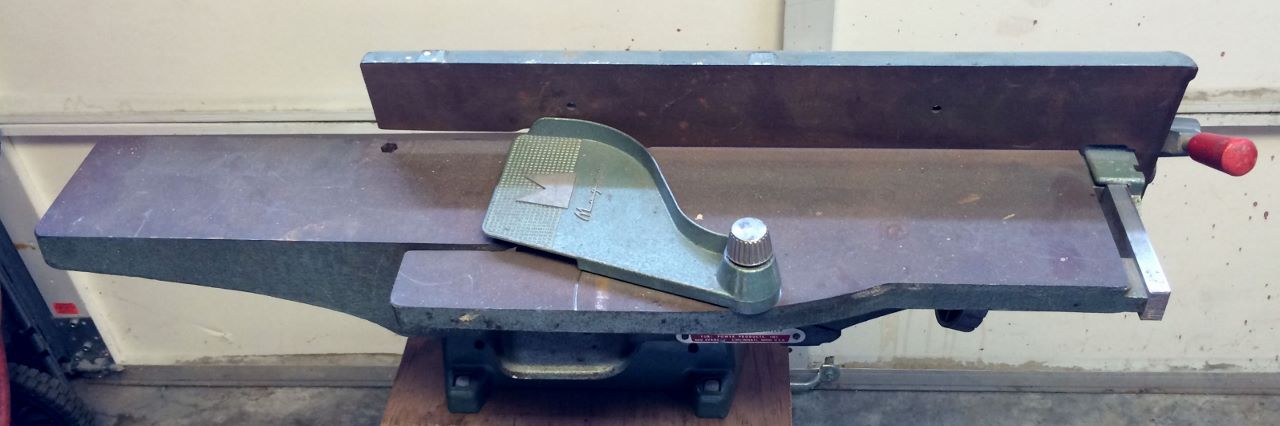

Pre-restoration
Pre-restoration
IMG_0004 (374x800).jpg (77.09 KiB) Viewed 3173 times

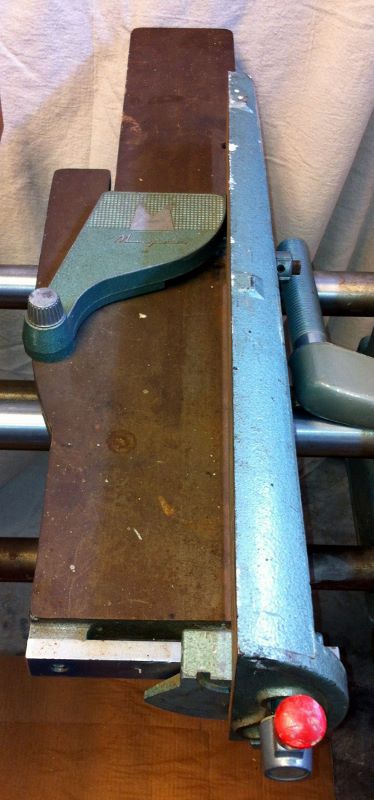

Pre-restoration
Pre-restoration
IMG_0206 (1280x426).jpg (89.05 KiB) Viewed 3173 times
Restoration Complete
Restoration Complete
IMG_0238 (640x480).jpg (134.86 KiB) Viewed 3173 times
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
Top
Mike907
Platinum Member
Posts: 550
Joined: Fri Nov 09, 2012 2:02 am
Location: Anchorage, AK

Re: Magna Jointer

Post by Mike907 »

does anyone have a parts manual for Magna Jointer?
http://vintagemachinery.org/pubs/detail.aspx?id=2692

Does this help? The only spring I see is for the cutter guard.

Mike
Top
User avatar
greasemonkey2275
Gold Member
Posts: 175
Joined: Thu Apr 30, 2015 2:21 pm

Re: Magna Jointer

Post by greasemonkey2275 »

Mike907 wrote:
does anyone have a parts manual for Magna Jointer?
http://vintagemachinery.org/pubs/detail.aspx?id=2692

Does this help? The only spring I see is for the cutter guard.

Mike
That is the same one I used to put it back together and after looking at the rest of the manual it got me wondering if there was a change between '53 and '56. Mine does not have the drive pulley they show in their diagram so I though maybe there was something else out there.

Jake
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
Top
User avatar
JPG
Platinum Member
Posts: 35600
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Magna Jointer

Post by JPG »

greasemonkey2275 wrote:
Mike907 wrote:
does anyone have a parts manual for Magna Jointer?
http://vintagemachinery.org/pubs/detail.aspx?id=2692

Does this help? The only spring I see is for the cutter guard.

Mike
That is the same one I used to put it back together and after looking at the rest of the manual it got me wondering if there was a change between '53 and '56. Mine does not have the drive pulley they show in their diagram so I though maybe there was something else out there.

Jake
That manual is for a 4E model that preceded your greenie model. It was made for use on a model 10E/ER and has a different mount as well as the pulley. Otherwise it is essentially the same.

How about a pix of the 'mystery' spring. There are two springs on the stud that retains the sliding(infeed) table.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
greasemonkey2275
Gold Member
Posts: 175
Joined: Thu Apr 30, 2015 2:21 pm

Re: Magna Jointer

Post by greasemonkey2275 »

JPG wrote:How about a pix of the 'mystery' spring.
Here are the pics.

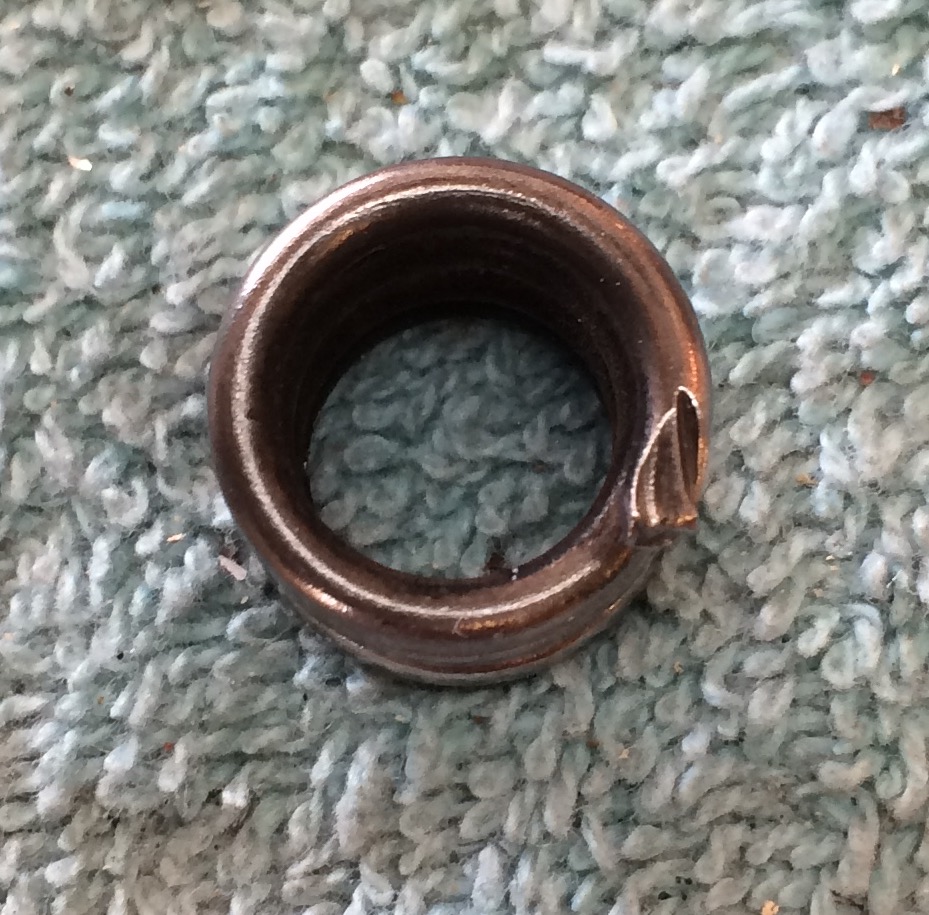

Spring Top
Spring Top
FullSizeRender (2).jpg (247.94 KiB) Viewed 3123 times

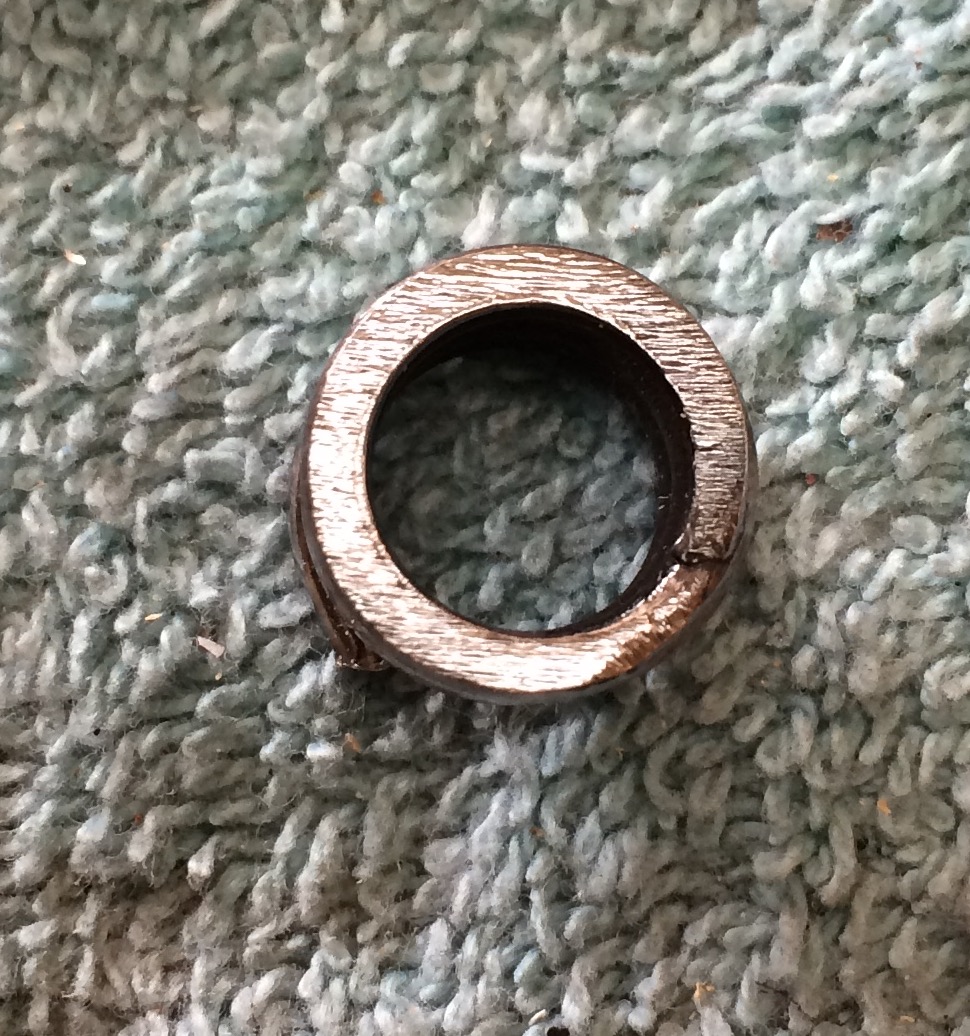

Spring Bottom
Spring Bottom
FullSizeRender (1).jpg (332.01 KiB) Viewed 3123 times
Spring Top
Spring Top
FullSizeRender (2).jpg (247.94 KiB) Viewed 3123 times
Attachments

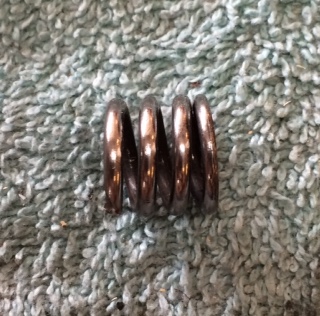

Spring Side
Spring Side
Jake

Spokane, WA
Shopsmith Mark V S/N: 354008 Born: 1958/Restored: 2015
Magna Bandsaw S/N: 31575 Born: 1956/Restored 2016
Magna Jointer S/N: 67527 Born: 1958/Restored: 2015
