Under-Shopsmith Storage Cabinet
Posted: Mon May 04, 2015 1:06 pm
by Beave2012
So I recently got a 520 from a family member at a great discount, but realized I needed a cabinet to store a lot of the accessories. So for my first project I built my version of the under shopsmith cabinet. I also wanted to contribute to the online community so I posted my process to instructables.
http://www.instructables.com/id/Shopsmi ... ge-Cabinet
OR
for the PDF version of the plans.

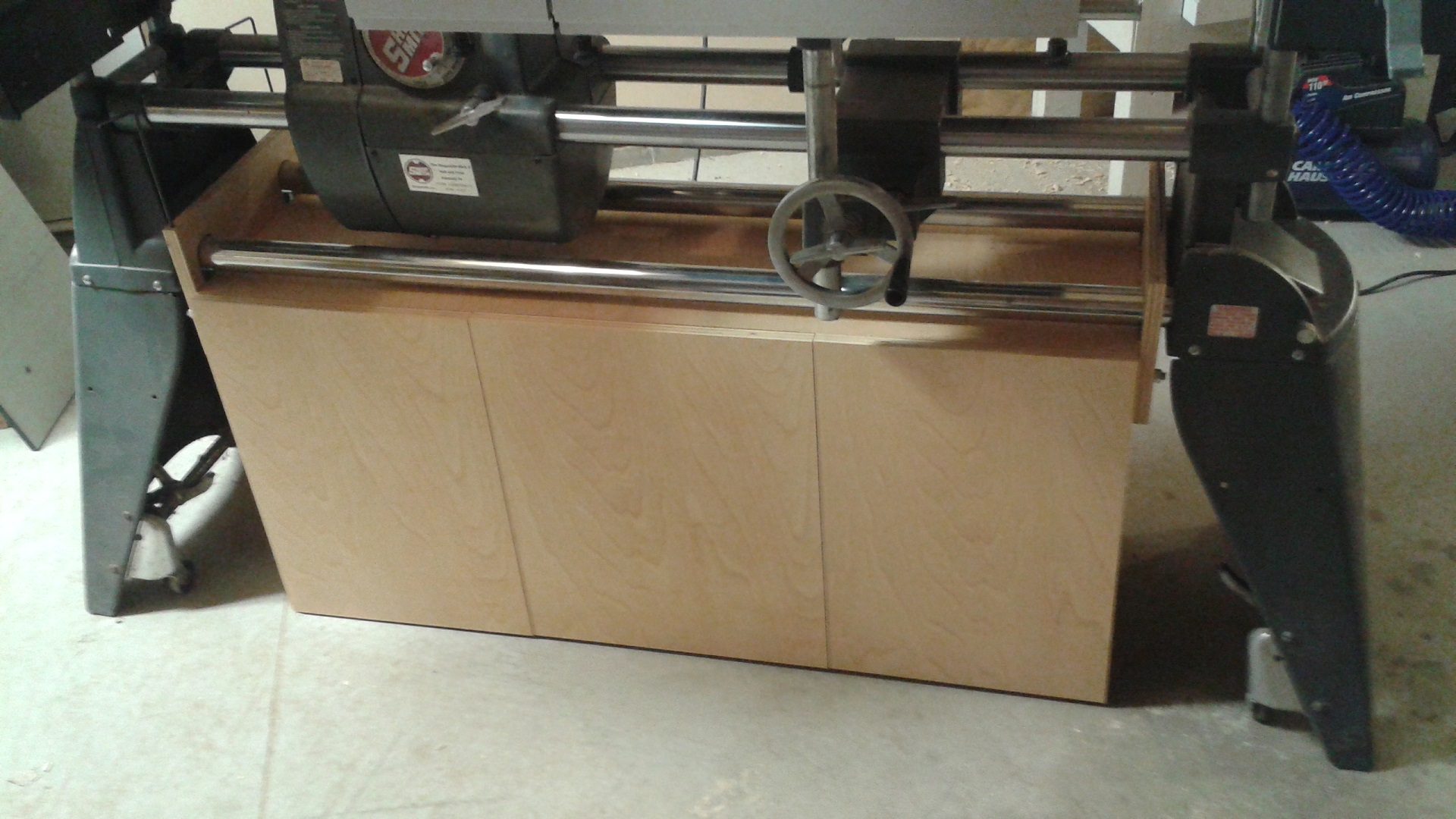

- Full Picture of Cabinet
- Full Cab pict.jpg (481.53 KiB) Viewed 13763 times
My question I have for you guys is if there are any ideas for middle cabinet. I was thinking a vertical drawer for chisels, but that leaves a lot of space still. Any ideas?

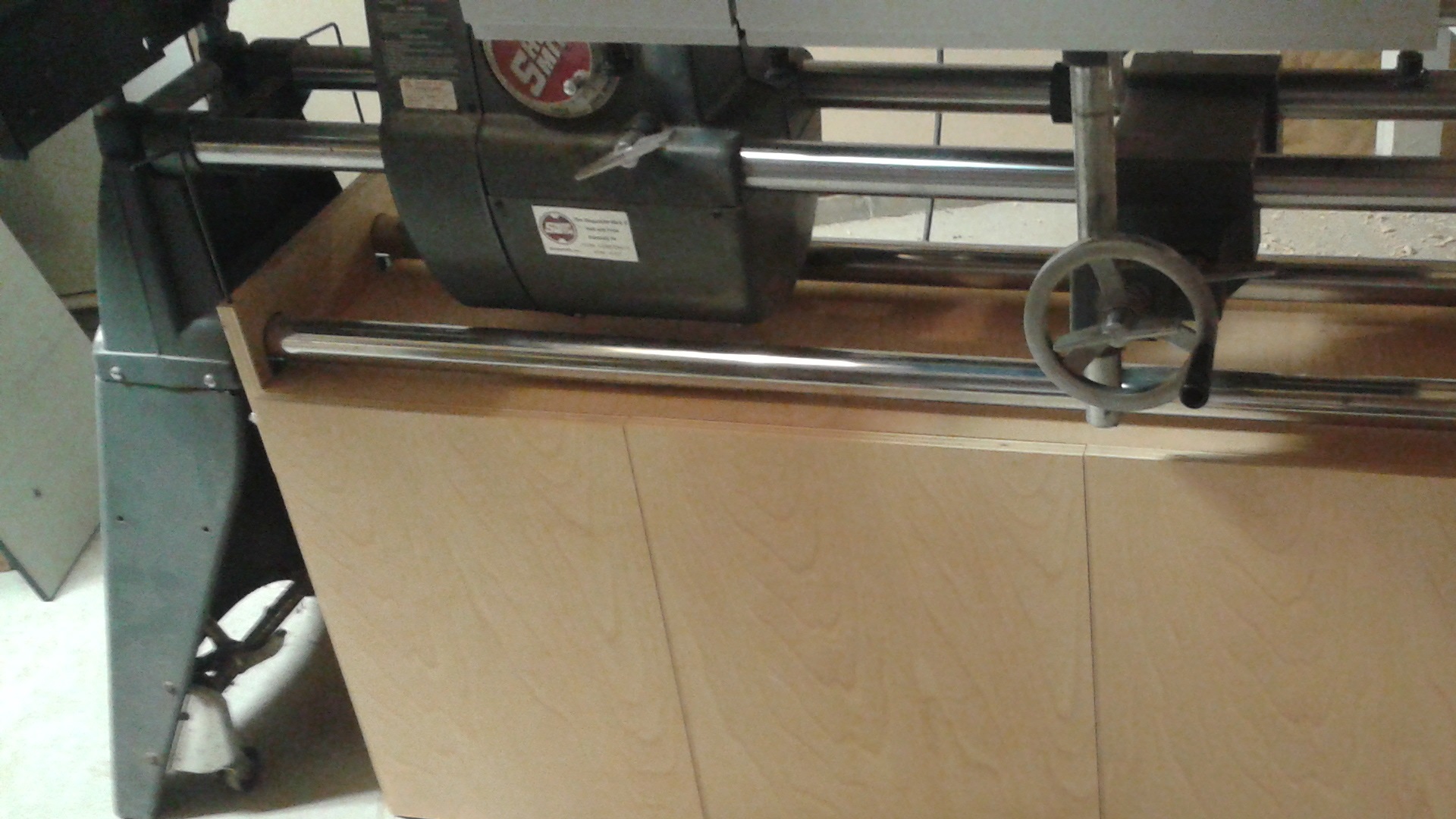

- shopsmithcab.jpg (448.78 KiB) Viewed 14218 times

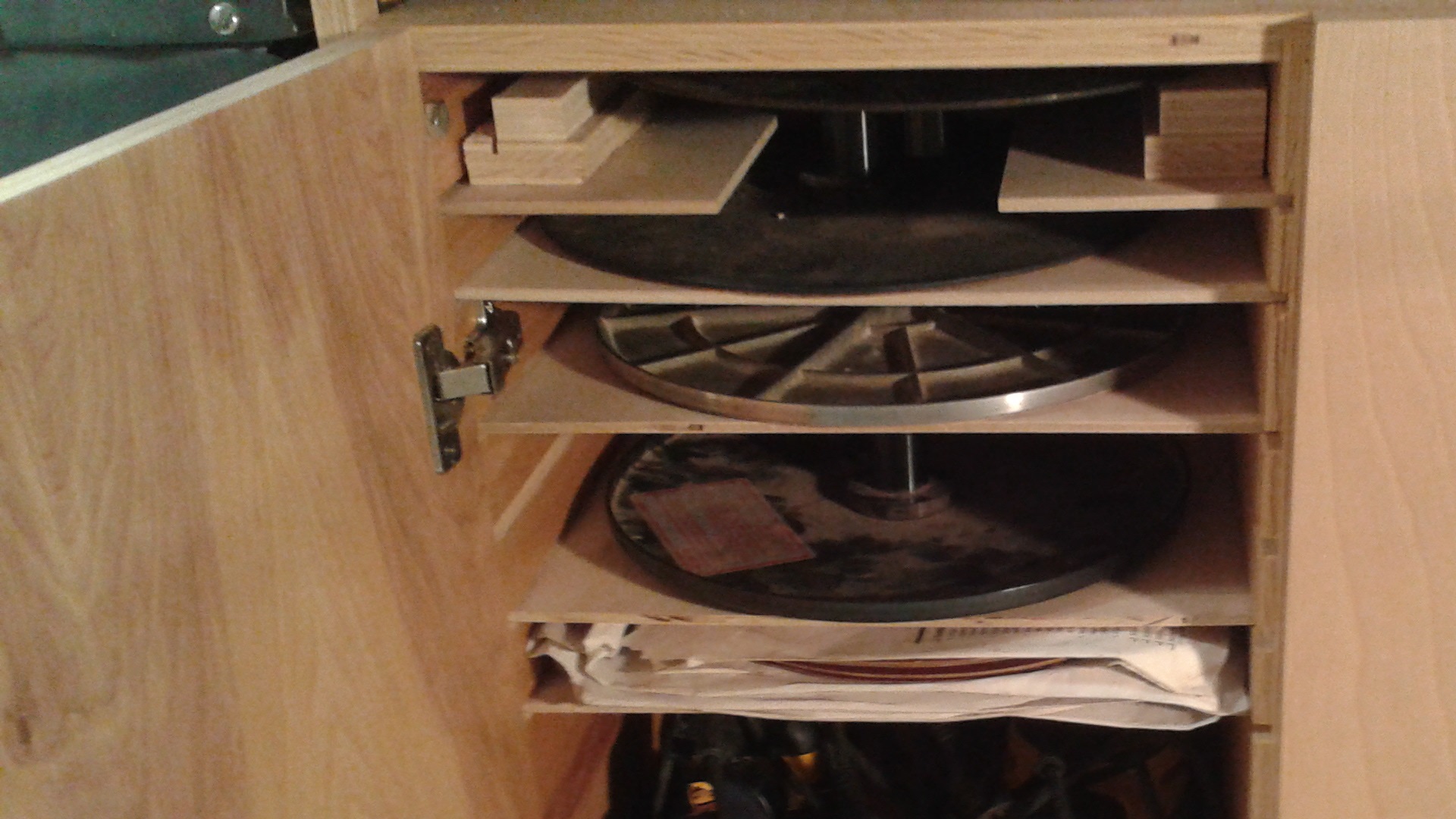

- Left Cabinet with sanding discs, an orbital sander, and palm sander
- cableft.jpg (447.16 KiB) Viewed 14218 times

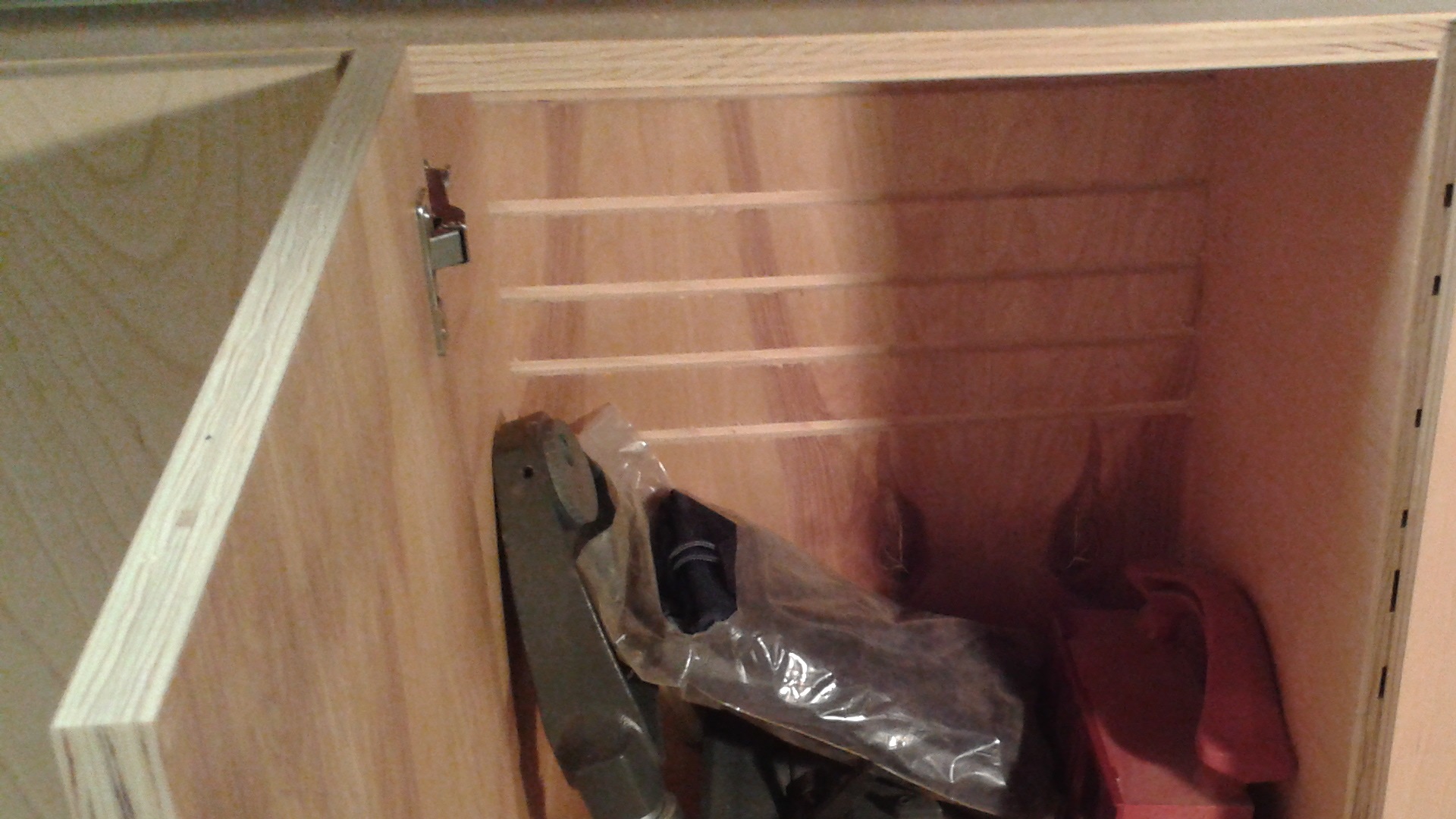

- Middle Cabinet that need help...
- cabmiddle.jpg (438.37 KiB) Viewed 14218 times

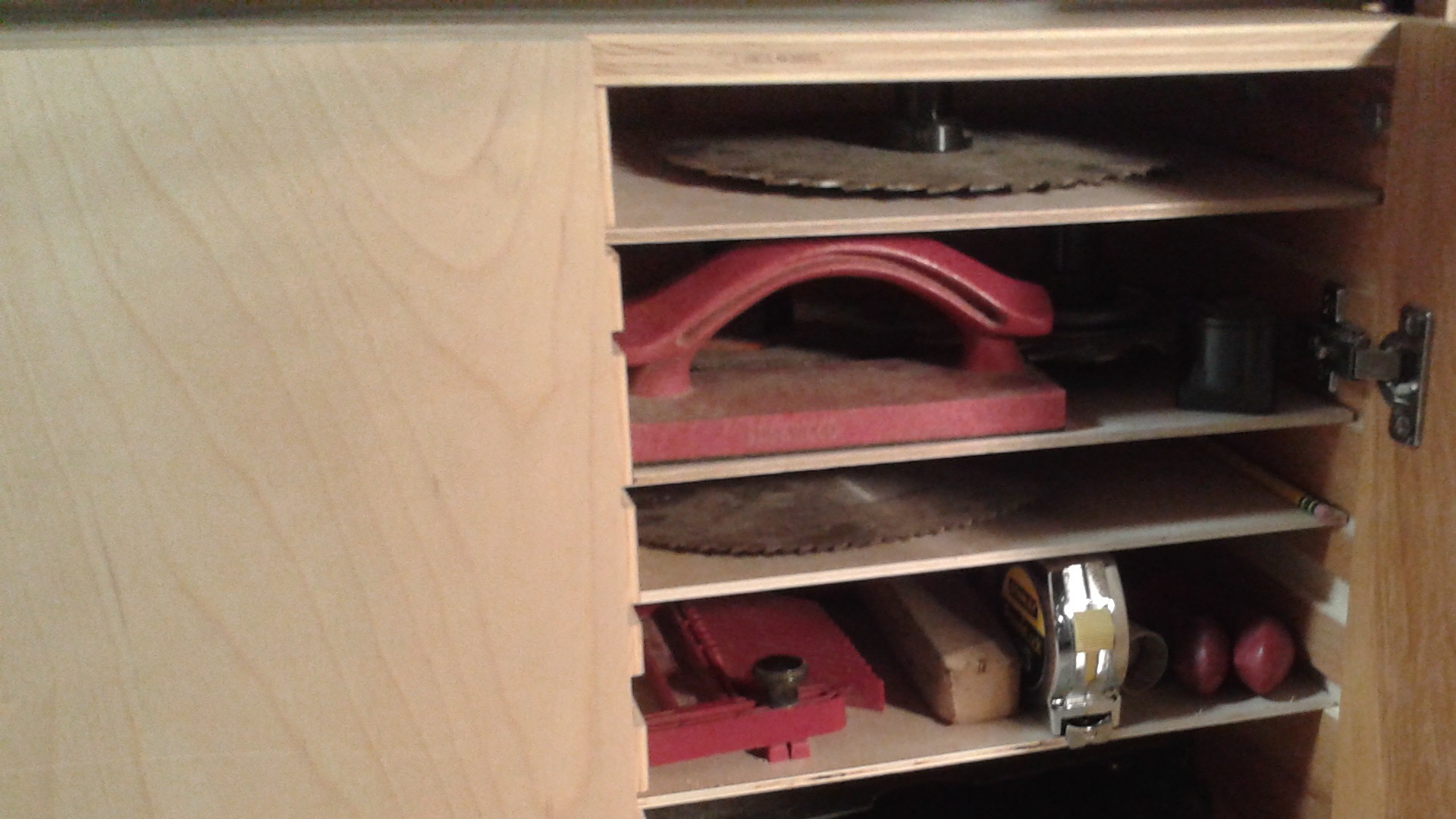

- Right side cabinet with saw blades, lower safety guard, and various other small regularly used items.
- cabright.jpg (439.49 KiB) Viewed 14218 times
Thanks for any input because I can't stand that middle cabinet...
Re: My first Shopsmith project
Posted: Mon May 04, 2015 1:31 pm
by dusty
Your question is interesting but the site to which this link applies is more interesting and somewhat dis-concerting. I normally do not connect to sites that I do not recognize.
With regard to this link - who are you?
Re: My first Shopsmith project
Posted: Mon May 04, 2015 1:41 pm
by Beave2012
dusty wrote:Your question is interesting but the site to which this link applies is more interesting and somewhat dis-concerting. I normally do not connect to sites that I do not recognize.
With regard to this link - who are you?
Instructables is like pintrest that does a step by step build for projects for do-it-yourself people. I did it so people could see a step bY step process, which I couldn't find when I tried to build it. I found loss of pictures but no instructions.
As for me I'm just a new hobbyist woodworker who finally got back into the garage from our Minnesota winter. Finally warm enough to build stuff. Lol. Anyways, maybe tonight I'll boot up the pc and try to attach a picture here.
Re: My first Shopsmith project
Posted: Mon May 04, 2015 1:51 pm
by JPG
Beave2012 wrote:dusty wrote:Your question is interesting but the site to which this link applies is more interesting and somewhat dis-concerting. I normally do not connect to sites that I do not recognize.
With regard to this link - who are you?
Instructables is like pintrest that does a step by step build for projects for do-it-yourself people. I did it so people could see a step bY step process, which I couldn't find when I tried to build it. I found loss of pictures but no instructions.
As for me I'm just a new hobbyist woodworker who finally got back into the garage from our Minnesota winter. Finally warm enough to build stuff. Lol. Anyways, maybe tonight I'll boot up the pc and try to attach a picture here.
Re: My first Shopsmith project
Posted: Mon May 04, 2015 2:12 pm
by JPG
Better Yet, just attach that PDF here also.
Re: My first Shopsmith project
Posted: Mon May 04, 2015 8:02 pm
by Beave2012
Updated original post with pictures in case someone doesn't want to go to an external link. Although they did get cropped weird.
Re: My first Shopsmith project
Posted: Mon May 04, 2015 8:07 pm
by Beave2012
JPG wrote:Better Yet, just attach that PDF here also.
I would love to do that, except I think I would just have to remake it. Not sure if i can post that website's PDF even though I made all the content. I will have to check.
Re: My first Shopsmith project
Posted: Mon May 04, 2015 9:20 pm
by krusty
Nice work, it turned out great. I may have to use your design since I just obtain a new Shopsmith and there are a lot of extra pieces. Thank you for sharing.
Re: My first Shopsmith project - An under-Shopsmith Cabinet
Posted: Tue May 05, 2015 11:04 am
by kschwarz20
Beave2012 - I saw your post on Instructables yesterday - great post there and here. One question - How well does your machine roll around with the extra weight of the cabinet?
Re: My first Shopsmith project
Posted: Tue May 05, 2015 11:37 am
by JPG
Beave2012 wrote:JPG wrote:Better Yet, just attach that PDF here also.
I would love to do that, except I think I would just have to remake it. Not sure if i can post that website's PDF even though I made all the content. I will have to check.
What does 'Going Pro' mean?
Shopsmith-Mobile-Storage-Cabinet.pdf
