thickness planner
hi i just got a shop smith set i came with a thickness planner the motor that hangs off the side is gone can i just feed wood thru by hand it a 500 motor seems like alot thanks
-
rjent
- Platinum Member
- Posts: 2121
- Joined: Fri Mar 14, 2014 3:00 pm
- Location: Hot Springs, New Mexico
Re: thickness planner
There is a thread about converting to a hand crank. Mine is manual and I like it. It allows you to control the feed rate which I like. I will see if I can find the thread .....
Found it .... http://www.shopsmith.com/ss_forum/maint ... 16009.html
Found it .... http://www.shopsmith.com/ss_forum/maint ... 16009.html
Last edited by rjent on Fri Aug 07, 2015 11:15 am, edited 1 time in total.
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....
"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: thickness planner
I think we need a pix to better answer.scorelesssteve wrote:hi i just got a shop smith set i came with a thickness planner the motor that hangs off the side is gone can i just feed wood thru by hand it a 500 motor seems like alot thanks
That motor 'on the side' would be a feed motor, not the cutter motor.
Actually the 500 1 1/8hp motor is under powered for the 12" planer.
You may have the model that was hand fed by a crank where the feed motor mounts.
One side will have the drive shaft for the cutter, and the opposite side will have a cover that holds either the motor or the hand crank. A pix of that cover would be helpful.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
scorelesssteve
- Gold Member
- Posts: 23
- Joined: Fri Aug 07, 2015 10:52 am
Re: thickness planner
its the feed motor i believe
-
scorelesssteve
- Gold Member
- Posts: 23
- Joined: Fri Aug 07, 2015 10:52 am
Re: thickness planner
i cannot upload a pic from my iphone to the post
-
scorelesssteve
- Gold Member
- Posts: 23
- Joined: Fri Aug 07, 2015 10:52 am
Re: thickness planner
this is what type i have the motor on the side is missing
- Attachments
-
- image.jpg (11.85 KiB) Viewed 12985 times
-
scorelesssteve
- Gold Member
- Posts: 23
- Joined: Fri Aug 07, 2015 10:52 am
Re: thickness planner
and that box also
Re: thickness planner
You can upload a pic from your iPhone, but you may need to crop the photo to make it small enough to upload.scorelesssteve wrote:i cannot upload a pic from my iphone to the post
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: thickness planner
Describe the cover on to which the motor would mount. Tell us the hole(s) pattern. One hole or 5(excluding the cover mounting holes).scorelesssteve wrote:and that box also
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
scorelesssteve
- Gold Member
- Posts: 23
- Joined: Fri Aug 07, 2015 10:52 am
Re: thickness planner

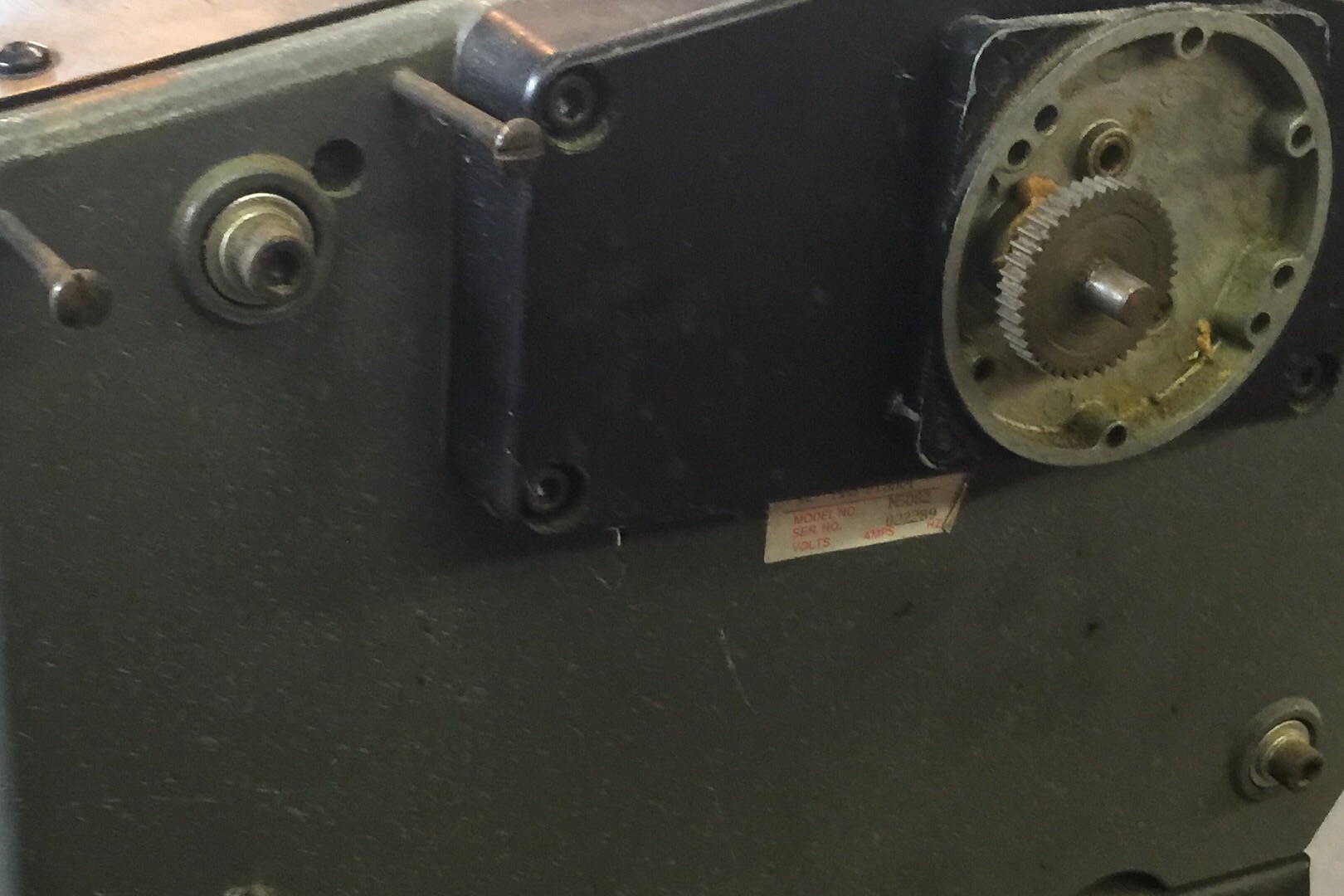

pic
- Attachments
-
- image.jpg (283.91 KiB) Viewed 12893 times
-
