HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 8:15 pm
by MrWilliams
Hi Everyone

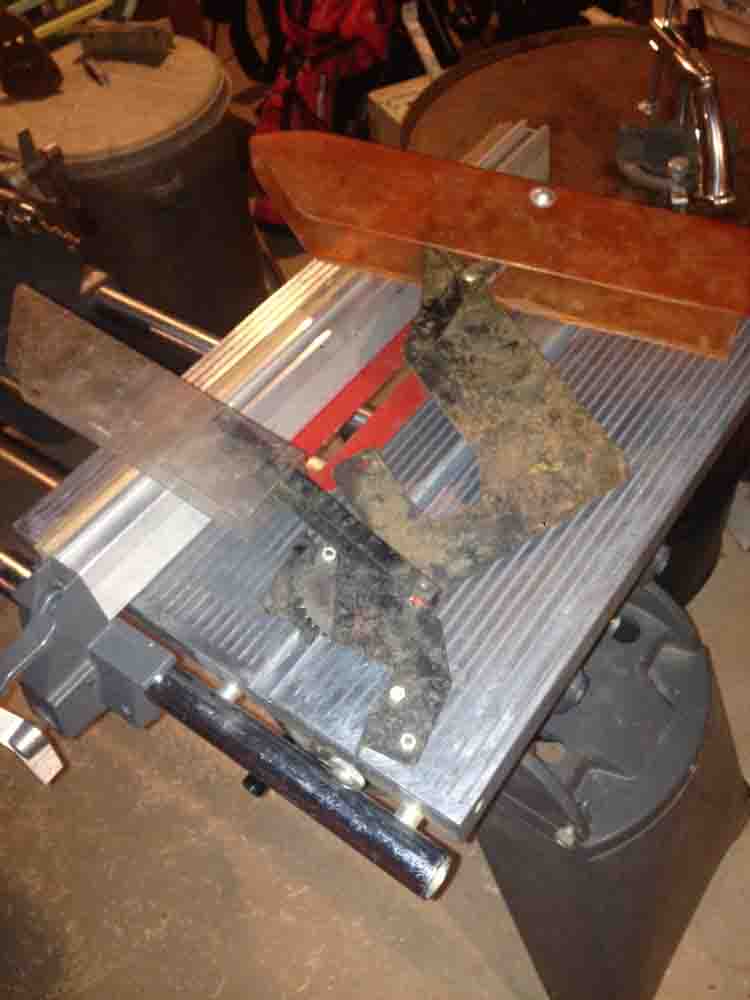

I purchased my first Shopsmith 510 along with a pile of parts, some Shopsmith and some... idk. Anyhow, in the pile of parts was/is tow saw guards that i am hoping someone can identify. I will attempt to attach them.
Thanks and happy new year!!
Bill
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 8:15 pm
by MrWilliams
/Users/Dad/Desktop/IMG_0273.jpg
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 8:16 pm
by MrWilliams
sorry - trying to figure out how to add a picture
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 8:20 pm
by ERLover
Mean while welcome!!!! Lots of good people here tech wise. A word of caution though, there is a spelling and abbreviation police here to.
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 8:22 pm
by JPG
Welcome to the fun - forum.
Is it possible it started life as a '500' and was upgraded to a '510'? You may have other 'duplications'.
Adding pix is not intuitively obvious. Attach, Browse, select, upload, (insert). After clicking on Attach look below for the browse etc.
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 9:05 pm
by MrWilliams
- IMG_0273.jpg (70.41 KiB) Viewed 1580 times
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 9:08 pm
by algale
Neither of those upper saw guards will work with the 510. These are likely left-overs from one or more upgrades.
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 9:14 pm
by algale
Your upper saw guard should look like this:
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 9:28 pm
by ERLover
Mr W, I am not one of the experts here, but a pic of the head stock/drive assembly, and of the SS tag with the model and SS# on the left side of the head stock when facing the switch/speed dial will answer allot.
Oh by the way, dont turn the speed dial unless running or turning the drive by hand. Newbie mistake.
Re: HI Everyone. New hear. First Shopsmith. First question.
Posted: Wed Jan 13, 2016 9:31 pm
by oldiron
Welcome to the forum Bill!
Mike
