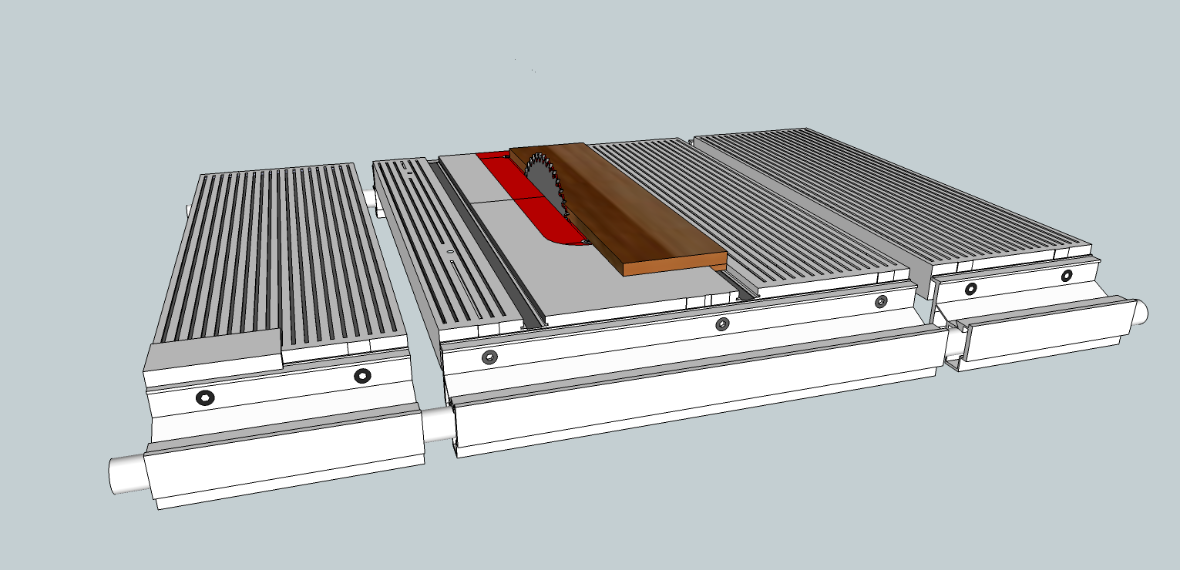

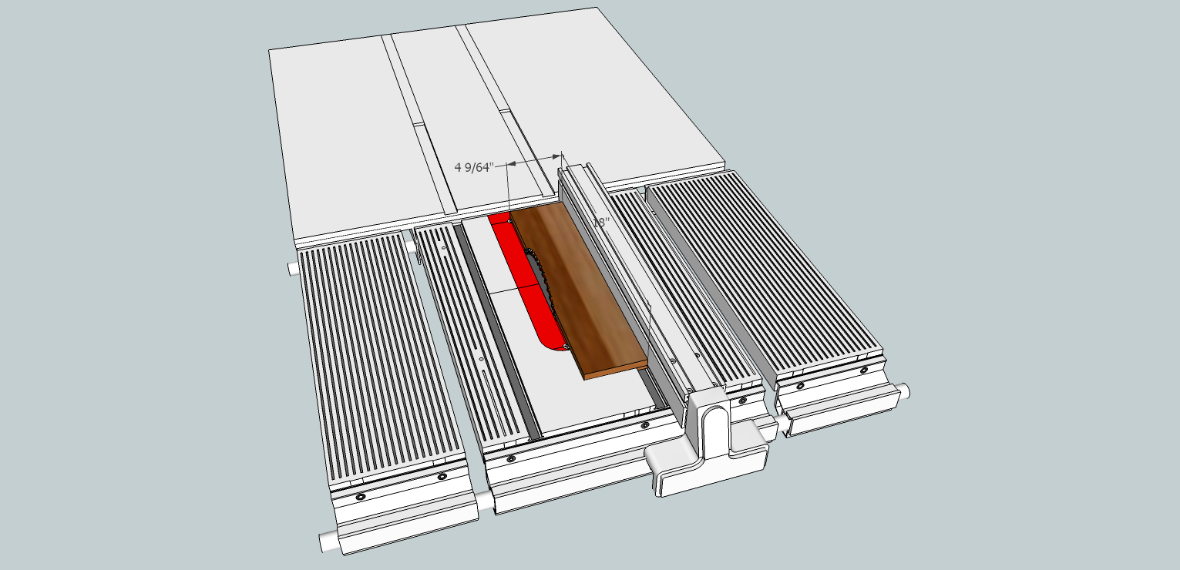

The image used in this thread depicts the main table that I use but the proposed jig could be adapted to any Shopsmith table.
There has been a lot of discussion lately about aligning the Shopsmith table and rip fence. There have been several different methods for doing this mentioned. All of the methods, if employed properly, give good results. I myself have successfully used a few different methods but in so doing I have developed what I believe is a totally acceptable alternative.
I use the proposed jig on a very regular basis to "verify" table alignment before I begin a project.
To make the work, it simply needs to be cut to the dimensions that are appropriate for your table configuration.
There has been a lot of discussion lately about aligning the Shopsmith table and rip fence. There have been several different methods for doing this mentioned. All of the methods, if employed properly, give good results. I myself have successfully used a few different methods but in so doing I have developed what I believe is a totally acceptable alternative.
I use the proposed jig on a very regular basis to "verify" table alignment before I begin a project.
To make the work, it simply needs to be cut to the dimensions that are appropriate for your table configuration.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
- dusty
- Platinum Member
- Posts: 21374
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Re: Main Table Alignment
The same jig can be used to align the fence.
- Attachments
-
- Main Table and Two Floating Tables and Rip Fence with Alignment Jig.png (294.97 KiB) Viewed 2051 times
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
Re: Main Table Alignment
This would give you a close alignment based on your last alignment. I'm not sure that all the givens don't add up to being more then .005" off. It would have to be a blade that is flat, current alignment you use the same tooth to check on each in the in feed and the out feed, in your case you are depending on a cut which involves all the teeth so if one tooth is out farther then all the rest then it is providing the outside edge of the cut...... that tooth can be any where on the next alignment.... below the table, at the in feed or out feed location, an unknown.
You would need to select a stable material for the jig, movement is not uniform in wood so it would need to be plywood or mdf or some stable plastic, so this it do-able.
The next issue is how are you going to make sure it is just "kissing" the blade and not exerting force on it, any force is likely to cause some flex in the tooth on the blade and again it is not going to be uniform.
You would pretty much need to dedicate a blade to just this function, use of the blade can or at least could cause it to be different then it was when you first started. When we cut things to a duplicated size a small error of a few thousands is not a concern because wood is/was a live element but for doing alignment those numbers count.
I'll have to think on this some more, it has liabilities and advantages but who wins I'm not sure.
Ed
You would need to select a stable material for the jig, movement is not uniform in wood so it would need to be plywood or mdf or some stable plastic, so this it do-able.
The next issue is how are you going to make sure it is just "kissing" the blade and not exerting force on it, any force is likely to cause some flex in the tooth on the blade and again it is not going to be uniform.
You would pretty much need to dedicate a blade to just this function, use of the blade can or at least could cause it to be different then it was when you first started. When we cut things to a duplicated size a small error of a few thousands is not a concern because wood is/was a live element but for doing alignment those numbers count.
I'll have to think on this some more, it has liabilities and advantages but who wins I'm not sure.
Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
- dusty
- Platinum Member
- Posts: 21374
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Re: Main Table Alignment
Please do give it some thought. Your opinions are important.
It might be of interest to know that I have been using this type jig for about a year (prior to my medical leave).
I did cut the jig, as you suggest, immediately after performing an alignment the "normal way". I use it with any blade that happens to be mounterd and yes, you must just kiss the blade with the jig so as to not impart error. My jig is made with a good grade of plywood (not baltic birch as it probably should be).
When I first did this, I likened it to using the miter gauge and stop rod to perform the table alignment. I just replaced those with a piece of wood. Back in those days I did not even own a dial indicator so I don't know how many thousandths I was off.
How close to perfect do we really need to get. I suppose that sounds strange, coming from me but that is now how I am seeing this precision alignment thing.
It might be of interest to know that I have been using this type jig for about a year (prior to my medical leave).
I did cut the jig, as you suggest, immediately after performing an alignment the "normal way". I use it with any blade that happens to be mounterd and yes, you must just kiss the blade with the jig so as to not impart error. My jig is made with a good grade of plywood (not baltic birch as it probably should be).
When I first did this, I likened it to using the miter gauge and stop rod to perform the table alignment. I just replaced those with a piece of wood. Back in those days I did not even own a dial indicator so I don't know how many thousandths I was off.
How close to perfect do we really need to get. I suppose that sounds strange, coming from me but that is now how I am seeing this precision alignment thing.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
- reubenjames
- Gold Member
- Posts: 335
- Joined: Tue Apr 30, 2013 10:20 am
- Location: Cedar Rapids, IA
Re: Main Table Alignment
One thing I'll note, which Ed alluded to, when I was doing my alignment last night from the miter tracks to the saw blade, though I was .003" off from same spot rotated infeed to outfeed, I did also use the dial indicator to check the blade itself for flatness: it was not flat. The particular blade I was using was convex in the center, probably only .008" or so, not enough to concern me, but depending on the flatness of your blade (or lack thereof), you could get a false negative on that jig, where it looks like it's not touching the infeed or outfeed side due to alignment, when it could be due to blade inconsistencies.
When I saw that, I immediately thought back to some of the users who mentioned, in my high speed steel blade dilemma thread, that some of the sharpening shops will check for and correct discrepancies in the blade bodies like that (or at least that's what I think they meant by flatness of the blade).
When I saw that, I immediately thought back to some of the users who mentioned, in my high speed steel blade dilemma thread, that some of the sharpening shops will check for and correct discrepancies in the blade bodies like that (or at least that's what I think they meant by flatness of the blade).
- reubenjames
- Gold Member
- Posts: 335
- Joined: Tue Apr 30, 2013 10:20 am
- Location: Cedar Rapids, IA
Re: Main Table Alignment
As you stated that this was for verification, I think I like this jig for a quick-and-dirty verification. I don't think I'd align to it, though, but you didn't make it seem like you were doing that, either.
Re: Main Table Alignment
When aligning the fence, if the flat steel sanding disk is used, teeth don't matter.
Works for me.
Works for me.
- reubenjames
- Gold Member
- Posts: 335
- Joined: Tue Apr 30, 2013 10:20 am
- Location: Cedar Rapids, IA
Re: Main Table Alignment
Per my manual, even the sanding discs can have a high spot--the alignment instructions, by the book, have you find and mark the high spot (and have you use or navigate around it during alignment). The disc *might* be "flat" but that doesn't mean the disc is perfectly perpendicular to its own spindle.
Also, I don't think they typically are perfectly flat, since a sanding operation is moving at high enough speed that the sander can still sand flat, even without the disc itself being perfectly flat. You'll get slightly more wear on the high spot, though maybe not noticeable. The high spot is noticeable during alignment, however.
Also, I don't think they typically are perfectly flat, since a sanding operation is moving at high enough speed that the sander can still sand flat, even without the disc itself being perfectly flat. You'll get slightly more wear on the high spot, though maybe not noticeable. The high spot is noticeable during alignment, however.
- JPG
- Platinum Member
- Posts: 34697
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Main Table Alignment
If you are 'using' a 'high' spot, the disk need not be perpendicular. Indeed the existence of a 'high' spot implies it is not nor is it flat.reubenjames wrote:Per my manual, even the sanding discs can have a high spot--the alignment instructions, by the book, have you find and mark the high spot (and have you use or navigate around it during alignment). The disc *might* be "flat" but that doesn't mean the disc is perfectly perpendicular to its own spindle.
Also, I don't think they typically are perfectly flat, since a sanding operation is moving at high enough speed that the sander can still sand flat, even without the disc itself being perfectly flat. You'll get slightly more wear on the high spot, though maybe not noticeable. The high spot is noticeable during alignment, however.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
- dusty
- Platinum Member
- Posts: 21374
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Re: Main Table Alignment
reubenjames wrote:As you stated that this was for verification, I think I like this jig for a quick-and-dirty verification. I don't think I'd align to it, though, but you didn't make it seem like you were doing that, either.
Aaah but I do align to it. I did so for almost a year. During that time I would periodically verify alignment by using the dial indicator. This jig has worked well for me and I will continue to use it.
I have come to believe that we make far too much of precision when doing alignments in the wood shop.
I was told that by several, here on the forum, over the past few years. I have come to believe that they were right. Dial gauges and Starrett Rulers and straight edges are not really needed in a typical home work shop. They are nice to have but are not really needed.
If you disagree, so be it but please tell me how a .005" (or even .015") misalignment of the main table miter slots to blade or fence to blade will adversely effect performance in the shop.
