Shopsmith Storage cabinet

[jjbuzard]

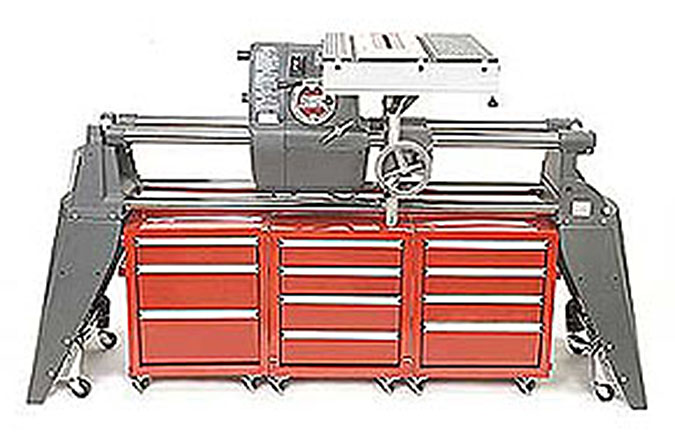

Back when the Shopsmith Storage Cabinets that were designed specifically to fit between the legs of your Shopsmith MARK V, I wanted them so bad, but couldn't justify the price.


So years passed and now, they are no longer available, so whats a guy to do? I built them.

Cabinet complete.jpg (662.42 KiB) Viewed 7055 times

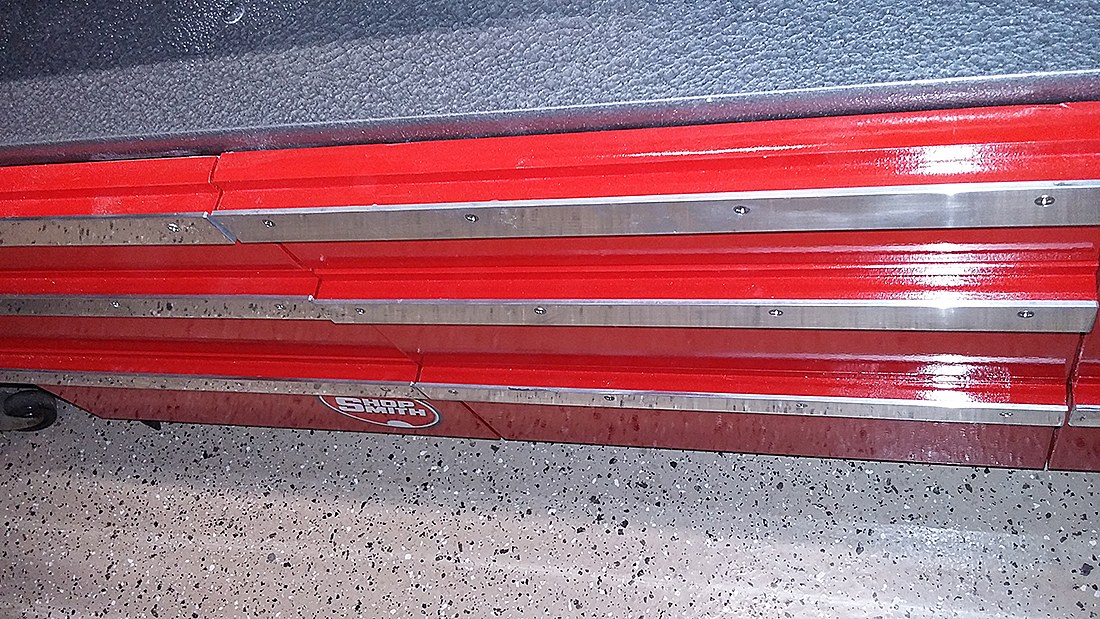

Here is a close up of the pulls, which are made out of 1" x 1/8" aluminum strips, polished and attached using Stainless Steel screws to prevent Galvanic corrosion to 3/8" x 3/4" stand-offs.

Pulls small.jpg (924.04 KiB) Viewed 7055 times

To protect the cabinet edges and the Shopsmith legs, I added UHMW rub strips to help guide it in place with out scratching anything.


All in all I say they turned out pretty nice, if I do say so my self.

[Skizzity]

Awesome, I love it! Great work.

[greasemonkey2275]

Very nice! Do you have any specs on your cabinets and drawers?

[everettdavis]

I love it when vision and passion meet determination. Well done!

Everett

[reible]

I have two of the three of those. I was getting them one at a time and then didn't have the money to get the third when they got rid of them.

The problem is that once you add the lift assist they don't fit any more, even two don't make it. I've heard that if you take the wheels off then they fit but that sort of defeats the purpose. So I have one turn the correct way, the second is turned 90 degrees and well I never got the third one.....

Yours look nice, good job.

Ed

[joedw00]

I got 3 of them at a estate sale, paid $125.00 for them. Had to stack them because of the lift assist. I really like yours.

[jjbuzard]

Very nice! Do you have any specs on your cabinets and drawers?

Here are the specs, Cabinet 48" wide x 14" deep and 16" high. With the casters it is 18 3/4" high.
Drawer boxes, top box 14" w x 13 1/2" deep x 2 1/2" high, middle box 14" w x 13 1/2" deep x4" H, bottom box 14" w x 13 1/2" deep x 5" high.

Drawer fronts are all 3/4" thick, left and right drawers are 15 3/4" wide and top -3 1/2" high, middle - 15 3/4" wide x 5" high, bottom - 15 3/4" wide and 6 1/4" high, the middle section are all the same heights, but are only 15" wide.

[greasemonkey2275]

Thank you for the specs; I am trying to figure out how I want to set up storage for mine because I want to integrate drawers along with storage for my jointer into the design.

[Beave2012]

I'm envious of the drawers. I need to convert one of my cabinet doors into drawers. I love seeing how everyone does their storage though

[ryanbp01]

There was a set of three cabinets on Ebay for $750.00 (buy it now I believe). Too rich for me.
BPR
