Motor Start Circuits
Moderators: HopefulSSer, admin
- everettdavis
- Platinum Member
- Posts: 2162
- Joined: Thu Jul 17, 2014 11:49 am
- Location: Lubbock, TX
Motor Start Circuits
There have definitely been a thousand words or more trying to explain the various motor manufacturers and start circuits different Shopsmith models through the years.

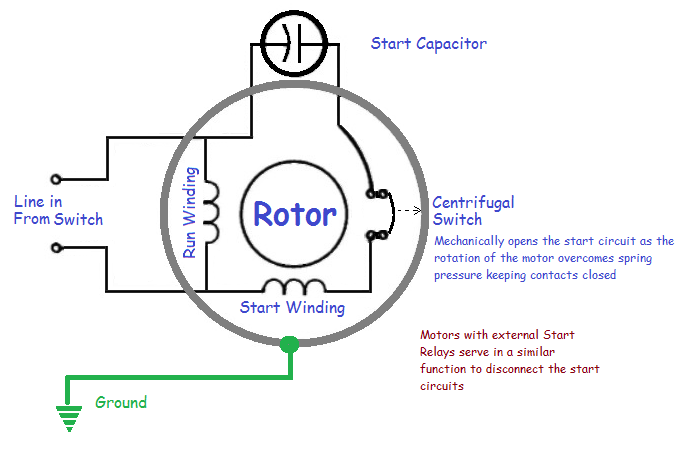

Here is a graphic that may help visualize them in a manner that is helpful for most who have a basic understanding, and need just a bit more to visualize it.
Everett
Here is a graphic that may help visualize them in a manner that is helpful for most who have a basic understanding, and need just a bit more to visualize it.
Everett
-
- Platinum Member
- Posts: 3914
- Joined: Mon Aug 31, 2015 10:19 pm
- Location: Greenie and Goldie Country not to metion the WI Badgers!
Re: Motor Start Circuits
Thanks, you pic and explanations made understanding the start/run process very easy.
KNOWLEDGE AND EXPERIENCE EQUALS WISDOM. Albert Einstein
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
- UncleSnick
- Gold Member
- Posts: 37
- Joined: Mon Apr 07, 2014 8:36 am
- Location: Bethelehm, PA Nick's 'Nuthin Fancy'
Re: Motor Start Circuits
Everett,
This is Perfect!! I just completed a reverse job with much help from posts from Joshh (https://www.shopsmith.com/ss_forum/main ... ml#p144285) and Bill Mayo. Thanks Josh and Bill!
Without the vision of what was going on internally in the motor, it was a leap of faith when I cut the wire where the power wire attaches to the run windings(2) and start winding in the motor. This is a great addition!
This is Perfect!! I just completed a reverse job with much help from posts from Joshh (https://www.shopsmith.com/ss_forum/main ... ml#p144285) and Bill Mayo. Thanks Josh and Bill!
Without the vision of what was going on internally in the motor, it was a leap of faith when I cut the wire where the power wire attaches to the run windings(2) and start winding in the motor. This is a great addition!
My shop is my time machine. I go there and lose all sense of time!
Greenie Serial 293128 March 1955
Greenie Serial 300735 August 1955 - Bad shape, future restoration project.
Grey Serial SS102778 Sept 1981 - Reversible shorty SPT driver.
Grey Serial SS168100 Feb 1984
Band saw Serial SS48432 Sept 1981
4" Jointer Serial SS91521 Nov 1985
Jigsaw Serial 33556 Jan 1984
Greenie Serial 293128 March 1955
Greenie Serial 300735 August 1955 - Bad shape, future restoration project.
Grey Serial SS102778 Sept 1981 - Reversible shorty SPT driver.
Grey Serial SS168100 Feb 1984
Band saw Serial SS48432 Sept 1981
4" Jointer Serial SS91521 Nov 1985
Jigsaw Serial 33556 Jan 1984
- JPG
- Platinum Member
- Posts: 34632
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Motor Start Circuits
A couple of pesky details:
There are TWO run windings.
The order of the start winding/start switch/capacitor is not important, but they must be in series.
The graphic is excellent for gaining understanding.
There are TWO run windings.
The order of the start winding/start switch/capacitor is not important, but they must be in series.
The graphic is excellent for gaining understanding.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Re: Motor Start Circuits
Schematics/wiring diagrams are essential to understanding any piece of equipment. It is almost impossible to trouble shoot something if you don't know how it is put together (wired).JPG wrote:A couple of pesky details:
There are TWO run windings.
The order of the start winding/start switch/capacitor is not important, but they must be in series.
The graphic is excellent for gaining understanding.
Thanks Everett. I am sure your diagram will help many here.
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Eagle's Lair Woodshop
Hooper, UT
- everettdavis
- Platinum Member
- Posts: 2162
- Joined: Thu Jul 17, 2014 11:49 am
- Location: Lubbock, TX
Re: Motor Start Circuits

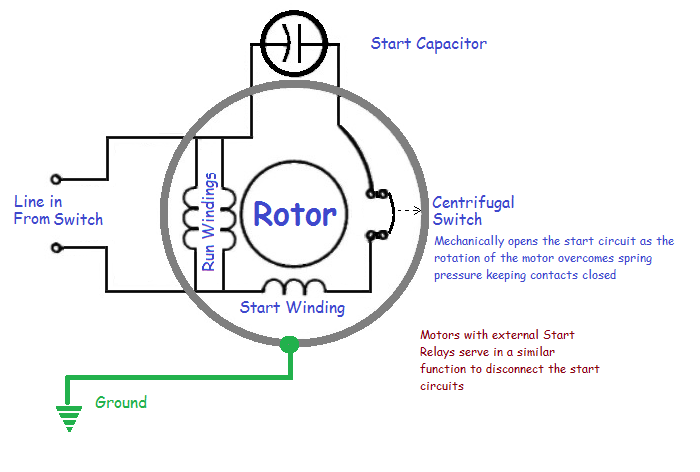

Here is a graphic representation that includes two run windings. It is not a formal schematic, it is a graphic representation to aid in visualization.

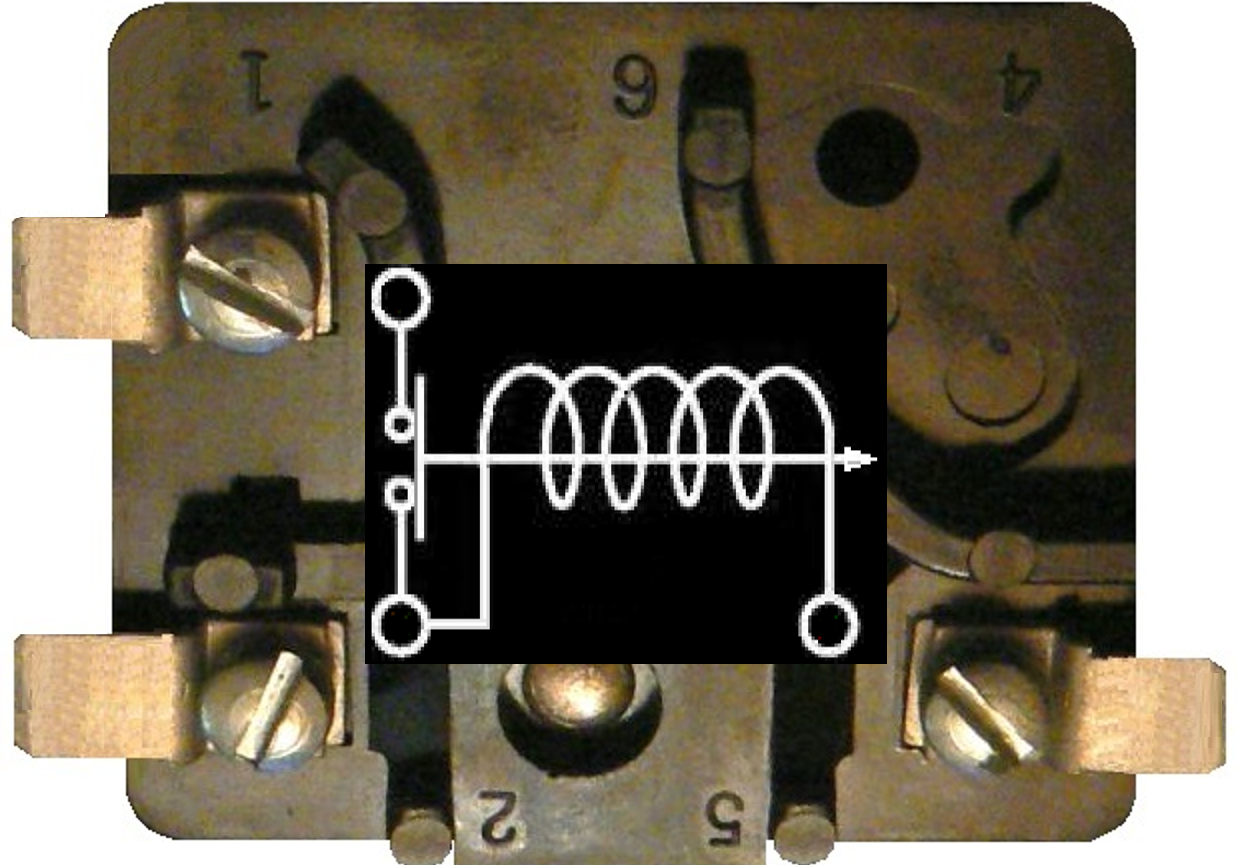

Everett Here is a typical Shopsmith motor start relay into which I inserted a schematic representation for connections.
Everett Here is a typical Shopsmith motor start relay into which I inserted a schematic representation for connections.
- everettdavis
- Platinum Member
- Posts: 2162
- Joined: Thu Jul 17, 2014 11:49 am
- Location: Lubbock, TX
Re: Motor Start Circuits
John,

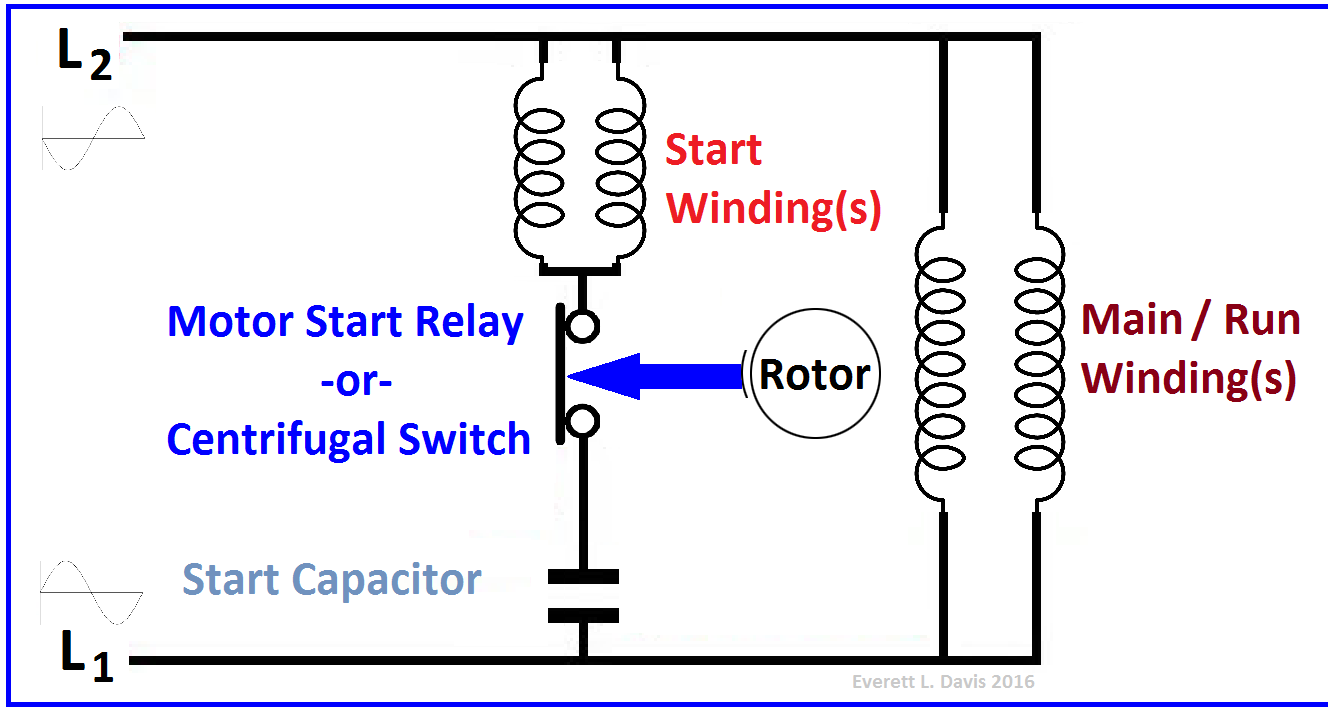

Here is something I put together last year for a more traditional schematic representation of the motor circuit(s) that has both sets of windings.
Everett
Here is something I put together last year for a more traditional schematic representation of the motor circuit(s) that has both sets of windings.
Everett
Re: Motor Start Circuits
Yes, perfect!!!everettdavis wrote:John,
Here is something I put together last year for a more traditional schematic representation of the motor circuit(s) that has both sets of windings.
Everett
General Schematic for Capacitor Start Motor with Start Relay or Centrifugal Switch.png
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Eagle's Lair Woodshop
Hooper, UT
- JPG
- Platinum Member
- Posts: 34632
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Motor Start Circuits
Almost. Usually only one start winding or they are in series.(i.e. only two wire ends) Meaning quite clear as is.jsburger wrote:Yes, perfect!!!everettdavis wrote:John,
Here is something I put together last year for a more traditional schematic representation of the motor circuit(s) that has both sets of windings.
Everett
General Schematic for Capacitor Start Motor with Start Relay or Centrifugal Switch.png
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
- everettdavis
- Platinum Member
- Posts: 2162
- Joined: Thu Jul 17, 2014 11:49 am
- Location: Lubbock, TX
Re: Motor Start Circuits

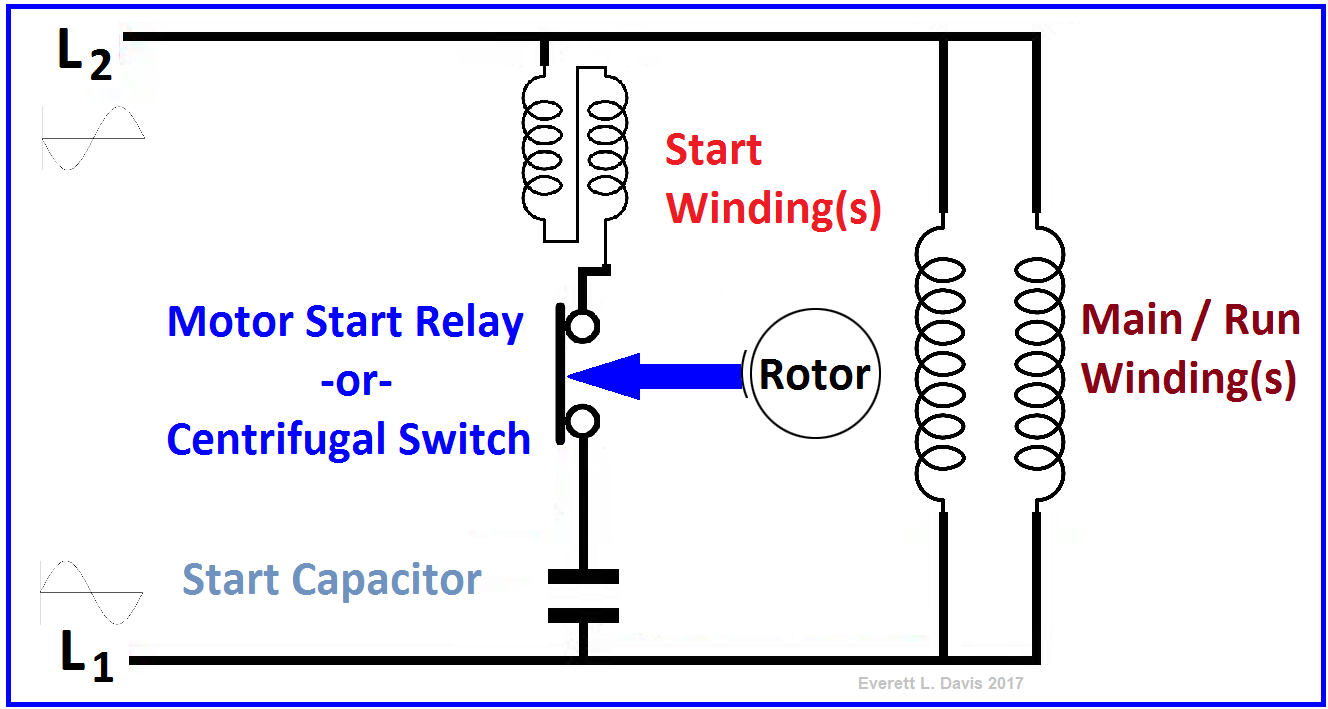

Good catch JPG. One of my mentors corrects me!
Here you go.
Everett
Here you go.
Everett
