Creating multi-colored wiring diagrams in Visio 2013

Forum for Maintenance and Repair topics. Feel free to ask questions or contribute.

Moderator: admin

Post Reply
User avatar
everettdavis
Platinum Member
Posts: 2161
Joined: Thu Jul 17, 2014 11:49 am
Location: Lubbock, TX

Creating multi-colored wiring diagrams in Visio 2013

Post by everettdavis »

Creating multi-colored wiring diagrams in Visio 2013

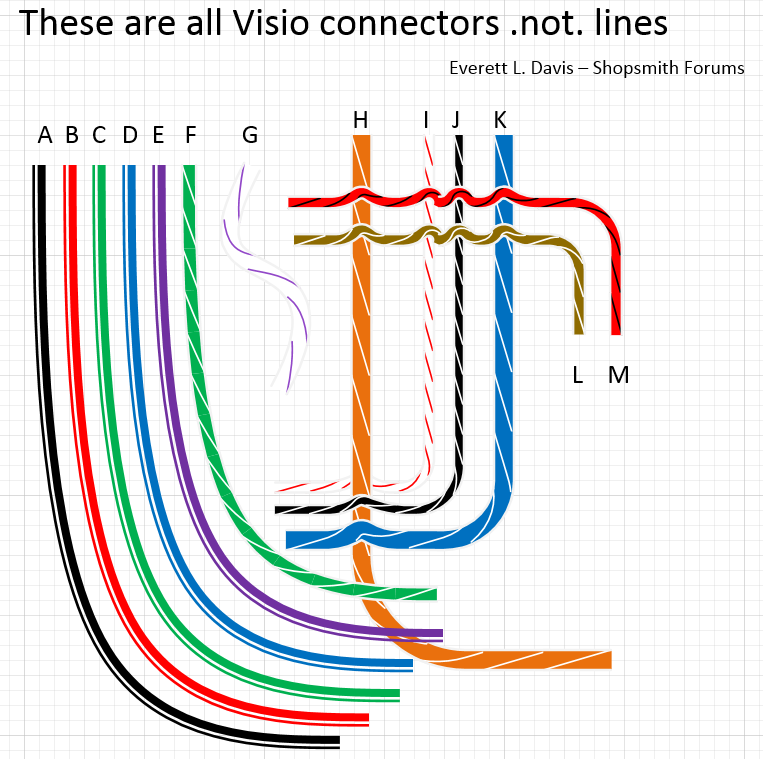

As part of my efforts to create meaningful wiring diagrams for 1960's Shopsmith Mark VII various motors and connectivity, I had to develop a method to create multi-colored wiring diagrams.

While I am no where near finished with the manual restorations, and will release nothing on it until I have given JPG ample time to review, edit, revise, correct and suppliment what I produce, I will show you how I created multi-colored wiring diagrams in Visio 2013 for those Forum Members who can use them, or adapt them in a manner to achieve something similar.

They are part of the Visio 2013 file: Master Wiring Colors with Tracers.VSDX

You may download the VSDX file from my Google Drive at:
https://drive.google.com/open?id=0B1p8_ ... nk1ZVl5eU0

The PDF file attached to this post is a complete documentation of how I did it.

Everett
Section 1 Illustration 1.png
Section 1 Illustration 1.png (149.6 KiB) Viewed 1490 times
User avatar
BuckeyeDennis
Platinum Member
Posts: 3514
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: Creating multi-colored wiring diagrams in Visio 2013

Post by BuckeyeDennis »

Thanks Everett, those look fantastic! My personal home seat of Visio is 2007, so not compatible. But I pulled out the work laptop, which has a seat of Visio 2013 installed, and was able to load your .vsdx file and copy the connectors, no problem.

Am too brain-dead at this late hour to study your instructional PDF, but will do that and try to spruce up some control-box drawings later this week.

Thanks again!
User avatar
everettdavis
Platinum Member
Posts: 2161
Joined: Thu Jul 17, 2014 11:49 am
Location: Lubbock, TX

Re: Creating multi-colored wiring diagrams in Visio 2013

Post by everettdavis »

BuckeyeDennis wrote:Thanks Everett, those look fantastic! My personal home seat of Visio is 2007, so not compatible. But I pulled out the work laptop, which has a seat of Visio 2013 installed, and was able to load your .vsdx file and copy the connectors, no problem.

Am too brain-dead at this late hour to study your instructional PDF, but will do that and try to spruce up some control-box drawings later this week.

Thanks again!

You are very welcome. The nice thing in Visio is that you can save in a PDF format which preserves edits, and is then sharable with anyone.

I hope they prove useful to many folks.

Everett
w5amt
Bronze Member
Posts: 1
Joined: Sat Aug 06, 2022 12:46 pm

Re: Creating multi-colored wiring diagrams in Visio 2013

Post by w5amt »

Hi Everett,
The link to the template https://drive.google.com/open?id=0B1p8_ ... nk1ZVl5eU0 is no longer valid. Would it be possible to send me an updated link or the file if applicable. I am using Visio Pro 2016. Thank you kindly.

Wayne
Post Reply
