Today in the shop (Custom Dollies)

[reible]

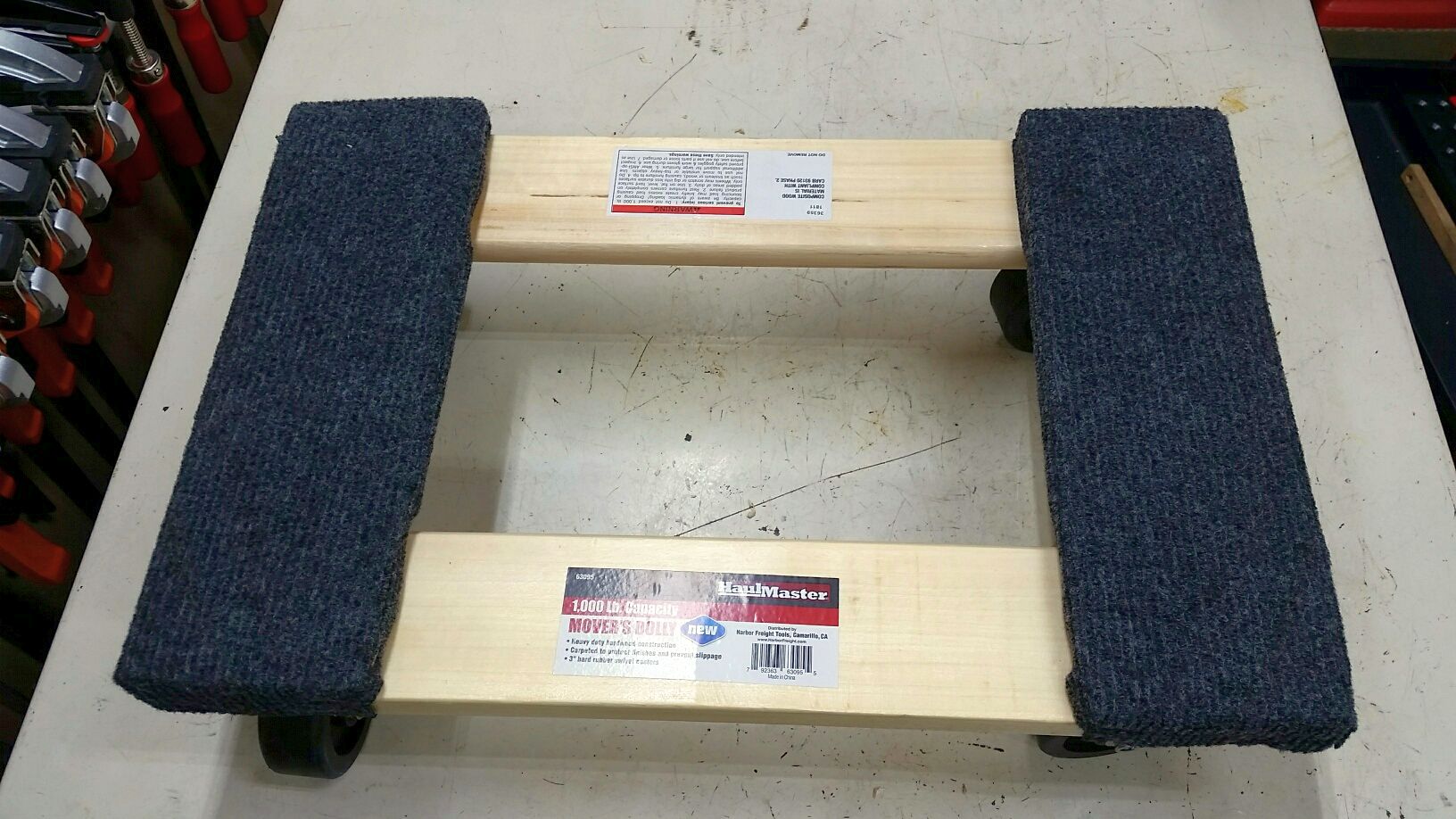

After an afternoon of rearranging somethings in the shop I wanted to locate some casters and make a platform to roll somethings in and out on. I had a small 18" x 12 movers dollie that was the right width (12") but 2" too long. The added length was a deal breaker so I sort of abandon that idea and started looking for some casters to make my own.

Then I thought about the cost of casters and the effort to make my own.... What about just modifying the one I had, shouldn't be too much effort and it was right at hand.

This was a Harbor Freight purchase, normally this size sells for about $11 but on sale they go for about $8. Not sure I could have purchase the casters for that amount.



To adjust the size, ie make it smaller I had hoped to take out the 8 bolts that hold the casters on from one end. There was no access to the one side with the carpet on so I started by pulling the staples, all but the three on the under inside. That amounted to 15 staples.

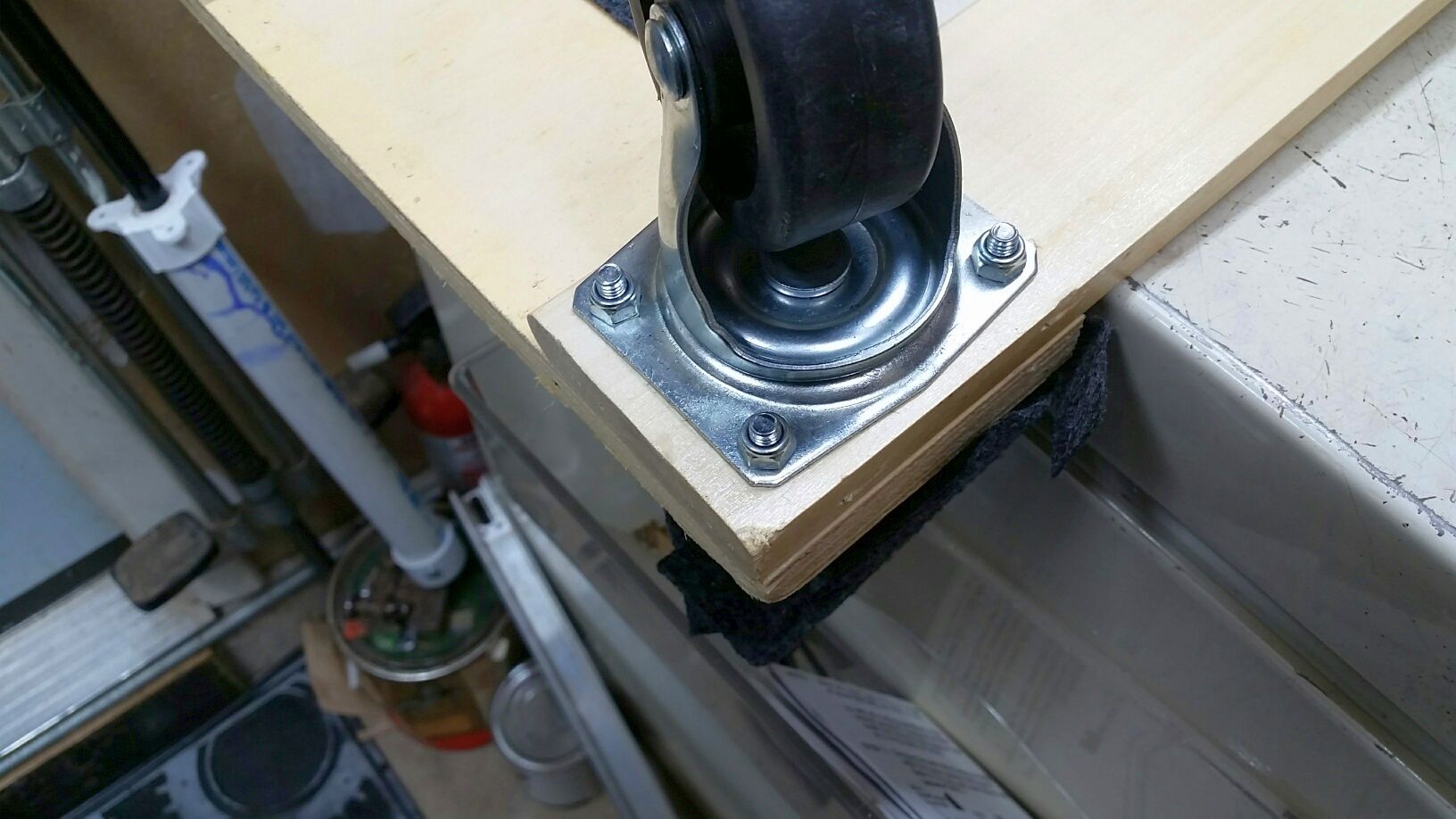

The carpet then can be folded back to access the philips heads. They are metric and a 10mm wrench is needed for the nuts.

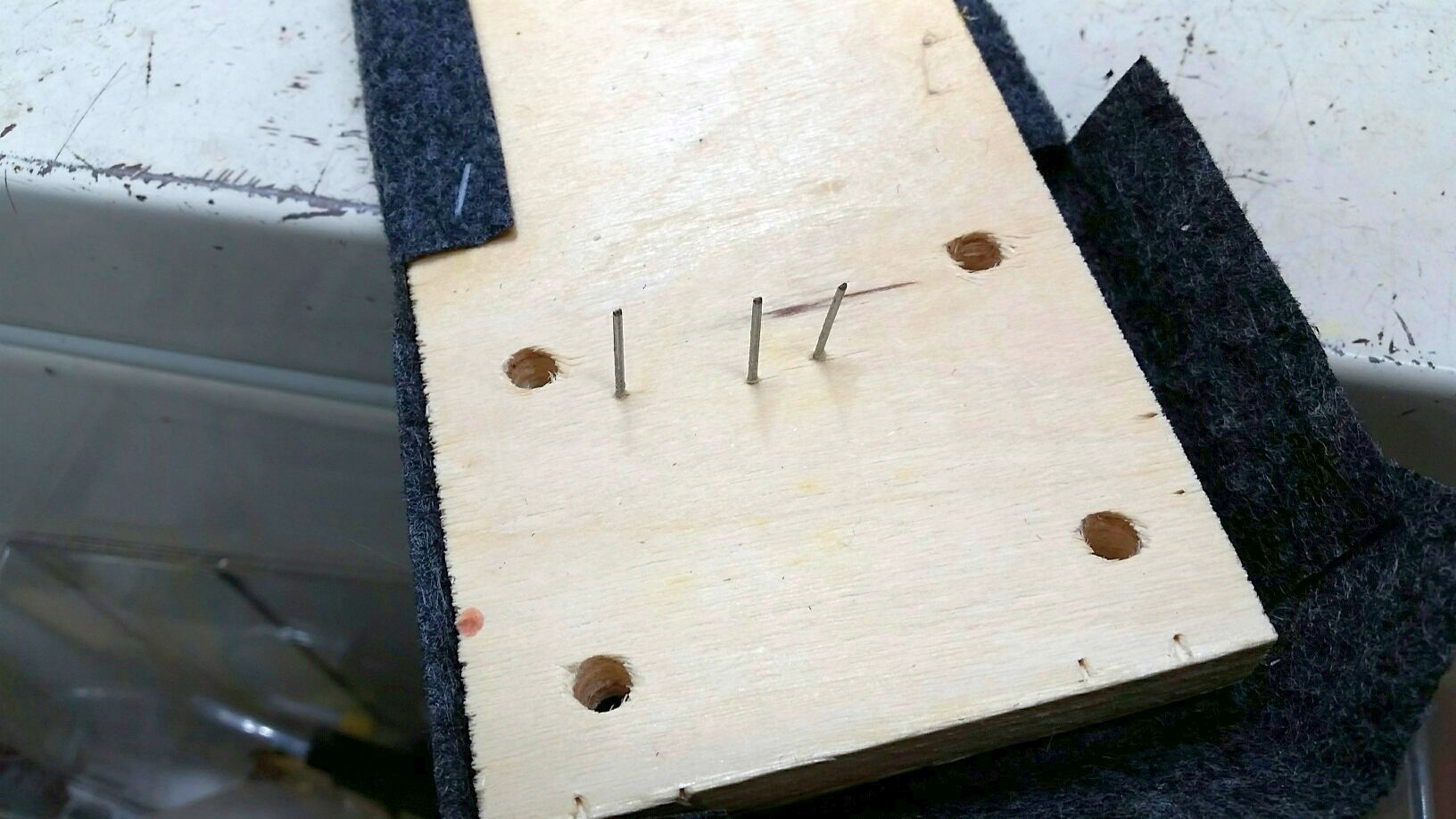

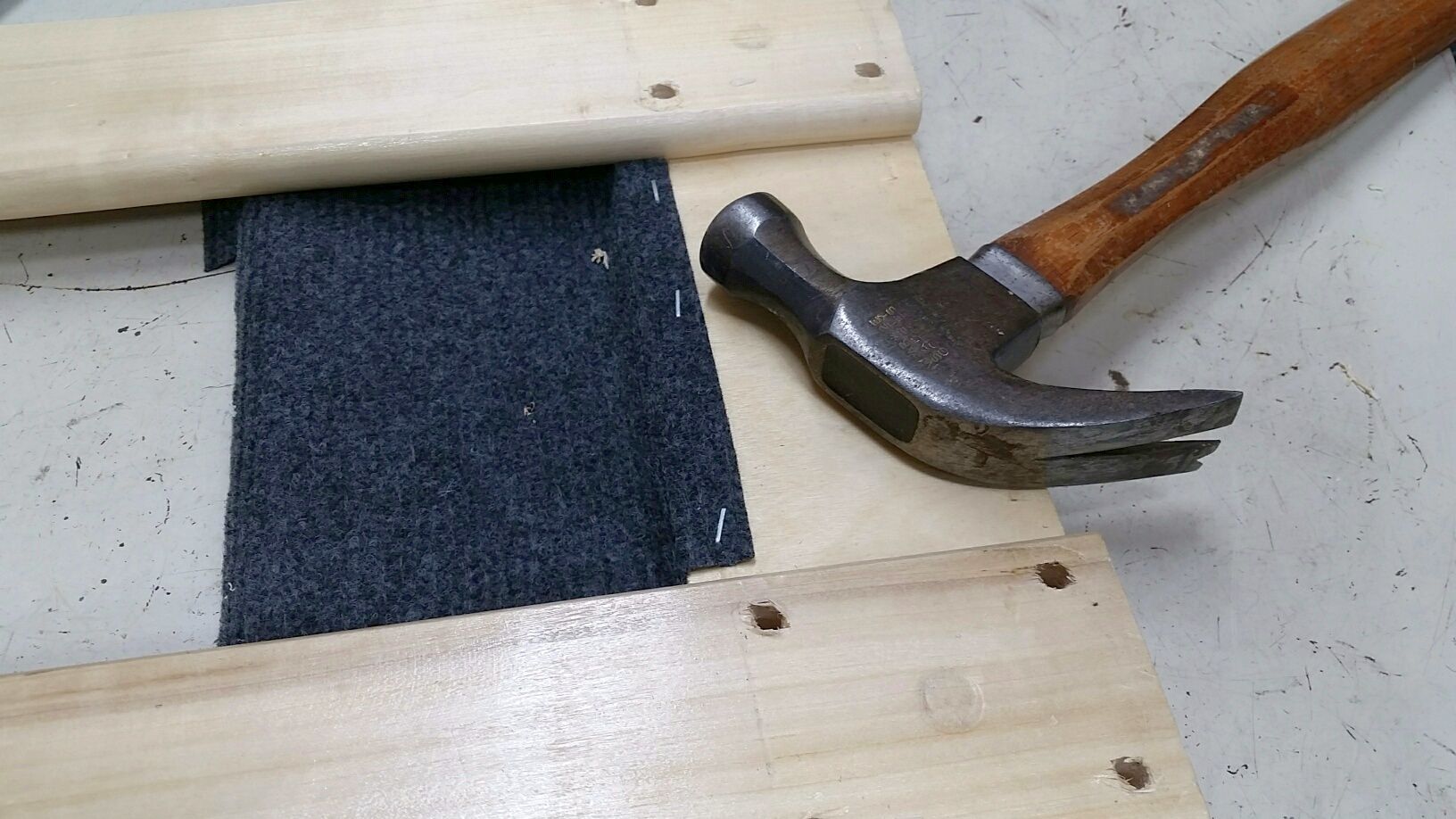

With the casters and bolts all removed the cross piece still didn't come loose. Turns out it had some brads holding which a hammer made quick work of.


I just used a pliers to pull them through, easier then trying to pound them back and pull....

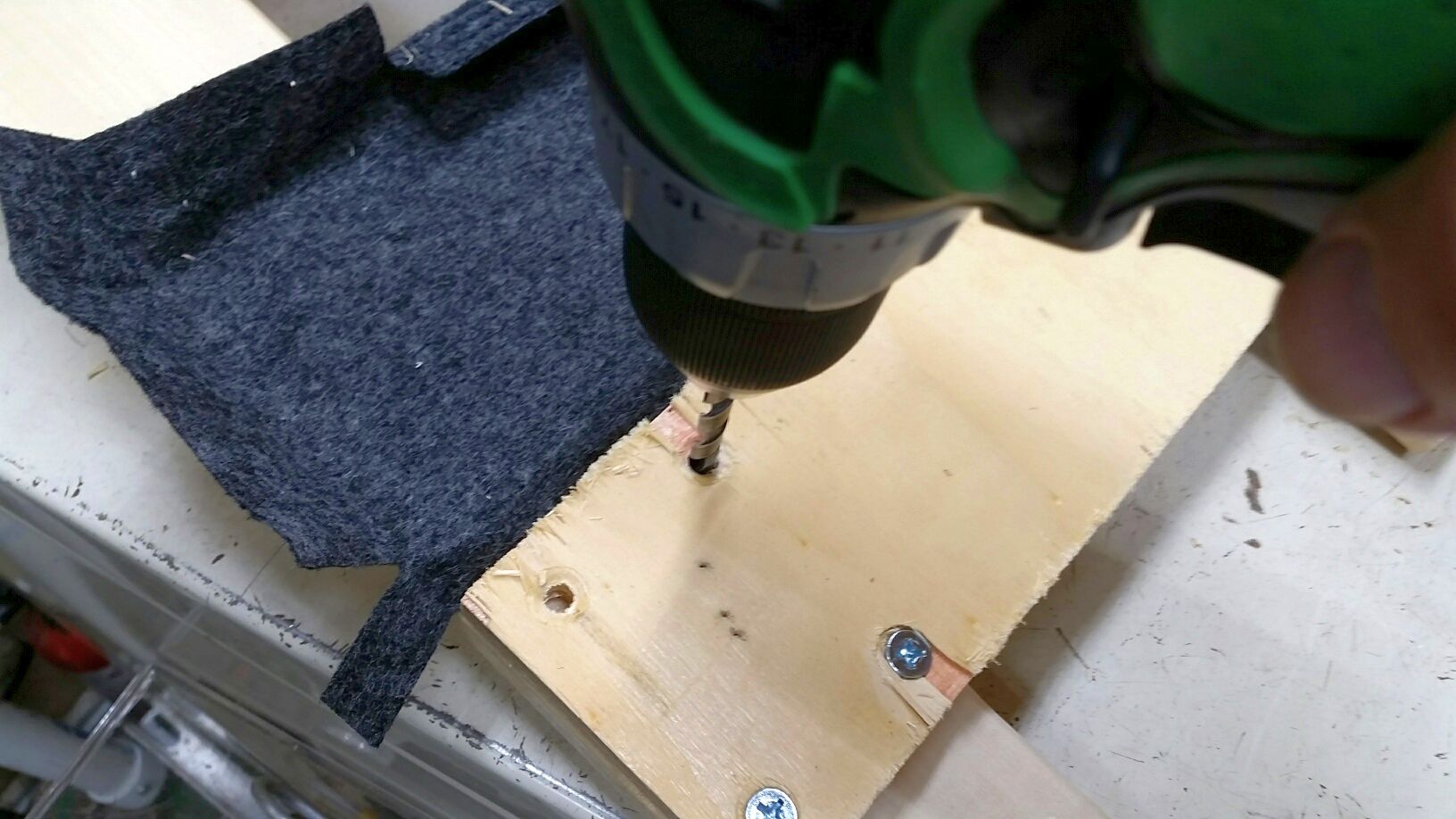

As it turned out the hole spacing allowed me to move the cross piece and still use two of the existing holes, I used the cross piece as a drilling guide to make the other two holes on each side.



Time to bring the project home in the next post.

Ed

[reible]

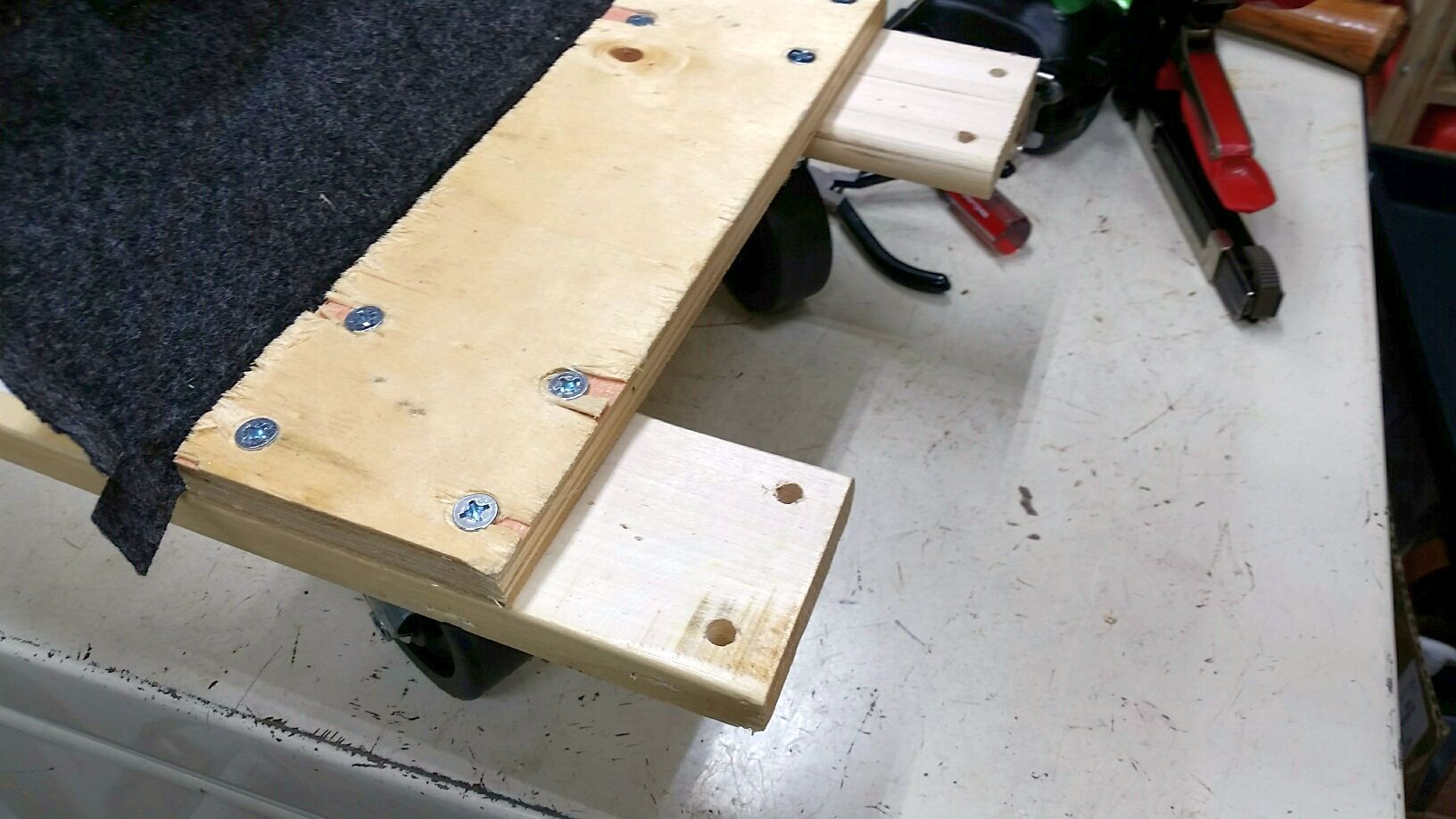

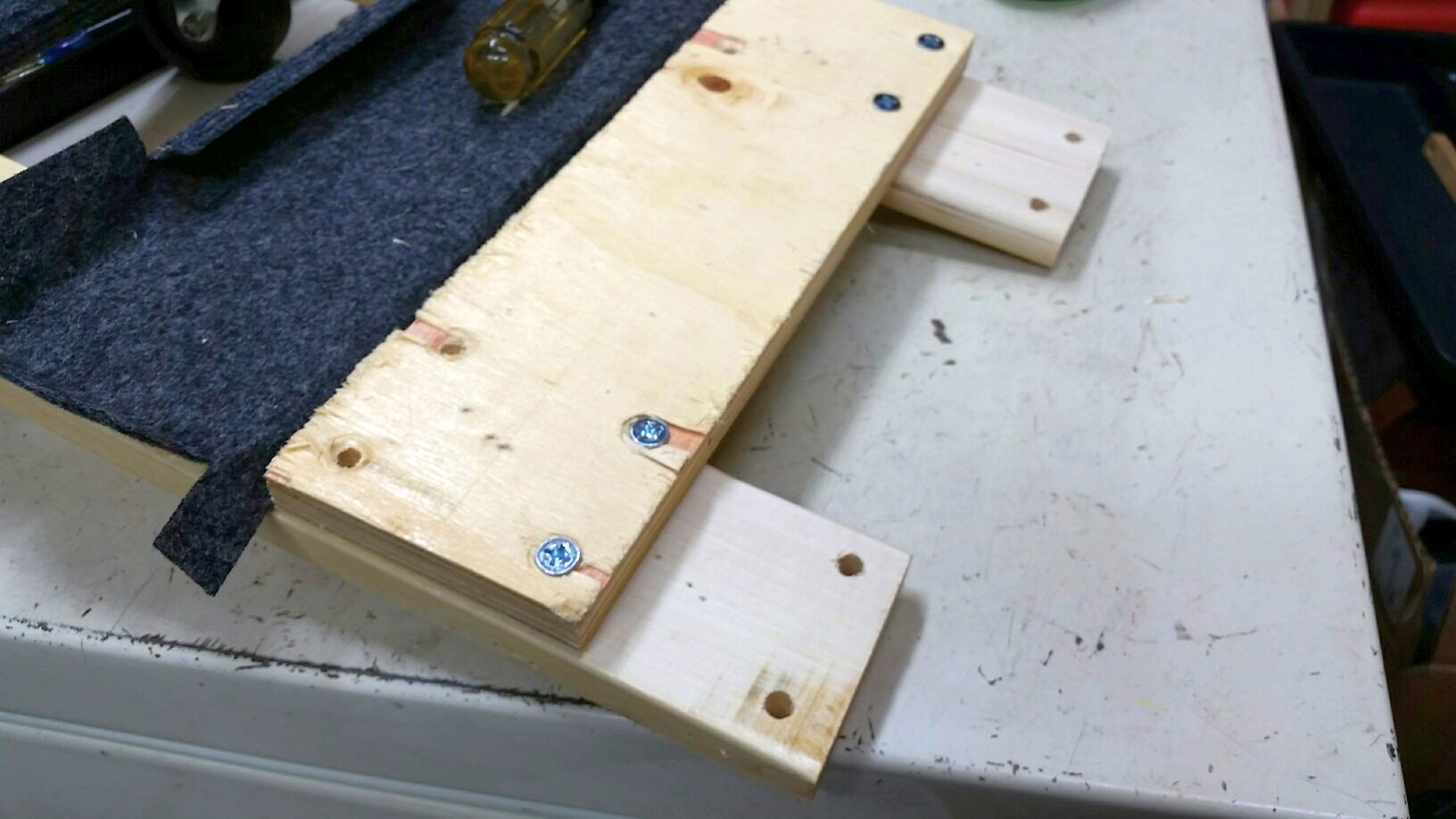

Remounting the casters leaves you with this:

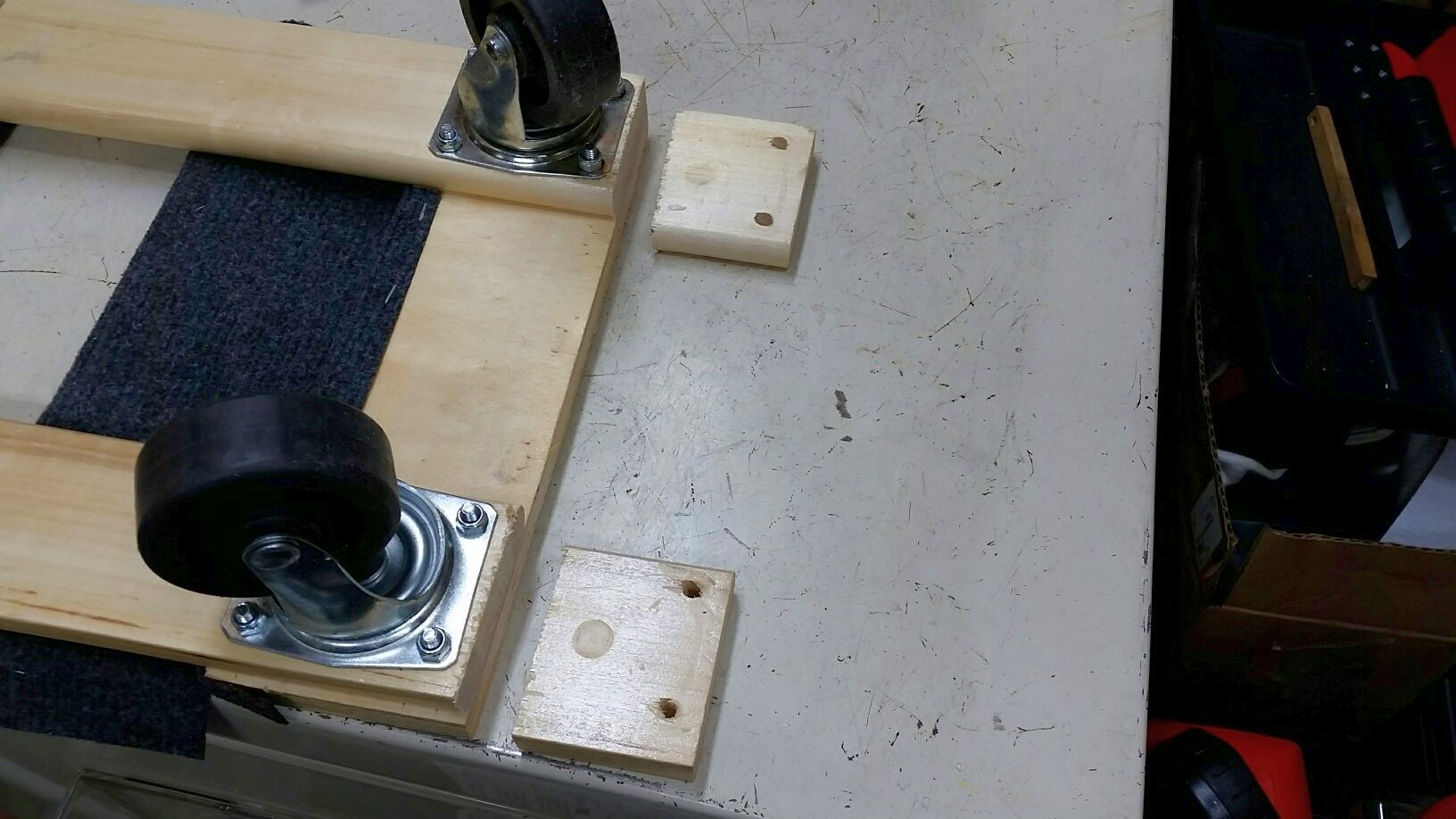

A hand saw made quick work of the now extra lengths:


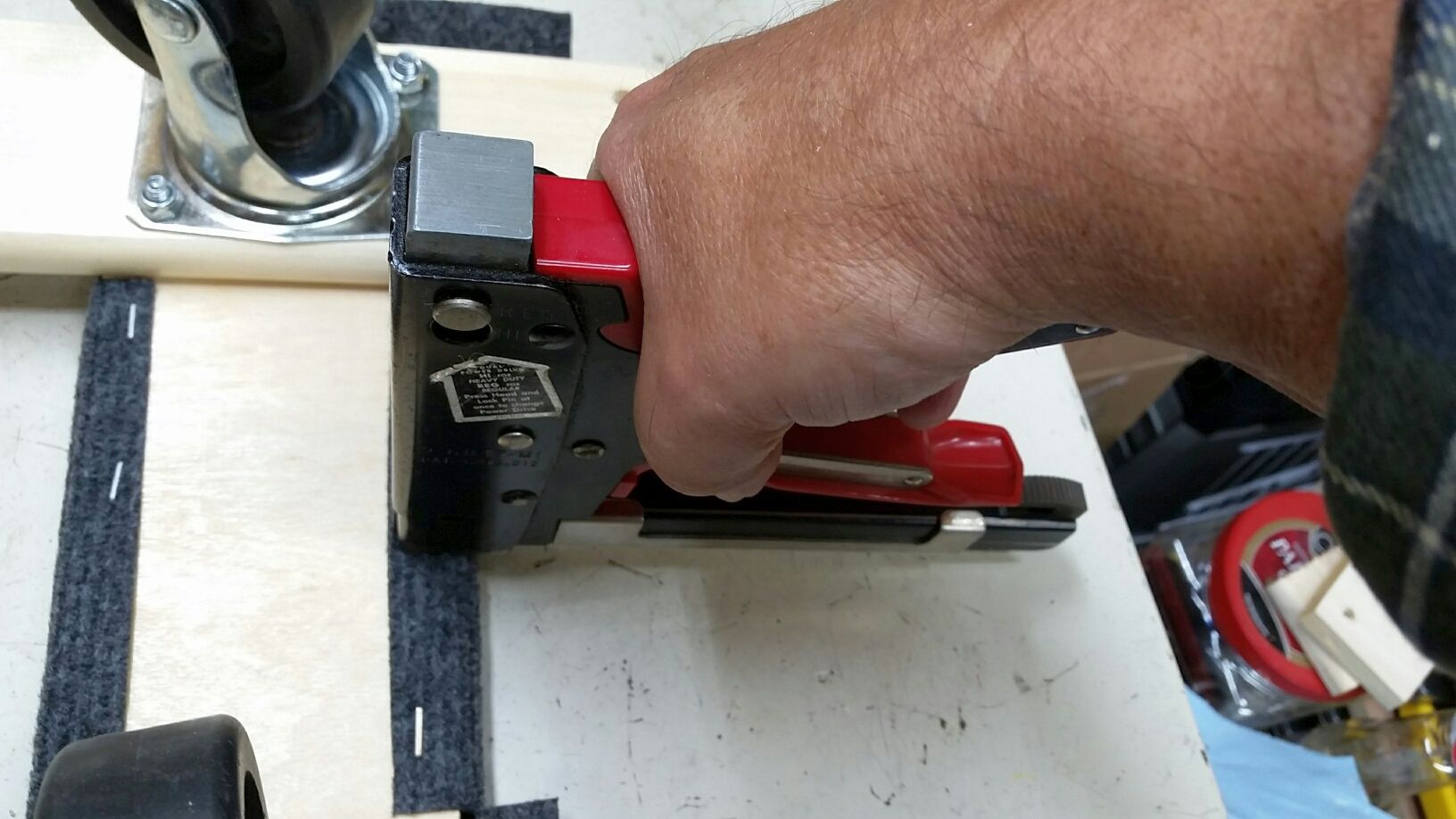

Now all that was left to do was reattach the carpet.

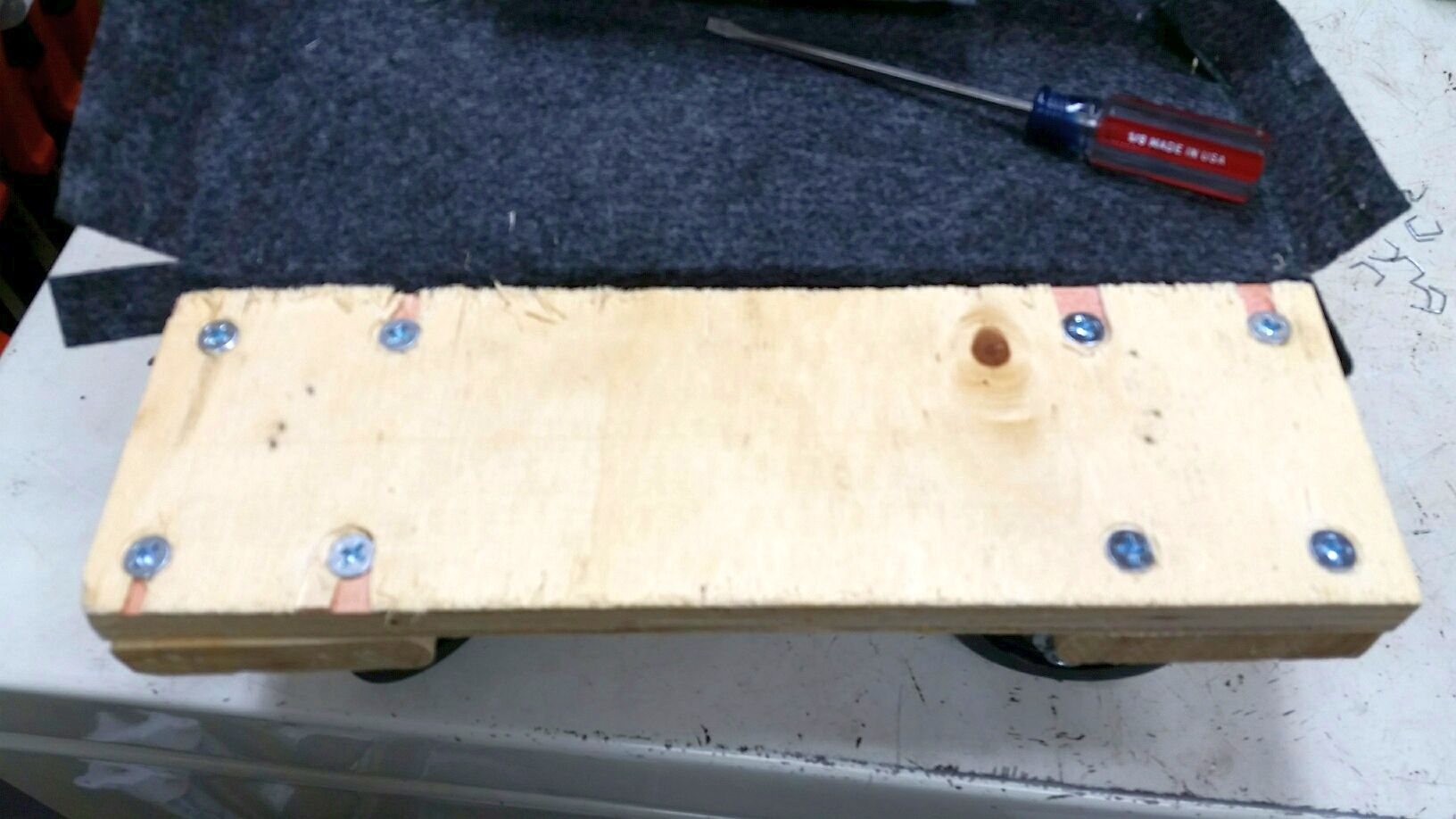

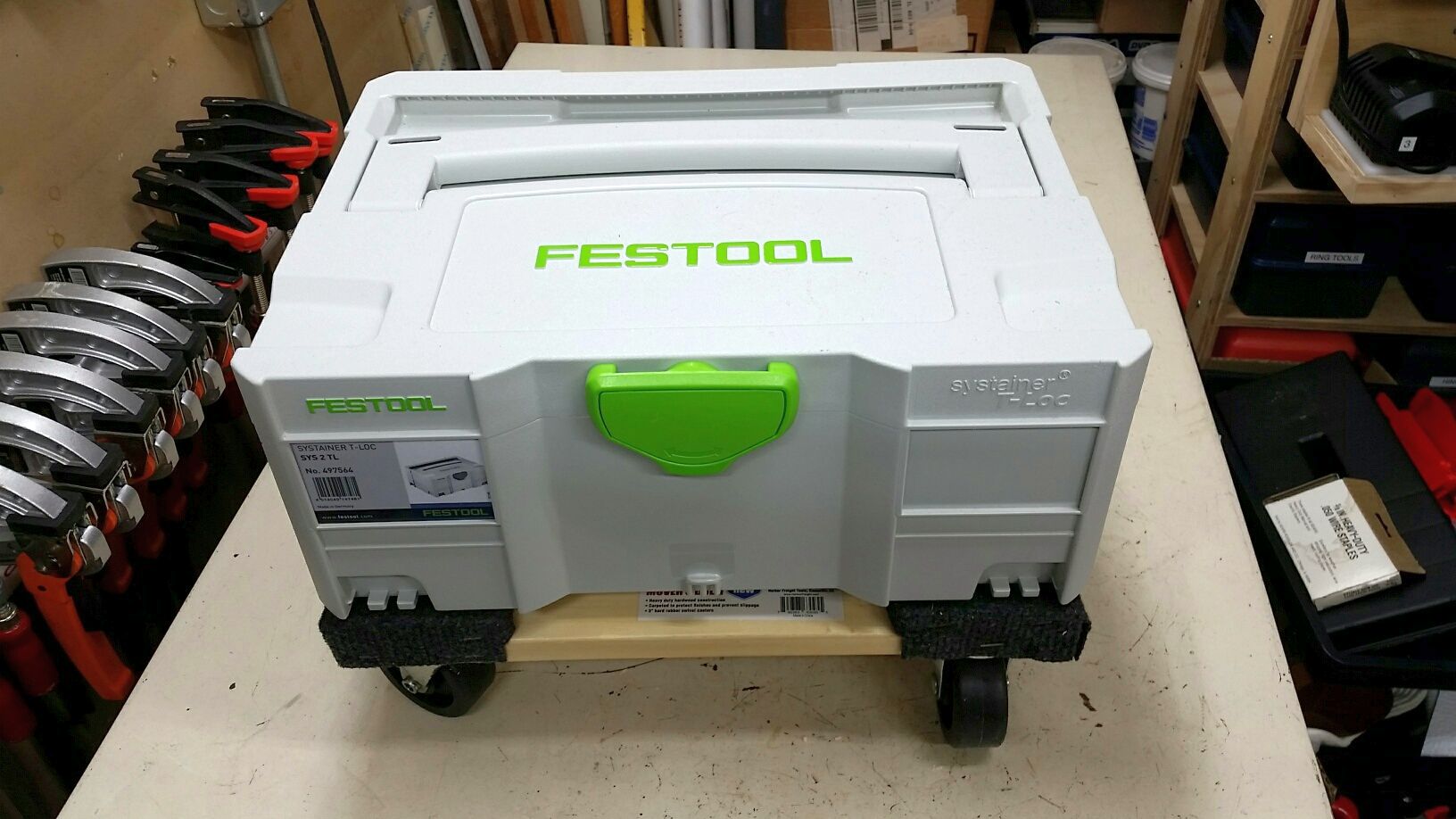

And there you go a near perfect fit.


Might have to go shopping for a couple more of these, if and when they are on sale that is.

Ed
