ER10 Drive shaft reassembly

Moderator: admin

Post Reply
struzik
Bronze Member
Posts: 1
Joined: Fri Nov 08, 2019 7:21 pm

ER10 Drive shaft reassembly

Post by struzik »

Hi All --

I recently started restoring an ER10. I searched but couldn't find an answer to this - I have everything cleaned, painted, and ready to assemble however the quill/drive sleeve has me scratching my head (and wishing I took more pictures when I took her apart).


Originally I left the bearings in-place since they seemed to run smooth, however when I tried to put the shaft back in (as below), it got really tight. At one point I tried tapping it in and it pushed out the bearing. I'm afraid of using too much force and damaging something. Is this the correct line up?

Thanks for any help.
Attachments

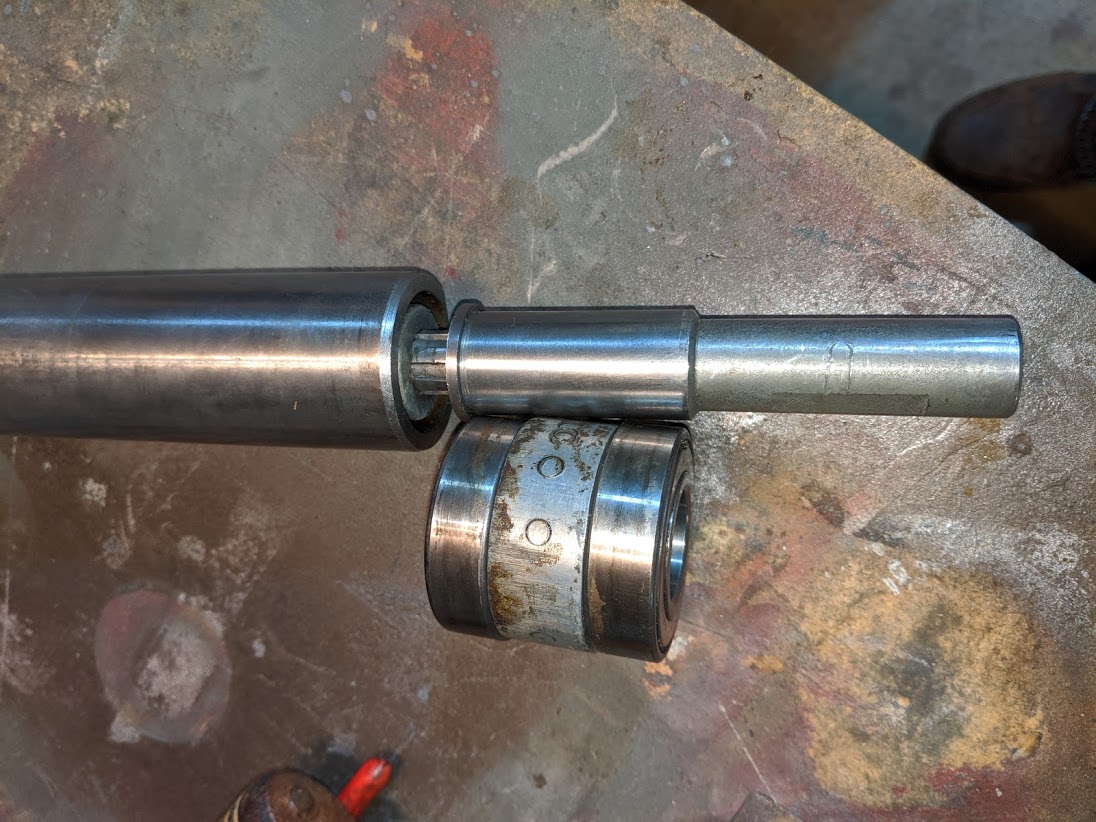

Original shaft prior to install
Original shaft prior to install

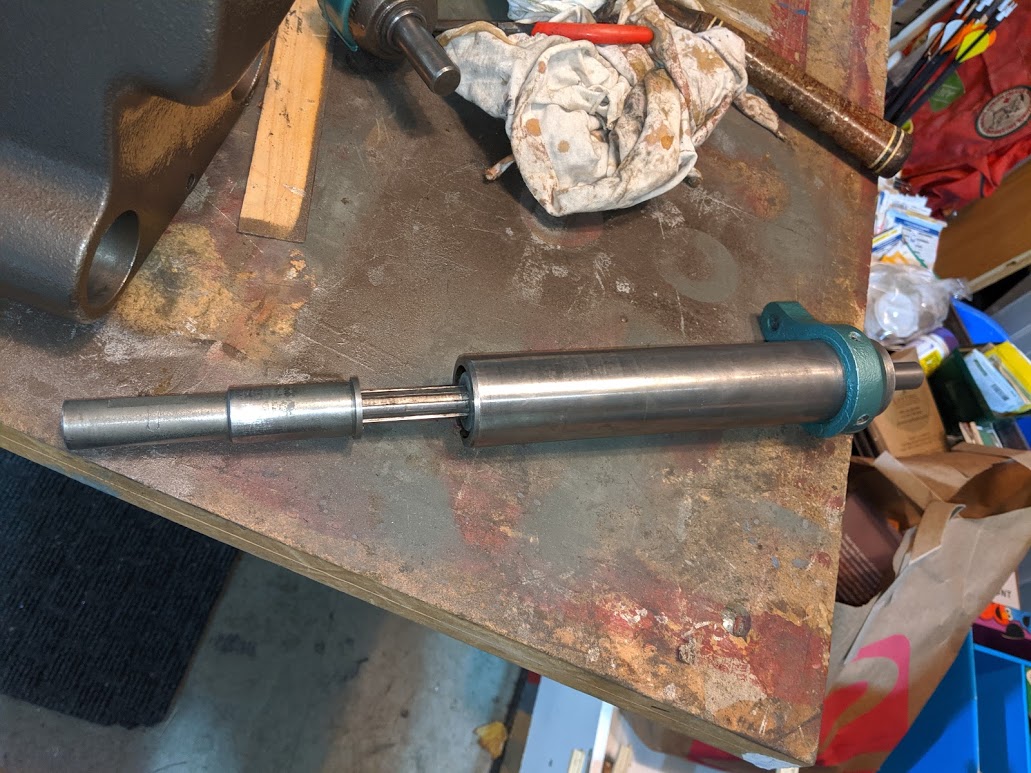

Line up?
Line up?
