510 Main Table

Forum for people who are new to woodworking. Feel free to ask questions or contribute.

Moderator: admin

Steele510
Gold Member
Posts: 46
Joined: Mon Nov 11, 2019 9:15 am

510 Main Table

Post by Steele510 »

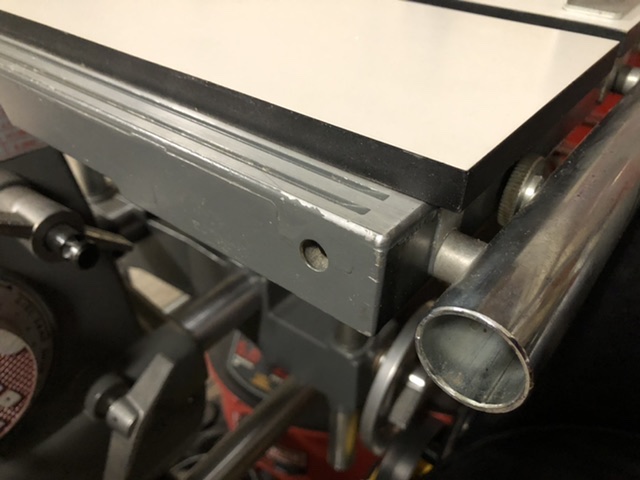

Just curious if anyone knows why the main table has four small 3/8” dia holes in the outer perimeter, one in each corner? None of the floating tables or extension tables have corresponding holes. So far in all my reading I have not found any reference to these holes and what they might be used for.
garys
Platinum Member
Posts: 1781
Joined: Wed Mar 02, 2011 12:16 am
Location: Bismarck, ND

Re: 510 Main Table

Post by garys »

I think you can safely assume that they don't serve any useful purpose because mine doesn't have them.
RFGuy
Platinum Member
Posts: 1422
Joined: Mon Dec 31, 2018 8:05 am
Location: a suburb of PHX, AZ

Re: 510 Main Table

Post by RFGuy »

Check out Dusty's post on this thread below. I believe the holes on the side of some of the 510 main tables were just for manufacturing purpose, i.e. they have no purpose for Shopsmith owners. Not every 510 table had these, I believe.

http://shopsmith.com/ss_forum/viewtopic ... de#p243691
📶RF Guy

Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
Steele510
Gold Member
Posts: 46
Joined: Mon Nov 11, 2019 9:15 am

Re: 510 Main Table

Post by Steele510 »

Perfect thanks. I had noticed a few differences in earlier/later 510 tables.
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: 510 Main Table

Post by JPG »

Steele510 wrote:Perfect thanks. I had noticed a few differences in earlier/later 510 tables.
Fer sure!

Tapped holes vs kep nuts(and access holes), center rail mounting hole location and rail tube wall thickness.

I also think the 'extra' holes in the sides are for tooling use during manufacture.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
DLB
Platinum Member
Posts: 766
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: 510 Main Table

Post by DLB »

I have a 'what is it' question relating to 510 table systems. I picked up a 510 that had been modified with the 520 rails and included the leftover pieces. Those leftovers included two main table tubes and six auxiliary/extension table tubes, all with studs. It also included two 'other' tubes, same OD and ID, with mounting holes (2) rather than studs, and they are 10-1/2 inches long (longer than extension table, shorter than main). Hole spacing for the mounting holes is ~5-3/8 and there is a center hole for (I assume) the 510 thumb wheel clamp mechanism. It is not clear to me that they are SS, as opposed to shop-built, I don't think that whatever they were for was included with what I bought. Does anyone know what these are?
-David
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: 510 Main Table

Post by JPG »

Sawsmith 2000(cut off to 10 1/2")?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
chapmanruss
Platinum Member
Posts: 1953
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: 510 Main Table

Post by chapmanruss »

DLB,

It sounds like someone modified, custom made or they came from another source. JPG suggested the Saw Smith Table Saw. The Standard and Pro Models had the same tubes as the original Mark V 510/505 tables using screws and spacers to hold the tubes to the table instead of studs. I do not know the length of the tubes. The Standard uses one set and the Pro has two sets for a wider table. The other two Saw Smith Table Saws had a rail and fence system similar to but different than the Mark V 520.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: 510 Main Table

Post by JPG »

SAWSMITH 2000

MUCH LONGER AND WITH MORE 'HOLES'.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
DLB
Platinum Member
Posts: 766
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: 510 Main Table

Post by DLB »

Thanks guys. If it is shop built it could be for almost anything, probably involving a table ;) . The tubes have more of a brushed finish, along the lines of extension table tubes but not the right size, compared to the plated(?) finish of the normal 510 table tubes with studs. It only recently occurred to me that they were some form of 510 table tube when I read here in someone's post about the original mounting system. I'm sure I will find a use for them.
