Face Plates??

Post by shoedo »

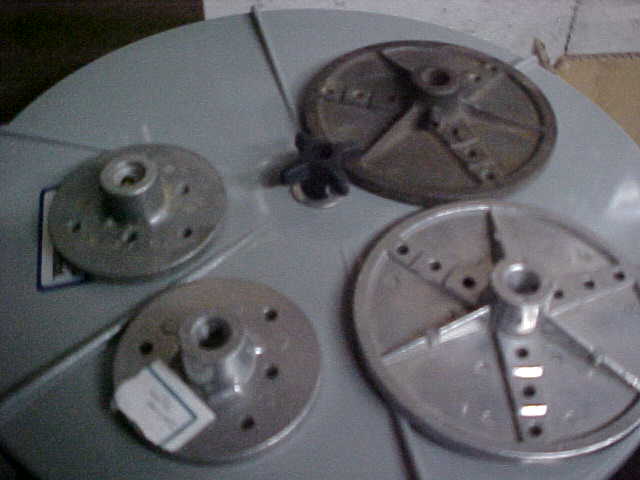

Understand, I don't have a clue as to what a face plate is used for, all I know is I have four of them. Keep in mind, that I am a newbie!! I have two 6 inch face plates and two smaller face plates. What are they used for? does the steel face place offer an advantage that the aluminum face plate does not? Should I keep the steel or sell it?
Attachments
User avatar
reible
Platinum Member
Posts: 10473
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: Face Plates??

Post by reible »

https://www.shopsmith.com/academy/lathe ... /index.htm

If you don't have the book then reading on line will work.......

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
rpd
Platinum Member
Posts: 2638
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Face Plates??

Post by rpd »

They are used to hold wood on the lathe for turning bowls.
https://www.shopsmith.com/academy/lathe ... #faceplate
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
User avatar
wa2crk
Platinum Member
Posts: 2970
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Re: Face Plates??

Post by wa2crk »

Hi newbie and welcome aboard. Face plates are used to mount stock for lathe turning. Center the plate on the work and then use screws to secure the stock to the plates. Read up on how to use them before you make any attempts they are somewhat of a specialty item. The large ones are for bigger and the smaller ones for smaller diameter work. The steel plate may make a slight bit of difference because of the weight. Kind of acts like a flywheel and can also dampen some vibration.
Go make some nifty projects.

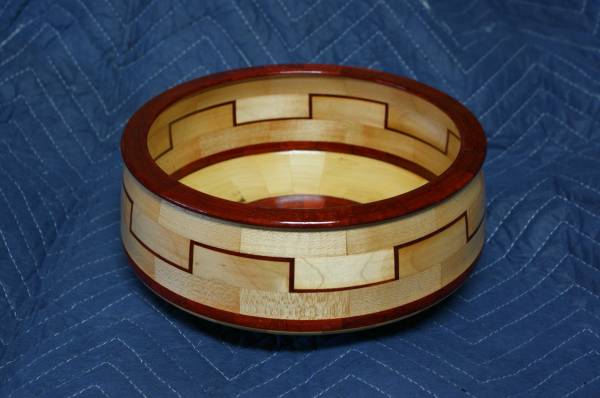

overall view.jpg
overall view.jpg (28.68 KiB) Viewed 8285 times

Bill V
shoedo
Gold Member
Posts: 85
Joined: Tue Jul 02, 2019 8:32 pm

Re: Face Plates??

Post by shoedo »

that is a beautiful bowl! Please tell me how you achieve those results, step by step!
User avatar
wa2crk
Platinum Member
Posts: 2970
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Re: Face Plates??

Post by wa2crk »

That would be a VERY long post. If you research "segmented turning" on the net you will get about a 1000 results.
Bill V
shoedo
Gold Member
Posts: 85
Joined: Tue Jul 02, 2019 8:32 pm

Re: Face Plates??

Post by shoedo »

ok, where did you get the food grade safe materials to make the bowl?
RFGuy
Platinum Member
Posts: 860
Joined: Mon Dec 31, 2018 8:05 am
Location: a suburb of PHX, AZ

Re: Face Plates??

Post by RFGuy »

Here are a couple of past threads to give a taste of segmented turning and what is involved. I haven't gotten to trying this yet myself, but kudos to those who do this. The segmented bowls that Bill have posted are gorgeous...

With regard to being food safe, just pick a natural (safe to eat) finish like walnut oil. You'll have to re-apply the finish periodically, but it will be safe to eat out of. Most woods are safe underneath, but keep in mind some woods, particularly exotic species, can be toxic. So, if you intend to turn a wood bowl or plate to eat out of, I wouldn't recommend using a wood whose fibers or oils that it secretes are toxic.

https://www.shopsmith.com/ss_forum/gene ... 23212.html

https://www.shopsmith.com/ss_forum/view ... wl#p266485
📶RF Guy

Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
User avatar
wa2crk
Platinum Member
Posts: 2970
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Re: Face Plates??

Post by wa2crk »

Shoedo and RF Guy
Shoedo Try to stick to the 3 main species of wood used for cutting boards if you make bowls for food. They are Maple,Walnut and Cherry. I mainly make mine for decoration and as gifts.
RF Guy Many thanks for highlighting my work!! Greatly appreciated!!! :)
