Re: Hello Shopsmith World

Post by Williams »

Also, a huge word of thank for the people that saved and scanned all those manuals and catalogs. Those were immensely useful in figuring this beast out.
Top
User avatar
JPG
Platinum Member
Posts: 35066
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Hello Shopsmith World

Post by JPG »

" the washers that go through the wood "

?????
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
Williams
Silver Member
Posts: 10
Joined: Sun Sep 27, 2020 12:49 am

Re: Hello Shopsmith World

Post by Williams »

Poor phrasing on my part.

Read as: The washers that go on either side of the wood on the bolts that attach the whole machine to the wooden portion of the base. "
Top
User avatar
BuckeyeDennis
Platinum Member
Posts: 3723
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: Hello Shopsmith World

Post by BuckeyeDennis »

Now that’s a real labor of love. Congrats on a beautiful restoration!
Top
User avatar
chapmanruss
Platinum Member
Posts: 3817
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Hello Shopsmith World

Post by chapmanruss »

That is a beautiful restoration job. As you said maybe good for another 70 years.

Somethings from the earlier posts I thought about as I re-read this thread getting up to the current posts was how this Model 10ER ending up in Missouri. The second part is your last name Williams and did your family have any relatives in Washington? My wife's father has relatives in Missouri. It's been years since he attended a William's family reunion.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Top
edma194
Platinum Member
Posts: 2086
Joined: Fri Jun 19, 2020 4:08 pm

Re: Hello Shopsmith World

Post by edma194 »

chapmanruss wrote: ↑Fri Sep 22, 2023 11:33 am The second part is your last name Williams and did your family have any relatives in Washington? My wife's father has relatives in Missouri. It's been years since he attended a William's family reunion.
We had a well known WIlliams here in Rhode Island around 300 years ago. Any relation? :)
Ed from Rhode Island

510 PowerPro Double Tilt:Greenie PowerPro Drill Press:500 Sanding Shorty w/Belt&Strip Sanders
Super Sawsmith 2000:Scroll Saw w/Stand:Joint-Matic:Power Station:Power Stand:Bandsaw:Joiner:Jigsaw
1961 Goldie:1960 Sawsmith RAS:10ER
Top
Williams
Silver Member
Posts: 10
Joined: Sun Sep 27, 2020 12:49 am

Re: Hello Shopsmith World

Post by Williams »

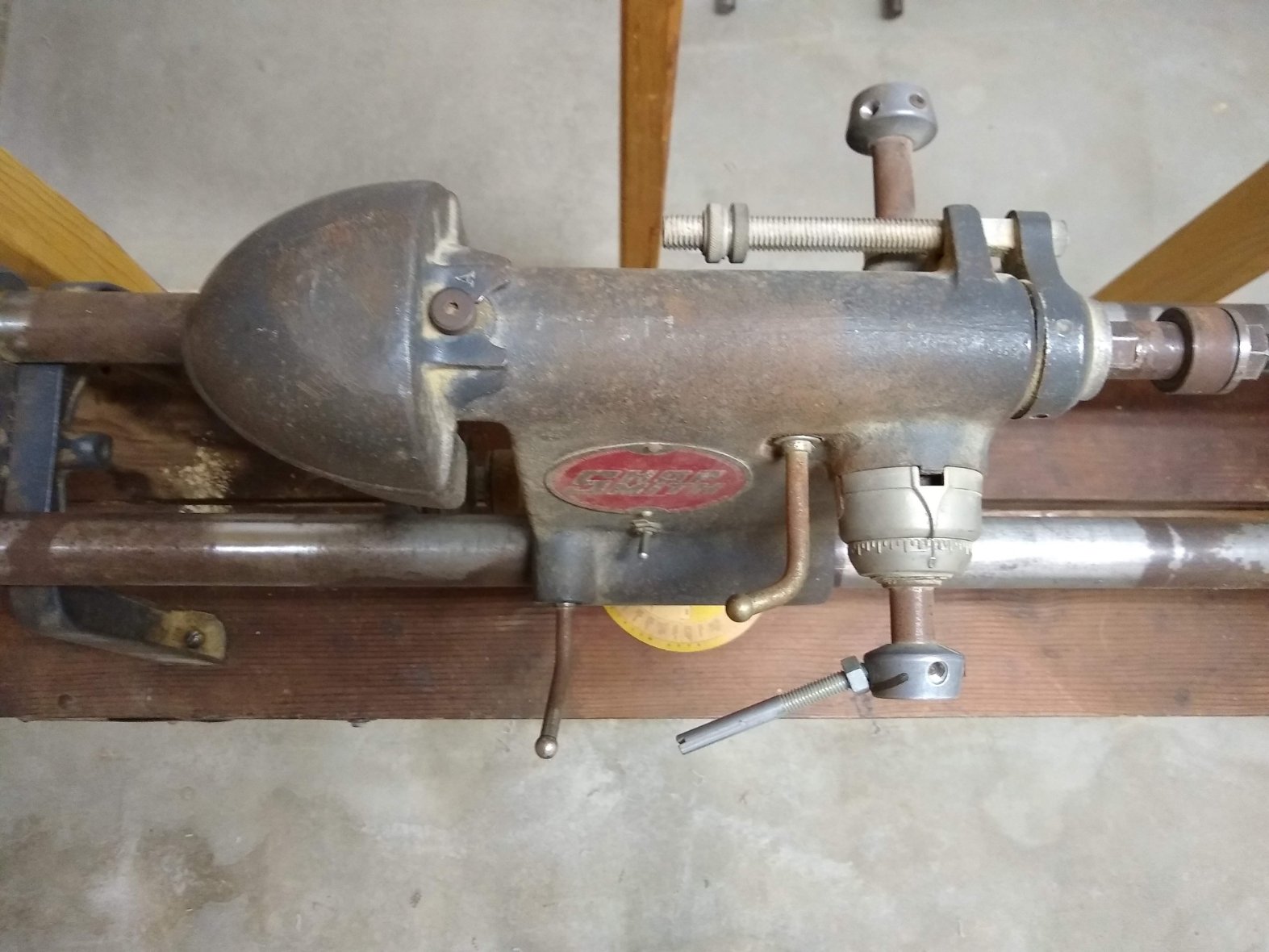

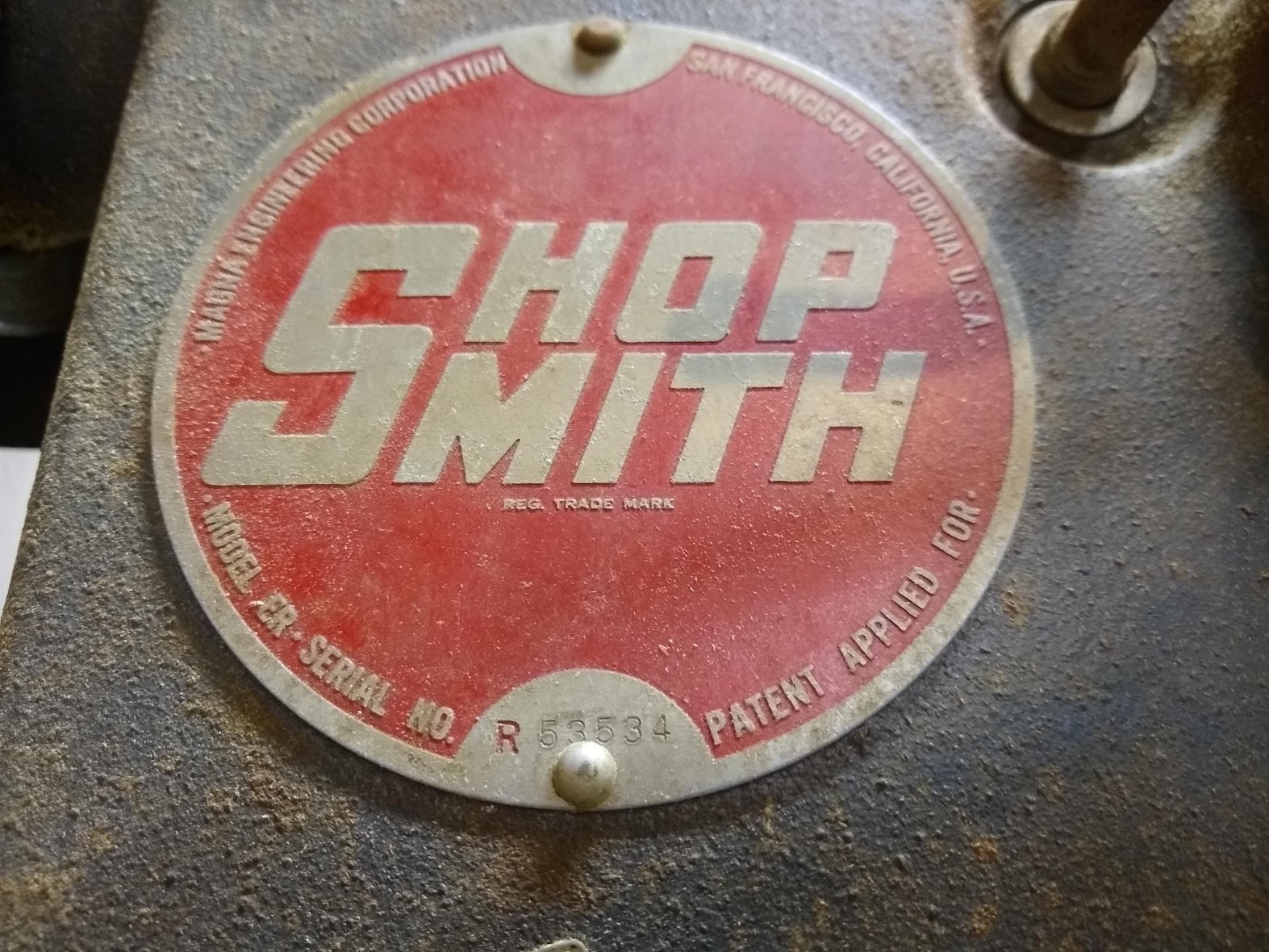

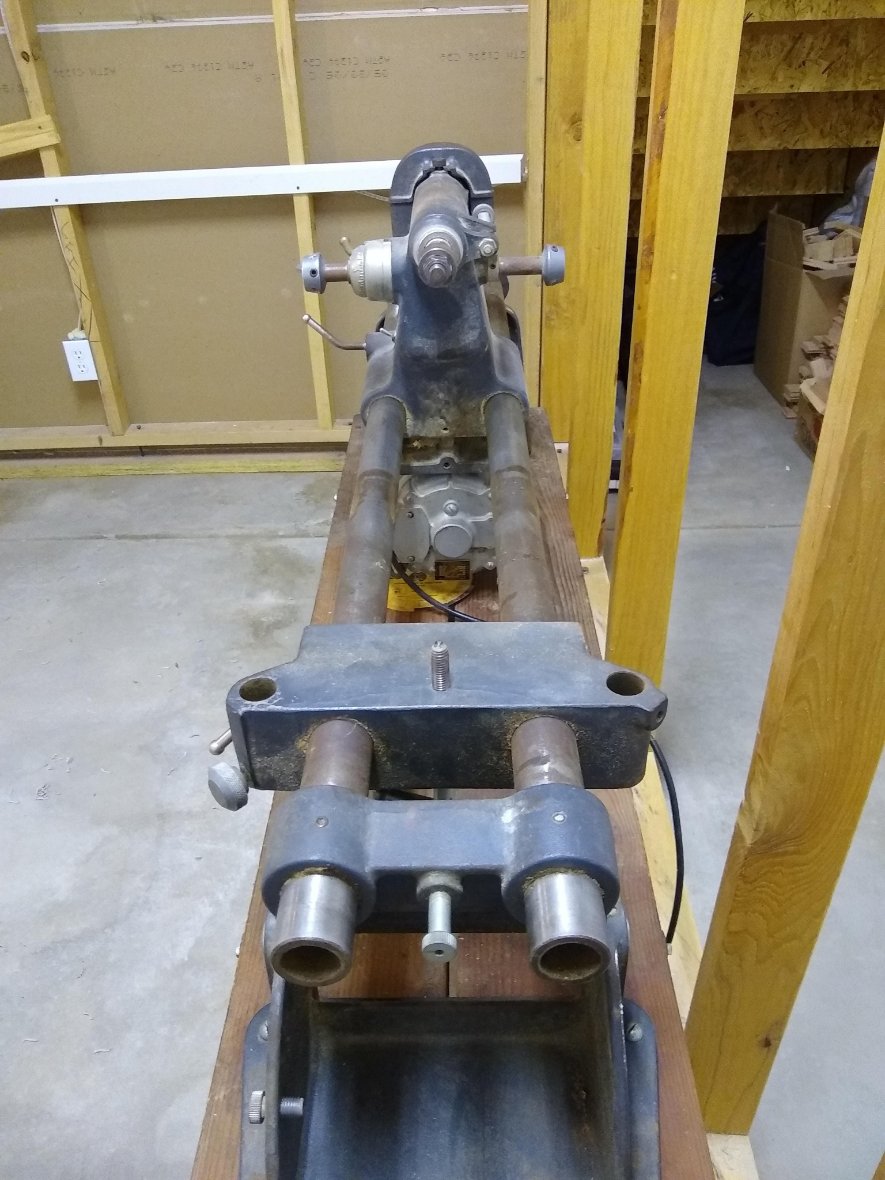

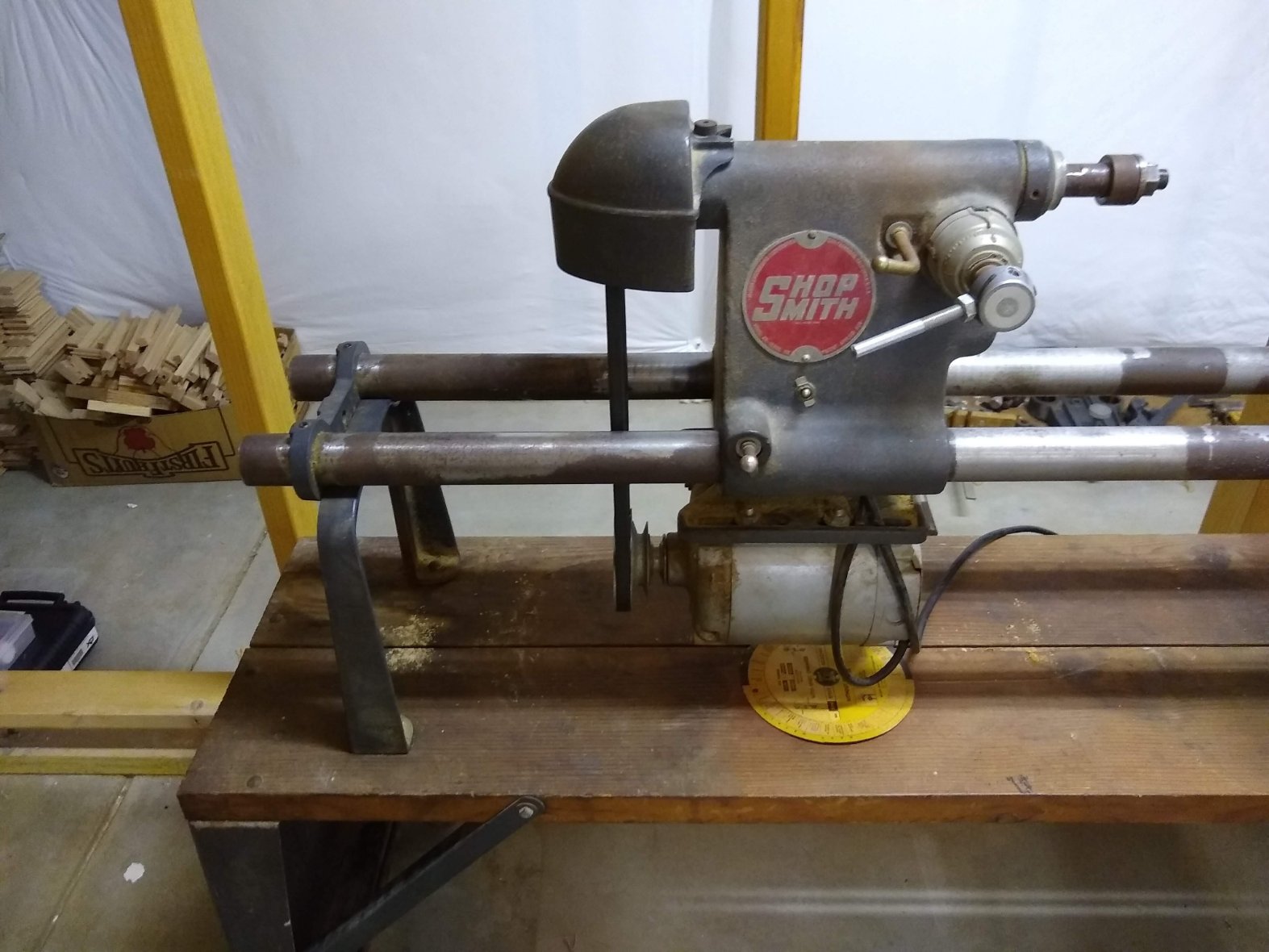

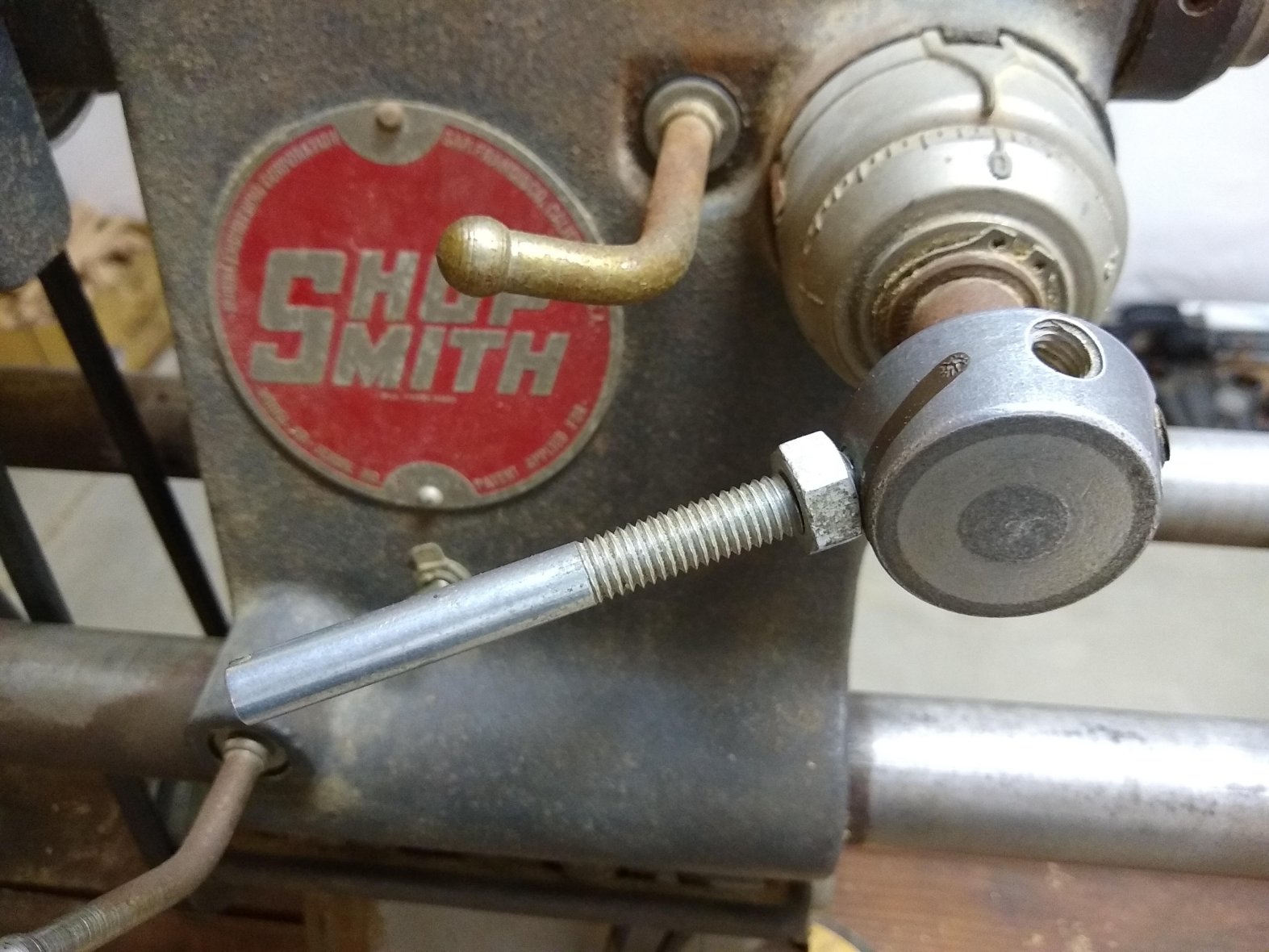

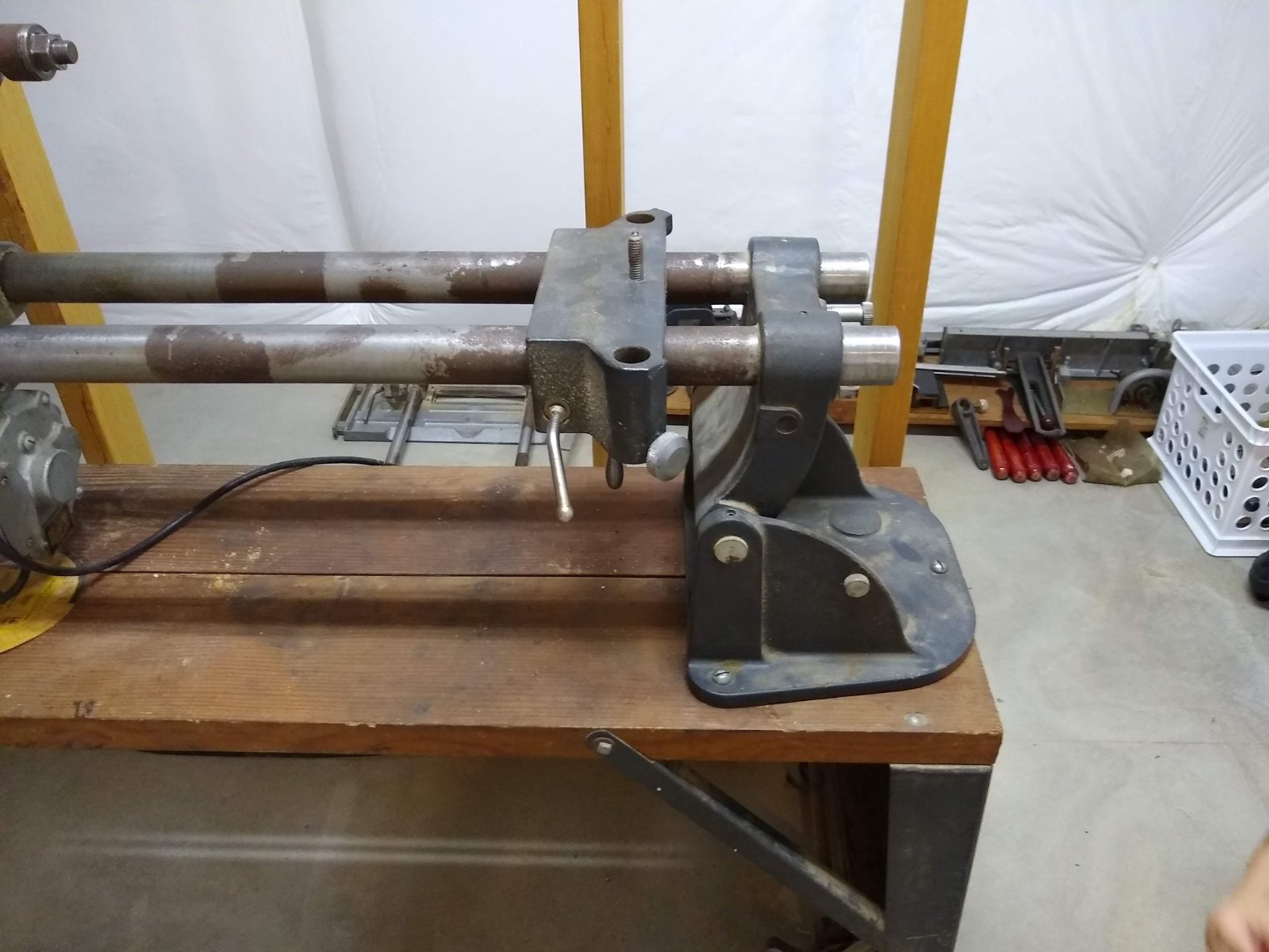

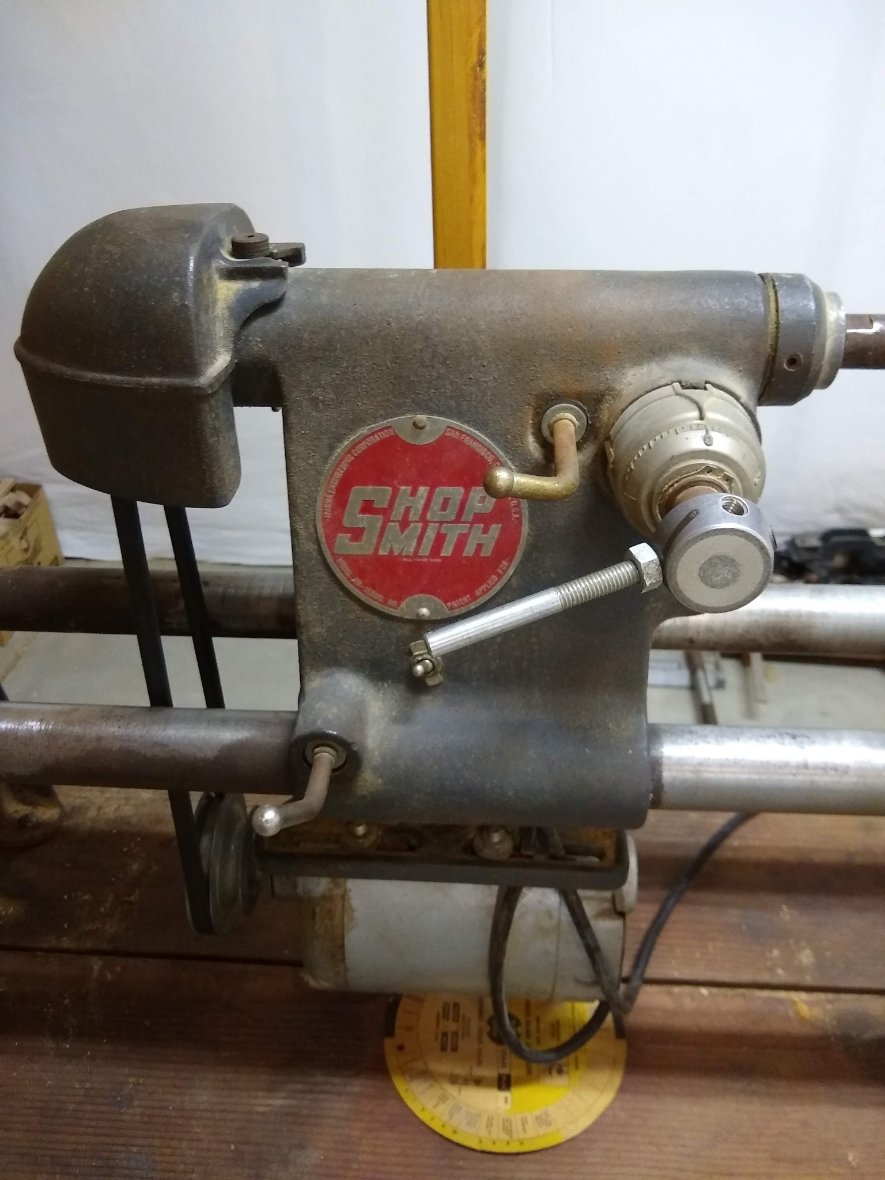

Before photos
Attachments
Top
Williams
Silver Member
Posts: 10
Joined: Sun Sep 27, 2020 12:49 am

Re: Hello Shopsmith World

Post by Williams »

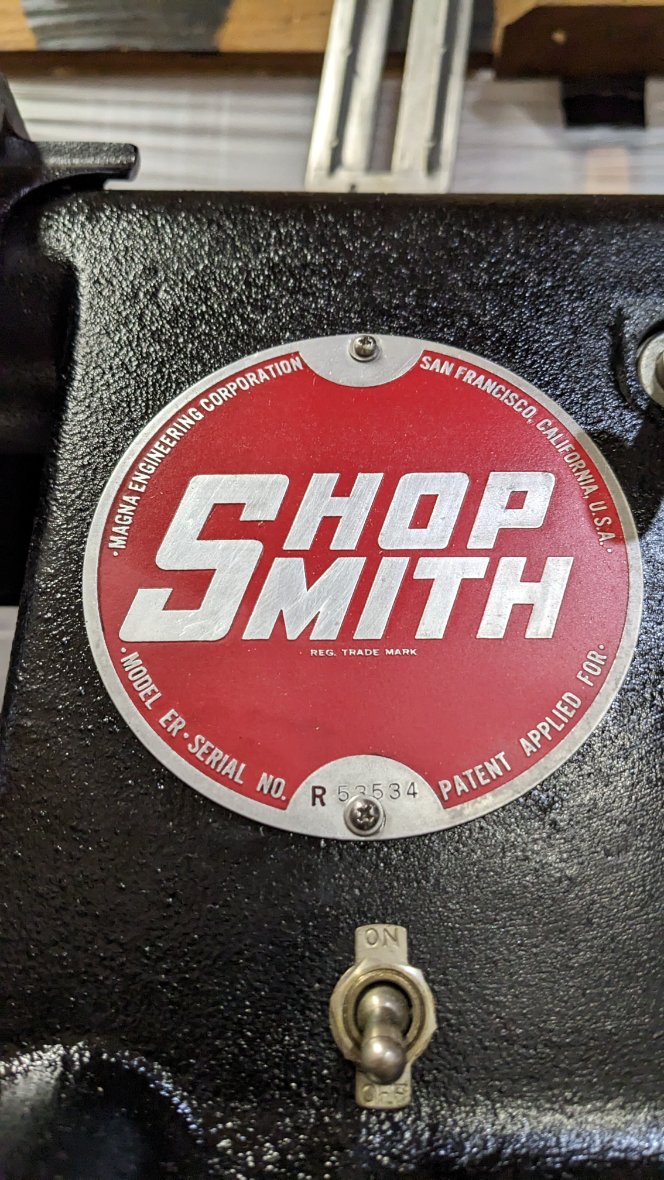

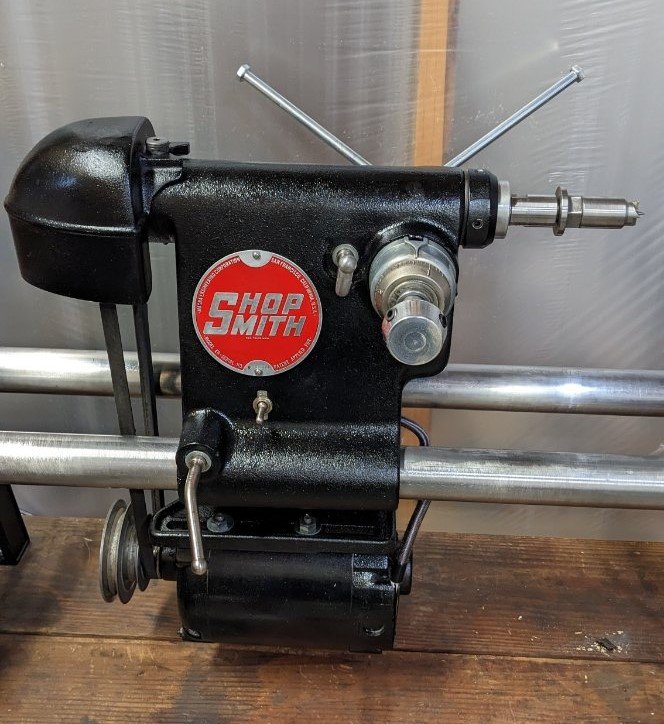

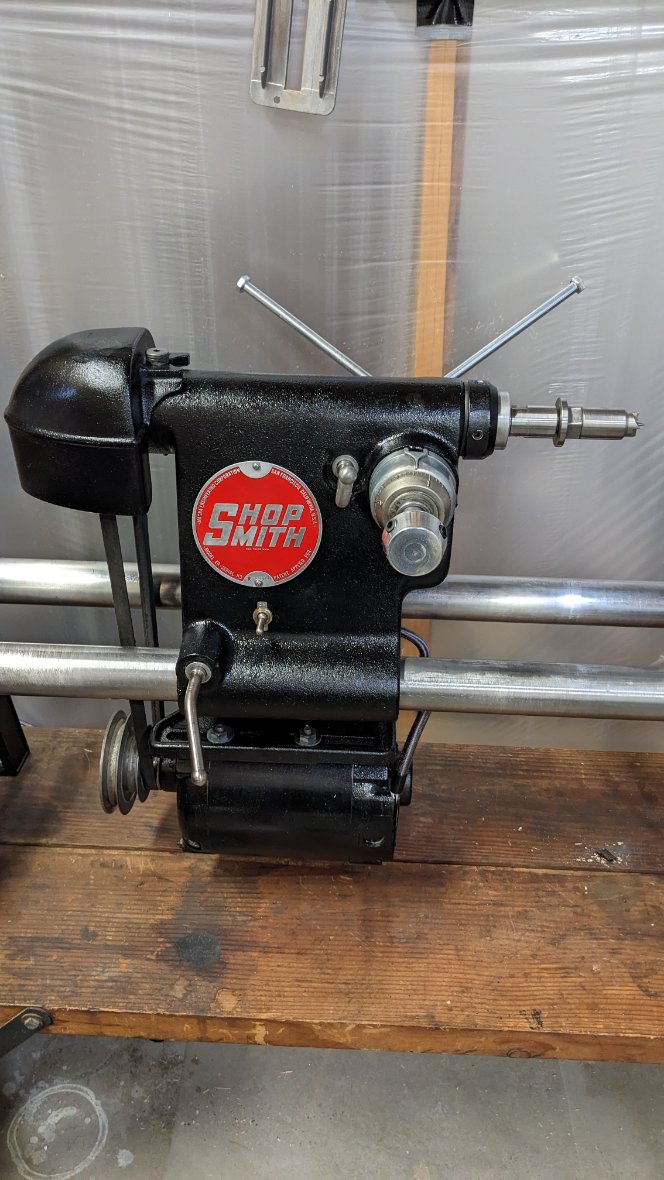

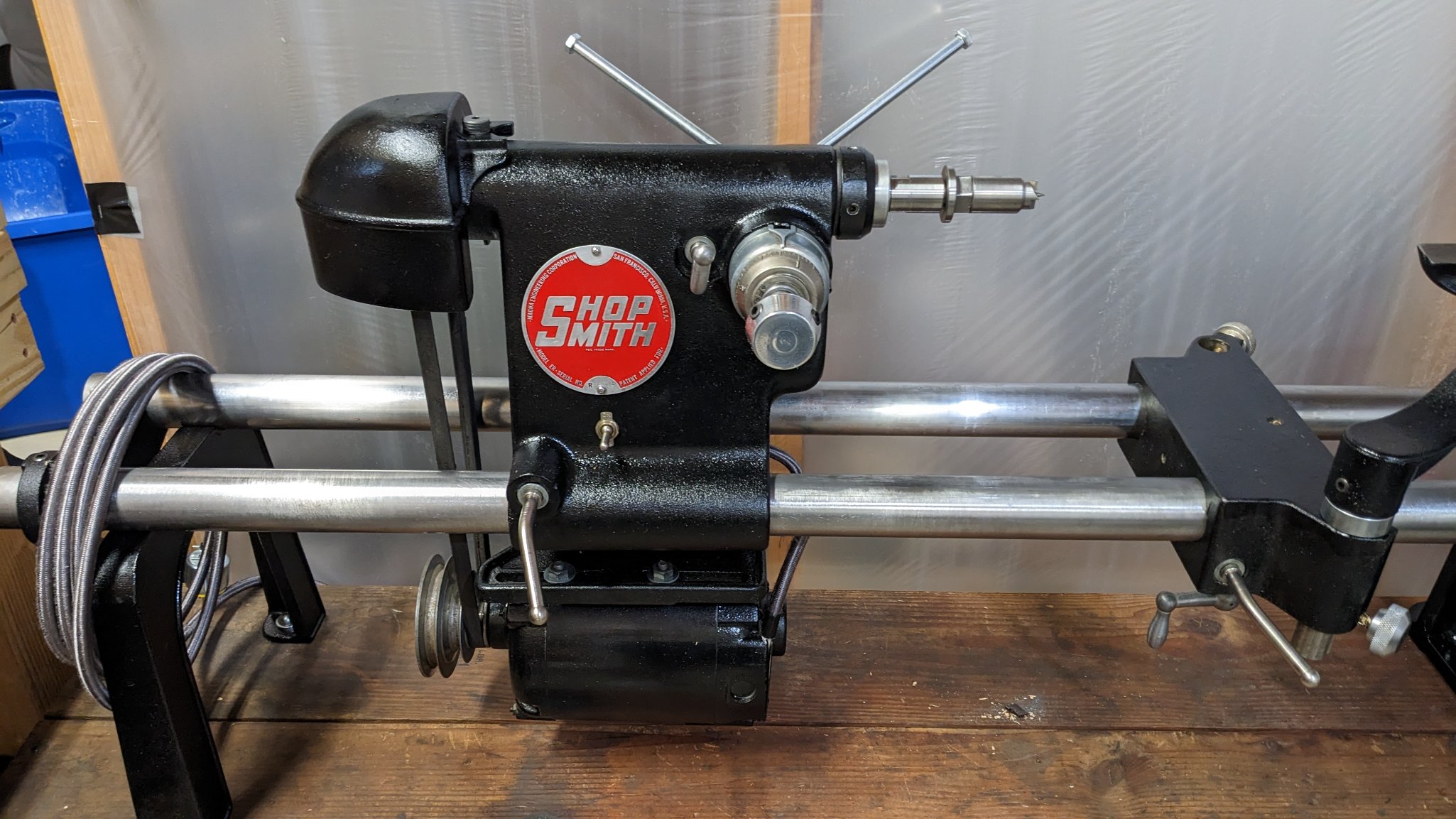

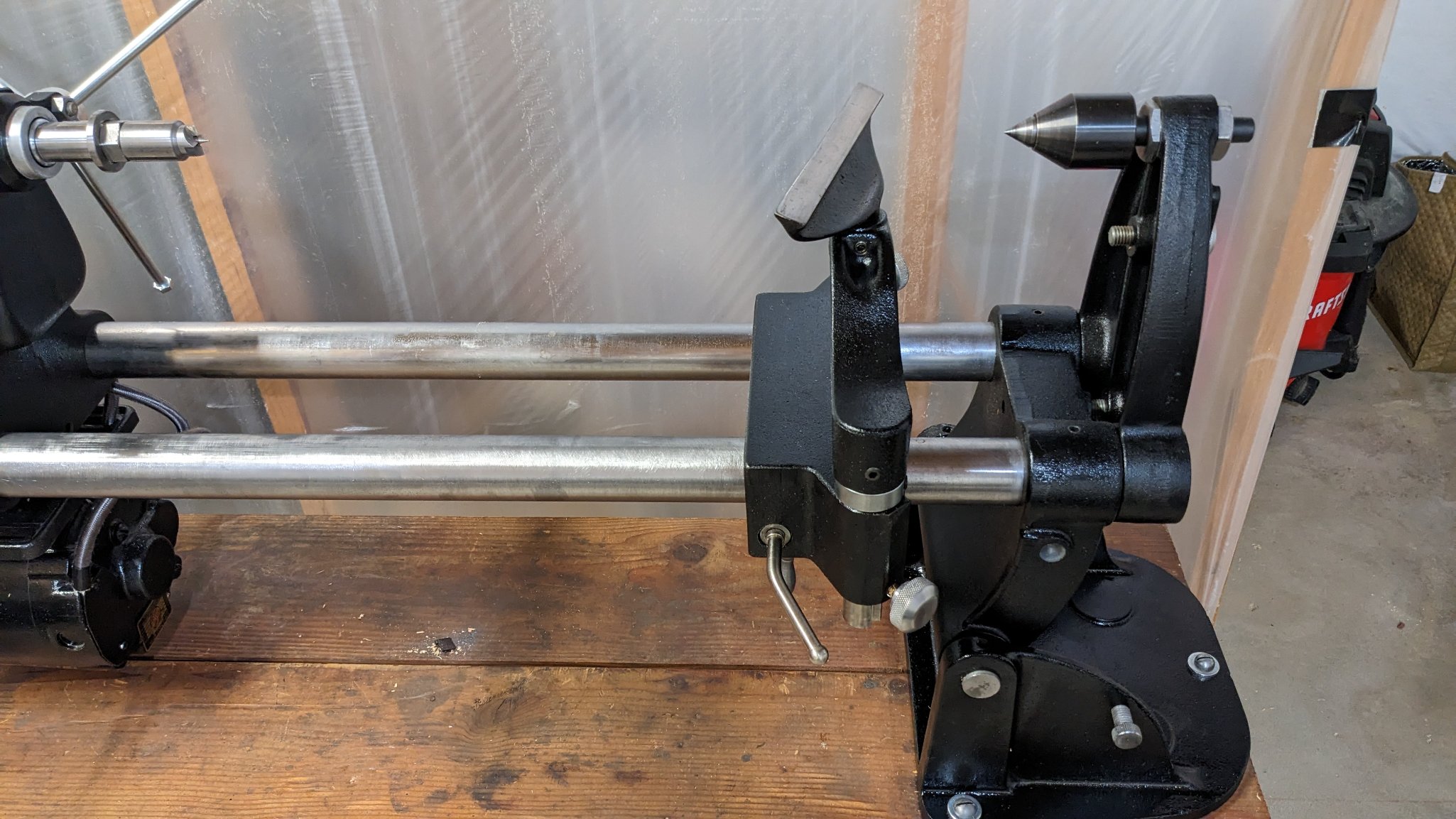

After photos
Attachments
Top
Williams
Silver Member
Posts: 10
Joined: Sun Sep 27, 2020 12:49 am

Re: Hello Shopsmith World

Post by Williams »

And no, I don't know if any Williamses on the west coast. The most famous Williams I know of was one of my grandfathers who was the PE coach at the local school, so everyone in town ages 50-80 remembers him.
Top
User avatar
chapmanruss
Platinum Member
Posts: 3817
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Hello Shopsmith World

Post by chapmanruss »

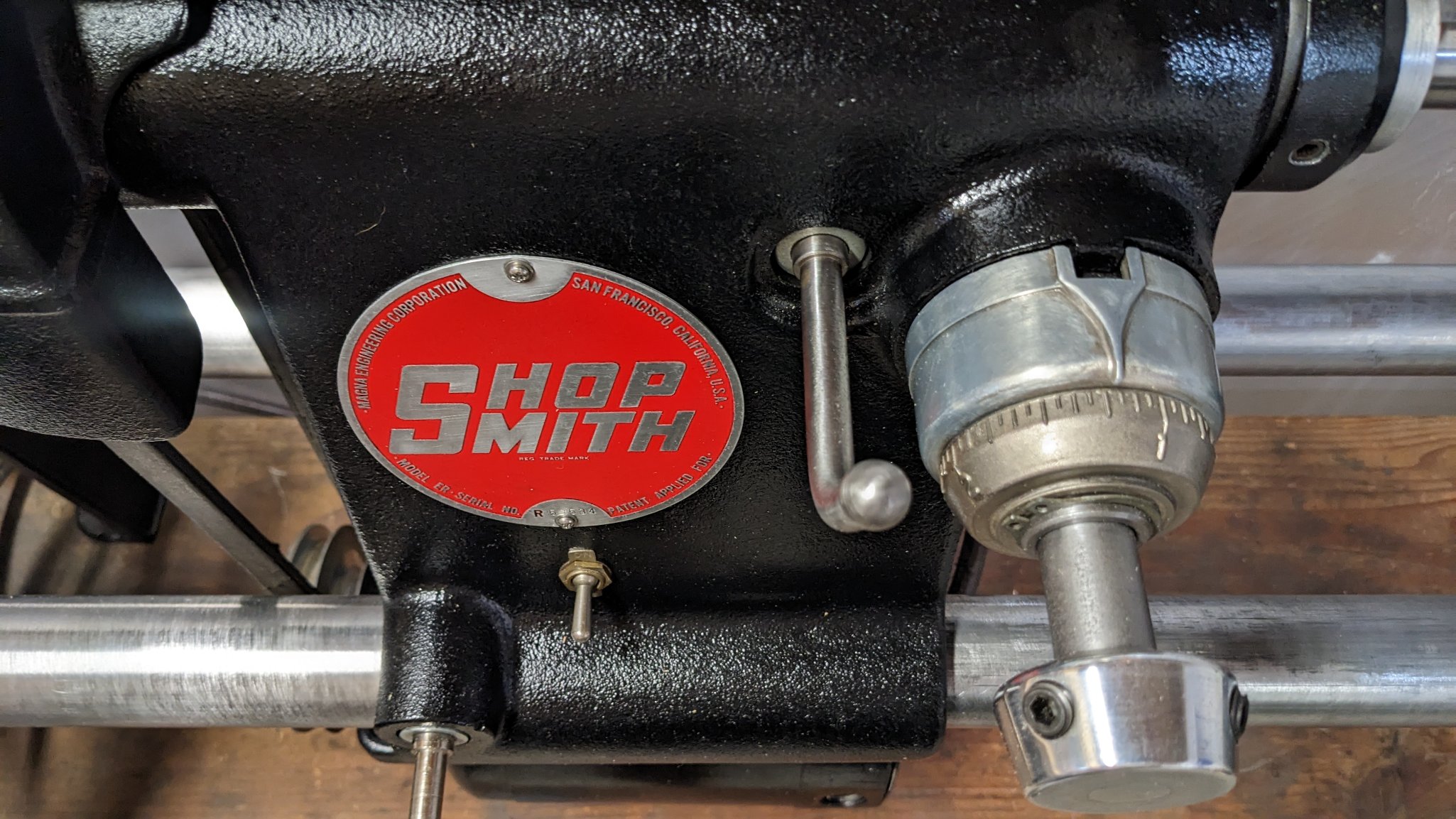

I am puzzled by your Lathe Drive shown in your picture below. Does your Lathe Drive have a threaded bore?

_
.
It looks like it is threaded onto a 5/8" Arbor. I cannot see if the Lathe Drive has a set screw.

_

.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
