2 1/2" jointer cutter
Posted: Wed Apr 14, 2021 11:36 pm
I have the shaper/jointer fence with my 10er, have the shaper cutter arbor but do not know what the jointer cutter arbor-spindle looks like. Anyone know?
Shopsmith Forums
A woodworking forum for woodworking hobbyist and woodworking projects related and unrelated to the Shopsmith MARK V
https://forum.shopsmith.com/
2 1/2" jointer cutter
Page 1 of 1
Re: 2 1/2" jointer cutter
Posted: Wed Apr 14, 2021 11:51 pm
It fits directly on the spindle, no arbor required. The hole on the outside end is smaller, so it can only go on in the correct orientation.
Re: 2 1/2" jointer cutter
Posted: Thu Apr 15, 2021 10:50 am

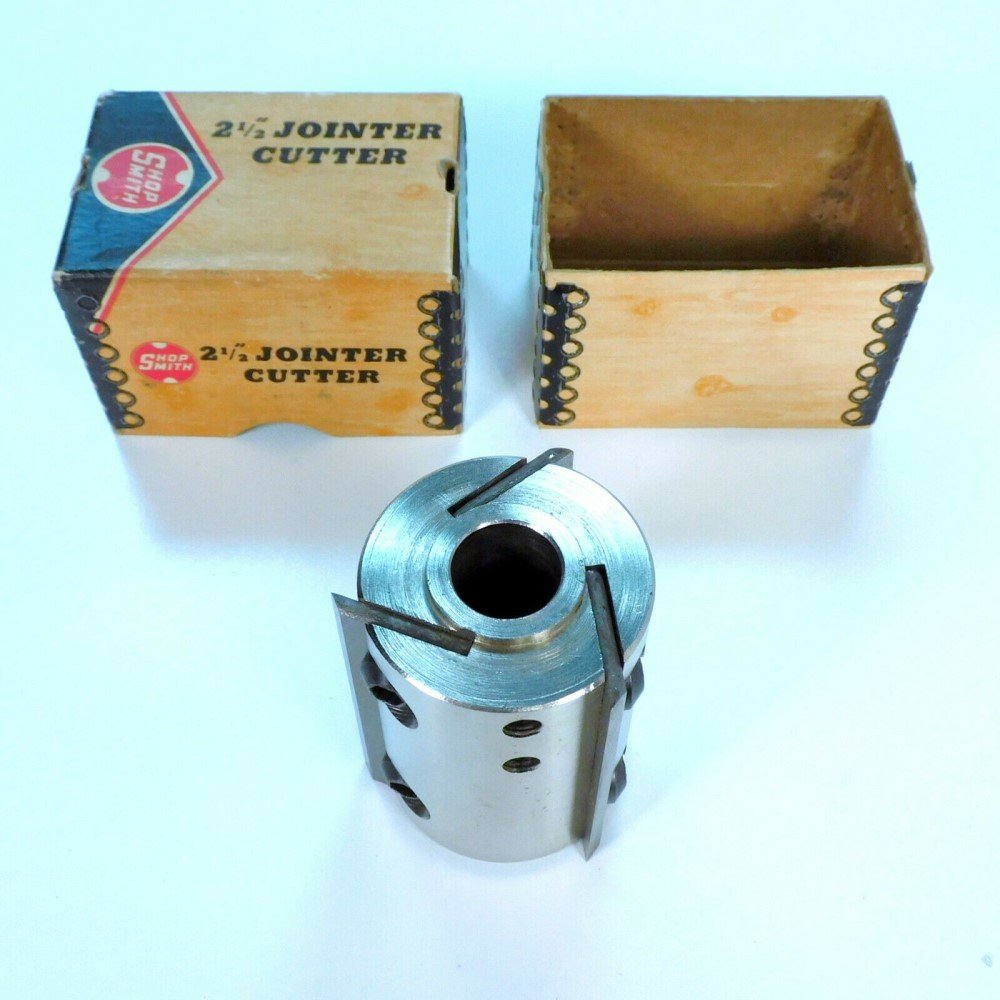

Below is a picture of the Jointer Cutter Head. Note the 2 set screws that hold it directly on the Quills 5/8" Spindle. The set screws will be either 1/4" (Model 10s) or 5/16" (Mark 5).
_
_
- Jointer Cutter 12 230.jpg (109.63 KiB) Viewed 581 times
